*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order
Part No:SDOCK4U313
Stock:3 In Stock
EAN Code:0065030870672

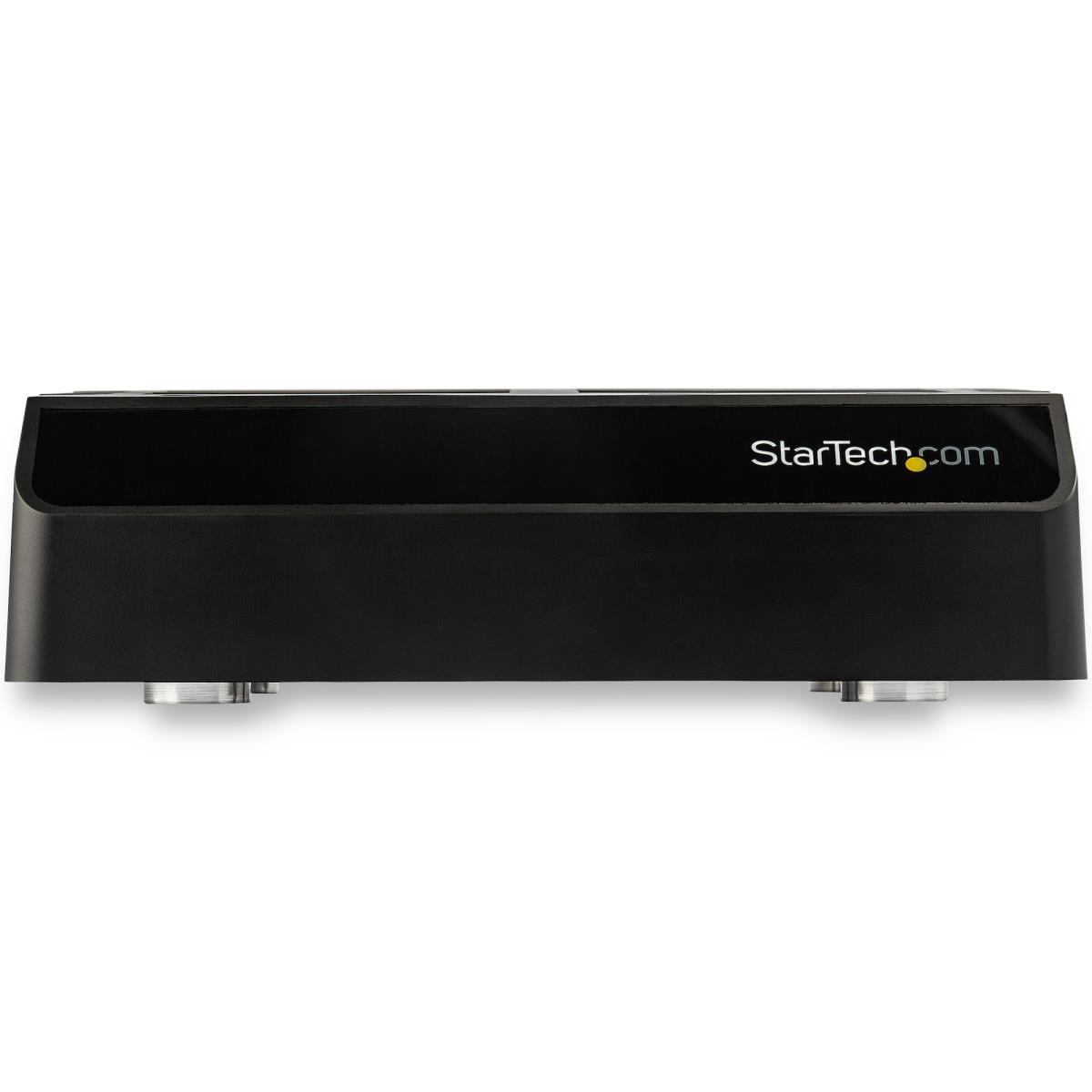

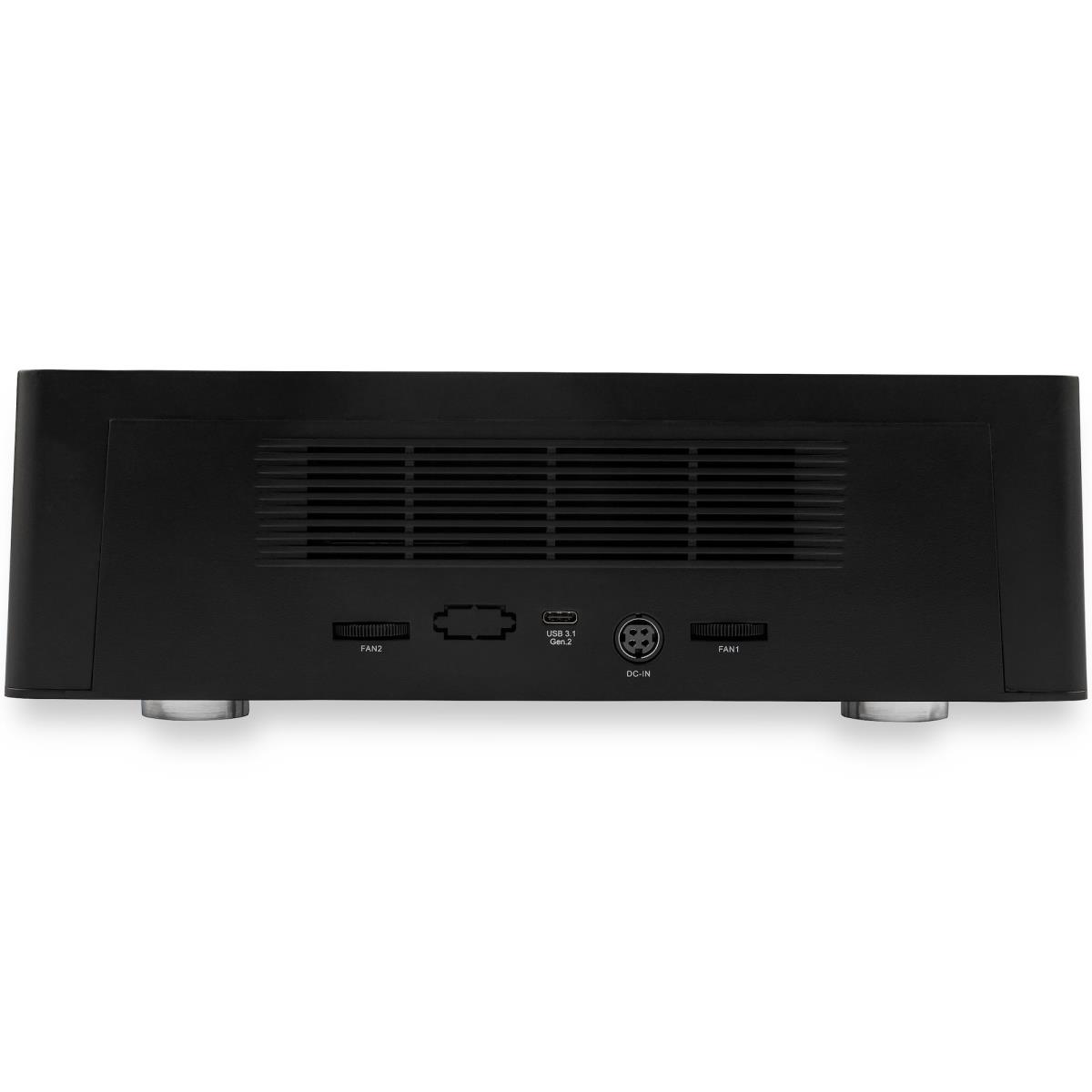

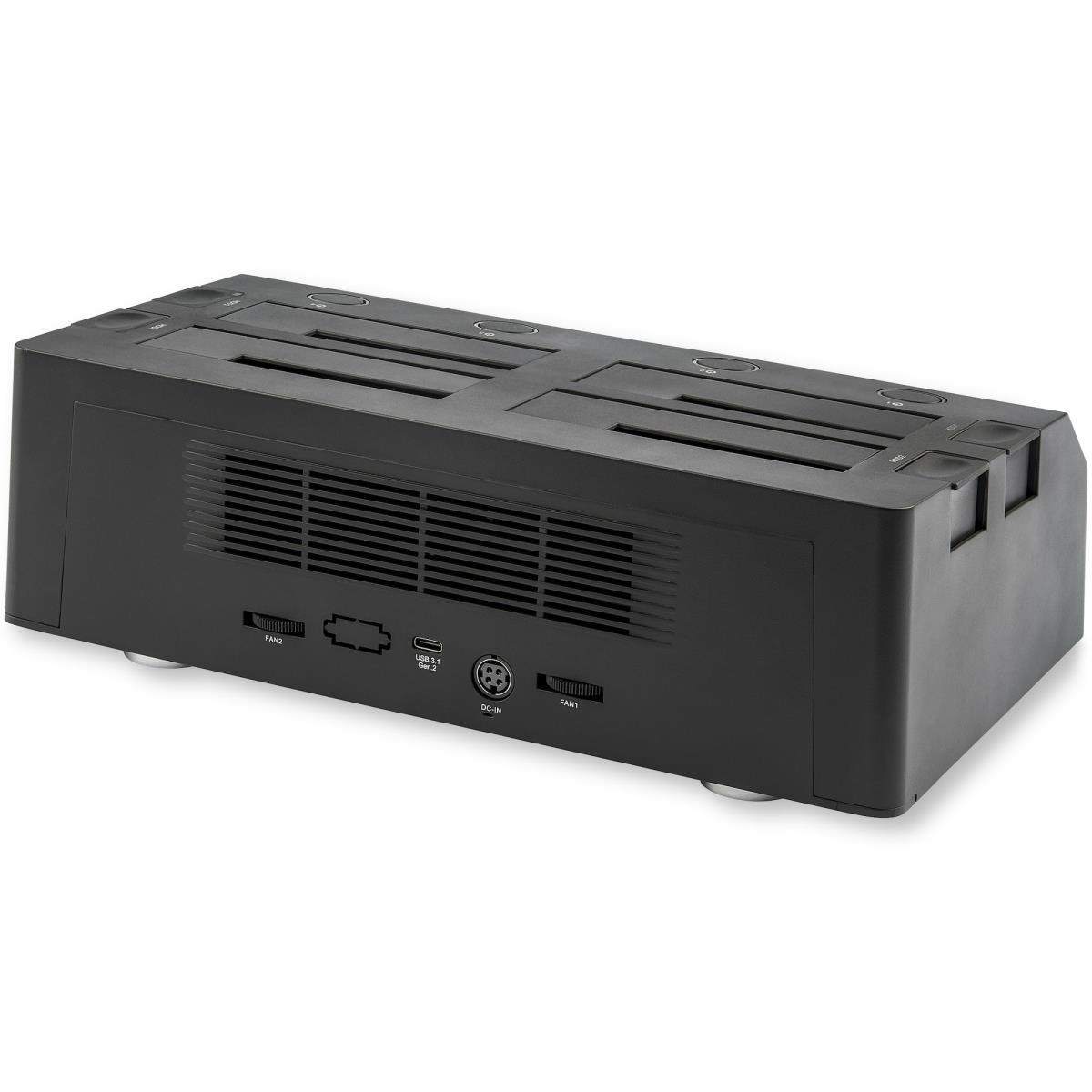

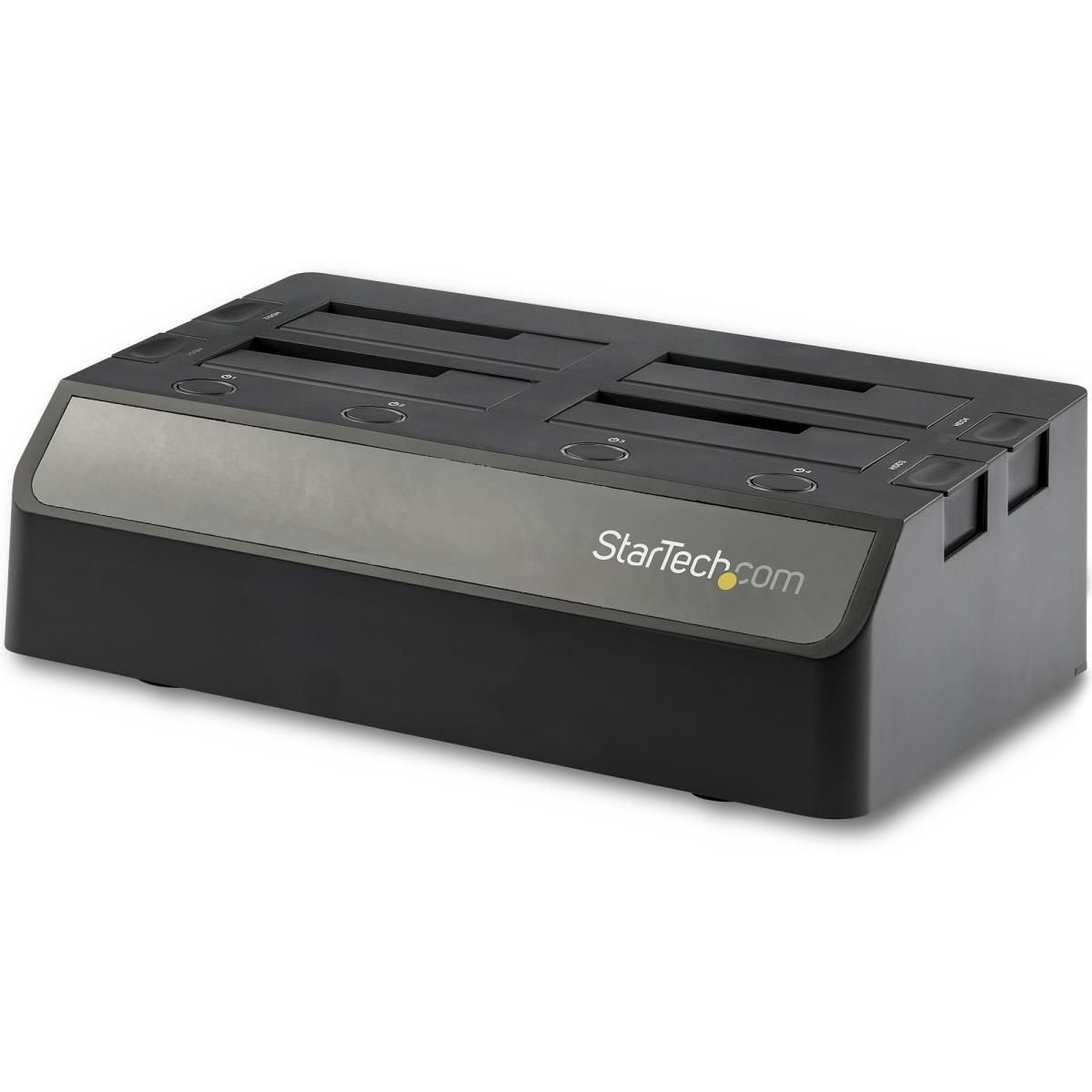

External SSD/HDD Docking Station | USB 3.2 Gen 2 (10 Gbps) to SATA I/II/IIIThis 4-bay SATA HDD docking station lets you access up to four solid-state drives or hard drives simultaneously over USB 3.1 (10Gbps), and hot swap drives with ease. Ideal for IT professionals, the docking station provides large data capacity and fast file transfers, helping you manage your workflow more efficiently.Save time accessing and managing your dataWhen you’re managing a large number of drives, the HDD/SSD docking station saves you time. Quickly dock and swap your drives for disk imaging, data recovery from failing drives, data backups, or other tasks.The hard drive docking station also has SMART support, for accessing important drive information such as hours in use, number of power cycles, and disk health.Fast data transfersWith USB 3.1 Gen 2, the HDD docking station lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.Convenient compatibilityThe hard drive docking station includes a USB Type-C cable, for connecting to USB-C equipped laptops and devices, and a USB Type-A cable, for backward compatibility with your existing USB 3.0, 2.0 and 1.x devices.The docking station also works with 2.5” and 3.5” IDE hard drives, mSATA drives and M.2 drives using a compatible StarTech.com adapter:IDE hard drives: Use StarTech.com adapter SAT2IDEADP SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD DocksmSATA drives: Use StarTech.com adapter SAT32MSAT257 mSATA SSD to 2.5in SATA Adapter ConverterM.2 drives: Use StarTech.com adapter SAT32M225 M.2 NGFF SSD to 2.5in SATA Adapter ConverterThe SDOCK4U313 is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage
Hard drive | |
---|---|
Storage media type | HDD, SSD |
Storage drive interface | Serial ATA, Serial ATA II, Serial ATA III |
Storage drive sizes supported | 2.5,3.5" |
Number of storage drives supported | 4 |
Maximum storage capacity | 10 TB |
Ports & interfaces | |
USB 3.2 Gen 2 (3.1 Gen 2) ports quantity | 1 |
Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
Technical details | |
UASP support | Yes |
Mean time between failures (MTBF) | 30000 h |
Package width | 170 mm |
Package height | 210 mm |
Maximum data transfer rate | 10 Gbit/s |
Product colour | Black |
Material | Plastic |
Plug and Play | Yes |
Hot-swap | Yes |
Chipset | VIA Labs - VL820, VIA Labs - VL715 |
TRIM support | Yes |
S.M.A.R.T. support | Yes |
Number of connectivity cycles | 10000 |
Noise level | 19.04 dB |
Sustainability certificates | CE, RoHS |
Harmonized System (HS) code | 84733080 |
Features | |
UASP support | Yes |
Mean time between failures (MTBF) | 30000 h |
Maximum data transfer rate | 10 Gbit/s |
LED indicators | Activity, Power |
Product colour | Black |
Material | Plastic |
Plug and Play | Yes |
Hot-swap | Yes |
Chipset | VIA Labs - VL820, VIA Labs - VL715 |
TRIM support | Yes |
S.M.A.R.T. support | Yes |
Number of connectivity cycles | 10000 |
Noise level | 19.04 dB |
Cooling | |
Number of fans | 2 fan(s) |
Fan diameter | 6 cm |
Built-in fan | Yes |
Bearing type | Sleeve bearing |
Power | |
AC input voltage | 100 - 240 V |
Input current | 2 A |
Output voltage | 12 V |
Output current | 6.5 A |
Power consumption (standby) | 78 W |
Weight & dimensions | |
Width | 171 mm |
Depth | 291 mm |
Height | 87 mm |
Weight | 1 kg |
Operational conditions | |
Operating temperature (T-T) | 5 - 35 °C |
Storage temperature (T-T) | -20 - 50 °C |
Operating relative humidity (H-H) | 20 - 80% |
Indication | |
LED indicators | Activity, Power |
Ethernet LAN features | |
LED indicators | Activity, Power |

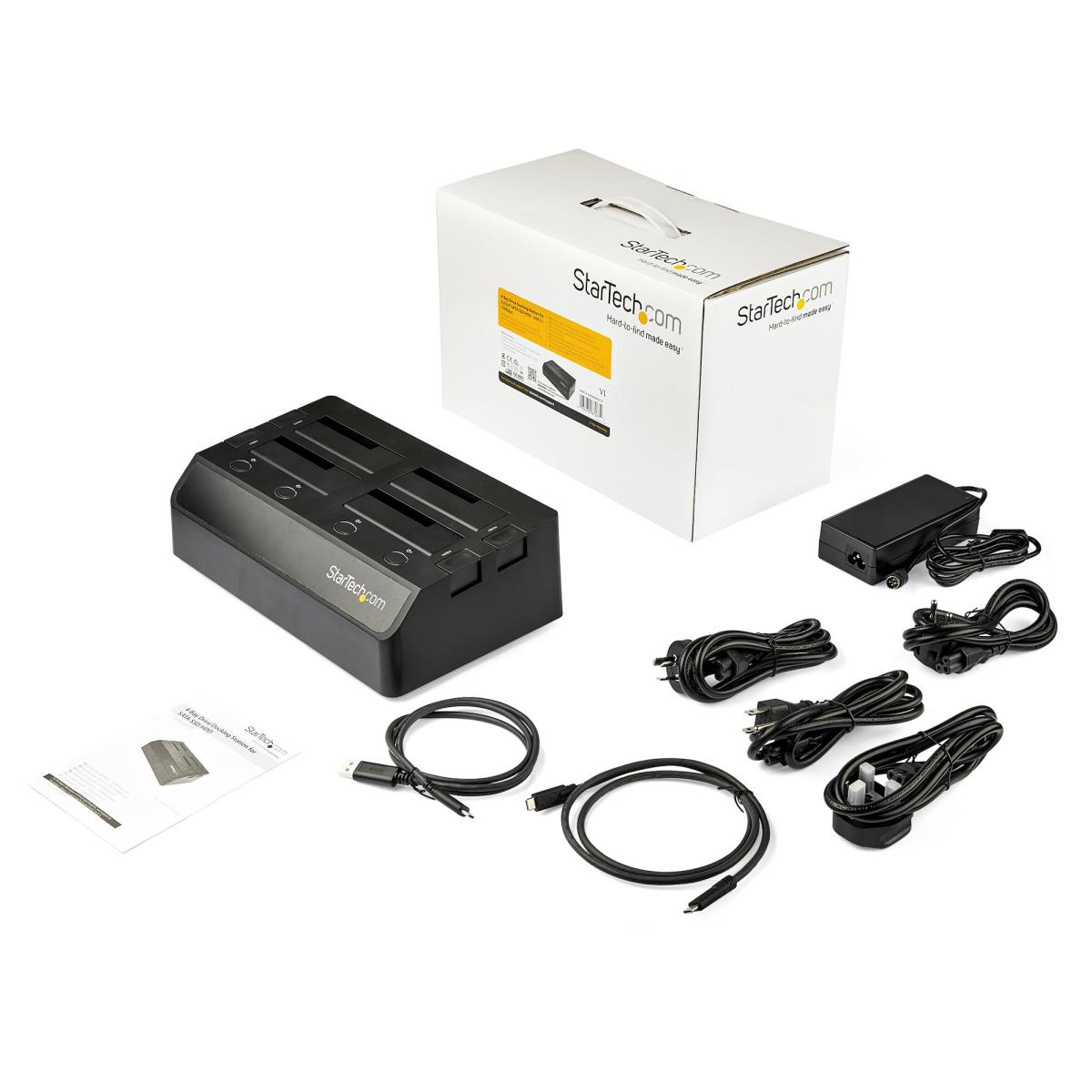

Packaging content | |
Quick installation guide | Yes |
Included power plug types | ANZ, EU, JP, NA, UK |
AC adapter included | Yes |
Cables included | USB, USB Type-C |
Packaging data | |
Package depth | 340 mm |
Package width | 170 mm |
Package height | 210 mm |
Package weight | 2.4 kg |
Logistics data | |
Master (outer) case width | 354 mm |
Master (outer) case length | 356 mm |
Master (outer) case height | 470 mm |
Products per master (outer) case | 4 pc(s) |
Harmonized System (HS) code | 84733080 |
