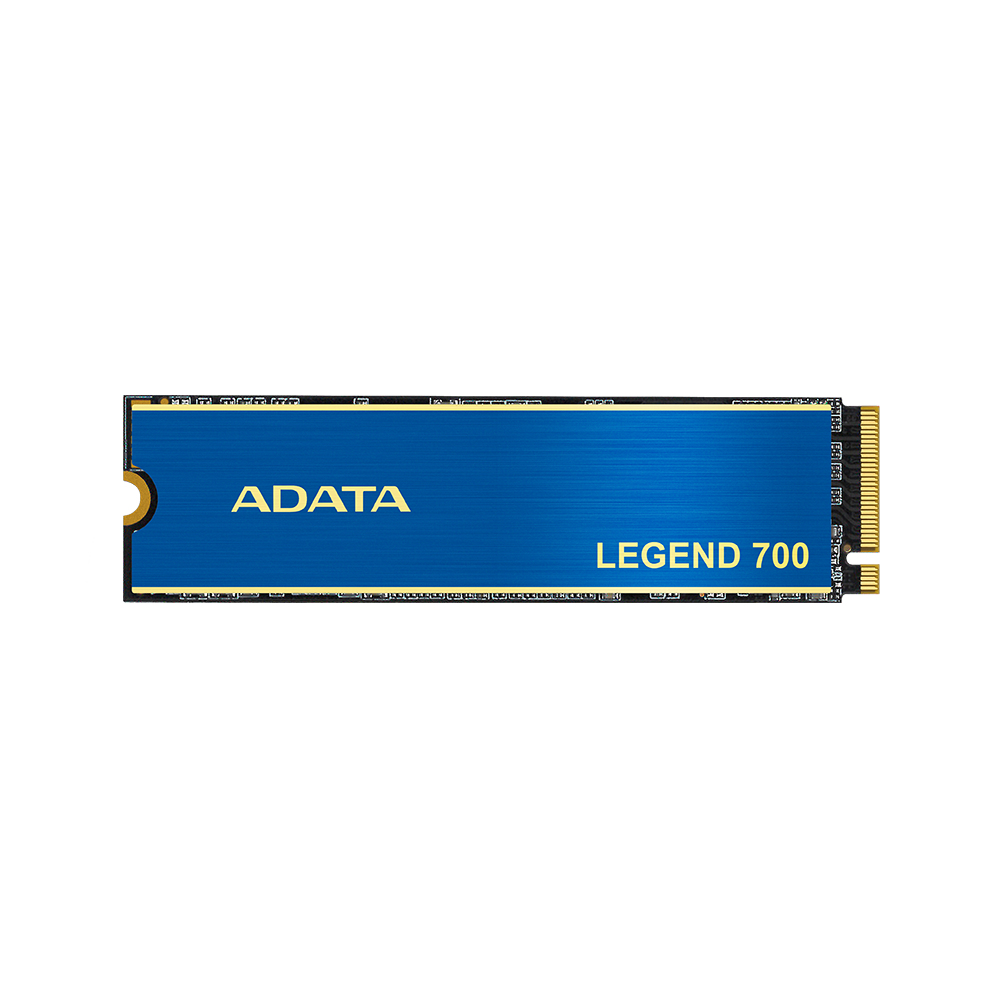

Legend 700 (ALEG-700-1TCS) 1TB NVMe SSD, M.2 Interface, PCIe Gen3, 2280, Read 2000MB/s, Write 1600MB/s, Heatsink, 3 Year Warranty
Introduction
Enhance Your Creativity
The LEGEND 700 utilizes PCIe Gen3 x4 and NVMe 1.3 to deliver sustained read and write speeds of up to 2,000/1,600 MB per second. It's M.2 2280 specification supports the latest Intel and AMD platforms, including desktop PCs and laptops.
Keeping Things Cool
The LEGEND 700's understated but elegant heat sink design is characterized by a regal blue color scheme with an exquisite golden trimming. The heat sink works to keep temperatures down for optimal performance and stability.
Create Better
Creativity can't wait! The LEGEND 700 is equipped with SLC caching and HMB technology (Host Memory Buffer) for seamless productivity.
Protect Your Creations
With LDPC (Low Density Parity Check Code), the LEGEND 700 ensures accurate data transmissions and security.
SSD ToolBox Software
ADATA SSD Toolbox allows for the monitoring of drive health and remaining life through Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T.) attributes. It also lets you keep track of the current operating temperature, capacity, and total space used, plus keeps you up-to-date on firmware.
3-Year Warranty
LEGEND 700 uses only high quality ICs that have been rigorously tested. For further peace of mind, it come backed by a 3-year warranty.
Specifications
| Hard drive | |
|---|---|
| SSD capacity | 1 TB |
| Memory type | 3D NAND |
| Data transmission | |
| Read speed | 2000 MB/s |
| Write speed | 1600 MB/s |
| Random write (4KB) | 280000 IOPS |
| Random read (4KB) | 180000 IOPS |
| Endurance | |
| Mean time between failures (MTBF) | 1500000 h |
| Features | |
| Interface | PCI Express 3.0 |
| Component for | PC/Laptop |
| NVMe | Yes |
| NVMe version | 1.3 |
| TBW rating | 320 |
| SSD capacity | 1 TB |
| Read speed | 2000 MB/s |
| Write speed | 1600 MB/s |
| Protection features | Shock resistant |
| ECC | Yes |
| Memory type | 3D NAND |
| Random write (4KB) | 280000 IOPS |
| Random read (4KB) | 180000 IOPS |
| Mean time between failures (MTBF) | 1500000 h |
| Certification | CE, FCC, BSMI, KC, EAC, RCM, morocco, UKCA, RoHS |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Harmonized System (HS) code | 84717070 |
| Certificates | |
| Certification | CE, FCC, BSMI, KC, EAC, RCM, morocco, UKCA, RoHS |
| Performance | |
| Interface | PCI Express 3.0 |
| Component for | PC/Laptop |
| NVMe | Yes |
| NVMe version | 1.3 |
| TBW rating | 320 |
| SSD capacity | 1 TB |
| Read speed | 2000 MB/s |
| Write speed | 1600 MB/s |
| ECC | Yes |
| Memory type | 3D NAND |
| Random write (4KB) | 280000 IOPS |
| Random read (4KB) | 180000 IOPS |
| Mean time between failures (MTBF) | 1500000 h |
| Design | |
| Component for | PC/Laptop |
| Protection features | Shock resistant |
| Certification | CE, FCC, BSMI, KC, EAC, RCM, morocco, UKCA, RoHS |
| SSD form factor | M.2 |
| Weight & dimensions | |
| Width | 22 mm |
| Weight | 9 g |
| Height | 3.13 mm |
| Depth | 80 mm |
| Package type | Box |
| Packaging data | |
| Package type | Box |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Non-operating shock | 1500 G |
| Technical details | |
| Interface | PCI Express 3.0 |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Protection features | Shock resistant |
| ECC | Yes |
| Non-operating shock | 1500 G |
| SSD form factor | M.2 |
| Logistics data | |
| Harmonized System (HS) code | 84717070 |
