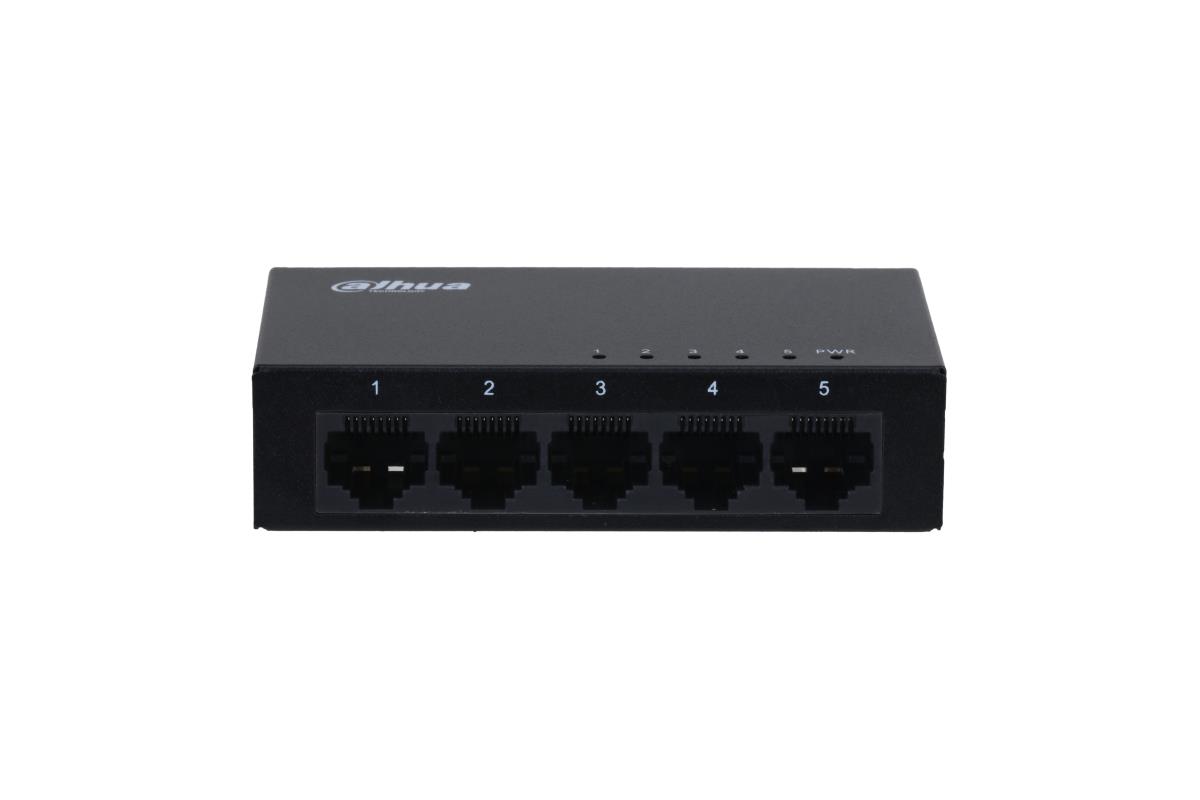

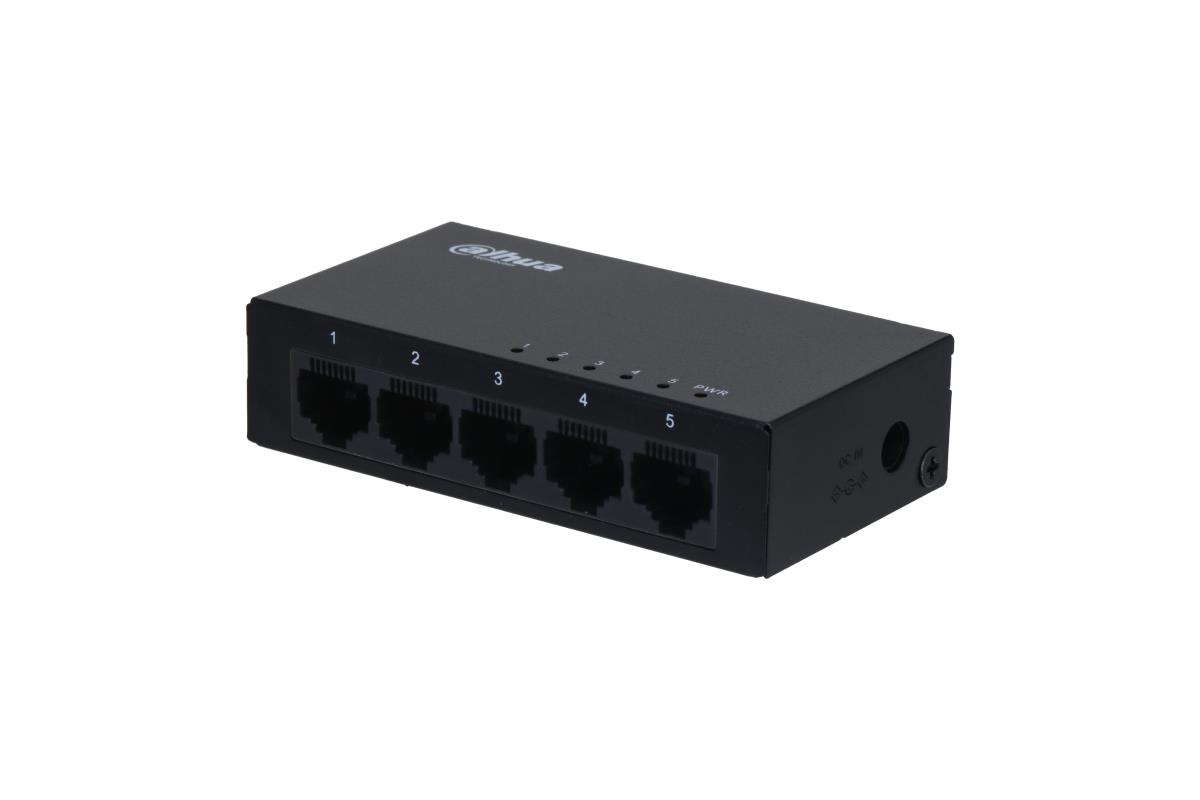

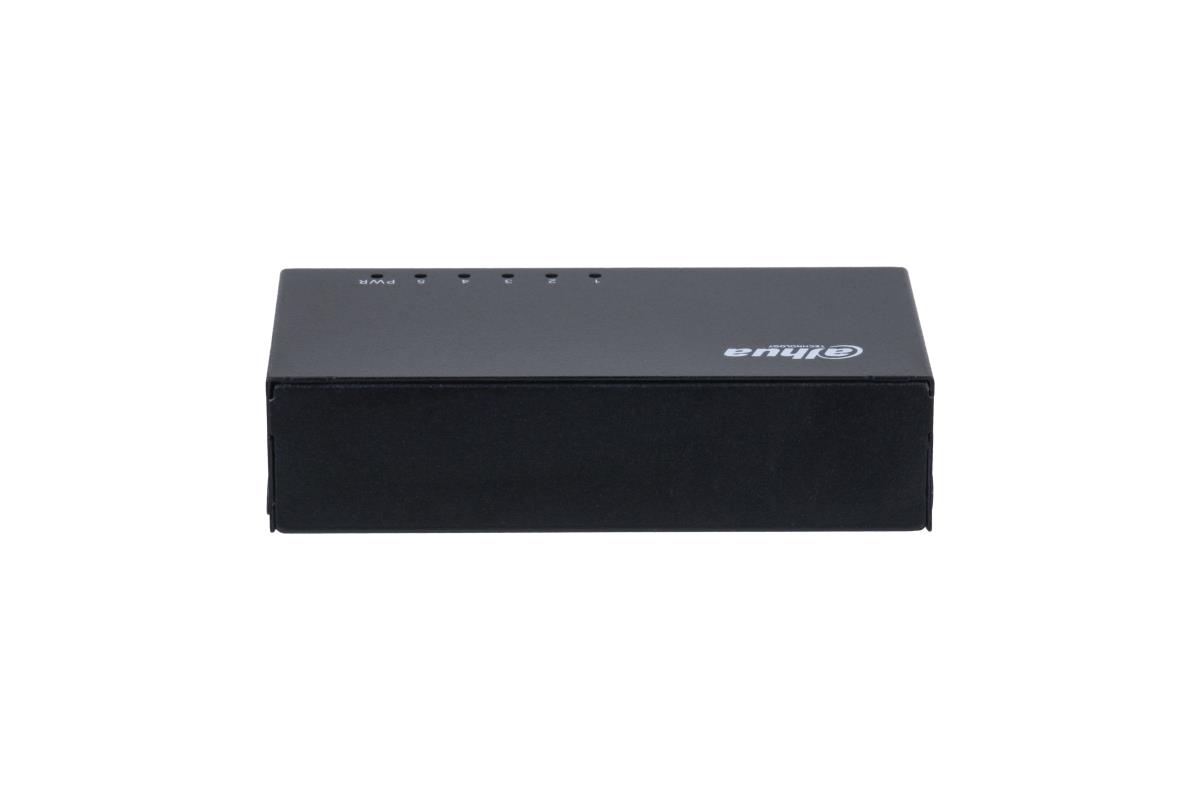

5-Port Unmanaged Gigabit Switch
Introduction
The Device is a layer-2 commercial switch. It has a high-performance switching engine and a large buffer memory to ensure smooth video stream transmission. With a full-metal and fanless design, the Device
features great heat dissipation capability on the shell surface. The Device is an unmanaged switch, so it does not need to be configured through web interface, which simplifies installation
Robust Design
Built to last, the architecture of the switch makes it highly reliable, operating with high-efficiency non-stop.
Plug and Play
Hassle-free, it does not require any configuration. Simply use after it is powered on.
Optimized Performance All ports can transmit streams at high speeds without delay.
Easy Installation
Both desktop and wall mount installation are supported, making it suitable for a wide variety of scenarios.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Power connector | DC-in jack |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| 10G support | No |
| Data transmission | |
| Packet buffer memory | 1.5 MB |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| Design | |
| Product colour | Black |
| LED indicators | Yes |
| Housing material | Metal |
| Rack mounting | No |
| Performance | |
| Mean time between failures (MTBF) | 3184161.84 h |
| Packet buffer memory | 1.5 MB |
| Power | |
| Power consumption (max) | 1.5 W |
| Power supply included | Yes |
| Input current | 1 A |
| DC input voltage | 5 V |
| Power source | DC |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 47 mm |
| Depth | 87 mm |
| Height | 22 mm |
| Weight | 160 g |
| Packaging data | |
| AC adapter included | Yes |
| Package width | 111 mm |
| Package depth | 94 mm |
| Package height | 67 mm |
| Package weight | 280 g |
| Sustainability | |
| Sustainability compliance | Yes |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 3184161.84 h |
| Housing material | Metal |
| Rack mounting | No |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Indication | |
| LED indicators | Yes |
| Packaging content | |
| AC adapter included | Yes |
