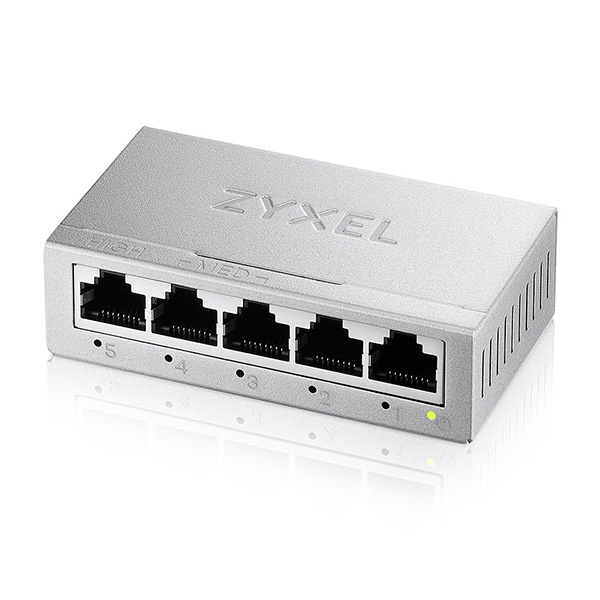

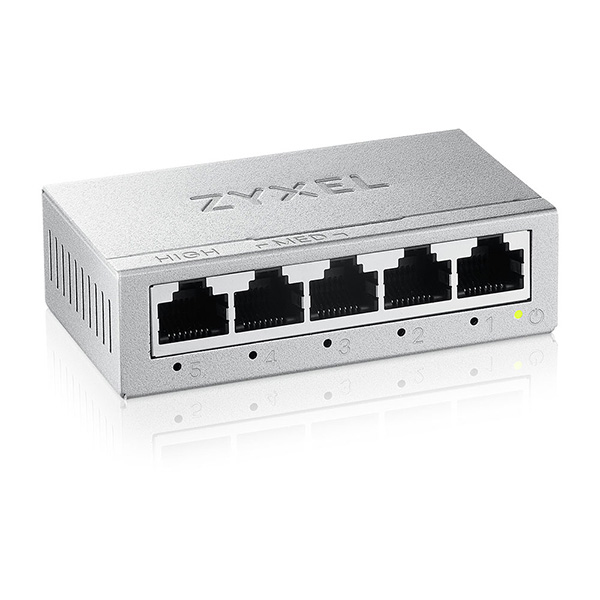

GS-105B V5 5-PORT DESKTOP
Introduction
Full network coverage with dependable mini switch
Plug-and-play to handle your daily network connectivity
Without any manual configuration, the GS-100 Series can boost data transfer speed for connected network devices such as IP phones, network storages, PCs and laptops to the network at Gigabit speed just with plug-and play.
Specifications
| Management features | |
|---|---|
| Traffic classification | Yes |
| Switch type | Unmanaged |
| Web-based management | No |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Cloud-managed | No |
| Ports & interfaces | |

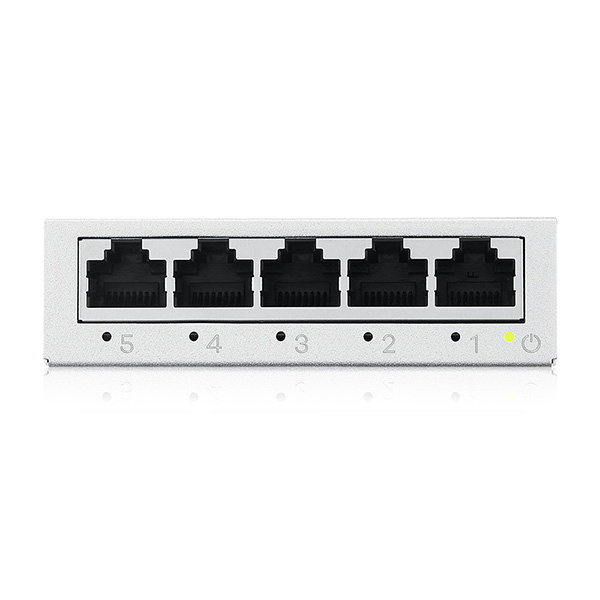

| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Data transmission | |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.4 Mpps |
| Design | |
| Stackable | No |
| Rack mounting | No |
| Power | |

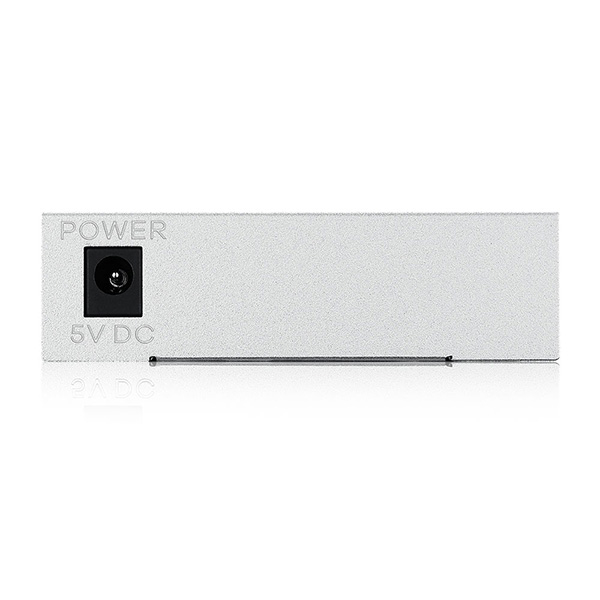

| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Weight & dimensions | |
| Width | 132 mm |
| Depth | 90 mm |
| Height | 27 mm |
| Weight | 280 g |
| Performance | |
| Stackable | No |
| Technical details | |
| Stackable | No |
| Rack mounting | No |
