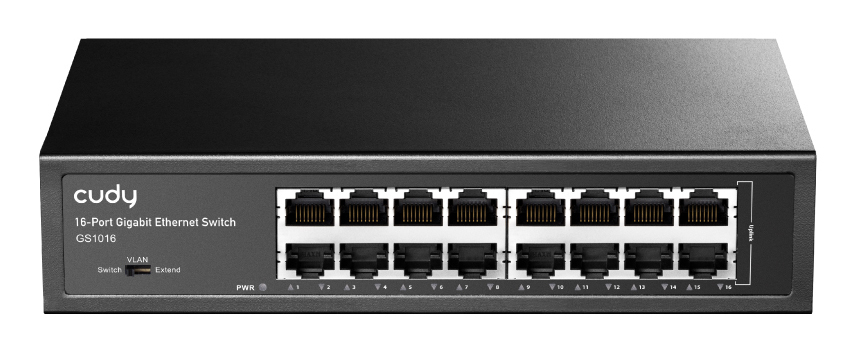

EU Product - GS1016 Metal Switch - Switch - 1 Gbps
Introduction
Default/VLAN/Extend Multi-Mode
VLAN Mode
Protect clients from attack from client-side hacking. With VLAN mode, downlink ports 1-14 can only communicate with uplink ports.
Extend Mode
Prolong the transmission distance of ports 1-14 to a maximum of 250 meters and simplify installation. (These ports' speed will be capped at 10 Mbps)
DSCP/802.1p QoS
Itentify the packets with DSCP headers and forward those with higher priority first.
IGMP Snooping
Identifies the multicast groups connected to the switch and sends data to the exact ports instead of broadcasting them.
Loop Prevention
Blocks the ports automatically when it detects a loop in the network, preventing downtime caused by misoperation.
Fanless Cooling
Low heat generation and fanless design cater to noise-sensitive enironments.
Installation and Dimension
Mounting Brackets Included
Standard 1U Rackmount
Versatile Scenarios
Office Network
Mall Wi-Fi
Surveillance
ISP FTTB
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |

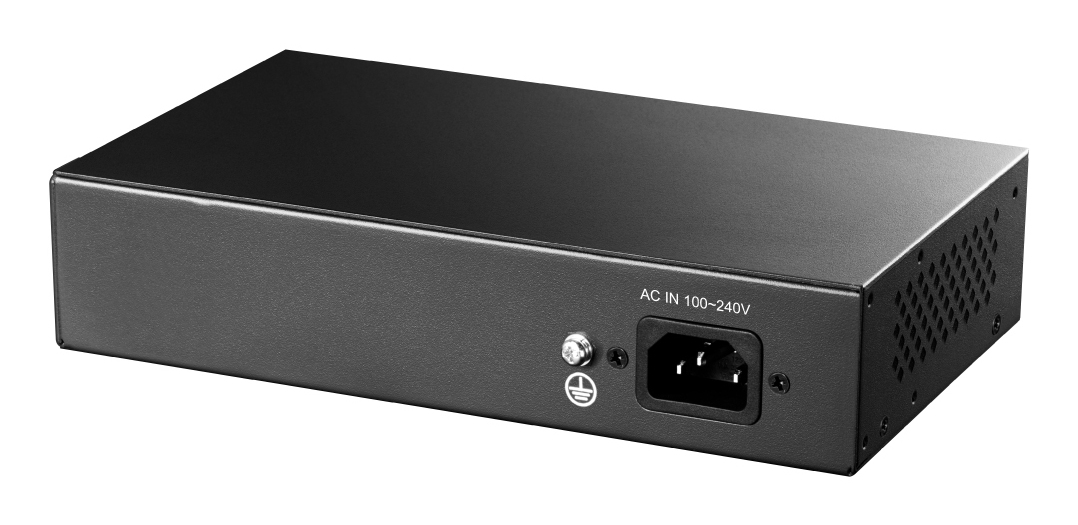

| Power connector | AC-in jack |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Cable types supported | Cat3, Cat5, Cat5e |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| VLAN support | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Data transmission | |
| MAC address table | 8192 entries |
| Switching capacity | 32 Gbit/s |
| Store-and-forward | Yes |
| Forwarding rate | 23.808 Mpps |
| Design | |
| Product colour | Black |
| Rack mounting | Yes |
| Power | |
| Power consumption (max) | 15 W |
| Power supply included | Yes |
| AC input voltage | 90 - 260 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Power connector | AC-in jack |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 118 mm |
| Depth | 200 mm |
| Height | 44 mm |
| Packaging content | |
| Manual | Yes |
| Cables included | AC |
| Packaging data | |
| Package width | 230 mm |
| Package depth | 202 mm |
| Package height | 78 mm |
| Manual | Yes |
| Cables included | AC |
| Technical details | |
| Product colour | Black |
| Rack mounting | Yes |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
