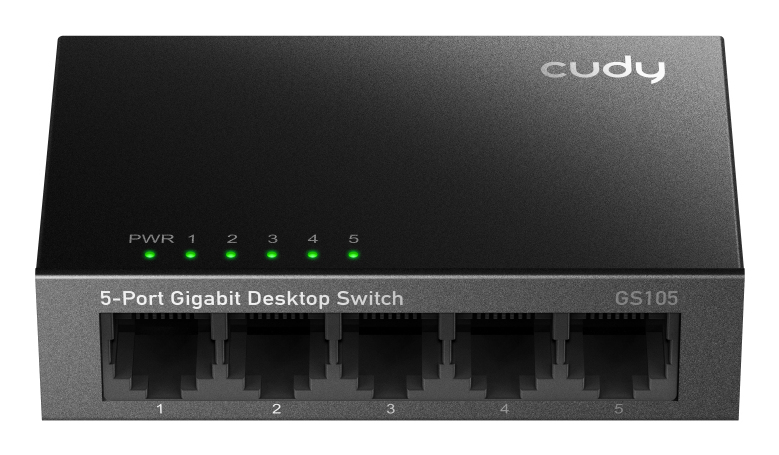

EU Product - Switch GS105 - Switch - 1 Gbps
Introduction
A Long-Distance Switch with Power Saving
Super-Fast Gigabit
Five 10/100/1000 Mbps non-blocking Ethernet ports enable instant transferring of data without mutual interference.
Extra Transmission Distance
140 meters of Gigabit transmission adding 40% longer distance compared to a standard switch, simplifies wiring for larger premises.
Saves Power
Reduce power consumption when Ethernet ports are idle, saving the electricity expenses on networking facilities.
Wall Mounting
Provides two mounting holes on the bottom of the casing, catering to wall-mounting placement scenarios.
A Plug and Play Network Hub
Connect Office Computers to Wired Network
Boost Home Devices with Stable Ethernet

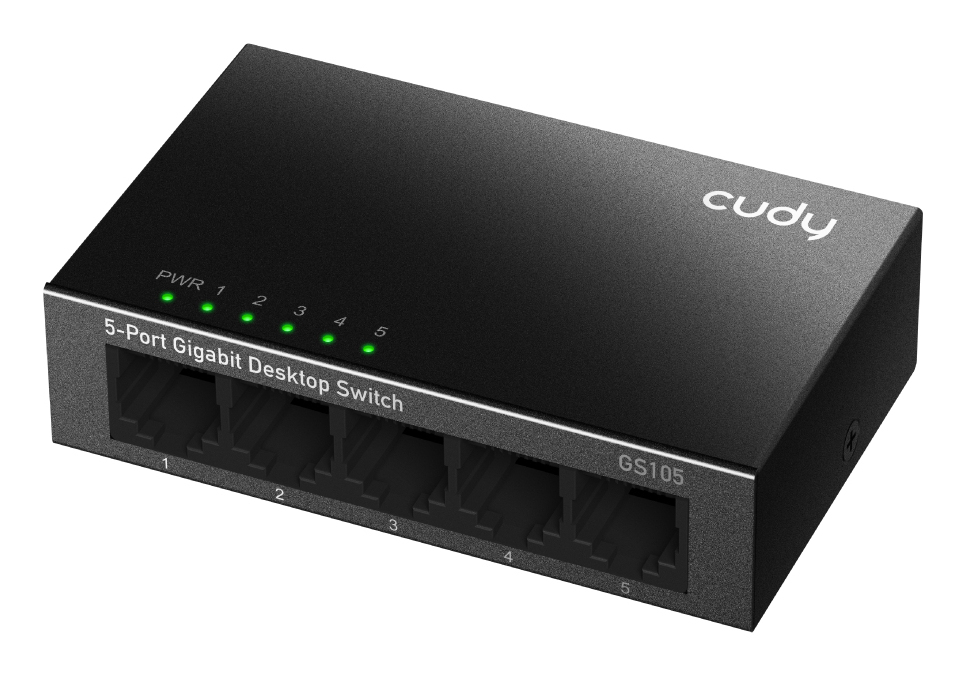

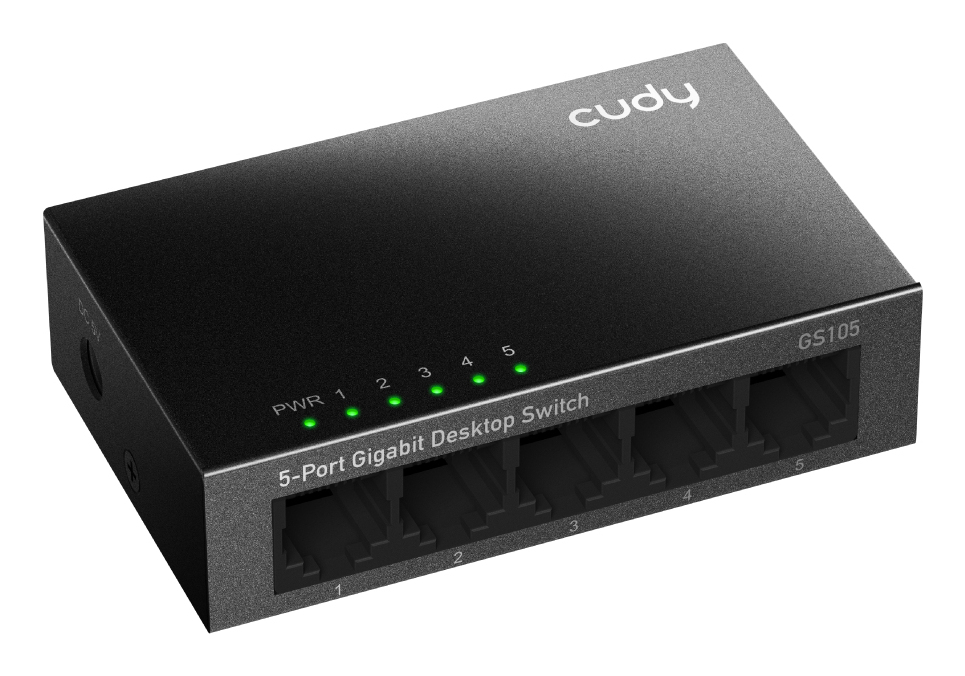

Robust Metal. Compact Size.
Metal casing delivers simplicity and protection for the network hub, compact enough to fit in most home network distribution boxes.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| VLAN support | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Half duplex | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| Packet buffer memory | 0.125 MB |
| MAC address table | 2048 entries |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 7.44 Mpps |
| Design | |
| Product colour | Black |
| LED indicators | Loop, Link, Power |
| Rack mounting | No |
| Performance | |
| Mean time between failures (MTBF) | 100000 h |
| Packet buffer memory | 0.125 MB |
| Power | |
| Power consumption (max) | 1.2 W |
| Power supply included | Yes |
| Input current | 0.55 A |
| DC input voltage | 5 V |
| Power source | DC |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3048 m |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 86.5 mm |
| Depth | 53 mm |
| Height | 23 mm |
| Weight | 115.1 g |

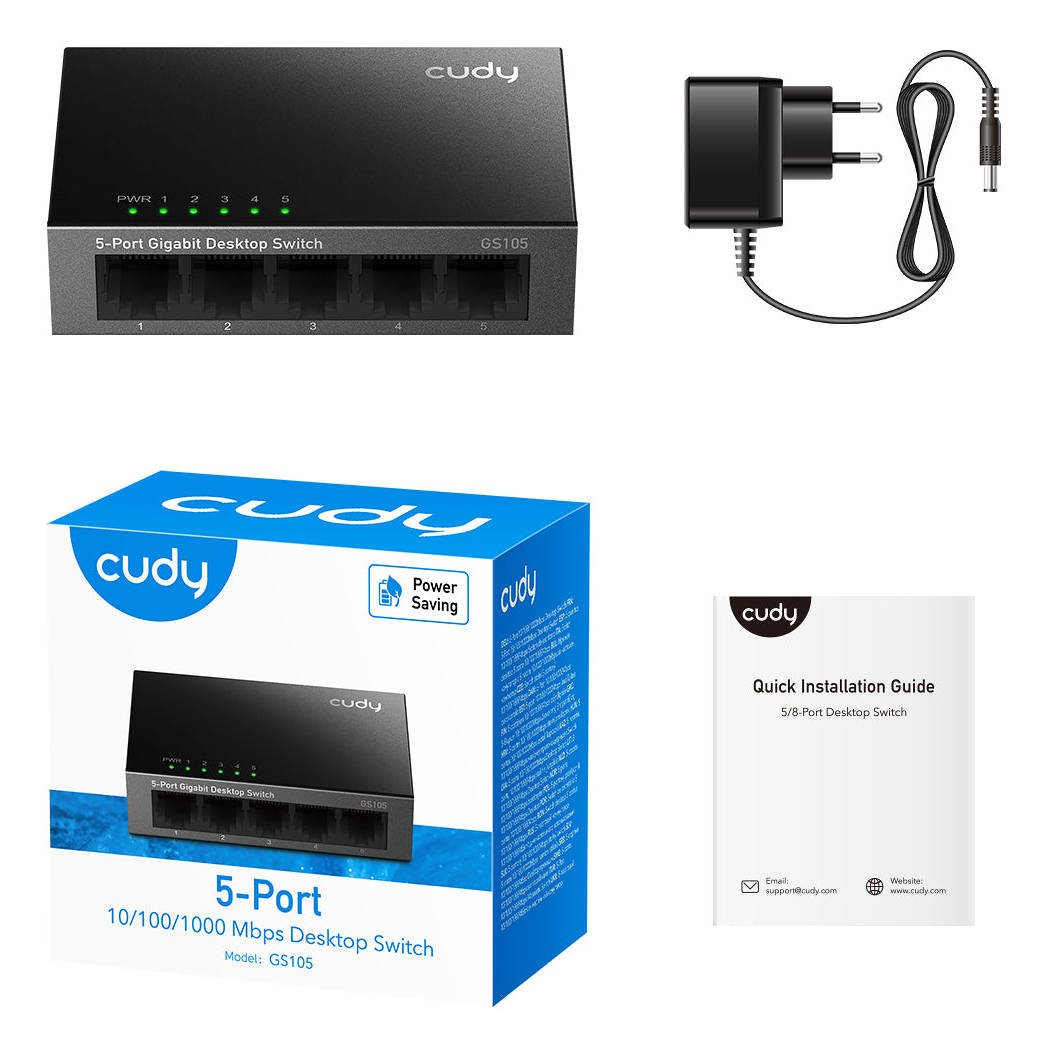

| Packaging content | |
| Manual | Yes |
| Cables included | DC |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 100000 h |
| Rack mounting | No |
| Memory | |
| Packet buffer memory | 0.125 MB |
| Indication | |
| LED indicators | Loop, Link, Power |
| Packaging data | |
| Manual | Yes |
| Cables included | DC |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Logistics data | |
| Master (outer) case width | 505 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case height | 400 mm |
| Master (outer) case gross weight | 17 kg |
| Products per master (outer) case | 40 pc(s) |
