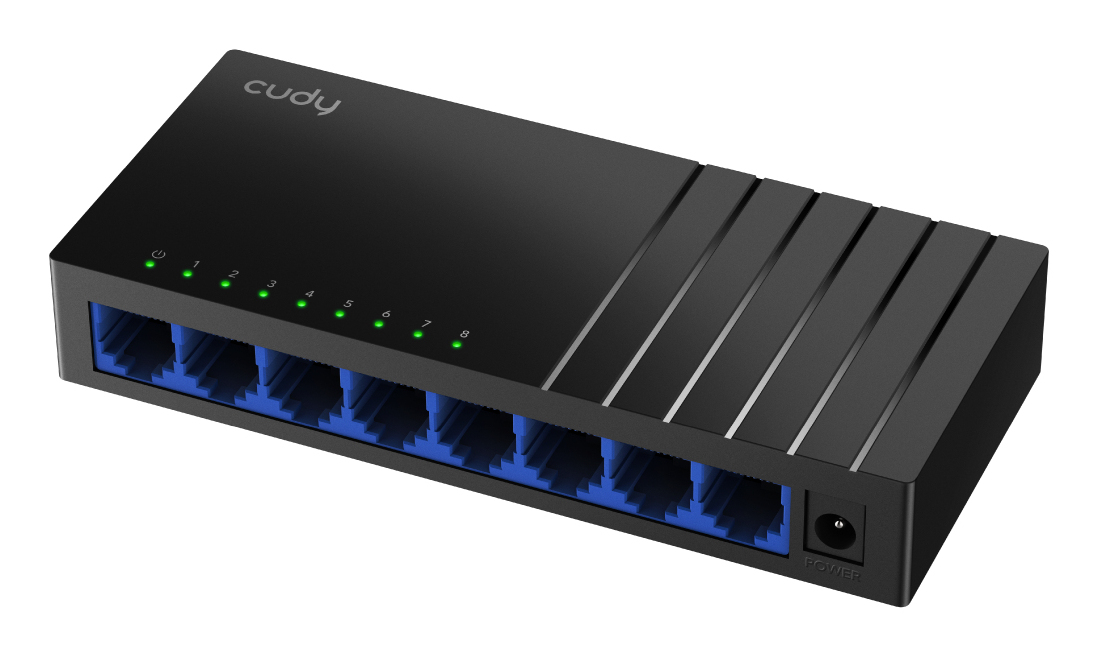

EU Product - Switch GS108D - Switch - 1 Gbps

Introduction

A 8-GbE long-distance switch with modern design.

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Cable types supported	Cat3, Cat5, Cat5e
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Half duplex	Yes
IGMP snooping	Yes
Data transmission
Jumbo frames	15000
Packet buffer memory	0.5 MB
MAC address table	8192 entries
Switching capacity	16 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Forwarding rate	11.904 Mpps
Security
IGMP snooping	Yes
Design
Product colour	Black
LED indicators	Activity, Link, Power
Rack mounting	No
Performance
Plug and Play	Yes
Packet buffer memory	0.5 MB
Power
Power consumption (max)	2.75 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	0.55 A
DC input voltage	5 V
Power source	DC
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	138 mm
Depth	61.5 mm
Height	24 mm
Weight	89 g

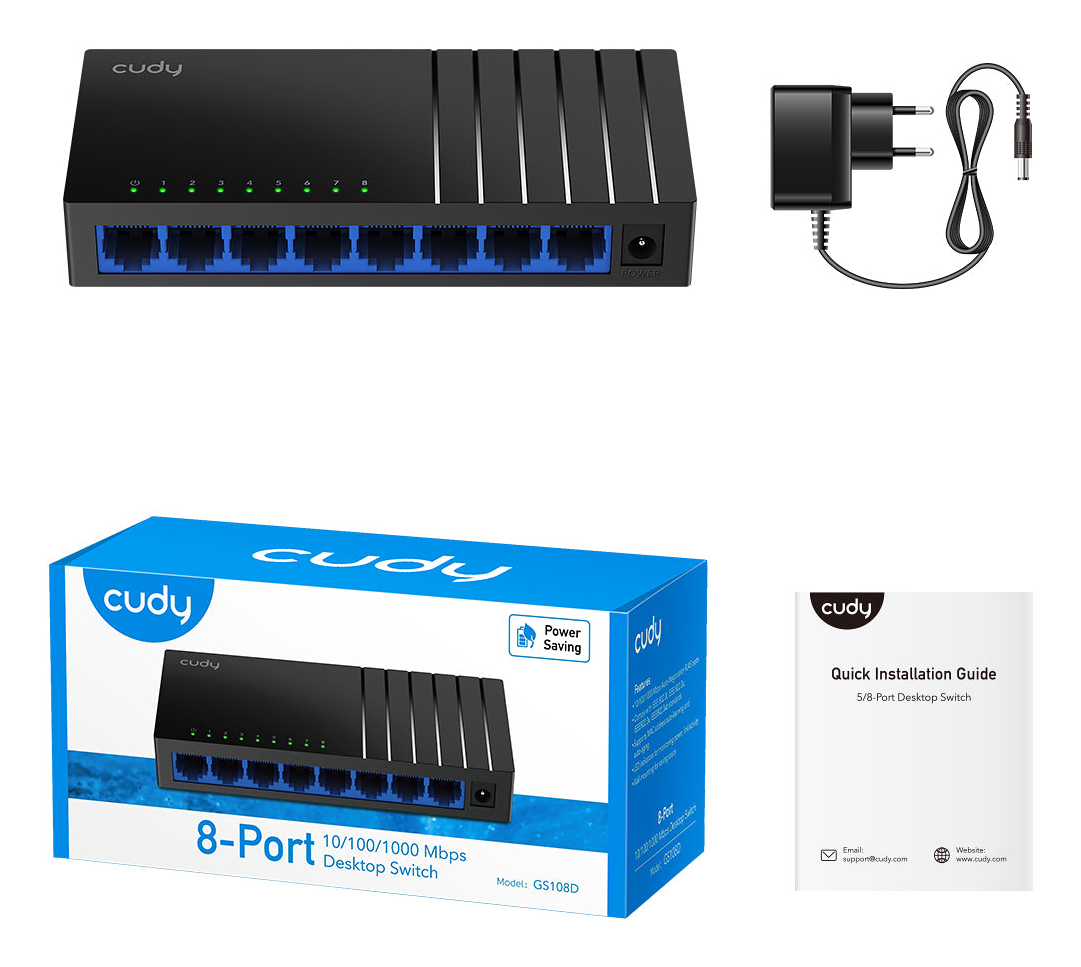

Packaging content
Manual	Yes
Cables included	DC
Packaging data
Package type	Box
Package width	151 mm
Package depth	75 mm
Package height	63 mm
Package weight	210 g
Manual	Yes
Cables included	DC
Technical details
Product colour	Black
Rack mounting	No
Memory
Packet buffer memory	0.5 MB
Indication
LED indicators	Activity, Link, Power
Other features
Ethernet LAN data rates	10,100,1000 Mbit/s
