EU Product - 8Port Switch 10/100/1000 GS108T v3
Introduction

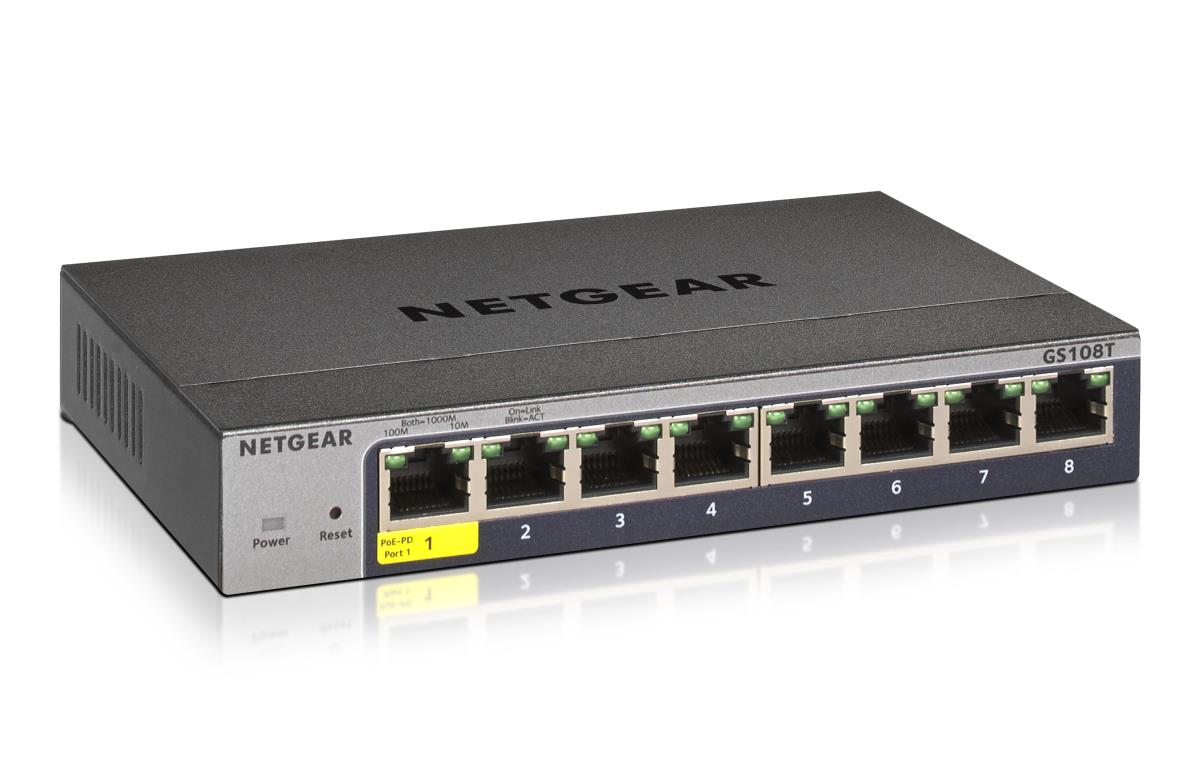

The NETGEAR GS108Tv3 8-Port Gigabit Smart Managed Pro Switch with Cloud Management is fanless, supporting perfectly silent desktop operation or wall mounting. The GS108Tv3 Smart Managed Pro Switch offers an easy-to-use, Web browser-based management GUI with configurable L2 network features like VLANs and QoS for wireless converged networks and mobility. This switch also comes with NETGEAR Insight Cloud management activation (free for the first two devices) for anytime remote management and monitoring through an intuitive app or Cloud Portal. Advanced features such as IPv4 Layer 2+ static routing,IPv6 management, ACL, DiffServ QoS, LACP link aggregation and Spanning Tree will satisfy even the most advanced small business networks. The GS108Tv3 features Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings and is backed by NETGEAR ProSAFE Limited Lifetime Warranty and 24/7 support including lifetime chat.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-TX |
| Network | |
| MAC address auto-learning supported | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-TX |
| Networking standards | IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x |
| Full duplex | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 64 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| IGMP snooping | Yes |
| IPv4 multicast entries | 32 |
| Access Control List (ACL) IPv6 entries | 100 |
| Data transmission | |
| Packet buffer memory | 0.5 MB |
| MAC address table | 8000 entries |
| Switching capacity | 16 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Number of multicast groups filtered | 256 |
| Number of VLANs | 64 |
| Security | |
| Security algorithms | 802.1x RADIUS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) IPv6 entries | 100 |
| DHCP features | DHCP client |
| Multicast features | |
| Number of multicast groups filtered | 256 |
| Multicast support | Yes |
| IPv4 multicast entries | 32 |
| Protocols | |
| Management protocols | SNMP |
| Switching protocols | SNMP |
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Supported network protocols | HTTP, HTTPS |
| Design | |
| Product colour | Grey |
| Stackable | No |
| LED indicators | Activity, LAN, Link, PoE, Power, Speed |
| Certification | CE, FCC, VCCI Class B, C-Tick |
| Performance | |
| Processor frequency | 500 MHz |
| Memory type | RAM |
| Mean time between failures (MTBF) | 2388657 h |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Firmware upgradeable | Yes |
| Packet buffer memory | 0.5 MB |
| Stackable | No |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 5.5 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1.25 A |
| DC input voltage | 54 V |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Heat dissipation | 18.66 BTU/h |
| Virtual LAN features | |
| Number of VLANs | 64 |
| Weight & dimensions | |
| Width | 158 mm |
| Depth | 101 mm |
| Height | 27 mm |
| Weight | 430 g |
| Packaging content | |
| Manual | Yes |
| Packaging data | |
| Package type | Box |
| Package width | 226 mm |
| Package depth | 270 mm |
| Package height | 64 mm |
| Package weight | 780 g |
| Manual | Yes |
| IPv4 & IPv6 features | |
| Access Control List (ACL) IPv6 entries | 100 |
| Technical details | |
| Product colour | Grey |
| Stackable | No |
| Processor frequency | 500 MHz |
| Mean time between failures (MTBF) | 2388657 h |
| Firmware upgradeable | Yes |
| Memory | |
| Packet buffer memory | 0.5 MB |
| Memory type | RAM |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Certificates | |
| Certification | CE, FCC, VCCI Class B, C-Tick |
| Indication | |
| LED indicators | Activity, LAN, Link, PoE, Power, Speed |
| Logistics data | |
| Master (outer) case width | 214 mm |
| Master (outer) case length | 474 mm |
| Master (outer) case height | 312 mm |
| Master (outer) case gross weight | 5.49 kg |
| Products per master (outer) case | 6 pc(s) |
| Harmonized System (HS) code | 85176990 |
