Introduction

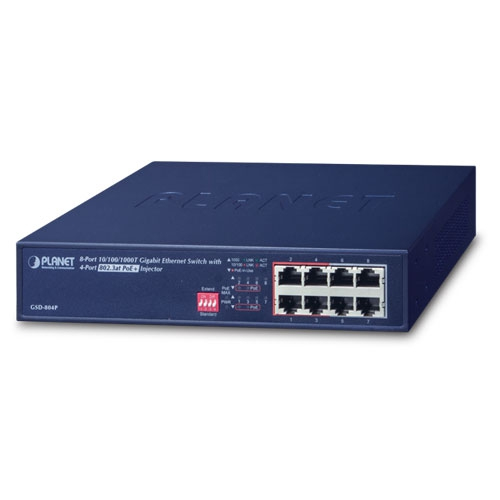

To fulfill the demand of sufficient PoE power for network applications with Gigabit speed transmission, PLANET introduces a new member in the 802.3af PoE Gigabit Ethernet Switch family - GSD-804P, the 8-Port 10/100/1000Mbps with 4-Port 802.3af Power over Ethernet Switch which features high performance Gigabit IEEE 802.3af PoE (Up to 15.4 Watts) and totally 55 Watts PoE budget on half of the 10/100/1000Mbps TP ports of GSD-804P. The four 802.3af PoE ports provide PoE power injector function which is able to drive 4 IEEE 802.3af compliant powered devices. The GSD-804P also provides a simple, cost-effective, and non-blocking wire-speed performance with 10-inch metal shape for desktop deployment in compact housing, SOHO office or department network application.
General
Model
GSD-804P
Type
Fixed Port
Technical Features
Port Count
8
Management
Unmanaged
Routing/Switching
Layer 2
Uplink Speed/Media
10/100/1000 Copper
High Availability
None
Other
Switch Architecture : Store-and-Forward
MAC Address : 8K MAC address table with Auto learning function
Switch Fabric : 16GBps
Switch Throughput : 11.9Mpps
PoE Power Output : Per Port 48V DC, 350mA . Max. 15.4 Watts
Power Pin Assignment : 1/2(+), 3/6(-)
PoE Power Budget : 55 Watts
Features
PoE
Ports/Interfaces
RJ-45
Protocols/Networks
IEEE 802.3 Ethernet,IEEE 802.3u Fast Ethernet,IEEE 802.3ab: 1000Base-T,IEEE 802.3x Flow Control
LEDs
Power,Speed,PoE,link,Activity
Form Factor
Mounting
Desktop
Power and Operating Requirements
Power Consumption
Max. 65 Watts

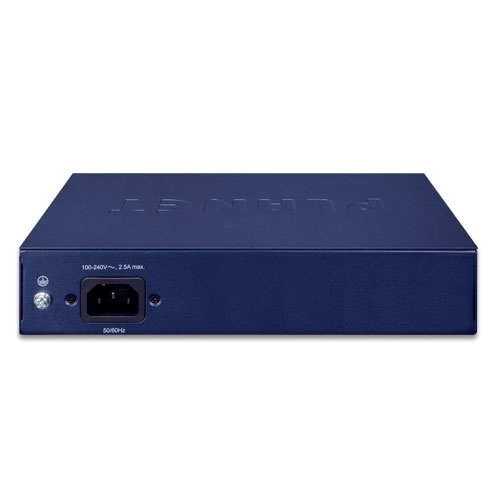

Input Voltage
AC 100~240V
Dimensions and Weight
Width
217 mm (8.54 inches)
Height
43 mm (1.69 inches)
Depth
135 mm (5.31 inches)
Weight
890g (31.39 ounces)
