Introduction

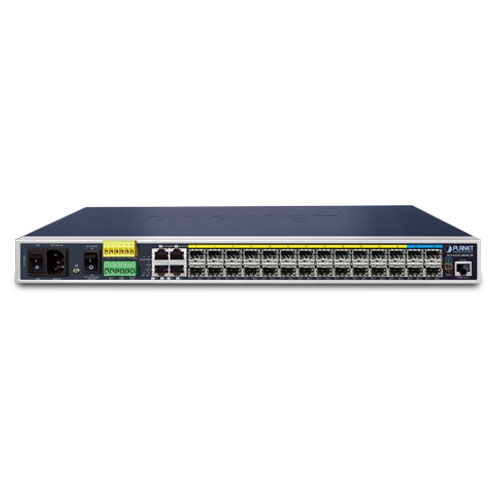

PLANET IGS-6325-20S4C4X Industrial Layer 3 Managed Switch features 20 100/1000Mbps SFP ports, 4 shared SFP ports, 4 10G SFP+ ports and Layer 3 IP routing in a 1U case. With 10Gbps uplink, the IGS-6325-20S4C4X can handle extremely large amounts of data in a secure topology linking to an industrial backbone or high capacity servers. The IGS-6325-20S4C4X is capable of providing non-blocking switch fabric and wire-speed throughput as high as 128Gbps in the temperature range from -40 to 75 degrees C. It greatly simplifies the tasks of upgrading the industrial LAN for catering to increasing bandwidth demands. Furthermore, it adopts user-friendly "Front Access" design for easy wiring and maintenance of the IGS-6325-20S4C4X when placed in the cabinet.

General

Model

IGS-6325-20S4C4X

Type

Fixed Port

Technical Features

Port Count

24

Management

Fully Managed

Routing/Switching

Layer 3

Uplink Speed/Media

10/100/1000 Copper

High Availability

None

Ports/Interfaces

SFP and SFP+

LEDs

Activity, Link, Power, Ring, System

Form Factor

Mounting

Rack

Height Factor

1U

Dimensions and Weight

Width

440 mm (17.32 inches)

Height

44.5 mm (1.75 inches)

Depth

200 mm (7.87 inches)

Weight

2.94 kg (6.48 lb)
