Introduction

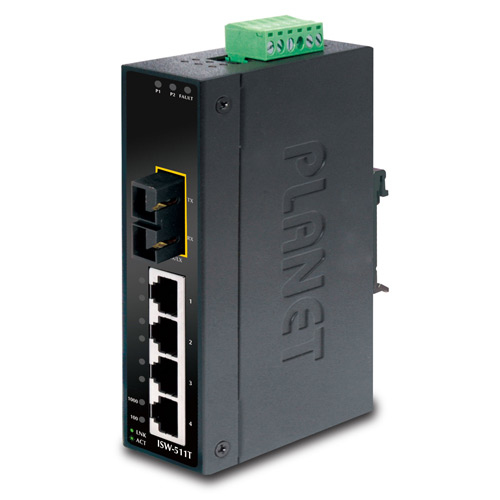

PLANET ISW-511T Industrial Ethernet Switch for wide temperature operation environment. The capital 'T' means that it can support and operate under WIDE-TEMPERATURE environment ranging from -40 up to 75 Degree C. As we know the temperature in many places and countries of the world are lower than -10 Degree C, these model, ISW-511T will be the right products for Transportation, Manufactory, Security and Surveillance network deployment in those harsh environments. The ISW-511T also provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets.

General

Model

ISW-511T

Type

Fixed Port

Technical Features

Port Count

4

Management

Unmanaged

Routing/Switching

Layer 2

Uplink Speed/Media

10/100 Copper

High Availability

None

Ports/Interfaces

RJ-45

Protocols/Networks

IEEE 802.3 Ethernet,IEEE 802.3u Fast Ethernet,IEEE 802.3x Flow Control

Form Factor

Mounting

Wall

Power and Operating Requirements

Power Consumption

13.7 Watts

Input Voltage

12~48 VDC

Dimensions and Weight

Width

135 mm (5.31 inches)

Height

32 mm (1.26 inches)

Depth

97 mm (3.82 inches)

Weight

436g (15.38 ounces)
