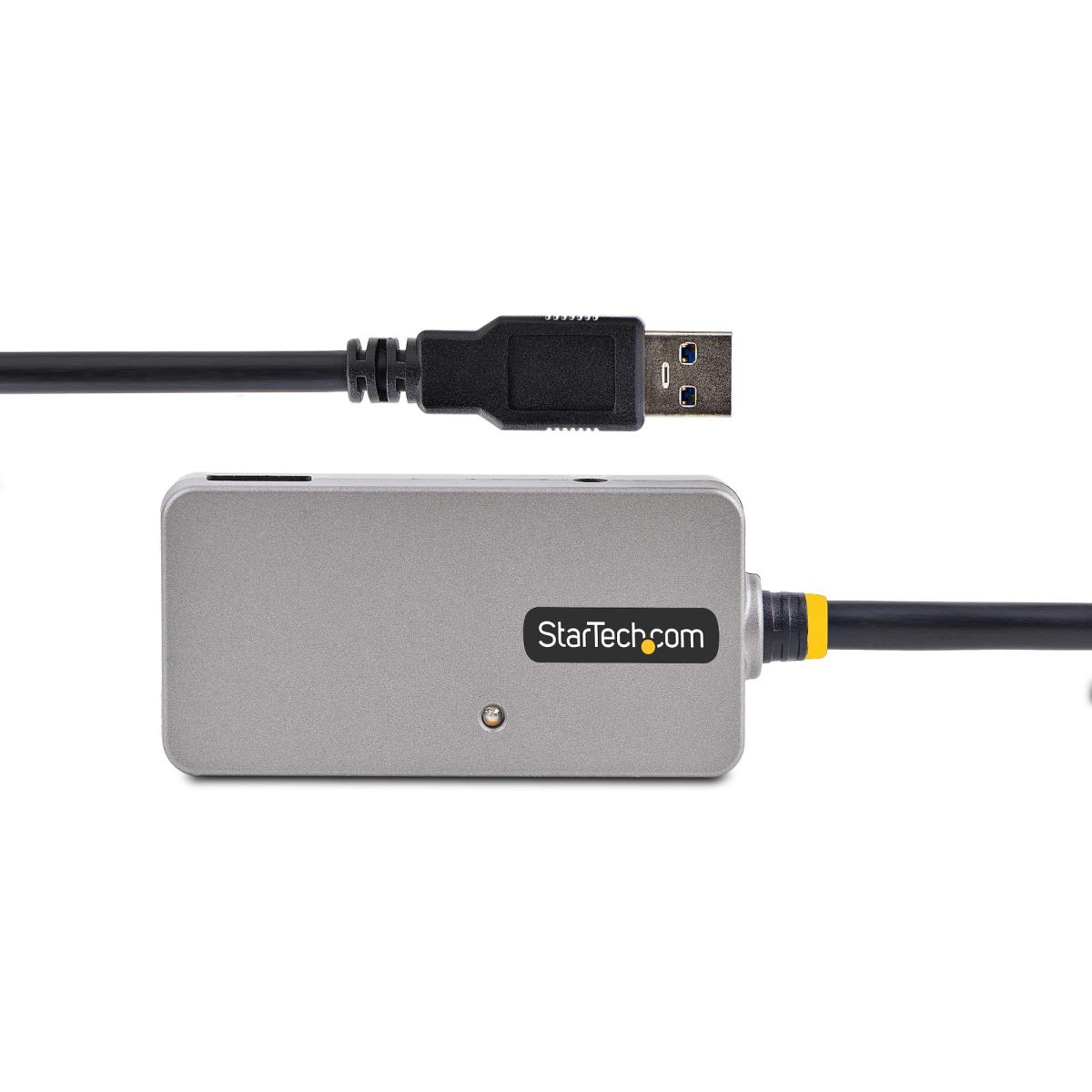

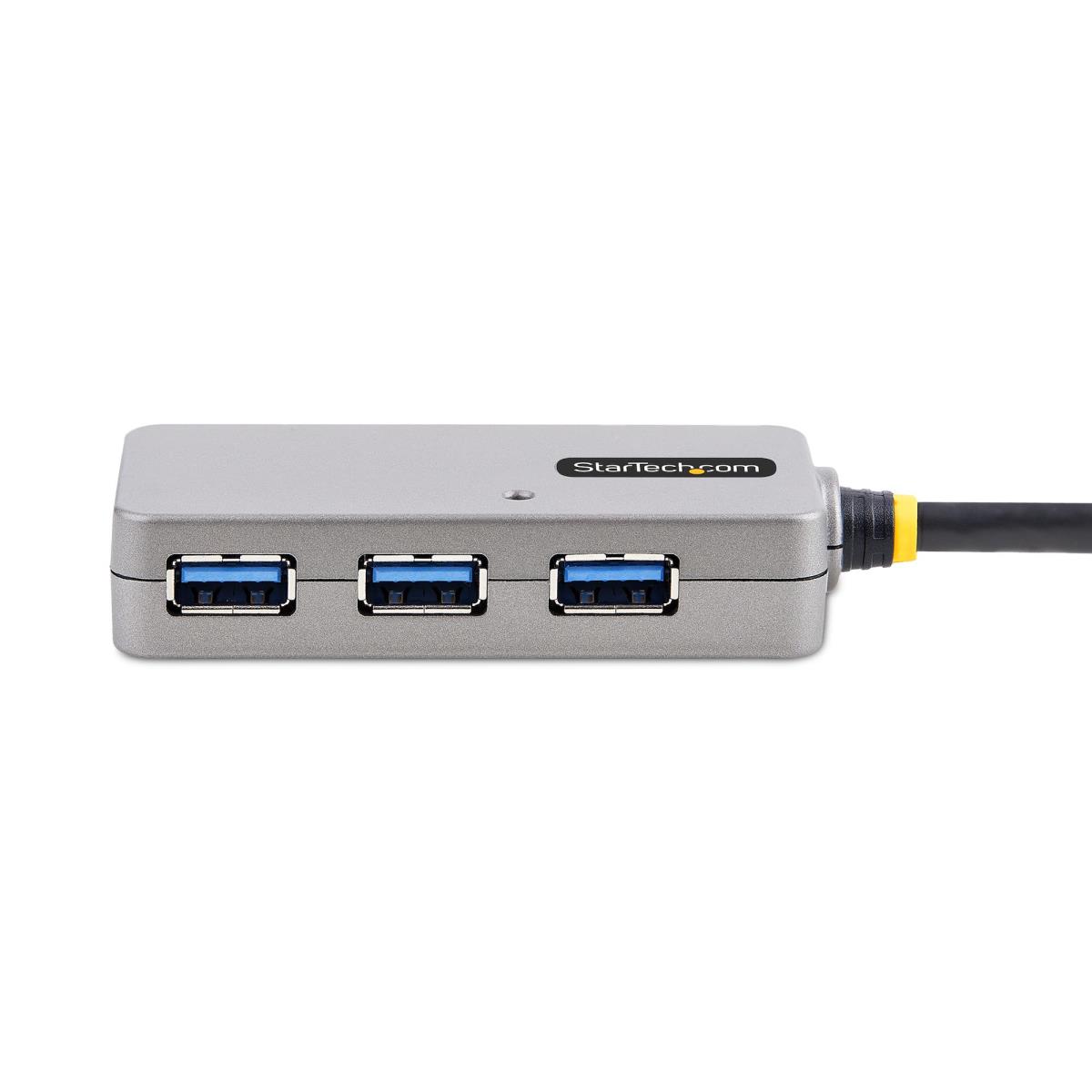

USB EXTENDER HUB (10M) 5GBPS
Introduction
USB Extender Hub | USB 3.0 Extension Cable with 4-Port USB Hub | Bus Powered | 32.8ft Long Cable

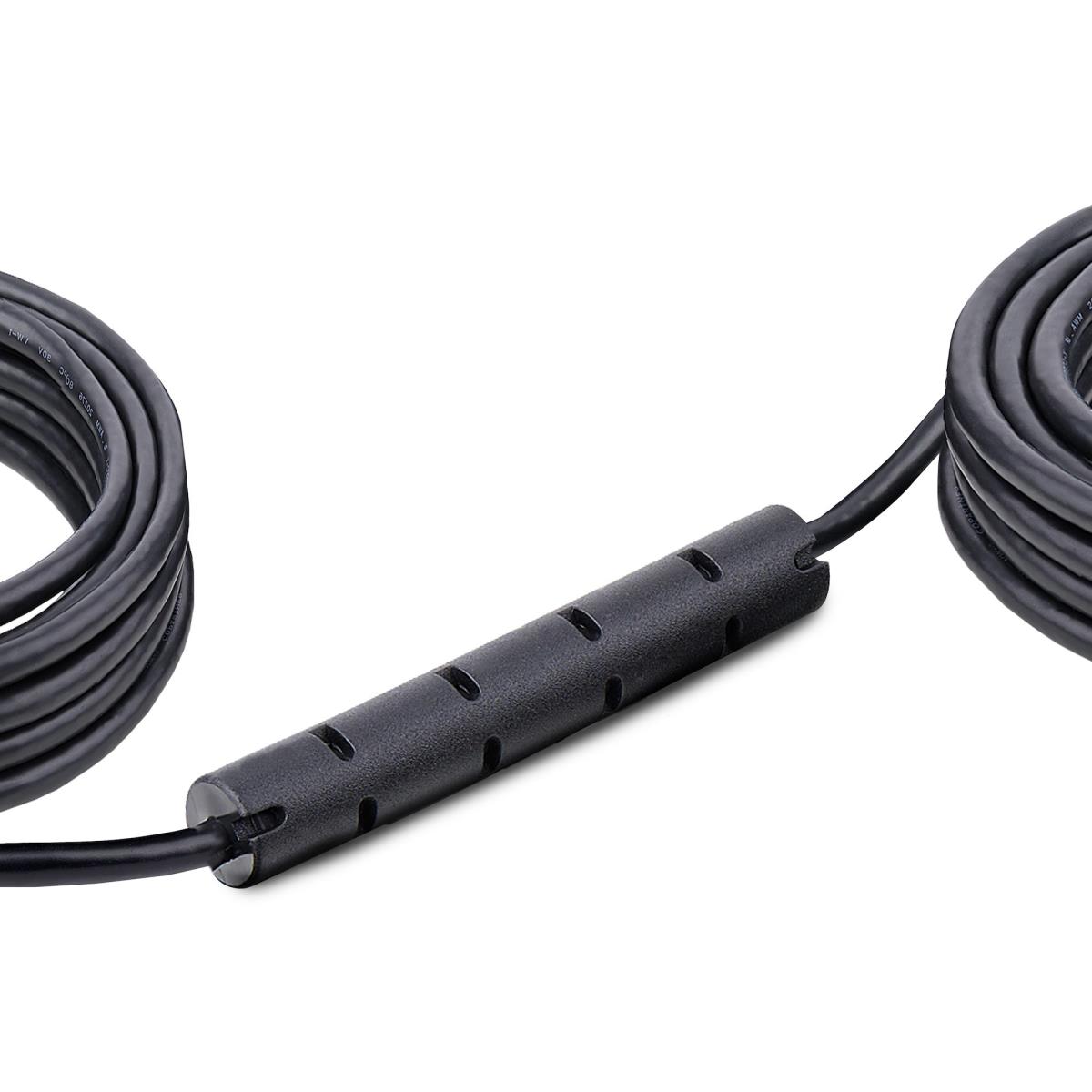

The 32.8ft USB 3.0 Extension Cable with 4-Port USB Hub and 5Gbps transfer rates enables multiport connectivity at distances that exceed standard USB 3.0 distance and power source limitations. Daisy chain up to two USB active extension cables for a maximum range of 65.6ft (20m).
Power Options

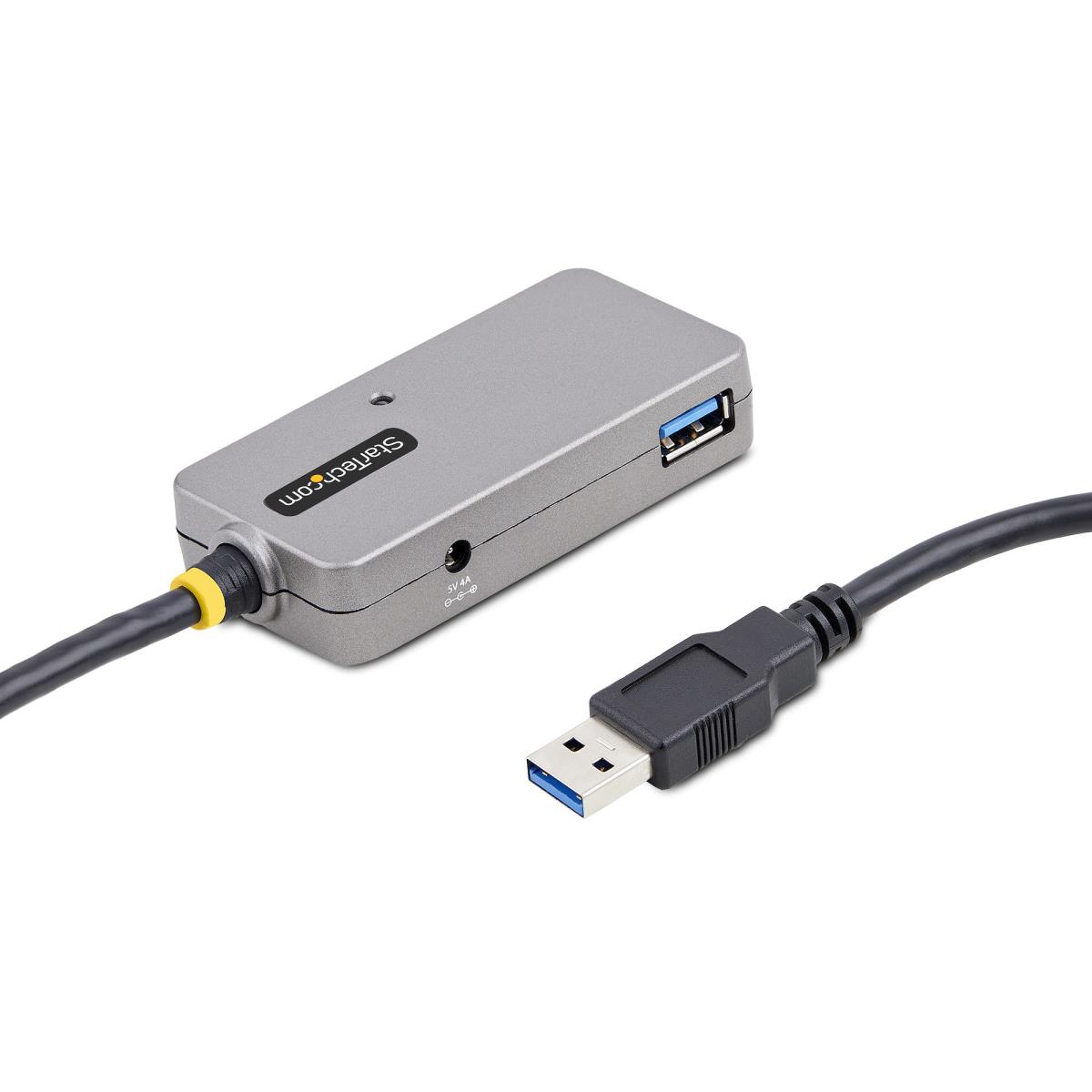

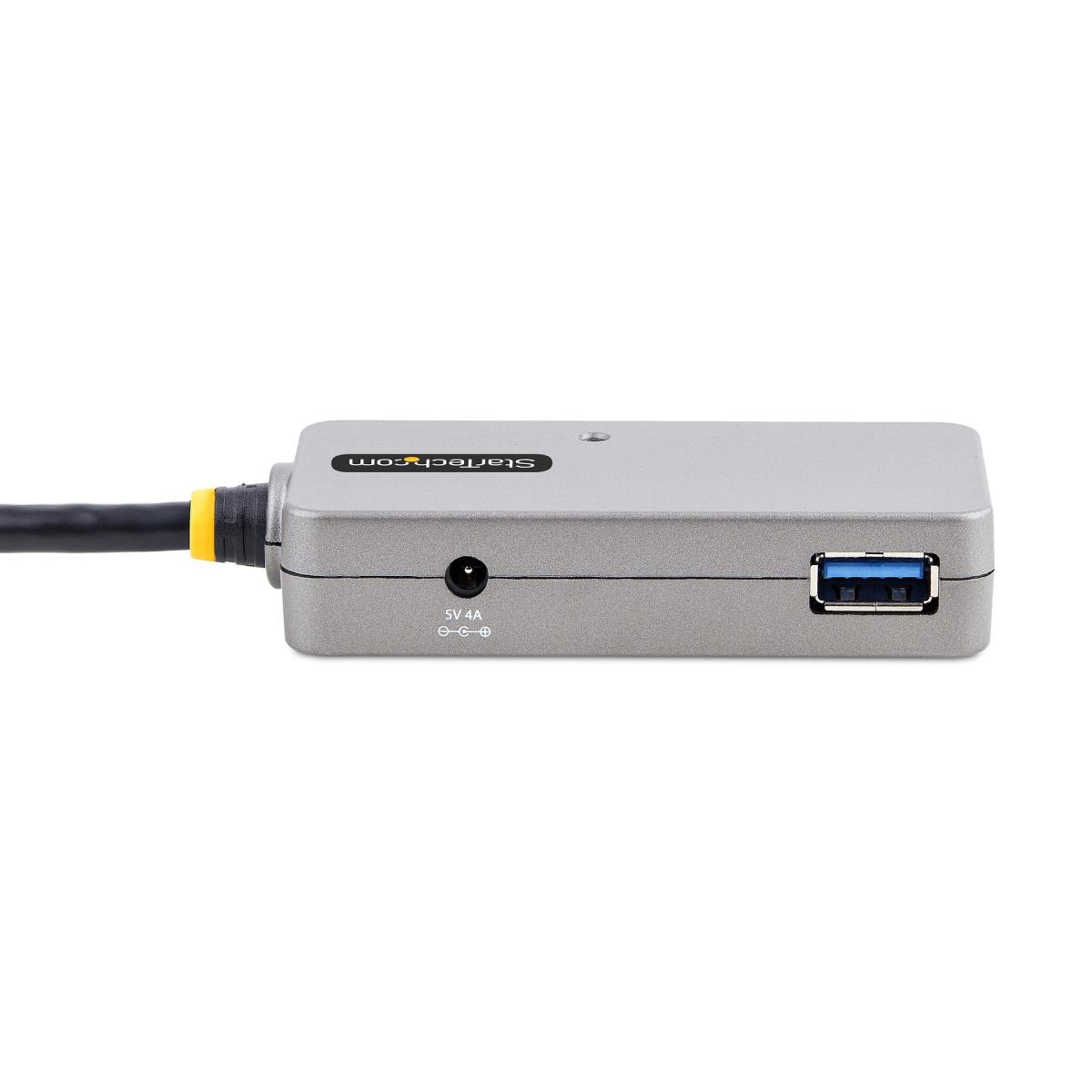

Active electronics allow the USB-A Hub to function without requiring external power, multiplying the installation possibilities and accelerating any deployment. In addition, the 5V4A DC power adapter supports USB peripherals that require additional power.
Control multiple USB peripherals in remote locations (e.g., webcams, CCTV remote monitoring, remote printers, SSDs, HDDs, scales, mice, keyboards, and other devices) using this 4-port 32.8ft (10m) USB extension cable.
Host and Device Compatibility
The backward compatibility with USB 2.0 and 1.1 ensures functionality with legacy equipment. The hub/cable features USB 3.0/3.2 Gen 1 with data transfer speeds up to 5 Gbps and plug and play (PnP) setup on any operating system, enabling rapid deployment.
The Level-2 ESD protection (4kV air and 4kV contact) and the cable shielding enhance USB device safety and minimize EMI.
The USB Extender Hub is backed for two years, including free lifetime 24/5 multi-lingual technical assistance.
Specifications
| Ports & interfaces | |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| DC-in jack | Yes |
| Card reader integrated | No |
| Ports quantity | 4 |
| Cable shielding | Aluminum mylar foil |
| Cable length | 10 m |
| Features | |
| LED indicators | Yes |
| Product colour | Black, Silver |
| Cable length | 10 m |
| Data transfer rate | 5000 Mbit/s |
| Housing material | Plastic |
| Cable jacket material | Recycled Polyvinyl Chloride (rPVC) |
| Connector contacts plating | Nickel |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Data transmission | |
| Data transfer rate | 5000 Mbit/s |
| Power | |
| Input current | 0.6 A |
| Power plug type | Type H |
| Power consumption (typical) | 20 W |
| Output voltage | 5 V |
| Output current | 4 A |
| Input voltage | 100 - 240 V |
| Power supply type | DC |
| Technical details | |
| Product colour | Black, Silver |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Performance | |
| Card reader integrated | No |
| Data transfer rate | 5000 Mbit/s |
| Storage | |
| Card reader integrated | No |
| Weight & dimensions | |
| Weight | 100 g |
| Width | 40 mm |
| Height | 18 mm |
| Package width | 200 mm |
| Package depth | 239 mm |
| Package height | 65 mm |
| Package weight | 1 kg |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 239 mm |
| Package height | 65 mm |
| Package weight | 1 kg |
| Packaging content | |

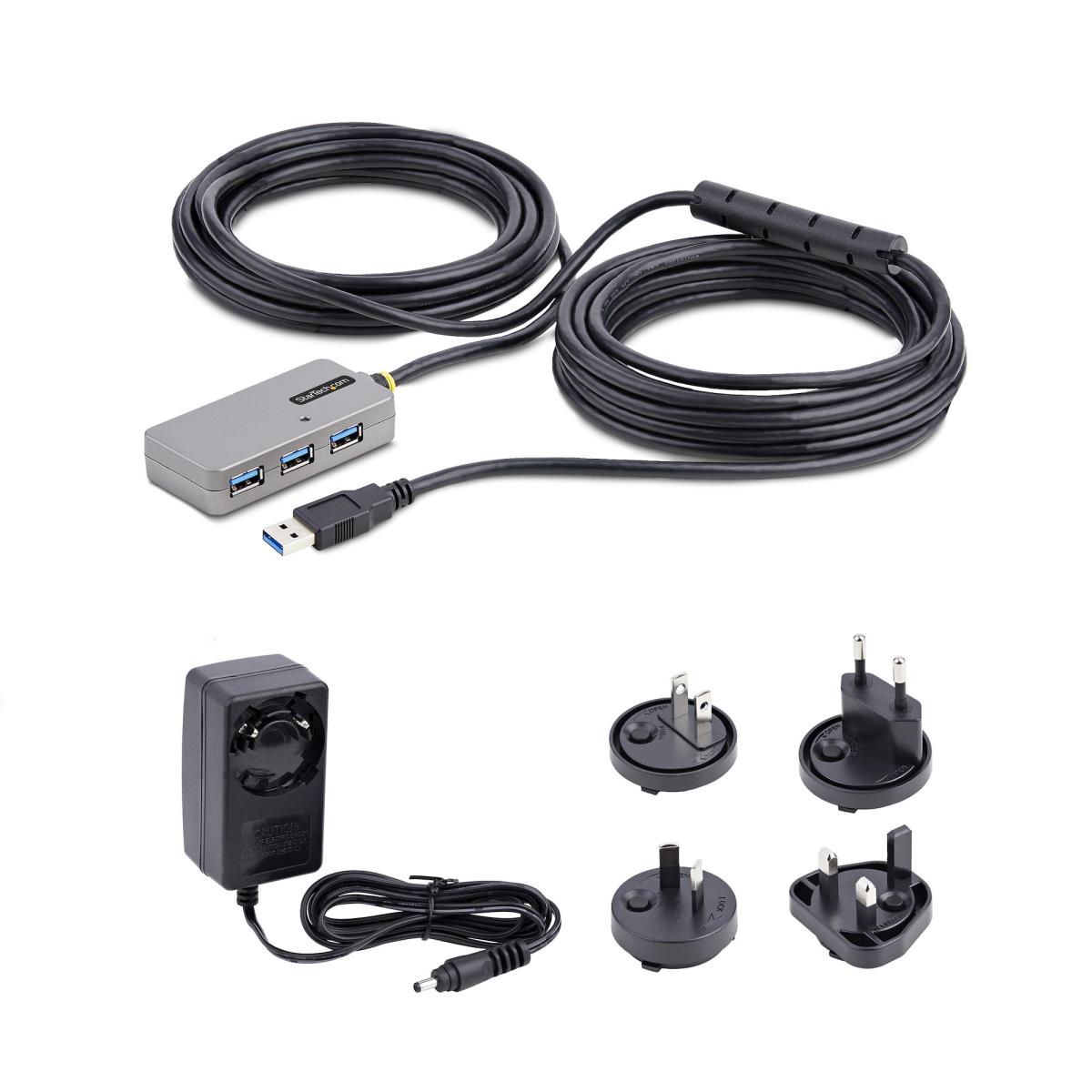

| AC adapter included | Yes |
| Quick start guide | Yes |
| Design | |
| LED indicators | Yes |
| Product colour | Black, Silver |
| Cable length | 10 m |
| Cable shielding | Aluminum mylar foil |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 55 °C |
| Operating relative humidity (H-H) | 30 - 70% |
| Indication | |
| LED indicators | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Logistics data | |
| Master (outer) case width | 430 mm |
| Master (outer) case length | 260 mm |
| Master (outer) case height | 355 mm |
| Products per master (outer) case | 10 pc(s) |
| Other features | |
| Chipset | VIA Labs - VL817 |
