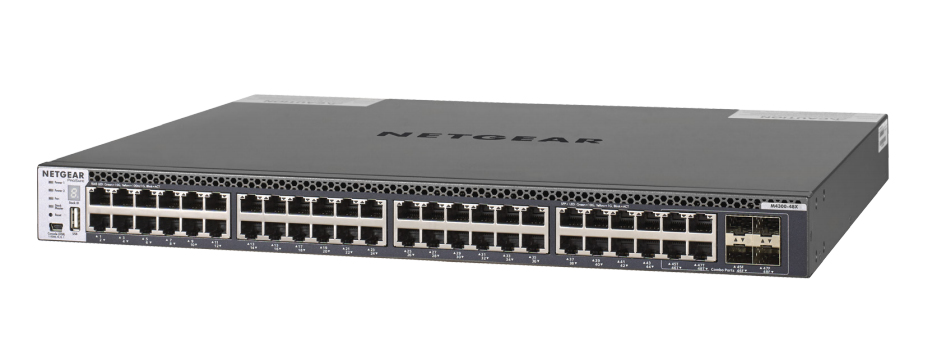

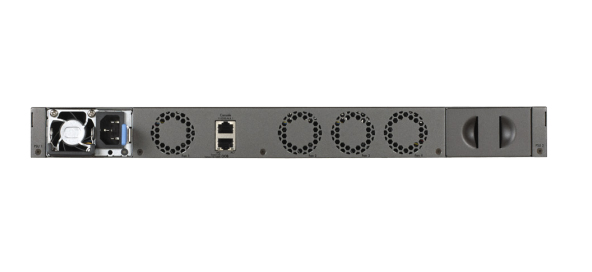

M4300-48X STACKABLE MGD SWITCH

Introduction

M4300-48X is a NETGEAR 48-port managed switch for 10G AV over IP deployments. It features 48 10GBASE-T (copper RJ-45) ports, 4 shared 10GBASE-X (fiber SFP+) ports, and includes a 250W power supply unit.

Specifications

Management features
Switch type	Managed
Ports & interfaces
SFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
USB 2.0 ports quantity	1
Console port	RJ-45
Network
10G support	Yes
Optical fiber
Fiber ethernet cabling technology	10GBASE-T, 10GBASE-X
Data transmission
Throughput	357 Mpps
Latency (10 Gbps)	1.827 µs
Switching capacity	480 Gbit/s
Design
Form factor	1U
Product colour	Grey
Rack mounting	Yes
Power
Power supply included	Yes
Power consumption (typical)	250 W
Power source	AC
Operational conditions
Heat dissipation	473.9 BTU/h
Weight & dimensions
Width	212 mm
Depth	345 mm
Height	44 mm
Weight	4.1 kg
Packaging data
Package width	570 mm
Package depth	349 mm
Package height	90 mm
Package weight	5.7 kg
Technical details
Form factor	1U
Product colour	Grey
Rack mounting	Yes
