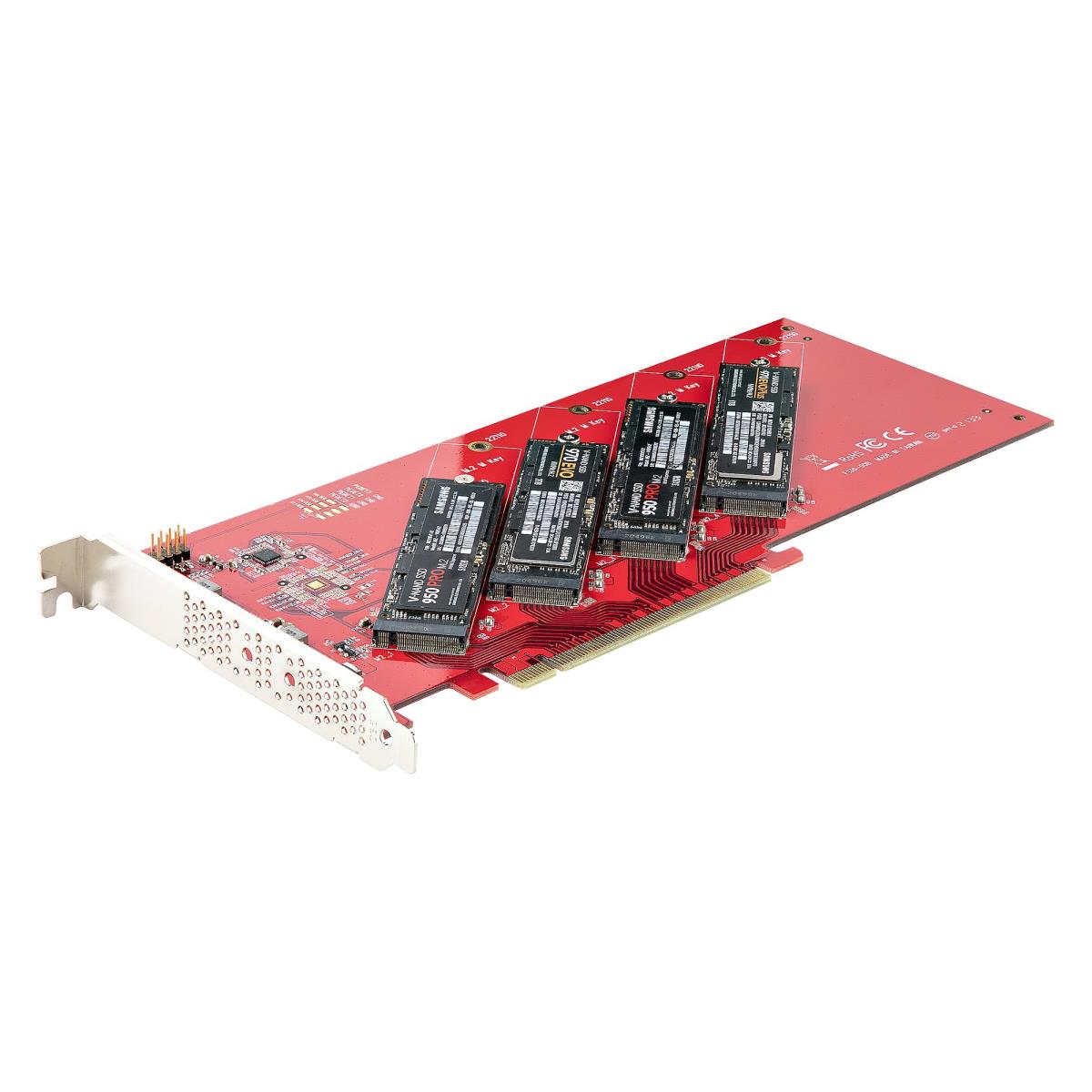

STARTECH.COM QUAD-M2-PCIE-CARD-B STARTECH.COM QUAD M.2 PCIE SSD ADAPTER CARD

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

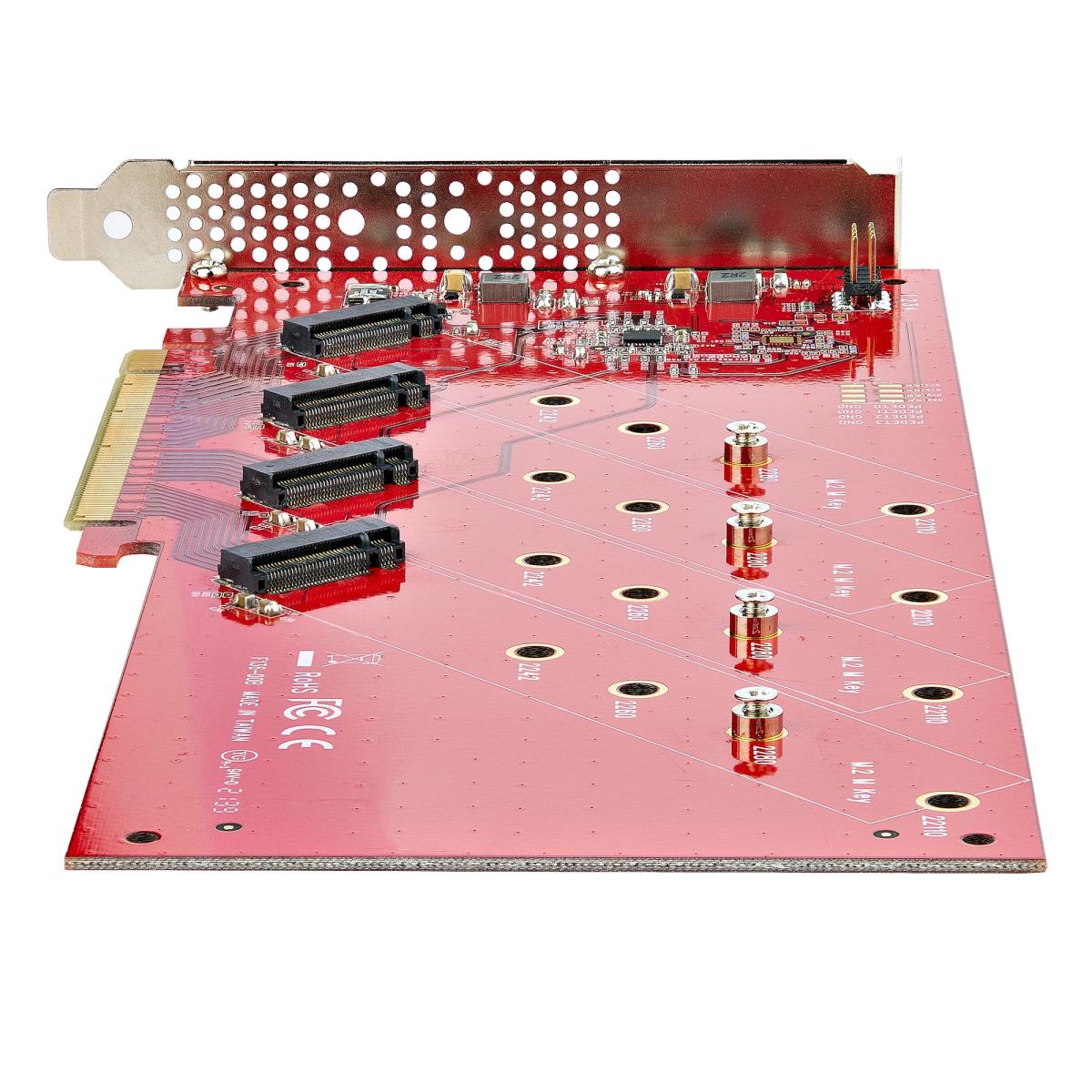

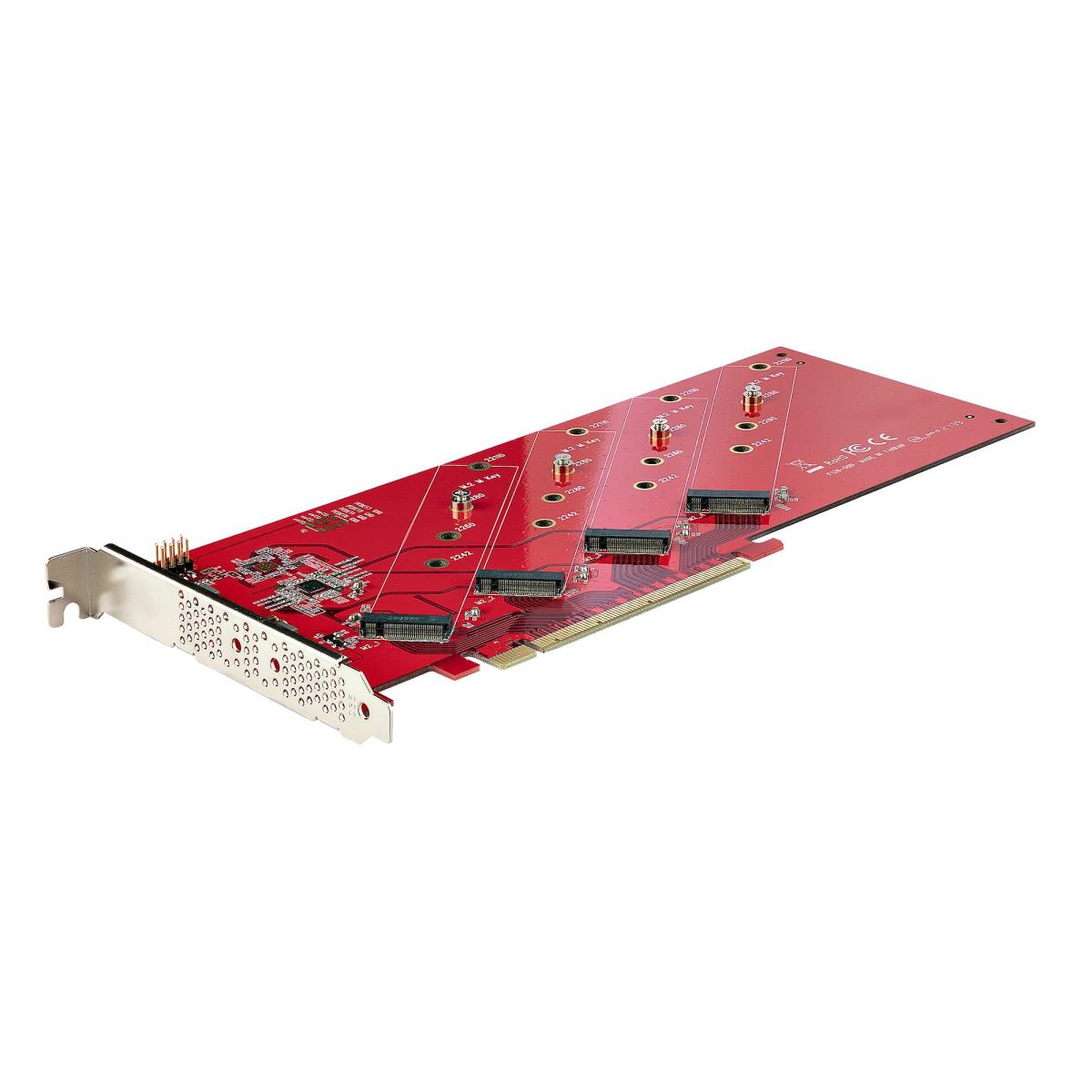

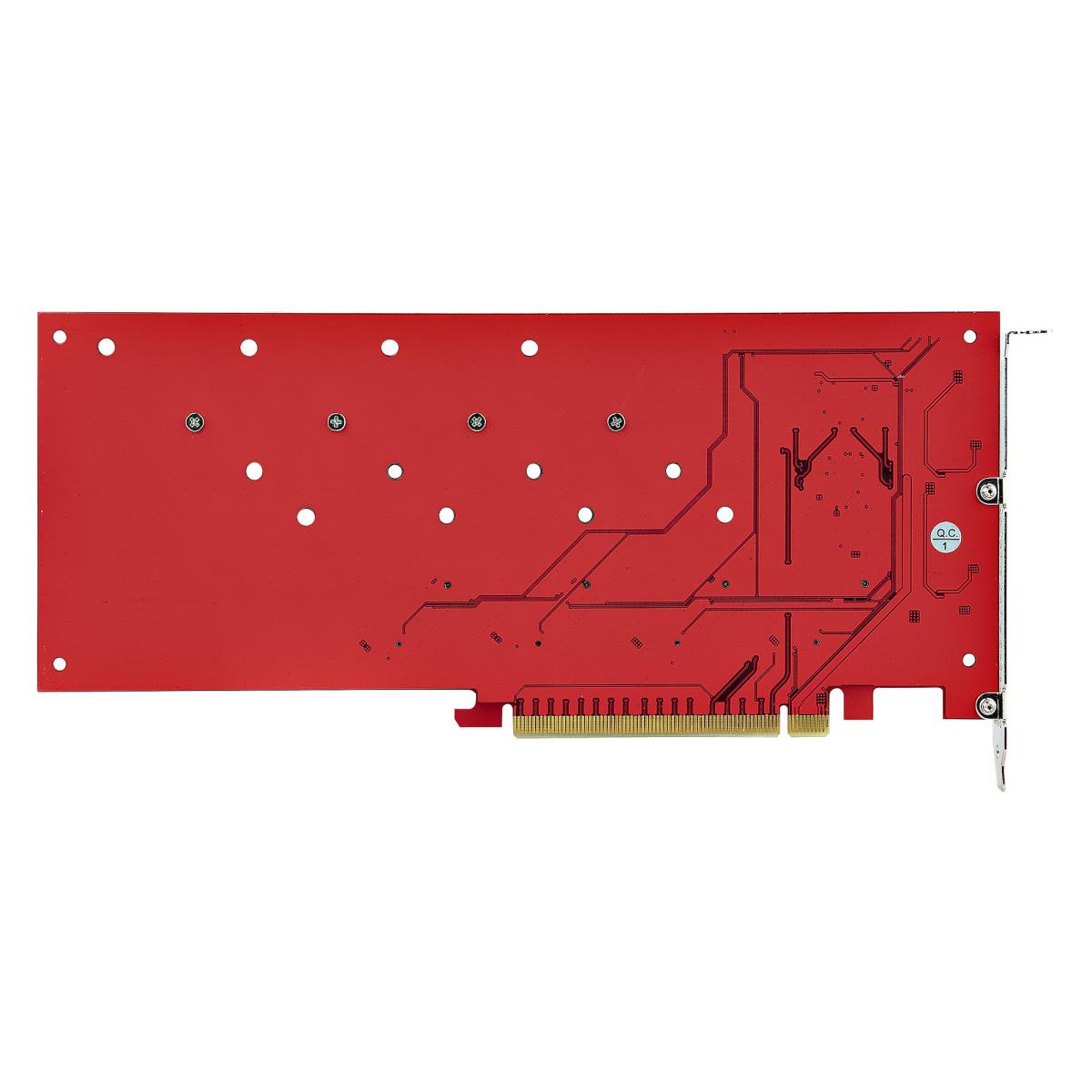

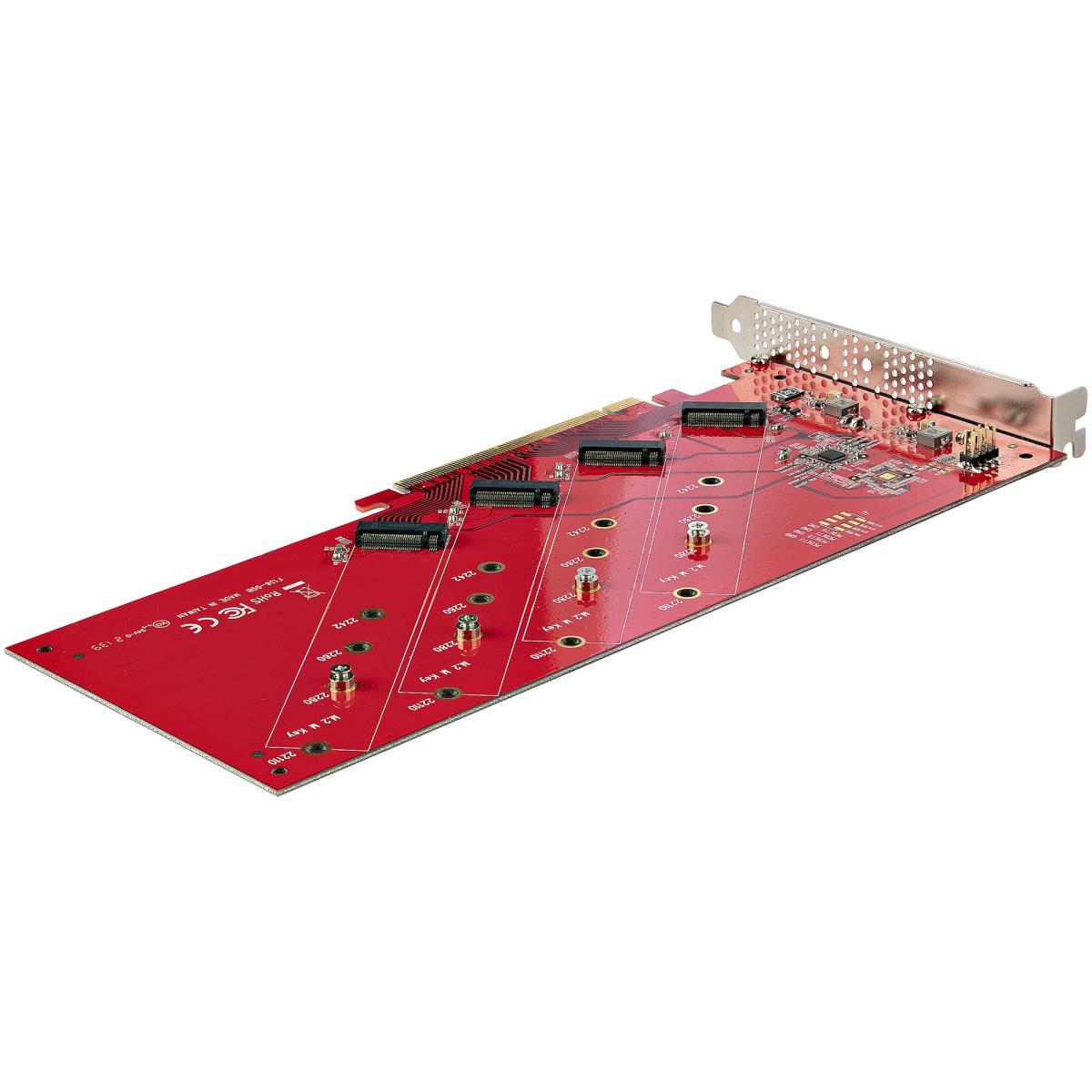

QUAD-M2-PCIE-CARD-B STARTECH.COM QUAD M.2 PCIE SSD ADAPTER CARD

Part No:QUAD-M2-PCIE-CARD-B

Stock:2 In Stock

EAN Code:0065030895606

£129.92 Excl. VAT

£155.90 Incl. VAT

price matchPrice Match
Guarantee
Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

QUAD M.2 PCIE SSD ADAPTER CARD

Introduction

Quad M.2 NVMe / AHCI | PCIe 4.0 x16 Slot | Bifurcation

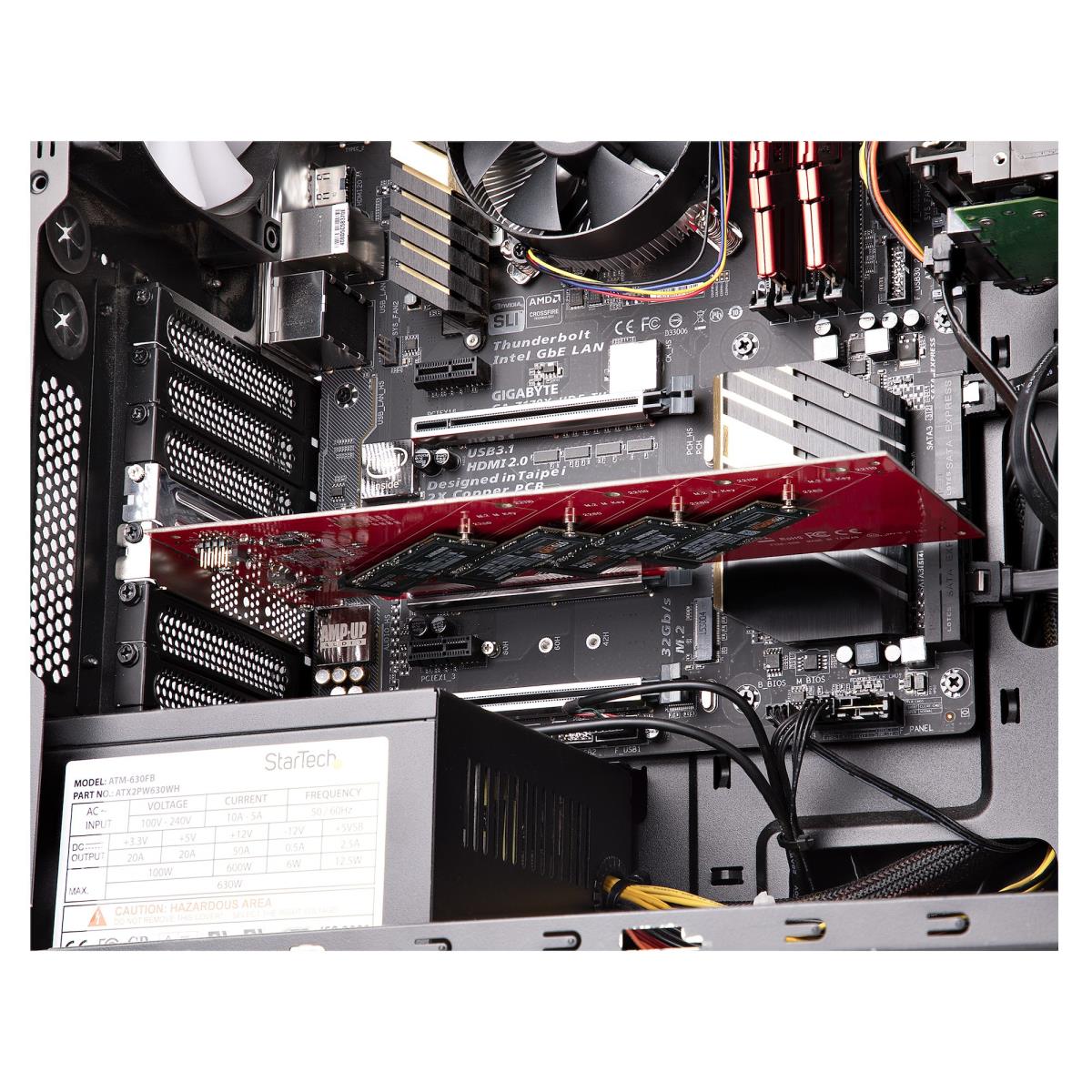

This Quad M.2 PCIe SSD Adapter adds up to four high performance PCIe M.2 SSDs (NVMe and AHCI) using the PCIe x16 slot of a desktop, workstation, or server.

Boost System Performance

Take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives, with read and write speeds up to 7.8GBps per drive.

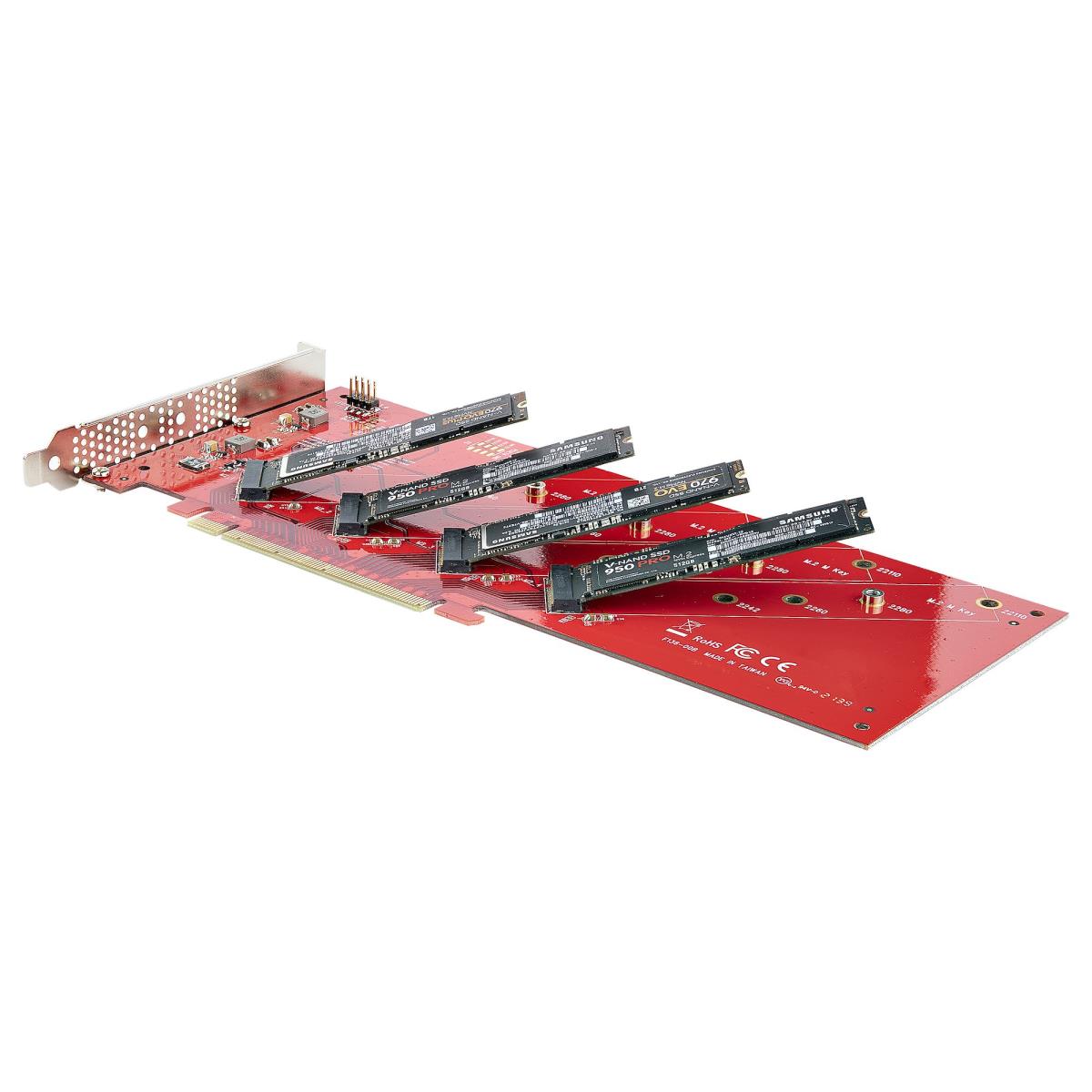

Access Four M.2 PCIe SSDs Simultaneously

No on-board chip leads to wide system compatibility. This card requires PCIe bifurcation, meaning it easily integrates into any system with an available x16 PCIe slot that supports PCIe bifurcation.

Utilize software RAID, such as Storage Spaces (Microsoft) or mdraid/mdadm (Linux), to build a RAID array, adding redundancy or enhancing system performance.

Wide Compatibility

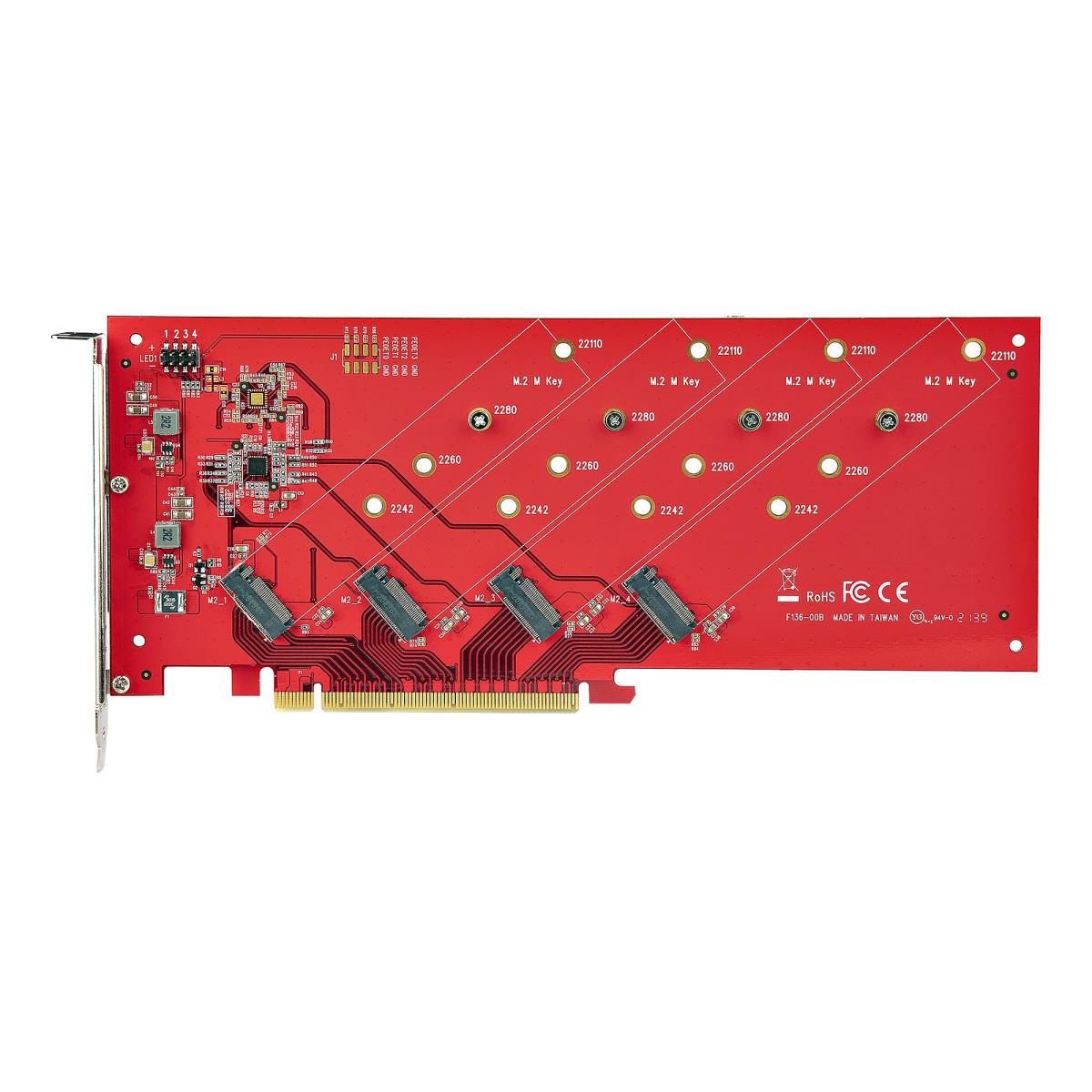

The PCIe M.2 NGFF (M Key or B+M Key) adapter supports PCIe NVMe and PCIe AHCI M.2 SSDs including 2242, 2260, 2280 and 22110mm drives. The PCIe M.2 Adapter Card does not require any software or drivers, meaning it works with most operating systems - if the computer/motherboard supports bifurcation.

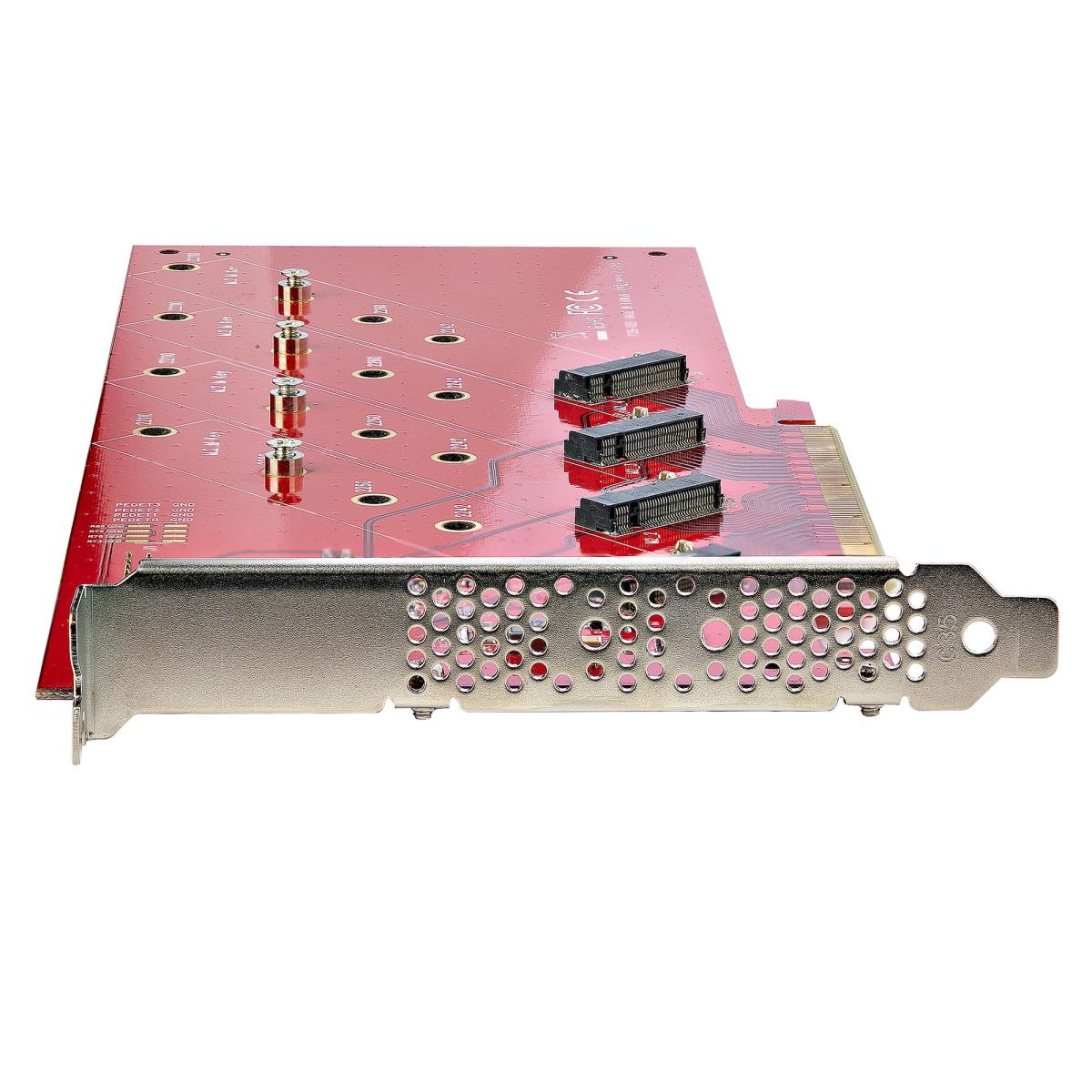

Vented Brackets

The pre-installed full-profile vented bracket increases air flow to improve heat dissipation, which aids in maintaining optimal and reliable operating temperatures.

The QUAD-M2-PCIE-CARD-B is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance

The StarTech.com Advantage

Specifications

Ports & interfaces
InternalYes
Output interfaceM.2
Host interfacePCIe
Number of M.2 (M) slots4
Expansion card standardPCIe 4.0
Technical details
Plug and PlayYes
Data transfer rate (max)7.8 Gbit/s
Performance
Plug and PlayYes
Data transfer rate (max)7.8 Gbit/s
Product colourRed
Colour
Product colourRed
Design
Mean time between failures (MTBF)4353192 h
InternalYes
Product colourRed
LED indicatorsYes
Features
Plug and PlayYes
Data transfer rate (max)7.8 Gbit/s
Operational conditions
Operating temperature (T-T)-40 - 80 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)15 - 90%
Weight & dimensions
Width290 mm
Depth170 mm
Height30 mm
Weight150 g
Package width290 mm
Package depth120 mm
Package height30 mm
Package weight150 g
Packaging data
Package width290 mm
Package depth120 mm
Package height30 mm
Package weight150 g
Quick installation guideYes
Screws includedYes
Logistics data
Products per master (outer) case30 pc(s)
Master (outer) case width380 mm
Master (outer) case length500 mm
Master (outer) case height310 mm
Packaging content
Quick installation guideYes
Screws includedYes
