*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order
Part No:11050-PC-SERIAL-CARD
Stock:5 In Stock
EAN Code:0065030894777

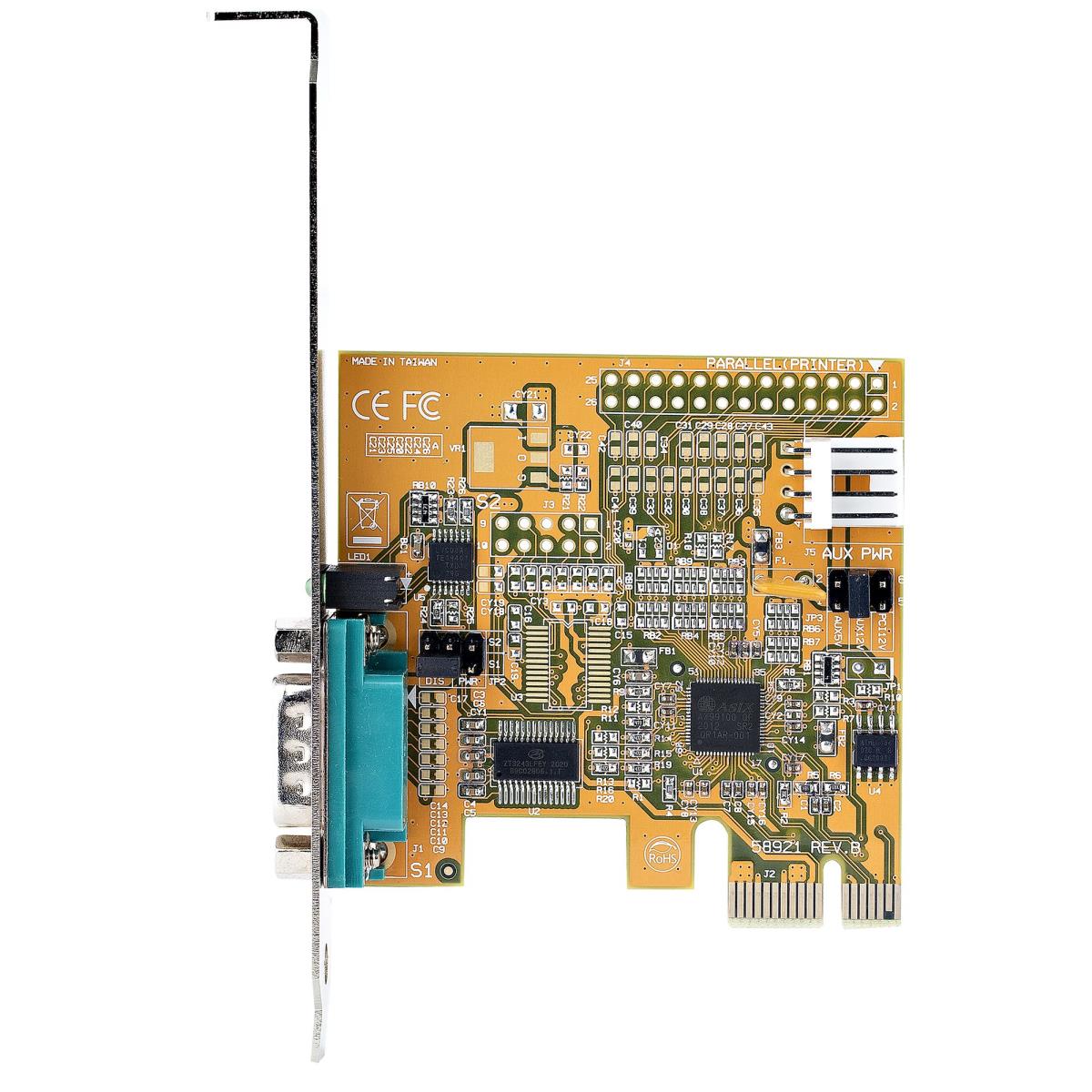

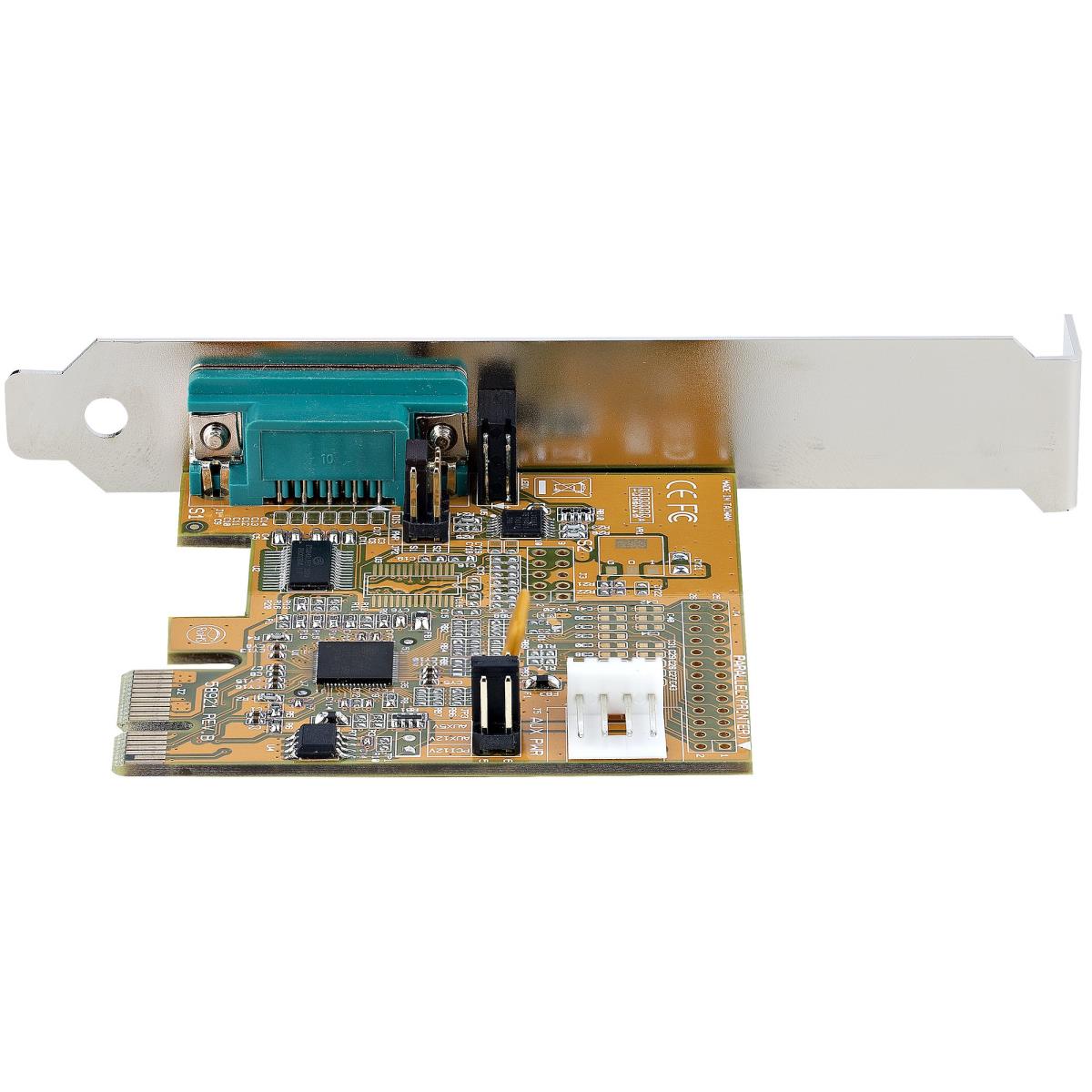

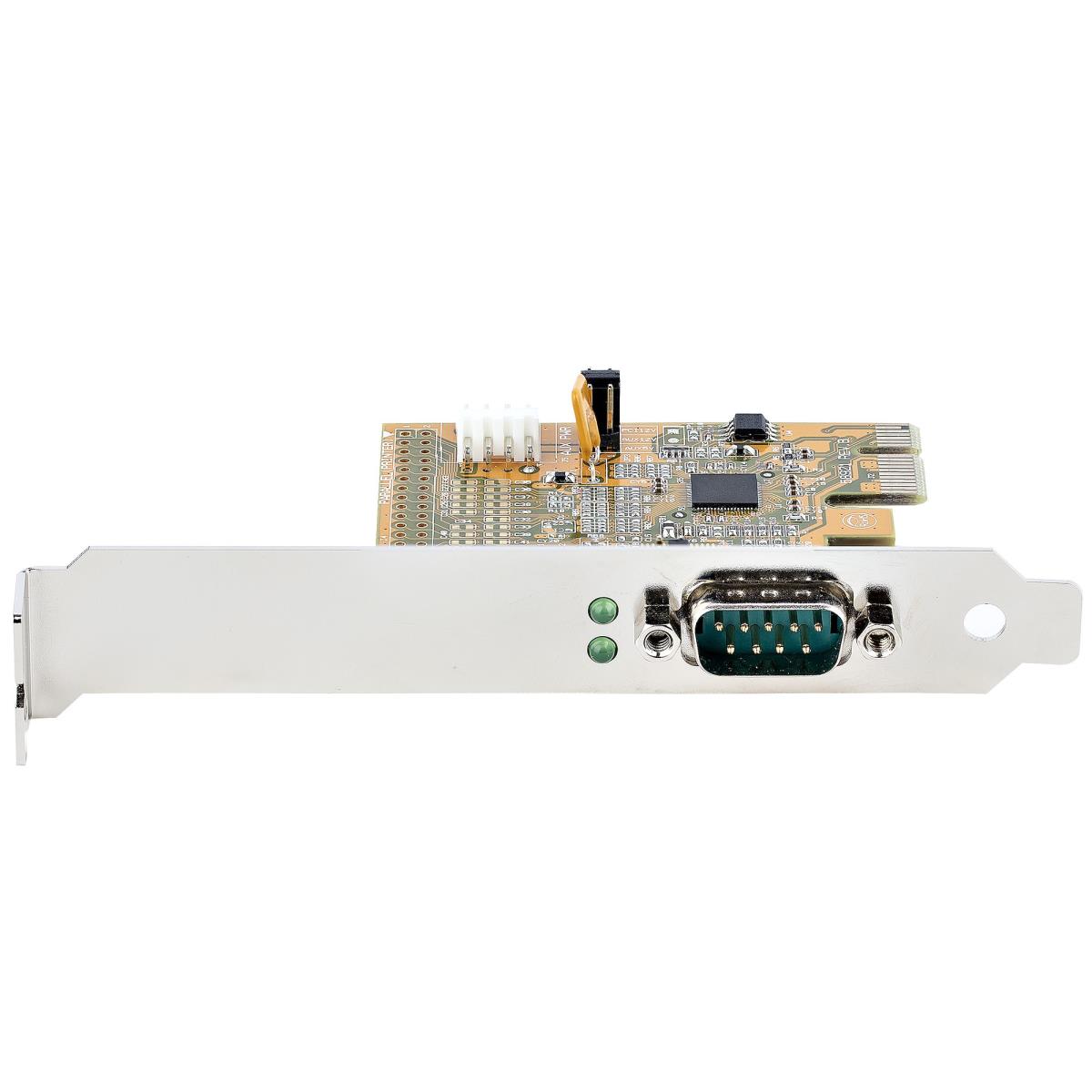

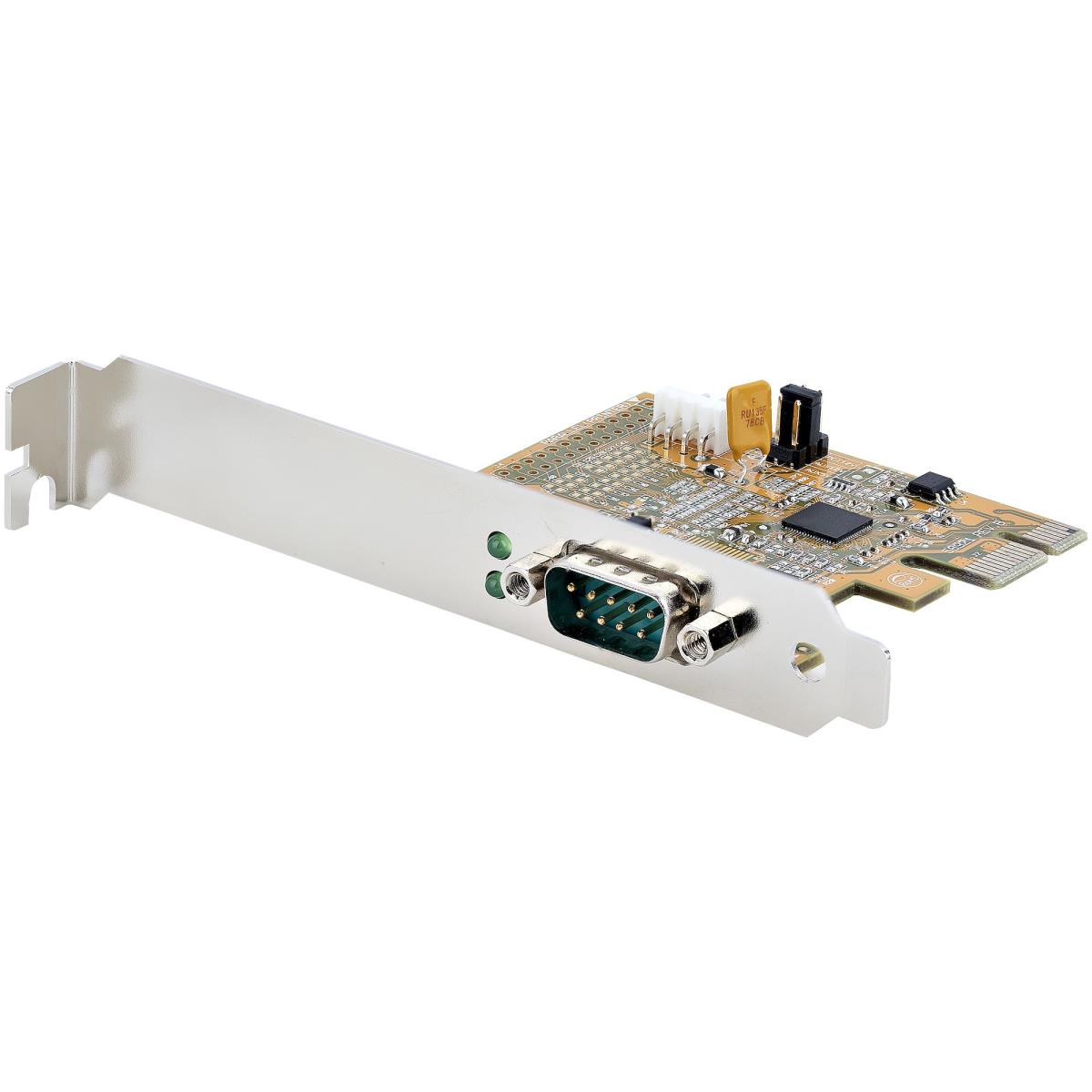

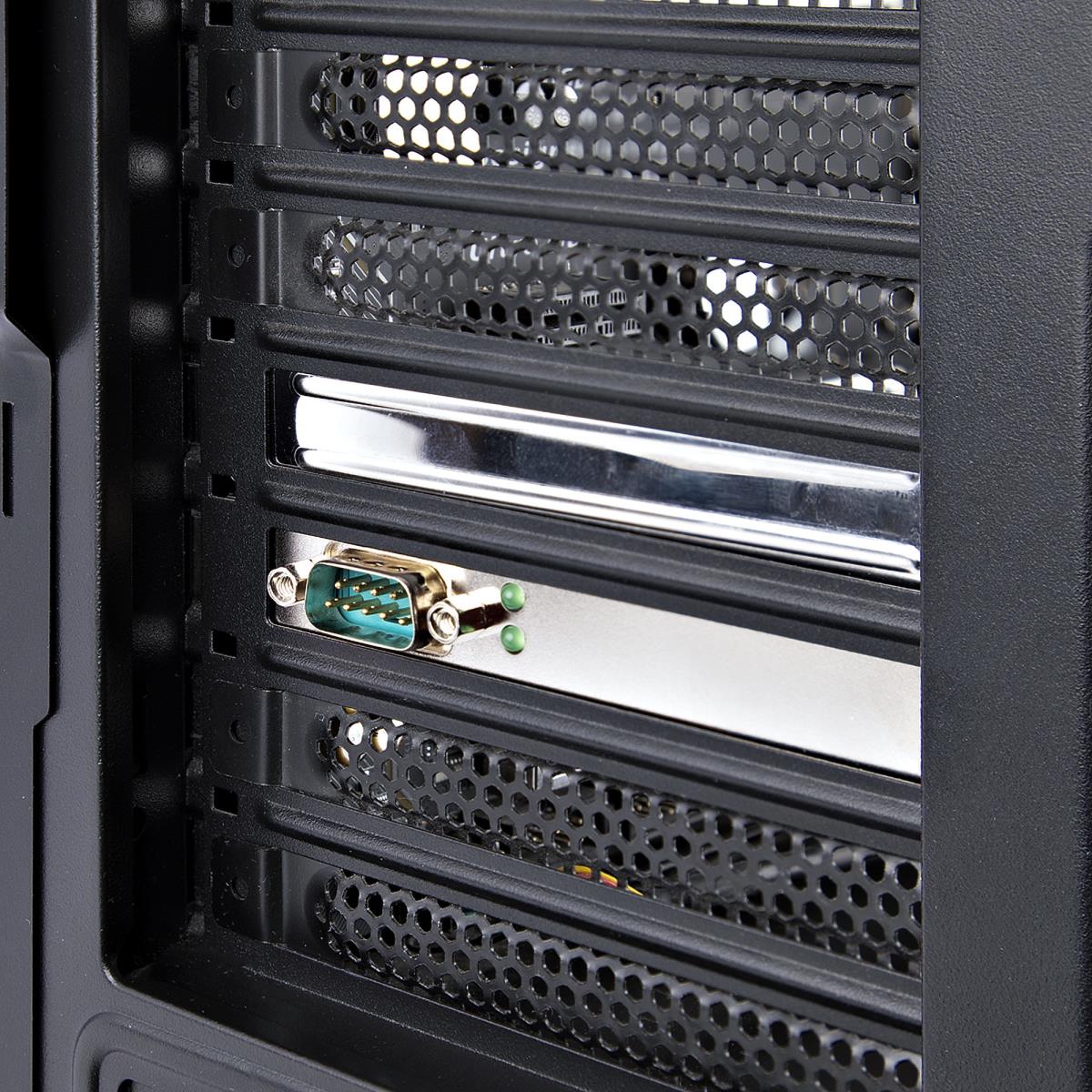

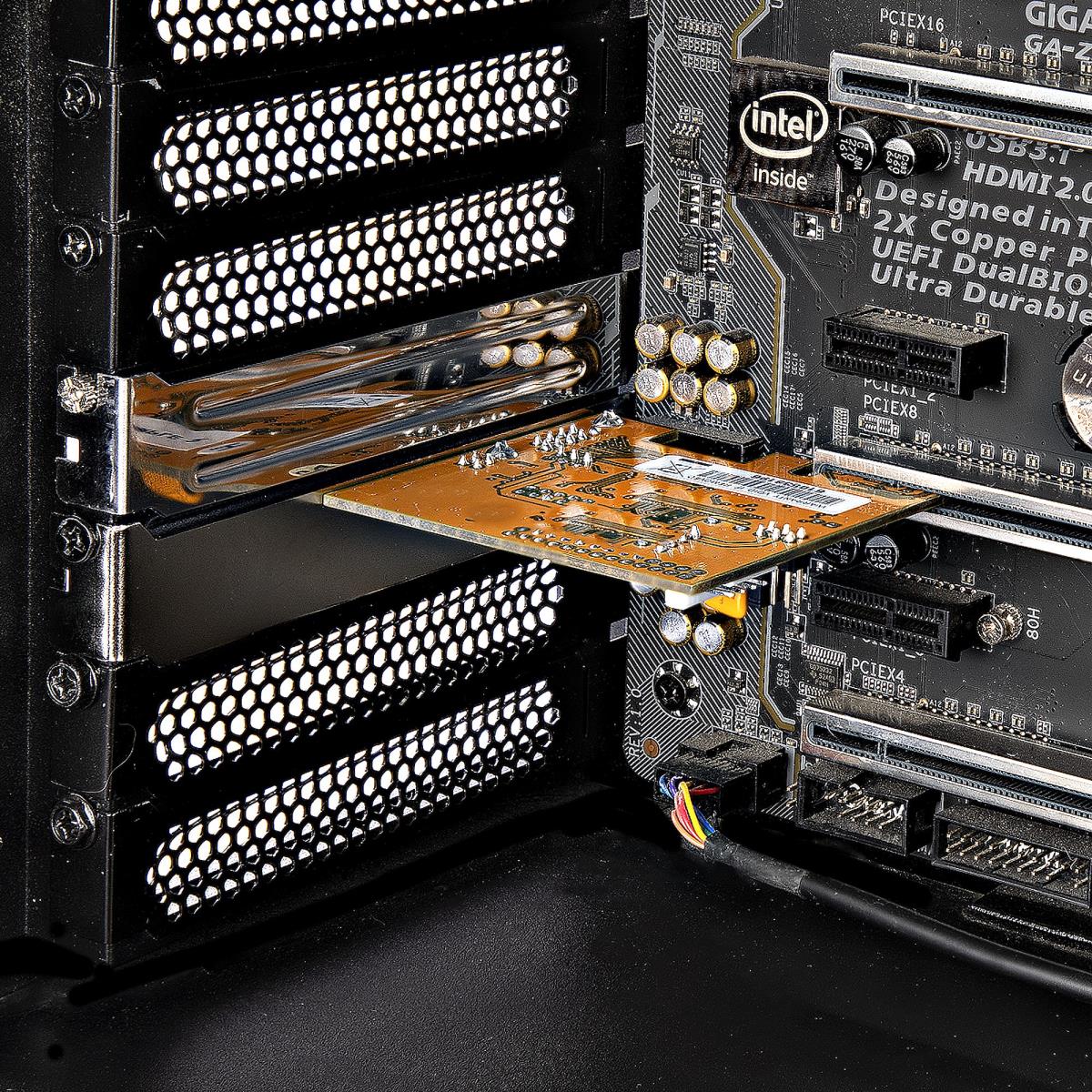

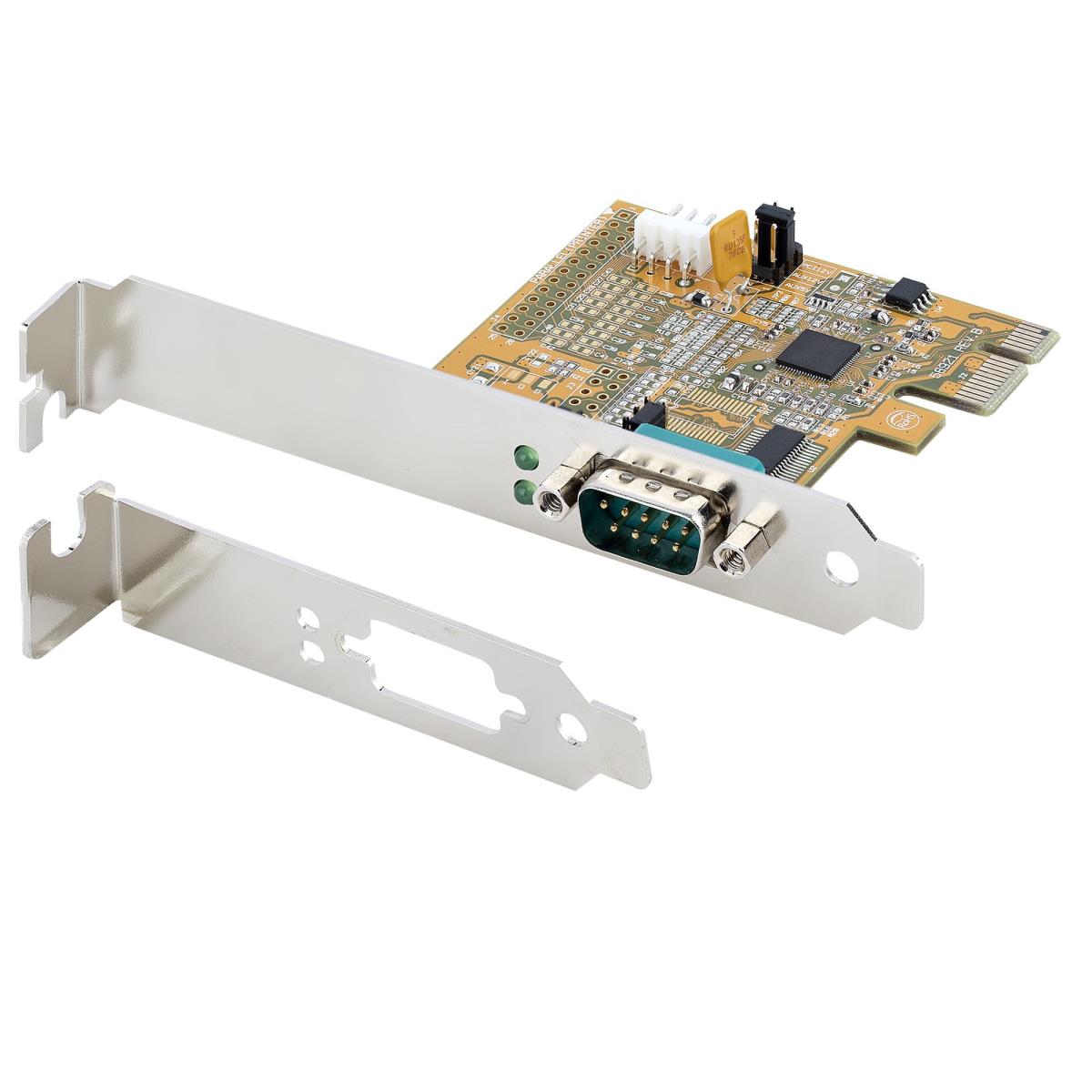

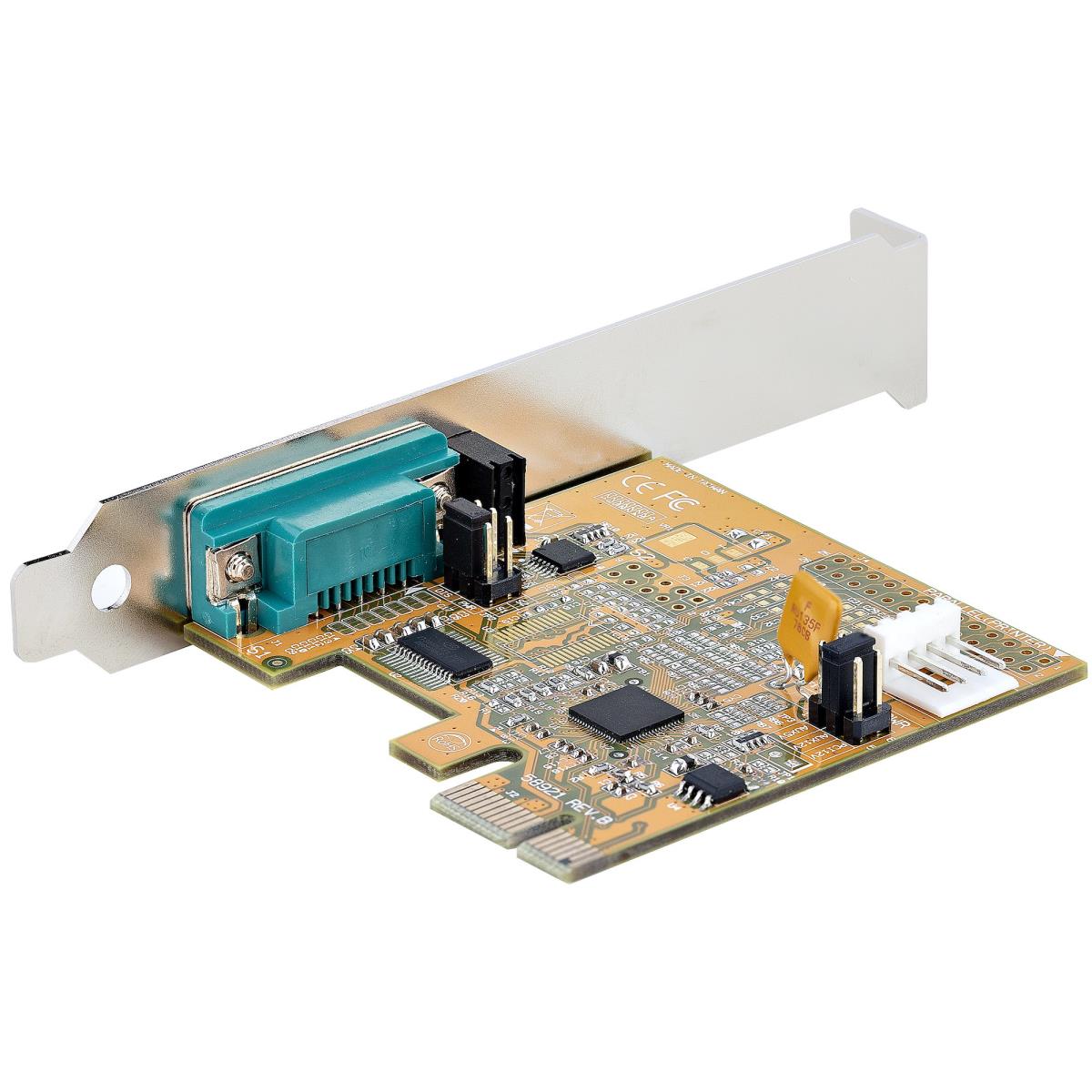

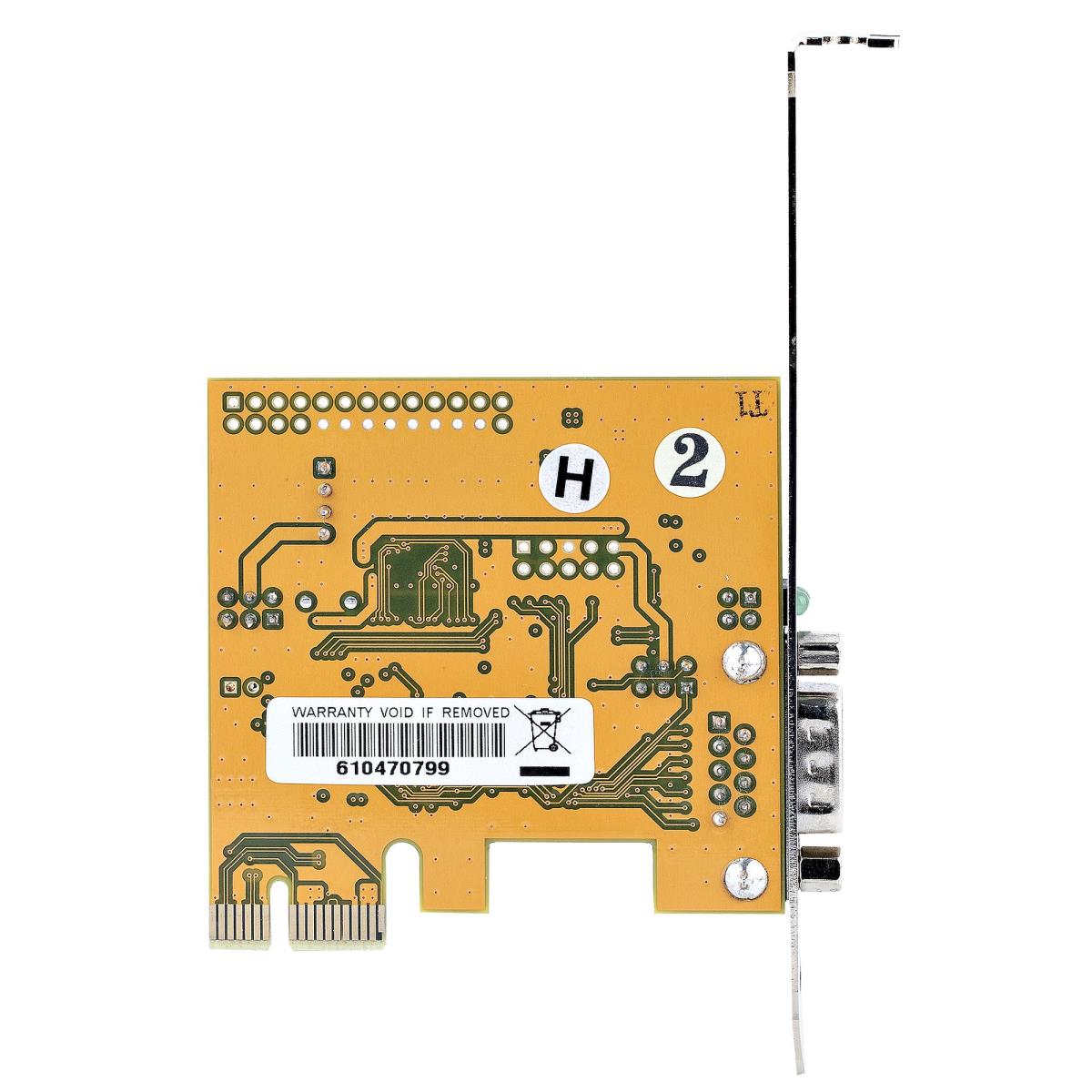

Baud Rate 921.6 Kbps per Port | 256-byte FIFO | PCIe 2.0 x1Add serial communication support to your desktop computer or Small Form Factor (SFF) system, using this serial card. RS-232 (DB9) support enables control and communication with a serial peripheral device.Legacy ConnectivityInstall this card to enable the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The PCIe serial card is ideal for system upgrades in a wide range of applications for logistics, manufacturing, and freight sectors, and the IT industry, such as POS equipment, security systems, A/V installations, and more.Connect with EaseThe RS-232 card features 16C1050 UART support, 256-byte FIFO (transmit/receive), bi-directional speeds up to 921.6 Kbps, low-profile bracket is included for SFF systems, and serial port LED status lights. In addition, it supports Windows and Linux systems for maximum compatibility.11050-PC-SERIAL-CARD is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
Ports & interfaces | |
---|---|
Internal | Yes |
Output interface | Serial |
Serial interface type | RS-232 |
Serial ports quantity | 1 |
Host interface | PCIe |
Expansion card form factor | Full-height / Low-profile |
Expansion card standard | PCIe 2.0 |
Technical details | |
Chipset | ASIX - AX99100, ASIX - ZT3243LFEY |
FIFO (First In, First Out) | 256 B |
Material | Steel |
Sustainability certificates | CE, RoHS |
Performance | |
Data bits | 5, 6, 7, 8, 9 |
Baud rate | 921.6 Kbit/s |
Chipset | ASIX - AX99100, ASIX - ZT3243LFEY |
FIFO (First In, First Out) | 256 B |
Flow control support | Yes |
Product colour | Yellow |
Harmonized System (HS) code | 84733020 |
Colour | |
Product colour | Yellow |
Design | |
Internal | Yes |
Product colour | Yellow |
LED indicators | Activity |
Features | |
Data bits | 5, 6, 7, 8, 9 |
Baud rate | 921.6 Kbit/s |
Chipset | ASIX - AX99100, ASIX - ZT3243LFEY |
FIFO (First In, First Out) | 256 B |
Flow control support | Yes |
Parity bit | Even, Mark, No, Odd, Space |
Harmonized System (HS) code | 84733020 |
Operational conditions | |
Operating temperature (T-T) | 0 - 55 °C |
Storage temperature (T-T) | -40 - 75 °C |
Operating relative humidity (H-H) | 5 - 95% |
System requirements | |
Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Linux operating systems supported | Yes |
Server operating systems supported | Windows Server 2016, Windows Server 2019 |
Weight & dimensions | |
Width | 65 mm |
Depth | 67 mm |
Height | 18 mm |
Weight | 42 g |
Package width | 207 mm |
Package depth | 144 mm |
Package height | 38 mm |
Package weight | 200 g |
Packaging data | |
Mounting brackets included | Yes |
Package width | 207 mm |
Package depth | 144 mm |
Package height | 38 mm |
Package weight | 200 g |
Quick installation guide | Yes |
Logistics data | |
Products per master (outer) case | 50 pc(s) |
Master (outer) case width | 530 mm |
Master (outer) case length | 440 mm |
Master (outer) case height | 340 mm |
Harmonized System (HS) code | 84733020 |
Other features | |
Material | Steel |
Chipset | ASIX - AX99100, ASIX - ZT3243LFEY |
Flow control support | Yes |
Packaging content | |
Mounting brackets included | Yes |
Quick installation guide | Yes |
