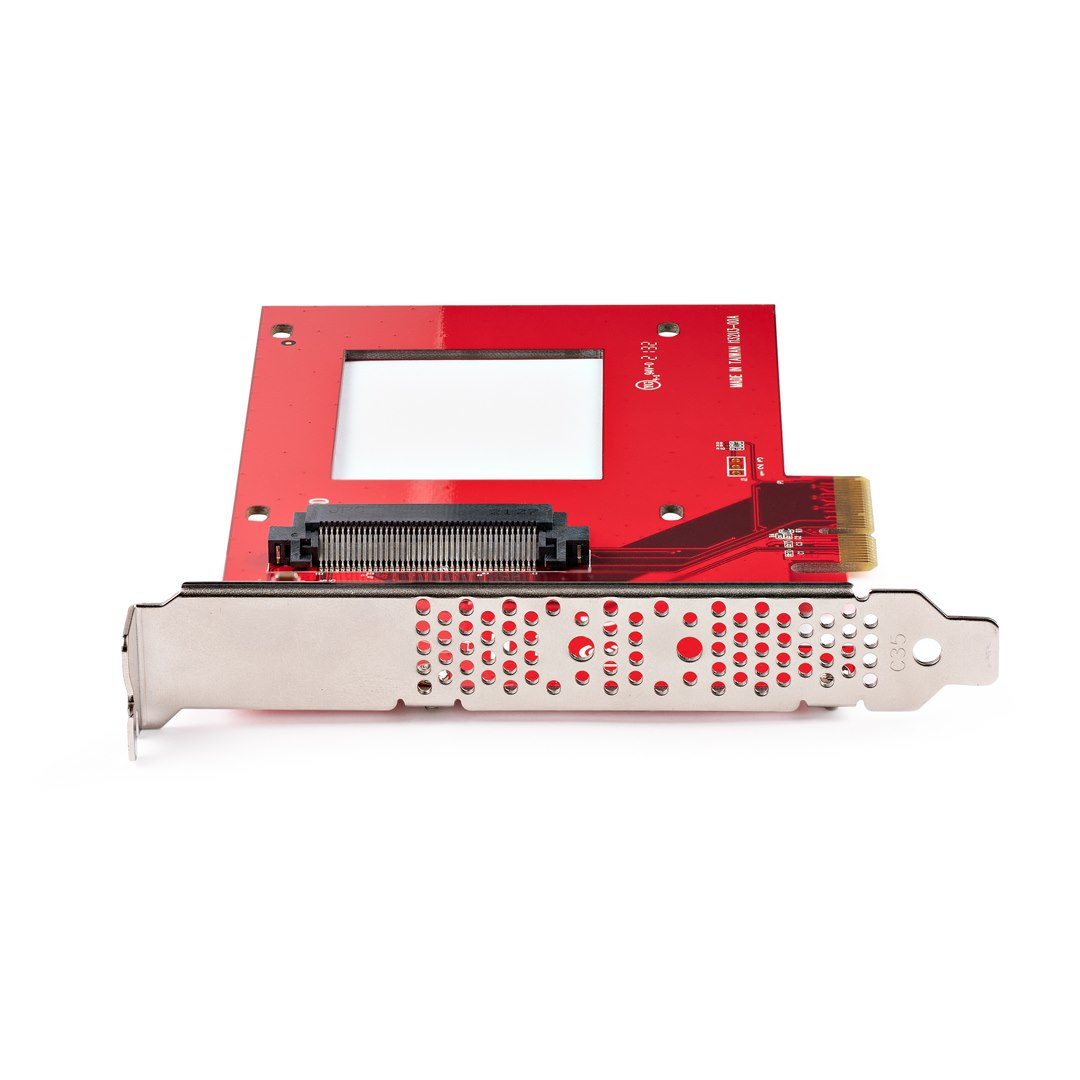

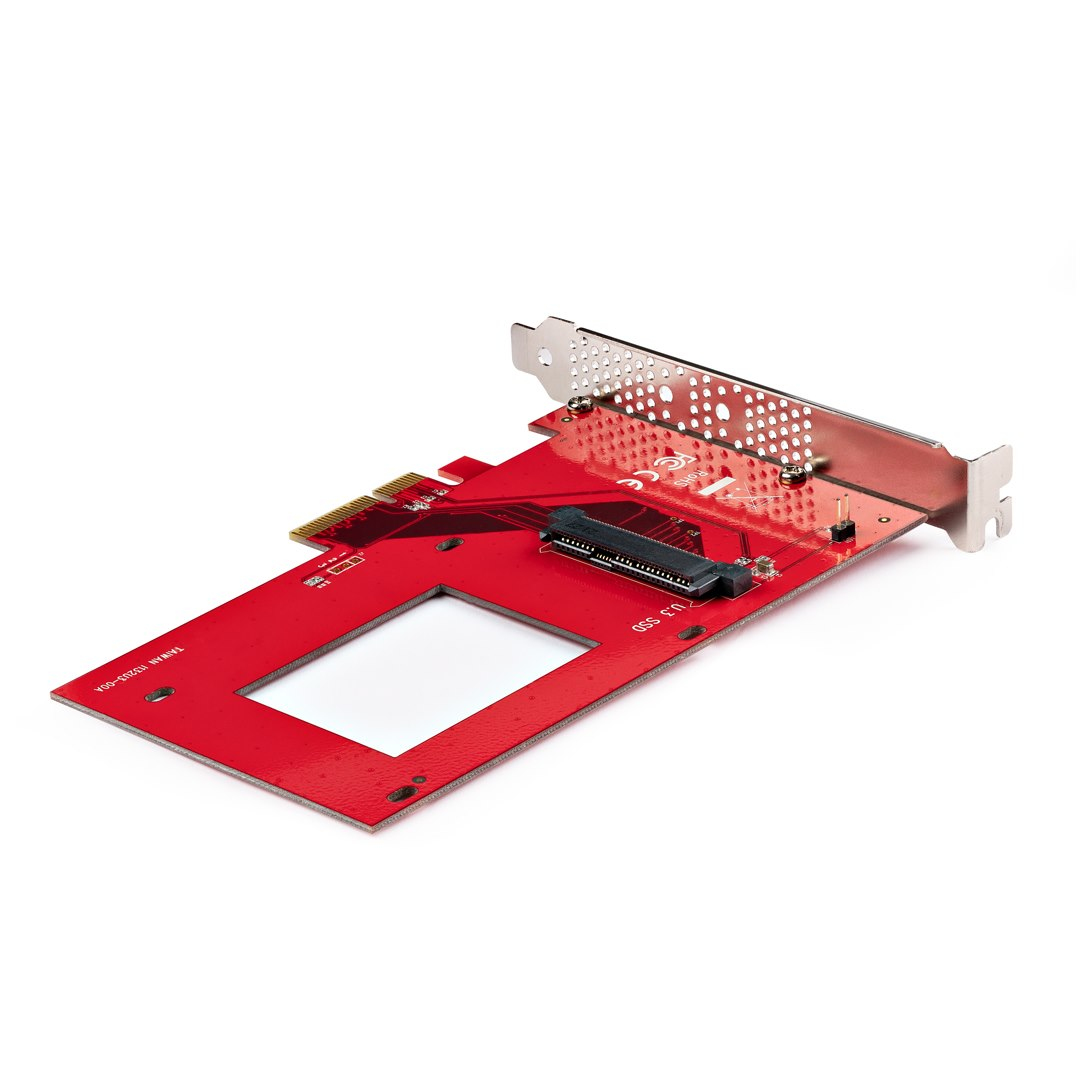

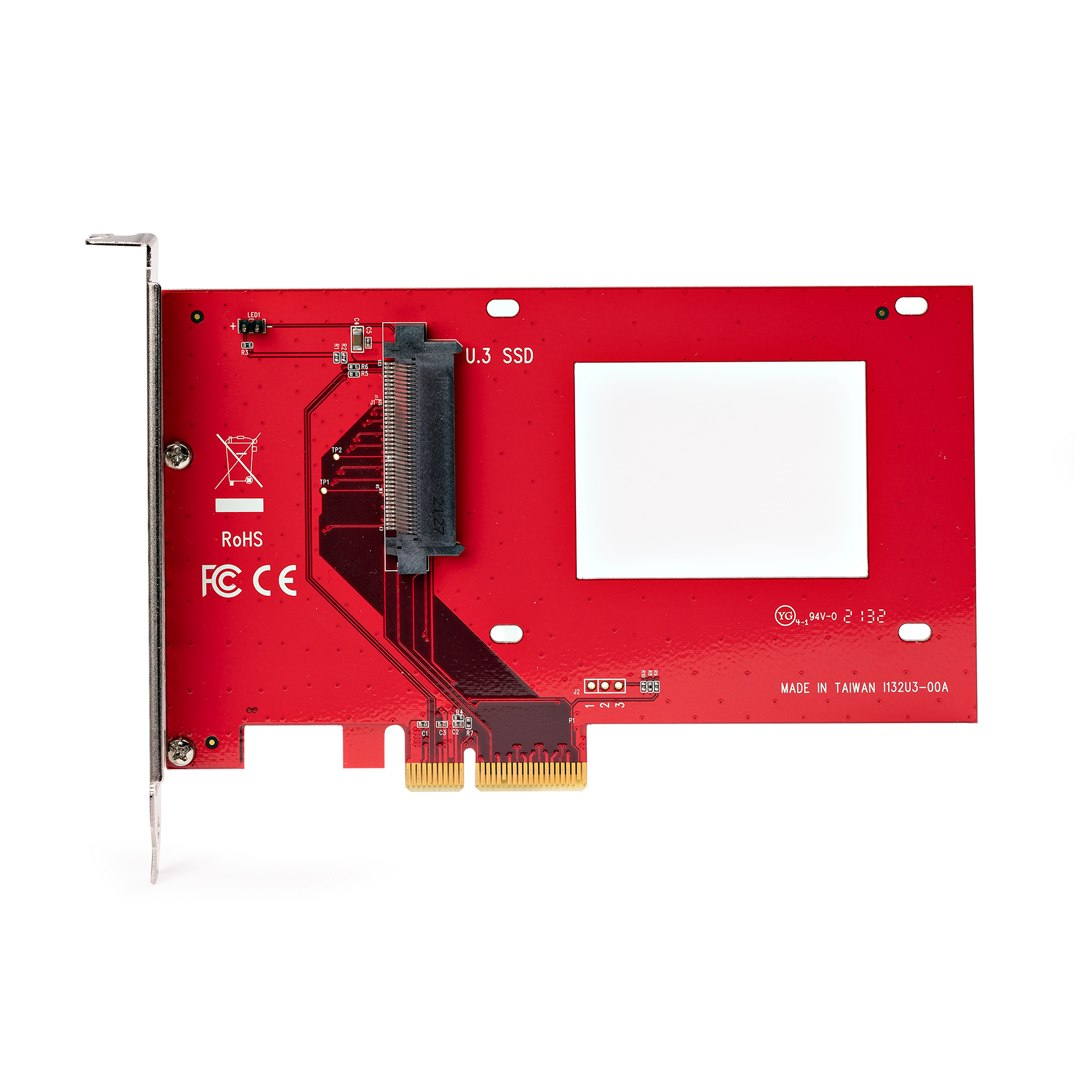

U.3 TO PCIE ADAPTER CARD -
Introduction

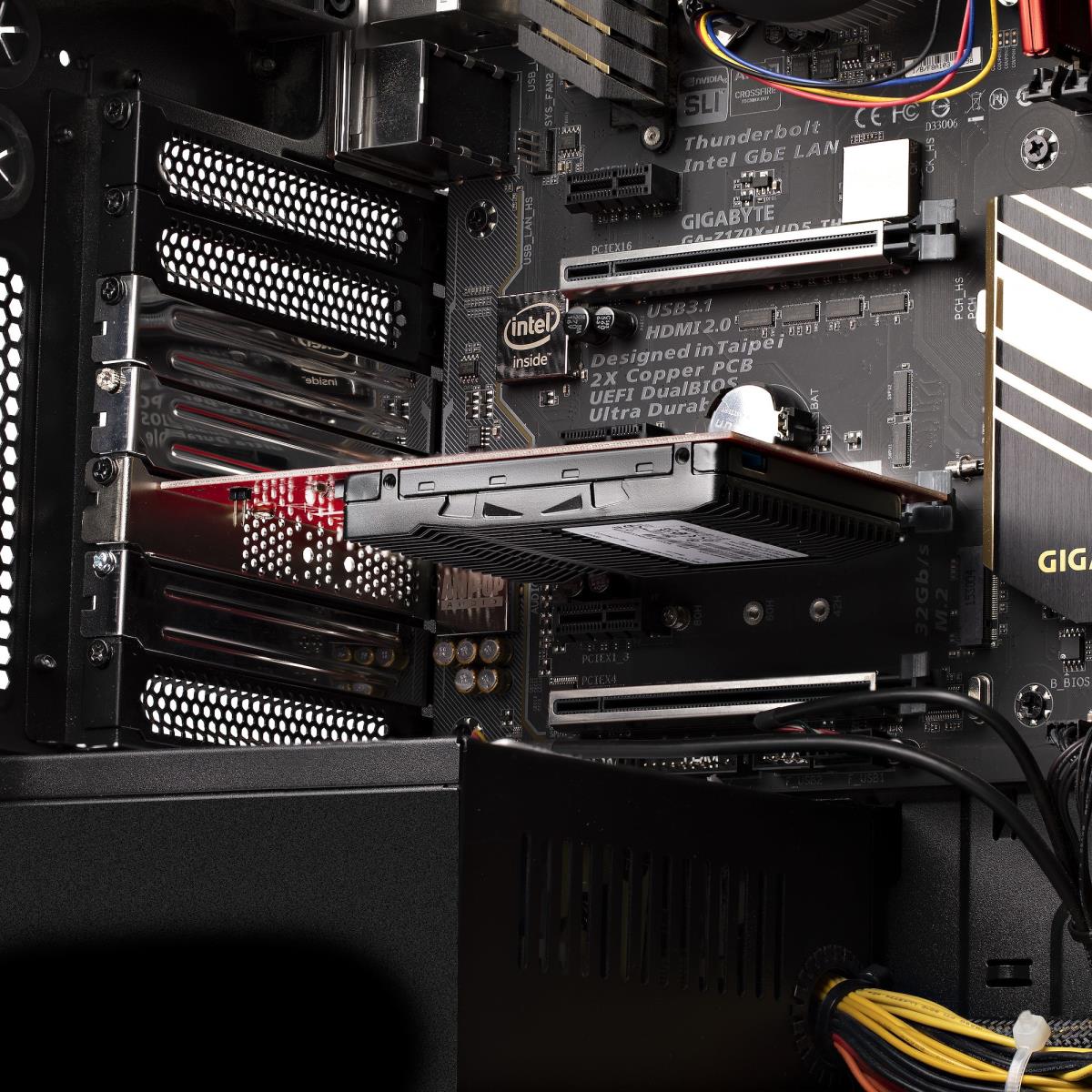

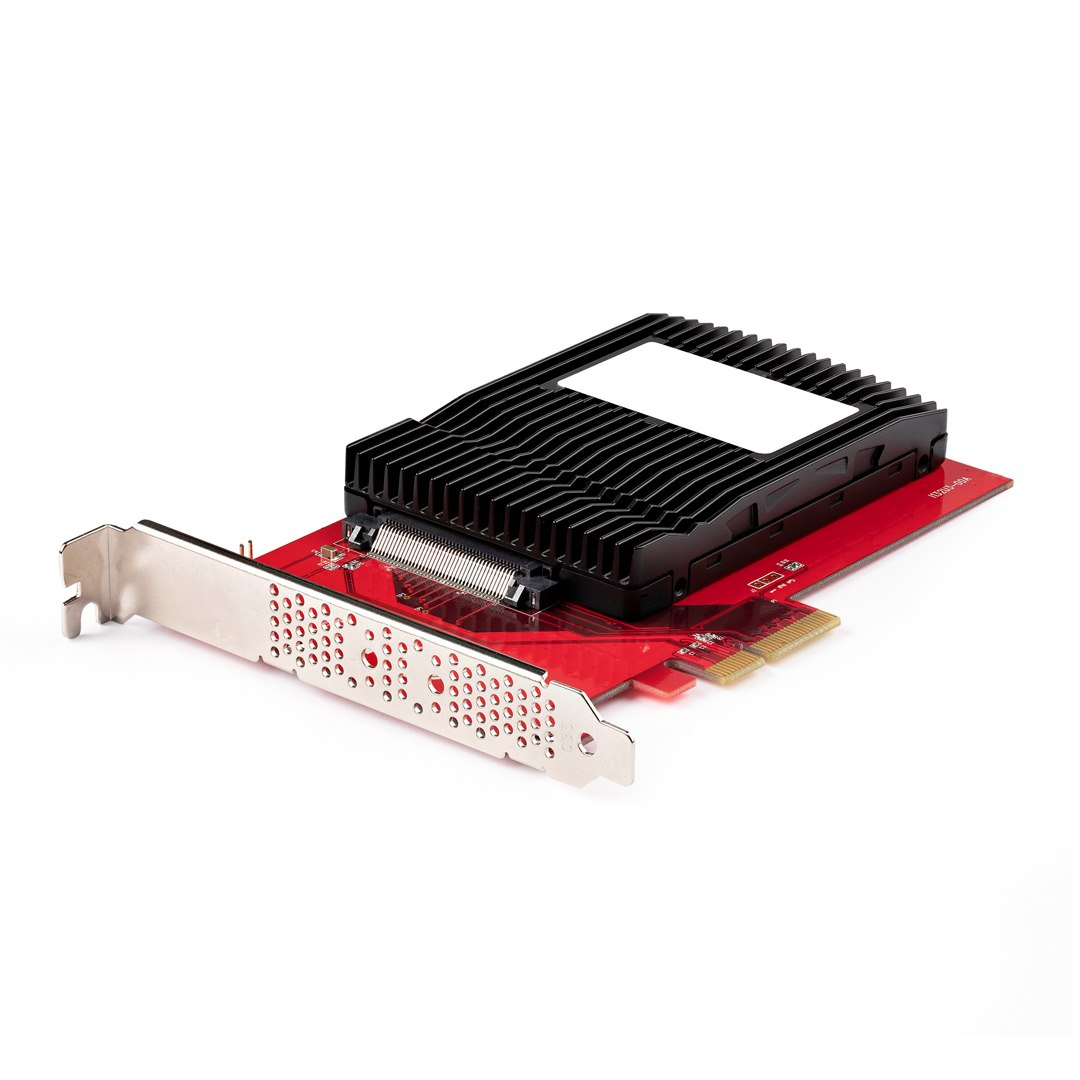

Mount a 2.5" U.3 NVMe SSD into a desktop computer or server, utilizing a PCIe x4 expansion slot

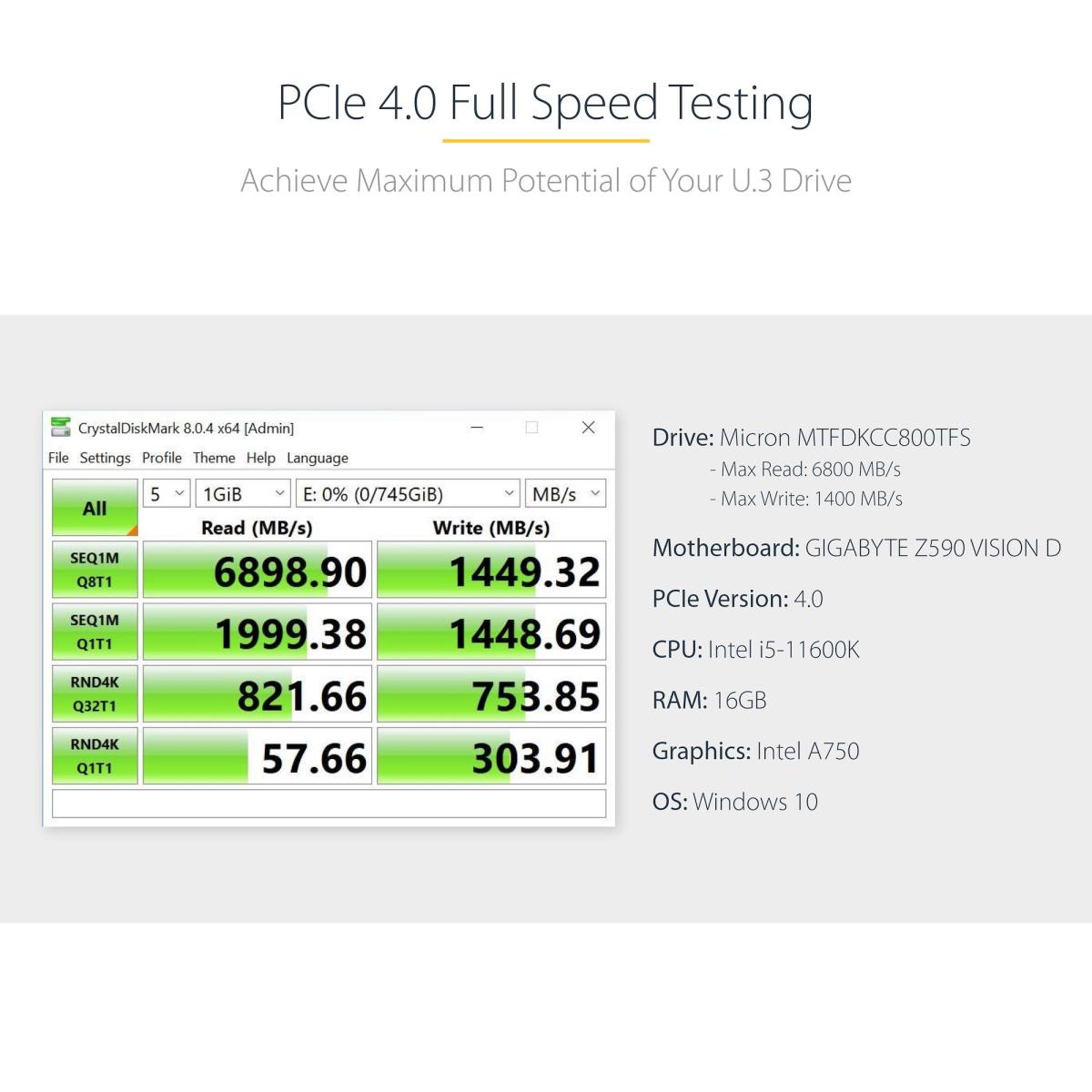

Add a 2.5 inch U.3 NVMe SSD into a PCIe 4.0 x4/x8/x16 slot in a desktop or server using the included screws, enabling ultra-fast data access.

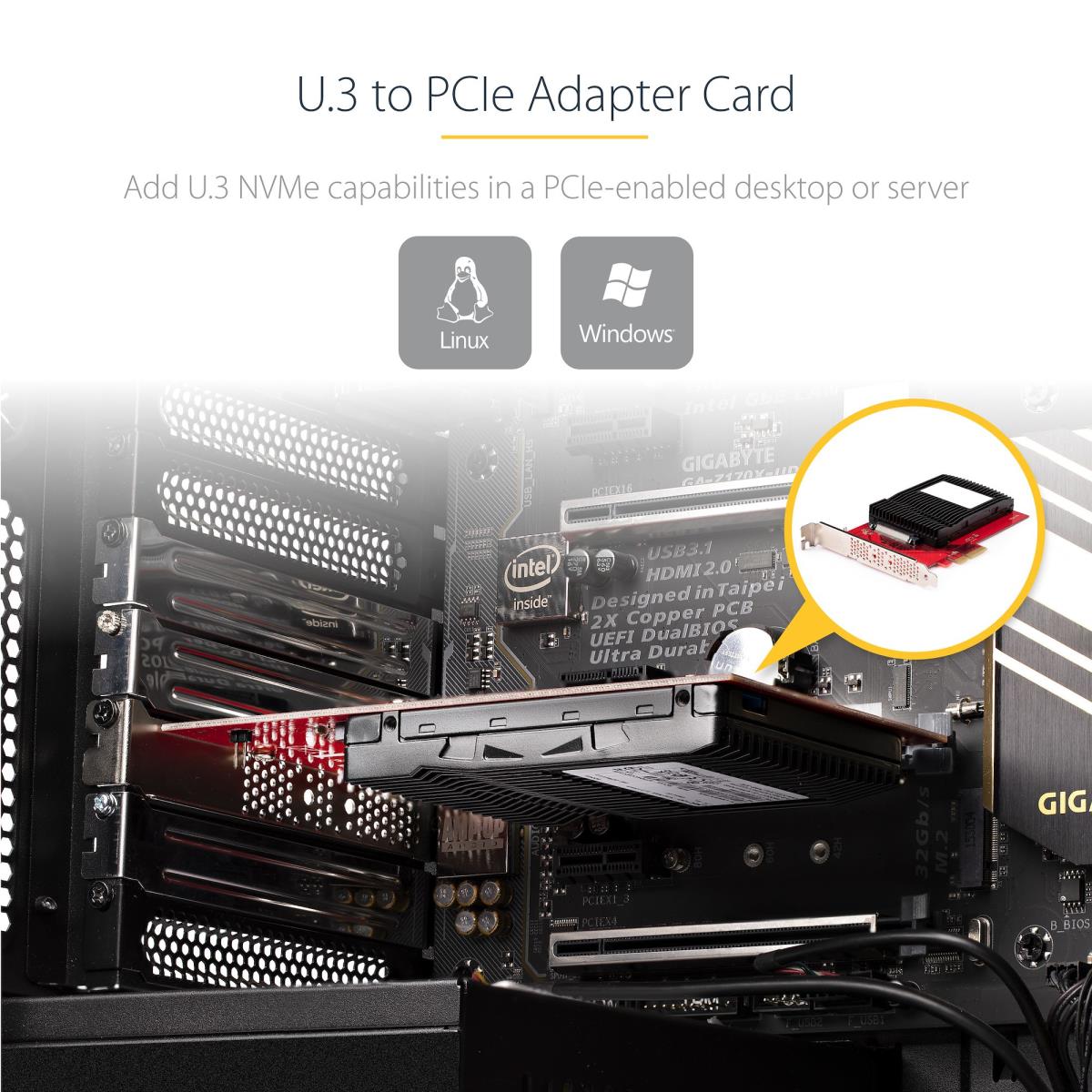

Add U.3 Capabilities to a Desktop or Server

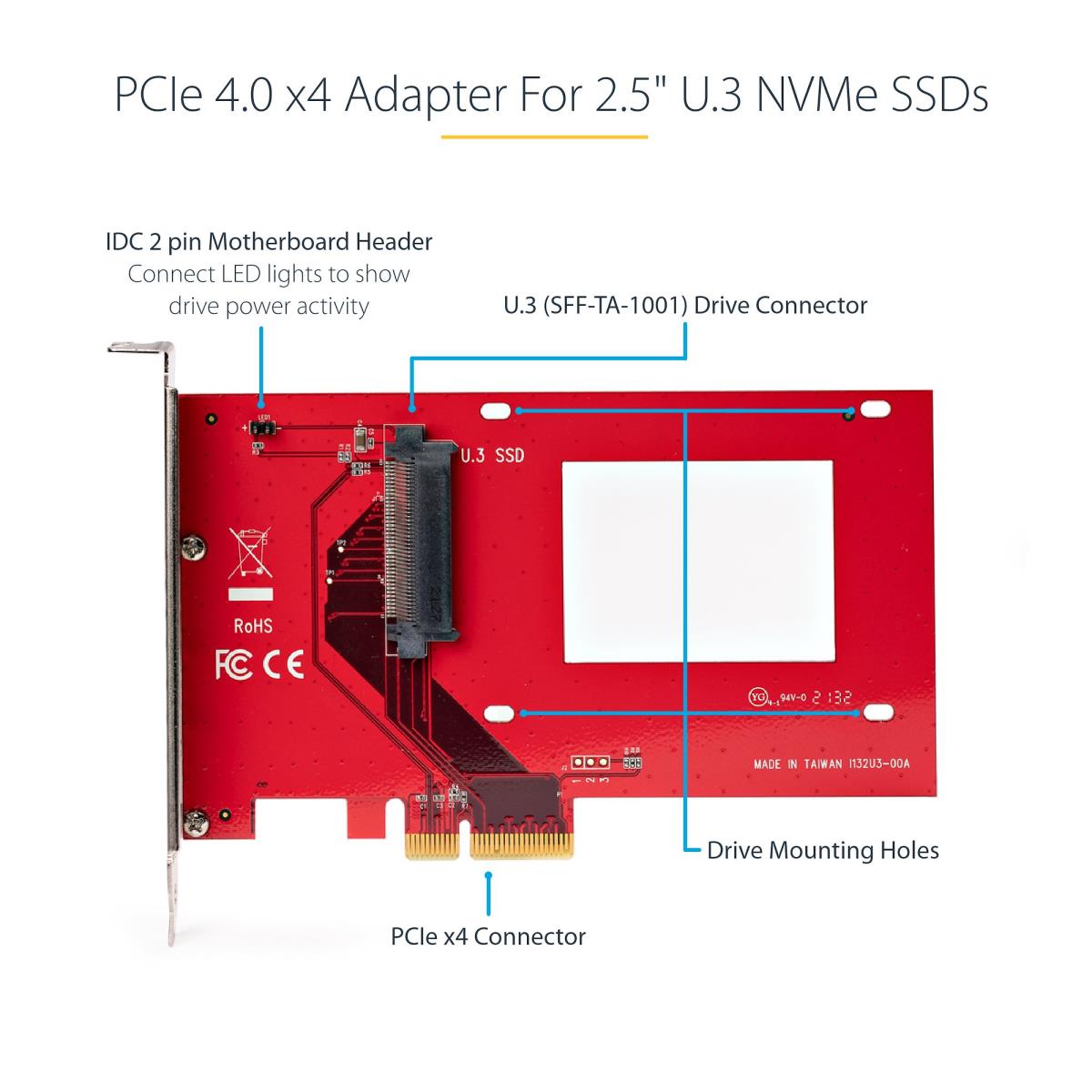

Install an SFF-TA-1001 SSD into a desktop or server using an available PCI Express 4.0 slot. The pre-installed full-profile bracket and included drive mounting screws enable the connection of a U.3 NVMe drive to a PCIe slot, avoiding the need for a drive backplane or additional cables. This adapter is not compatible with U.2 drives.
Universal Compatibility
The Adapter Card is backward compatible with motherboards that feature x4, x8, and/or x16 PCIe 3.0 slots. The U.3 Adapter requires no additional drivers or software and works with all workstation and server operating systems, such as Windows, Windows Server, and Linux.
Optimal Airflow and Reliable Performance

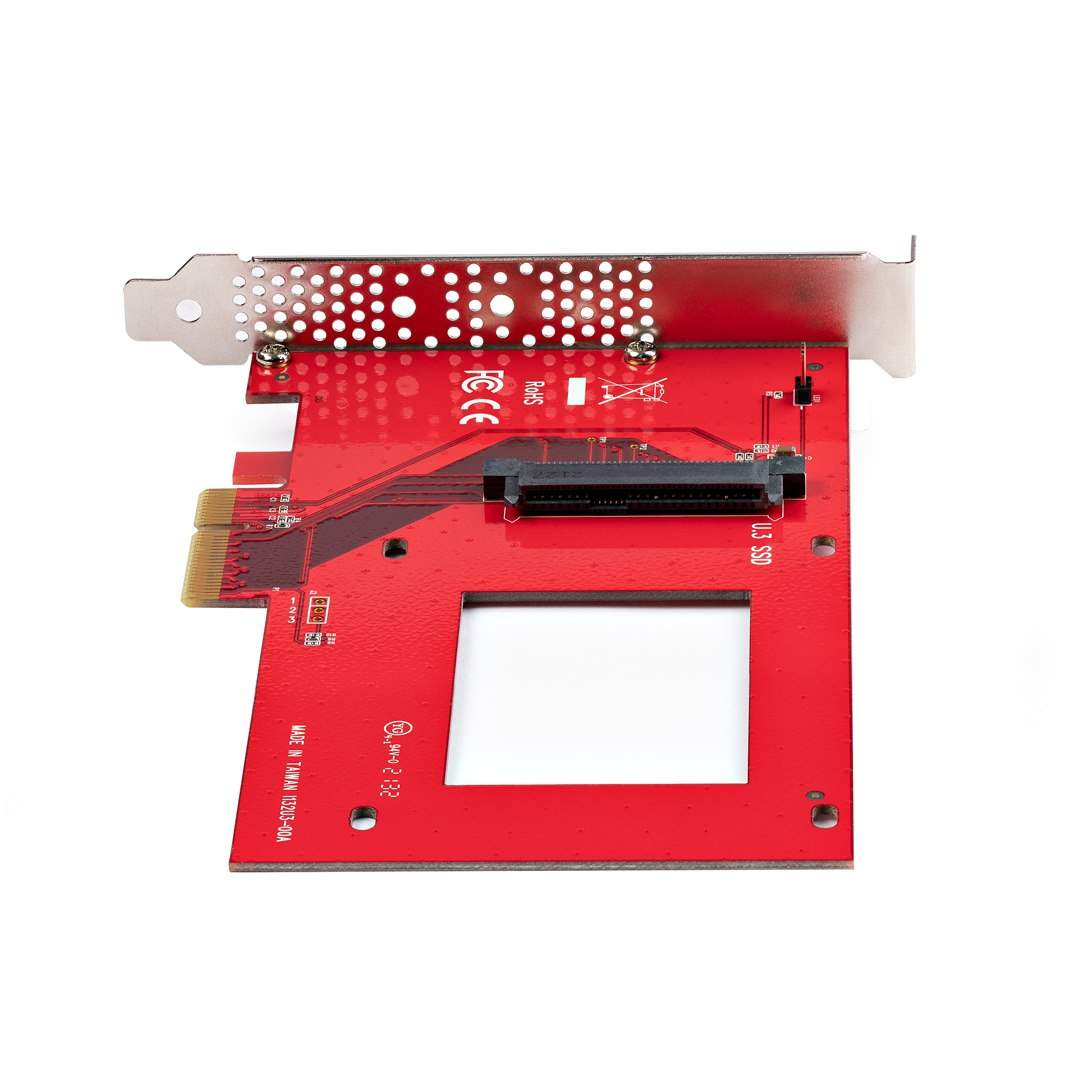

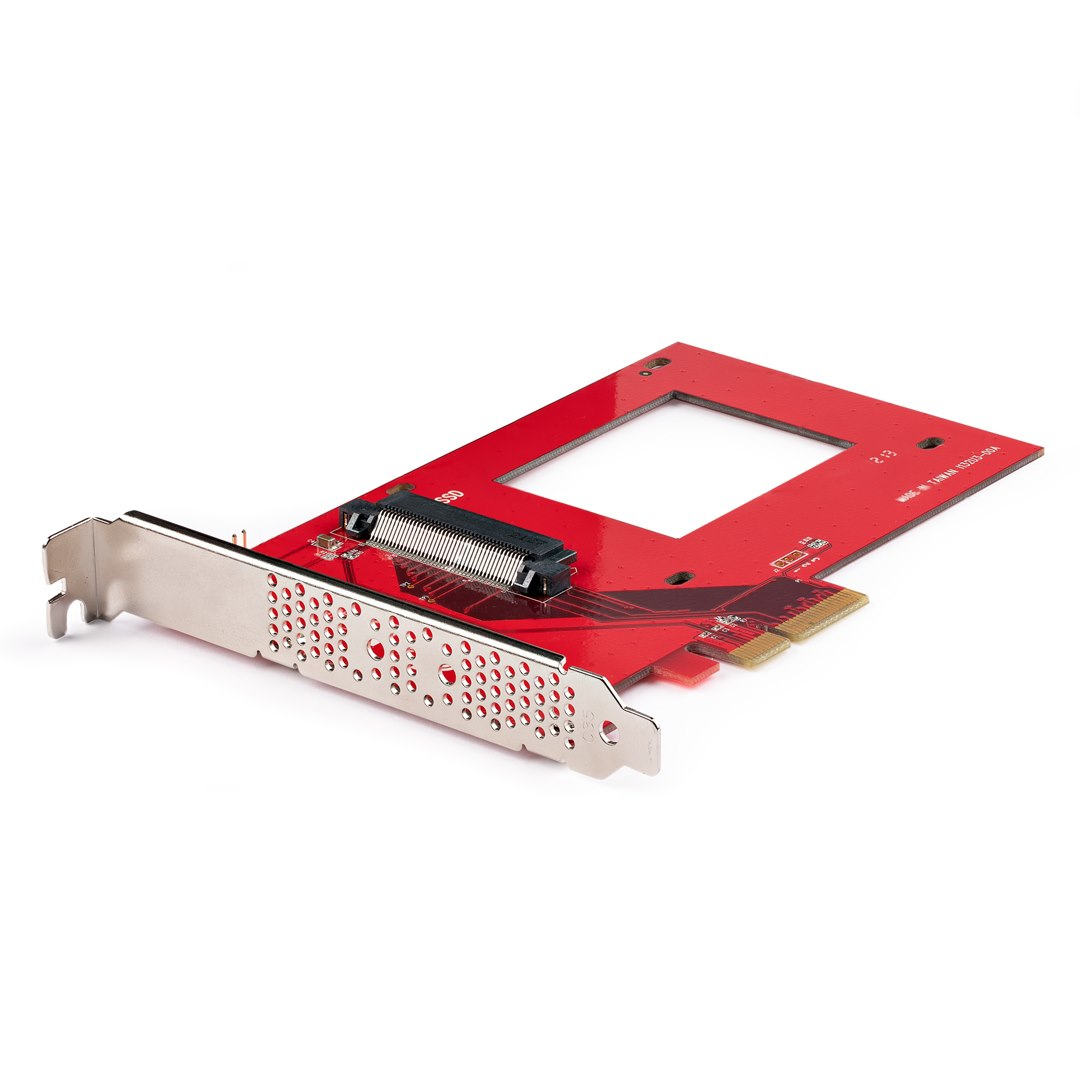

The vented full-profile bracket and a large cutout in the PCB allow for better airflow and heat dissipation, which helps maintain optimal and reliable performance while avoiding thermal throttling.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | U.3 |
| Host interface | PCIe |
| Technical details | |
| Plug and Play | Yes |
| Performance | |
| Hot-swap | No |
| Plug and Play | Yes |
| Product colour | Red |
| Supported storage drive heights | 5,7,9.5,12.5,15 mm |
| Design | |
| Supported storage drive heights | 5,7,9.5,12.5,15 mm |
| Mean time between failures (MTBF) | 21693912 h |
| Hot-swap | No |
| Internal | Yes |
| Product colour | Red |
| LED indicators | Activity, Power |
| Colour | |
| Product colour | Red |
| Features | |
| Plug and Play | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| System requirements | |
| Supported storage drive heights | 5,7,9.5,12.5,15 mm |
| Weight & dimensions | |

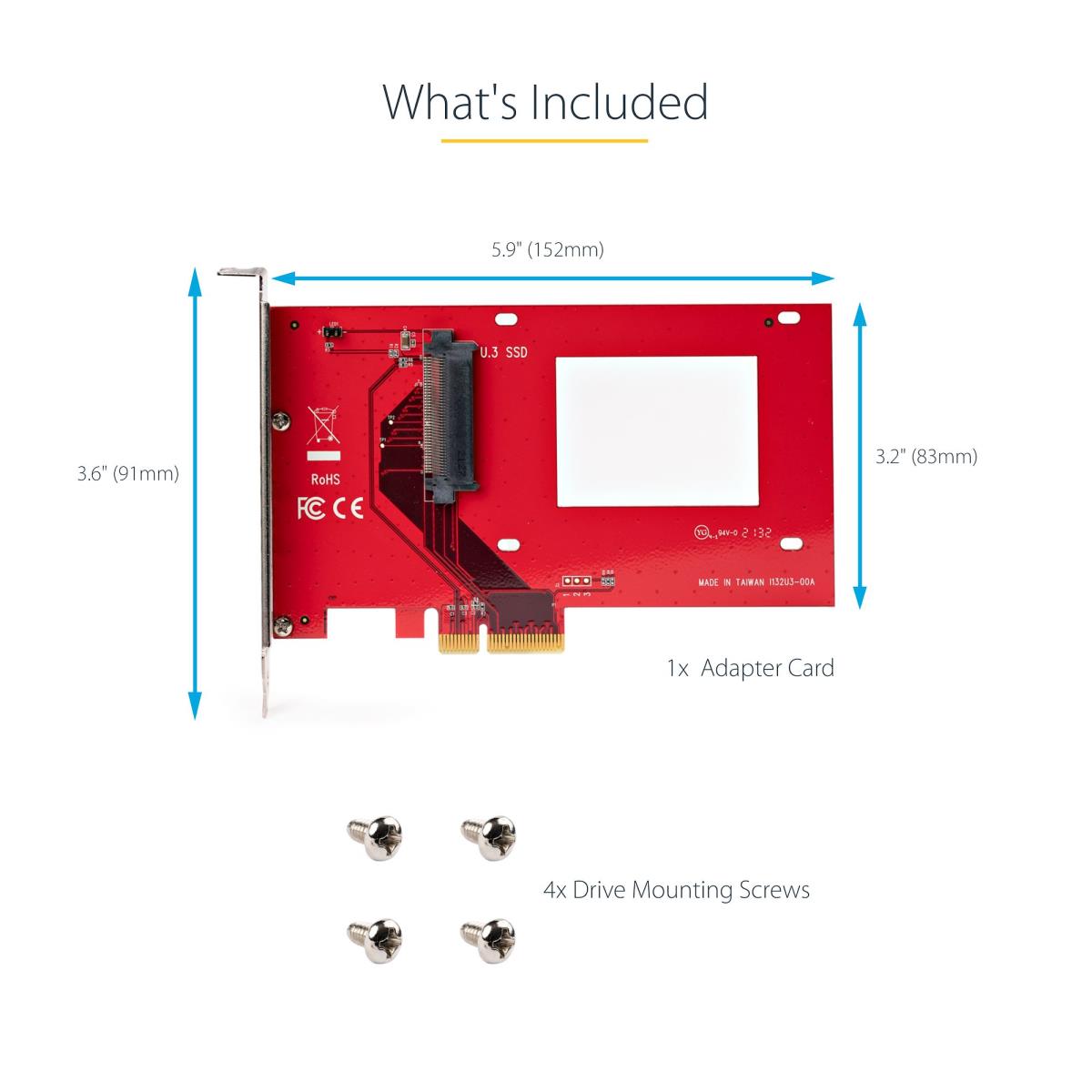

| Width | 90 mm |
| Depth | 154 mm |
| Height | 1.5 mm |
| Weight | 62 g |
| Package width | 220 mm |
| Package depth | 158 mm |
| Package height | 33 mm |
| Package weight | 130 g |
| Packaging data | |
| Package width | 220 mm |
| Package depth | 158 mm |
| Package height | 33 mm |
| Package weight | 130 g |
| Quick installation guide | Yes |

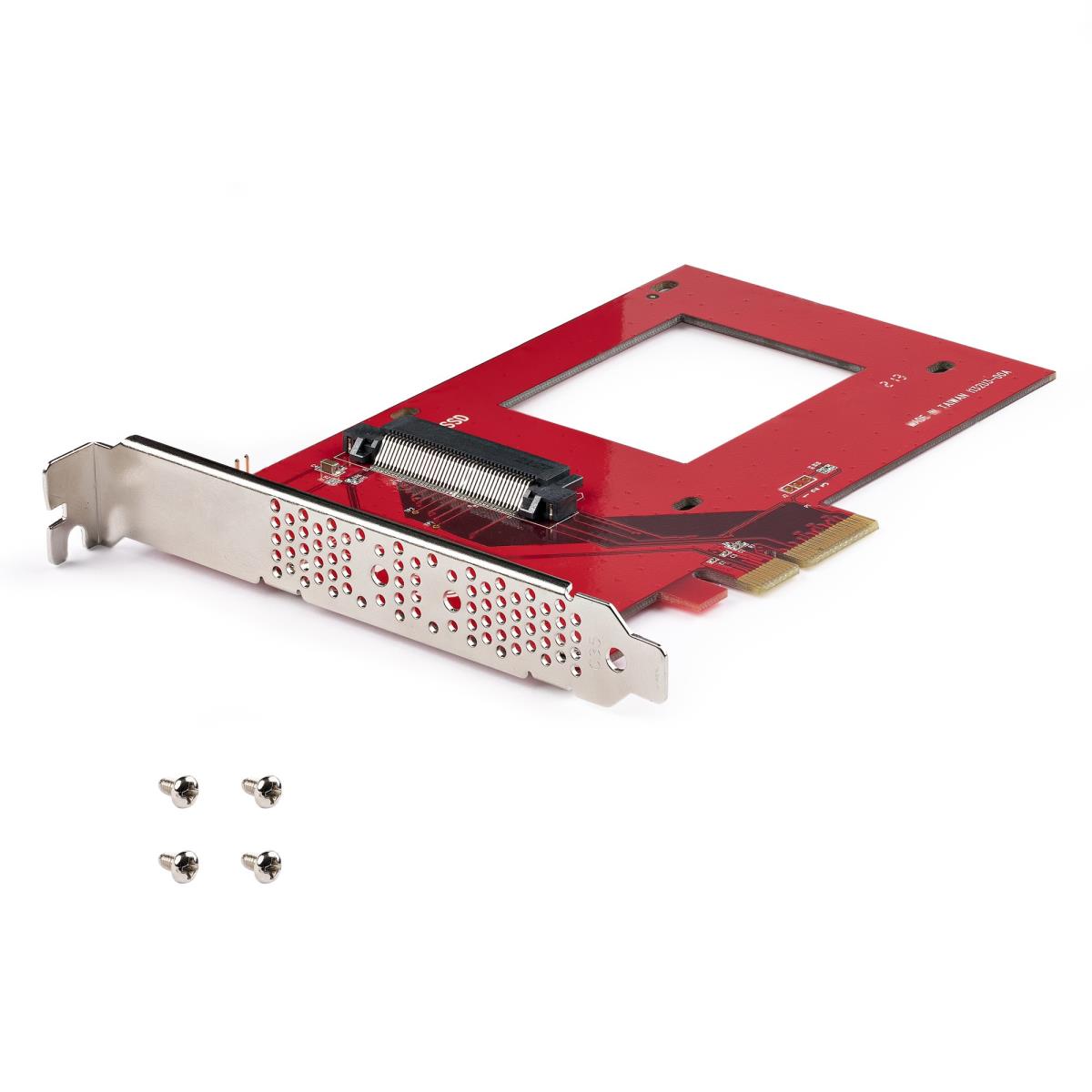

| Screws included | Yes |
| Logistics data | |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 455 mm |
| Master (outer) case length | 340 mm |
| Master (outer) case height | 495 mm |
| Packaging content | |
| Quick installation guide | Yes |
| Screws included | Yes |
