STARTECH.COM 2P6G-PCIE-SATA-CARD STARTECH.COM SATA PCIE CARD 2 PORT NO-RAID

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

2P6G-PCIE-SATA-CARD STARTECH.COM SATA PCIE CARD 2 PORT NO-RAID

Part No:2P6G-PCIE-SATA-CARD

Stock:10 In Stock

EAN Code:0065030895545

£31.52 Excl. VAT

£37.82 Incl. VAT

price matchPrice Match
Guarantee
Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

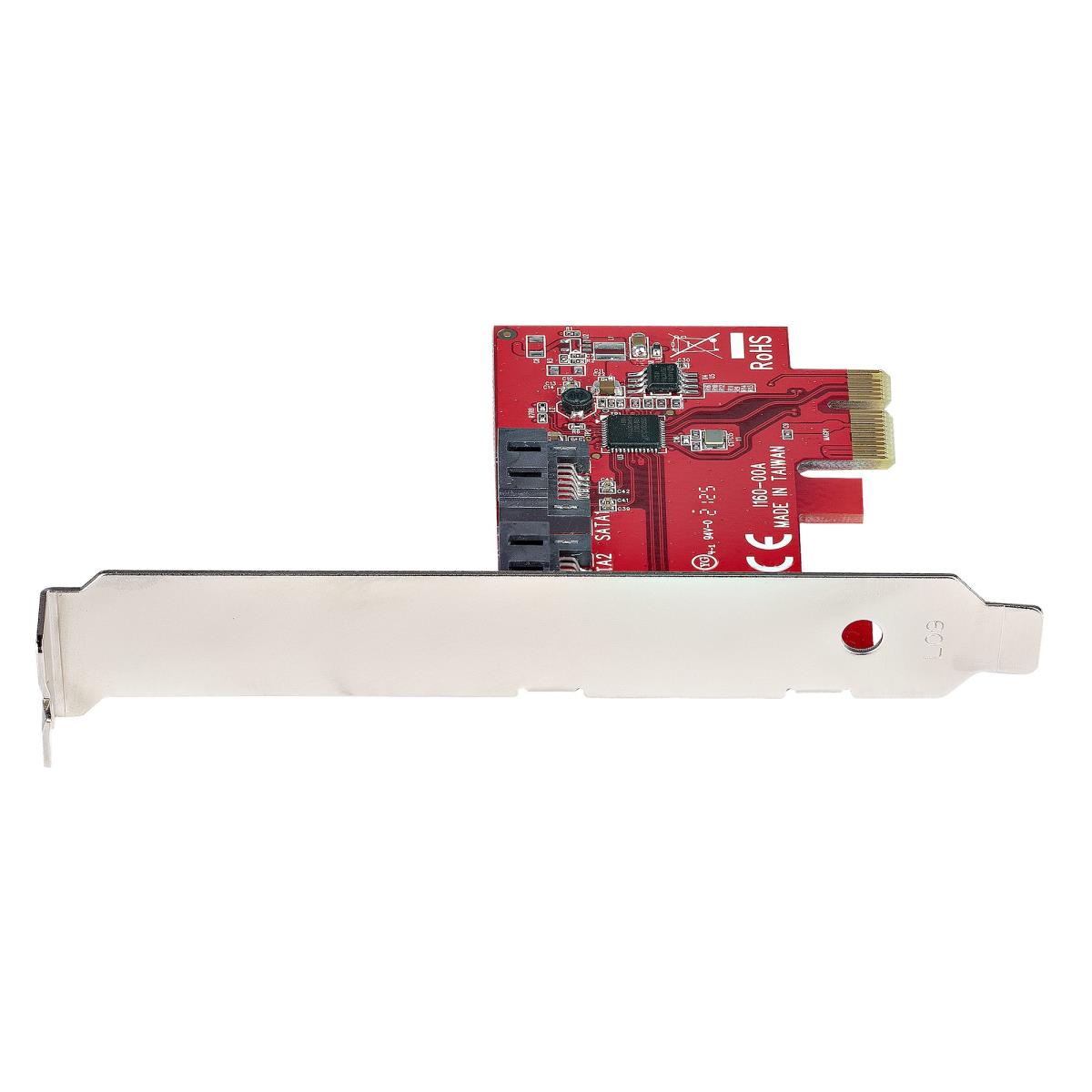

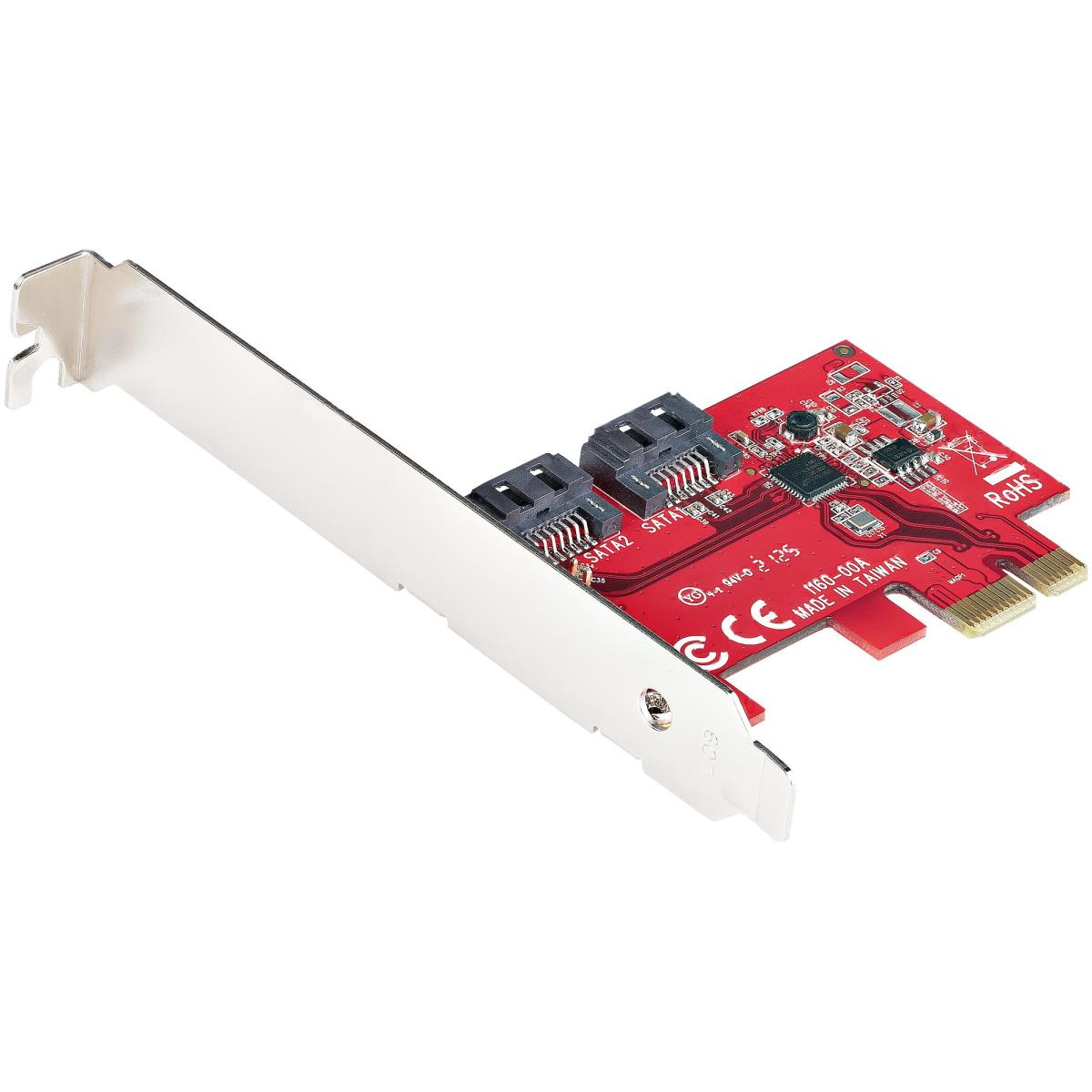

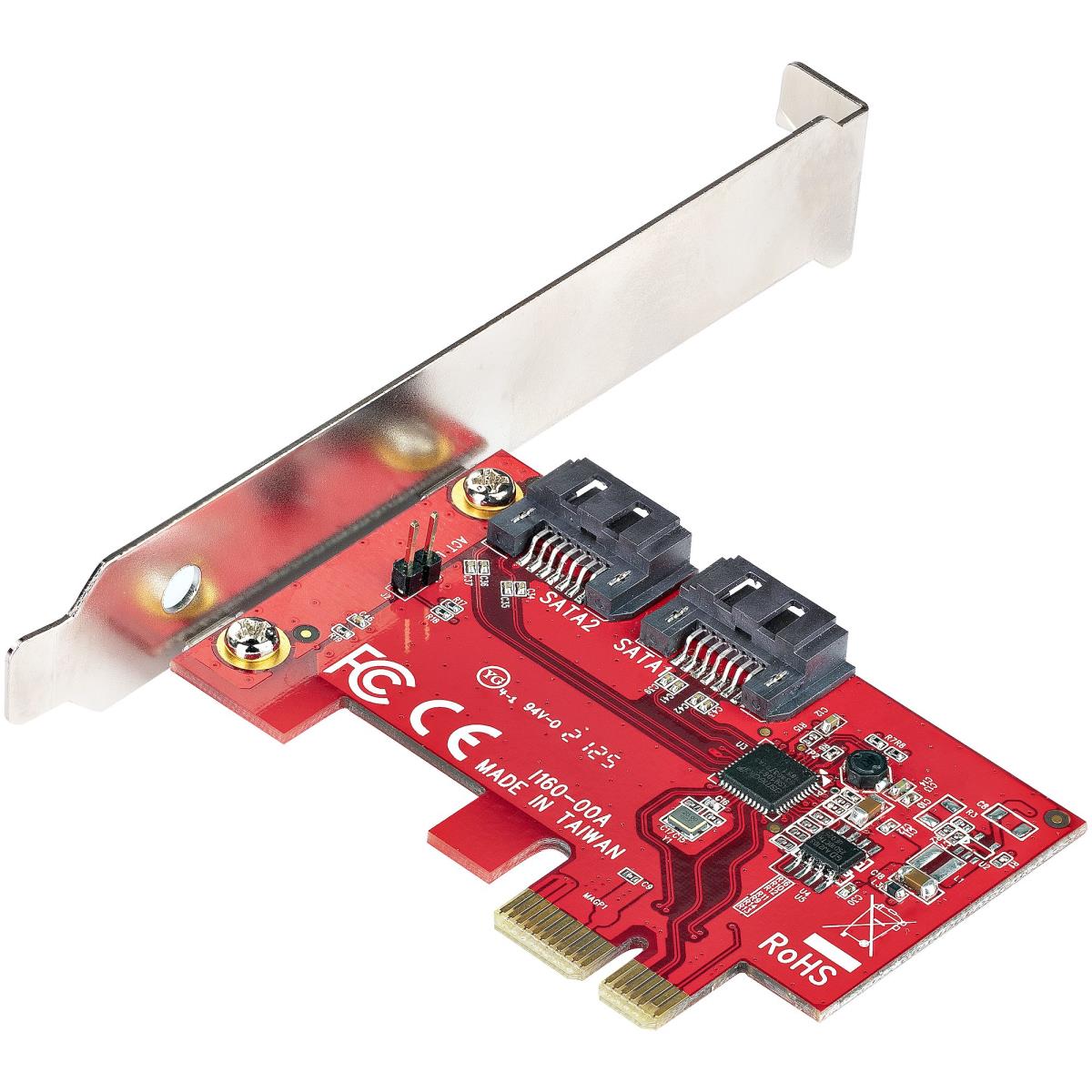

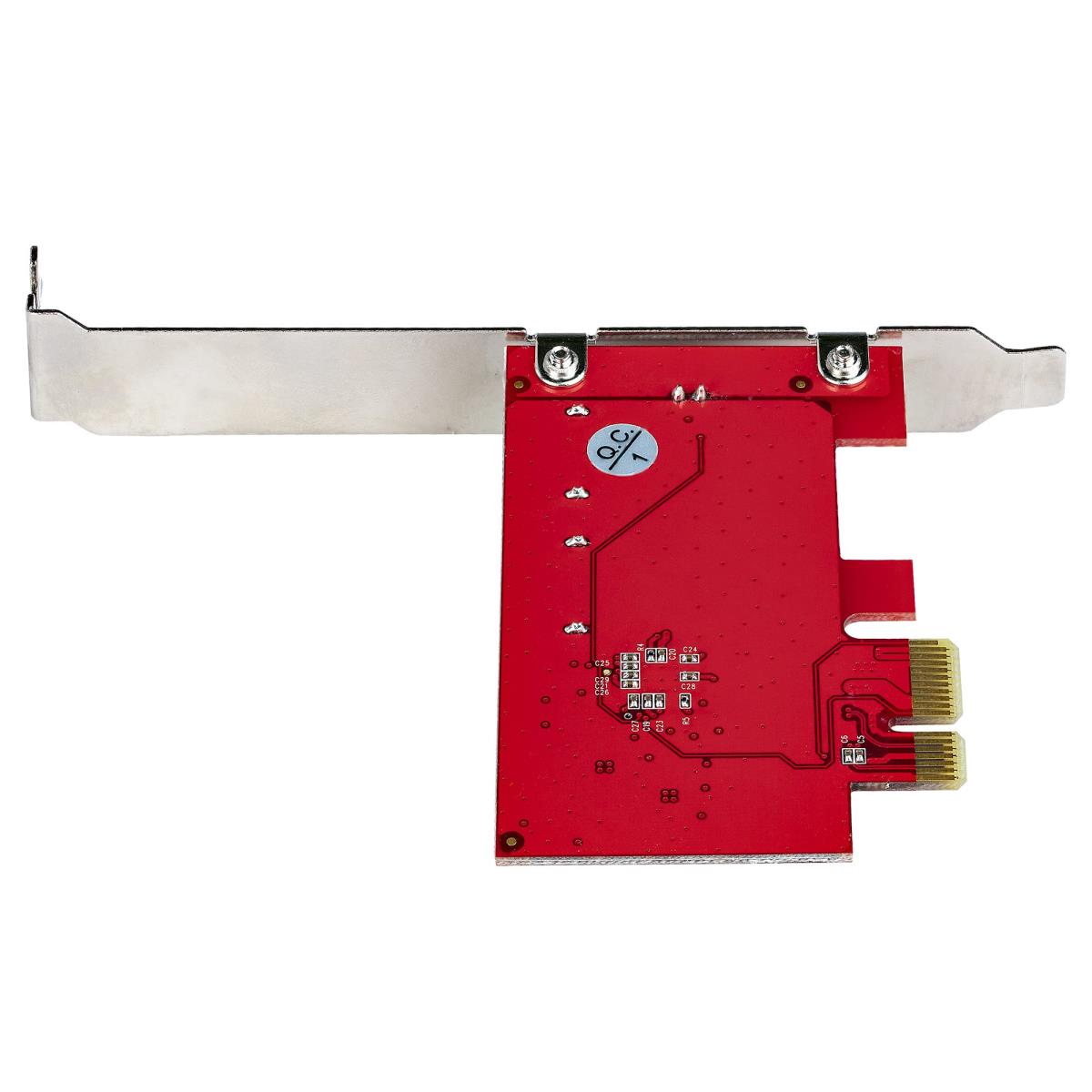

SATA PCIE CARD 2 PORT NO-RAID

Introduction

SATA III (6Gbps) | PCI Express 2.0 | PCIe x1 Slot | 2x SATA Connectors | Lifetime WarrantyThis 2-port SATA III (6Gbps) controller enables you to add two SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x1 card slot. The card supports SATA III and PCI-Express 2.0 Specifications.ASM1061 to Deliver 2-Port SATA 6Gbps PerformanceFeaturing the ASM1061 controller, this SATA card enables the connection of two high-performance SATA 6Gbps drives with a combined total throughput of up to 4Gbps. The SATA drives are connected via two individual SATA ports located on the card (SATA cables sold separately).Wide CompatibilityThe controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10, 11), macOS (10.6.8 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 2.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1) at lower performance.Hassle-Free InstallationThe SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft), RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.2P6G-PCIE-SATA-CARD is backed by a StarTech.com lifetime warranty and free lifetime 24/5 North American based, multi-lingual support.The StarTech.com Advantage

Specifications

Ports & interfaces
InternalYes
Port multiplierYes
Output interfaceSATA
SATA revision3.0
Internal SATA ports quantity2
Host interfacePCIe
Technical details
ChipsetASMedia - ASM1161
Data transfer rate (max)6 Gbit/s
Performance
Port multiplierYes
ChipsetASMedia - ASM1161
Data transfer rate (max)6 Gbit/s
Product colourRed
TRIM supportYes
S.M.A.R.T. supportYes
Harmonized System (HS) code84733020
Colour
Product colourRed
Design
InternalYes
Product colourRed
LED indicatorsYes
Features
ChipsetASMedia - ASM1161
Data transfer rate (max)6 Gbit/s
TRIM supportYes
S.M.A.R.T. supportYes
Harmonized System (HS) code84733020
Operational conditions
Operating temperature (T-T)0 - 85 °C
Storage temperature (T-T)-25 - 85 °C
Operating relative humidity (H-H)20 - 80%
System requirements
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2012 R2, Windows Server 2016, Windows Server 2019
Weight & dimensions
Width18 mm
Depth69 mm
Height121 mm
Weight33 g
Package width142 mm
Package depth175 mm
Package height30 mm
Package weight110 g
Packaging data
Mounting brackets includedYes
Package width142 mm
Package depth175 mm
Package height30 mm
Package weight110 g
User guideYes
Logistics data
Products per master (outer) case60 pc(s)
Master (outer) case width370 mm
Master (outer) case length380 mm
Master (outer) case height500 mm
Harmonized System (HS) code84733020
Packaging content
Mounting brackets includedYes
User guideYes
Other features
ChipsetASMedia - ASM1161
