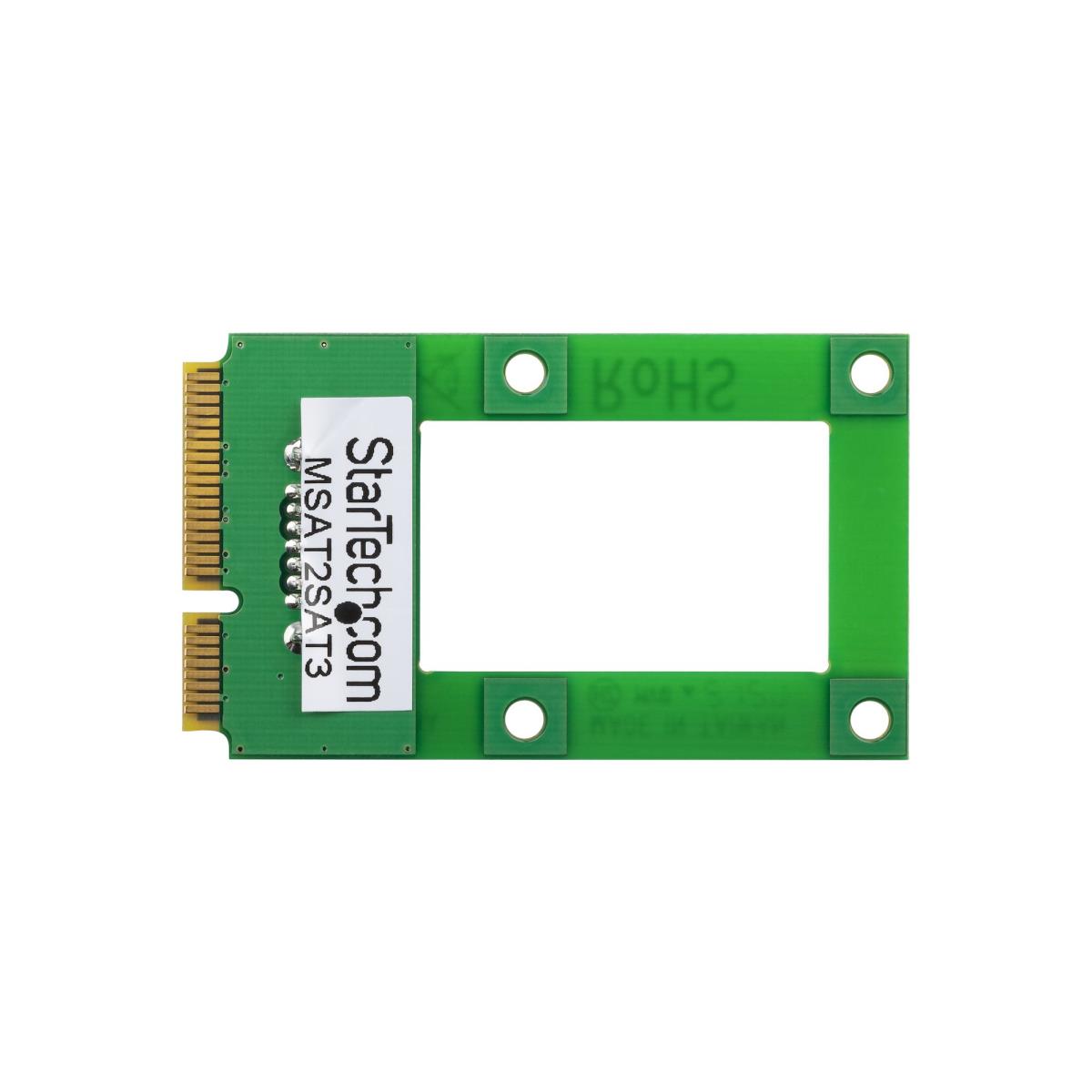

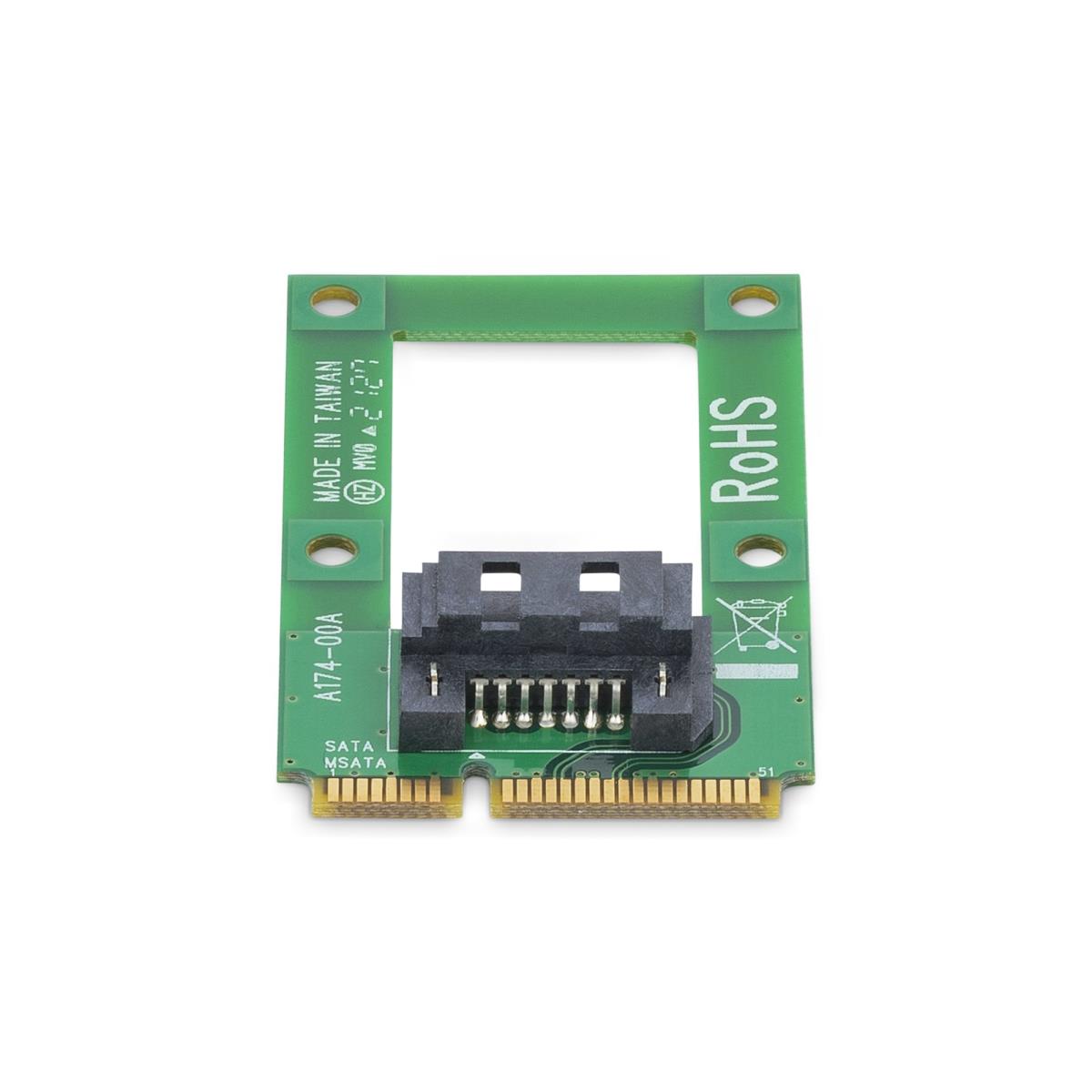

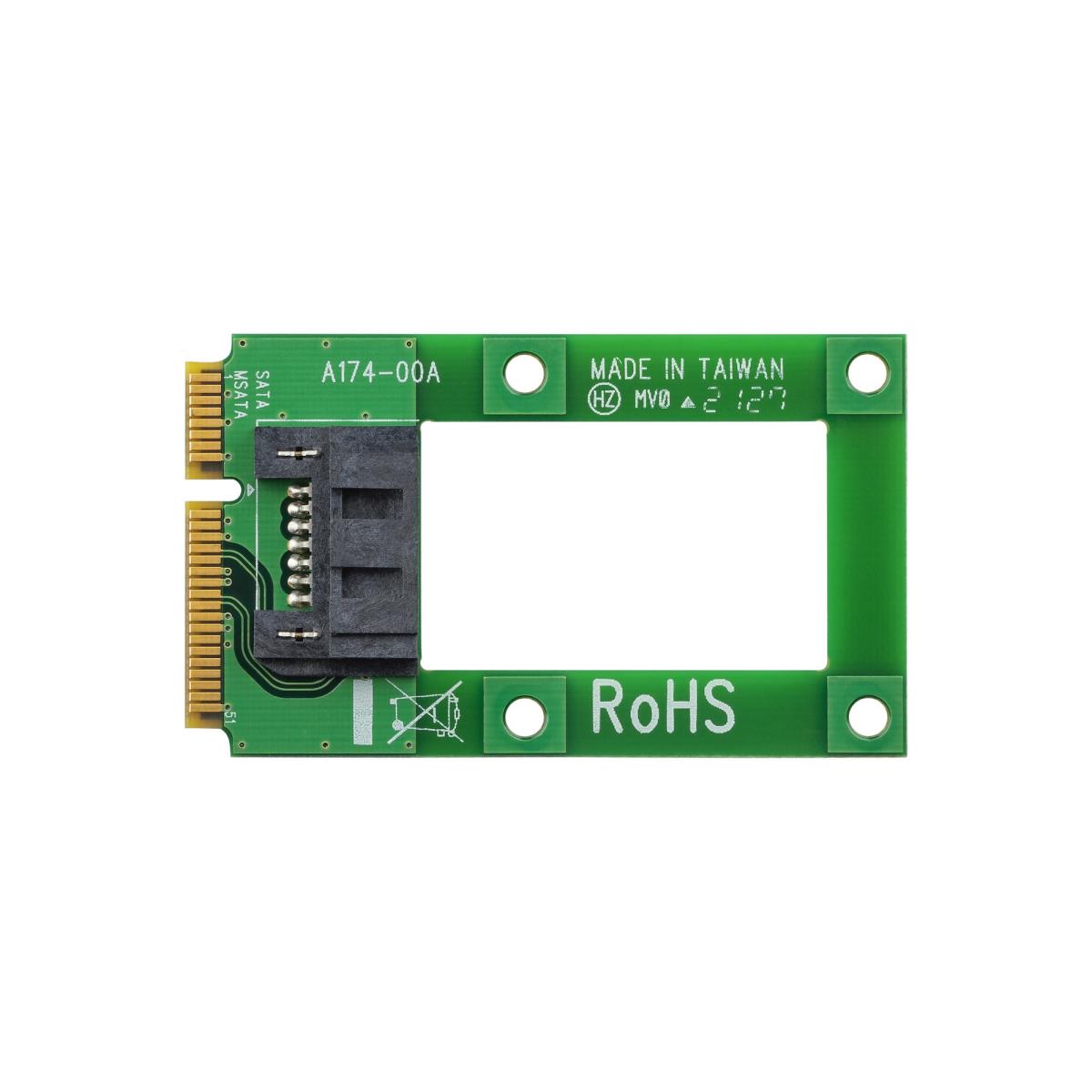

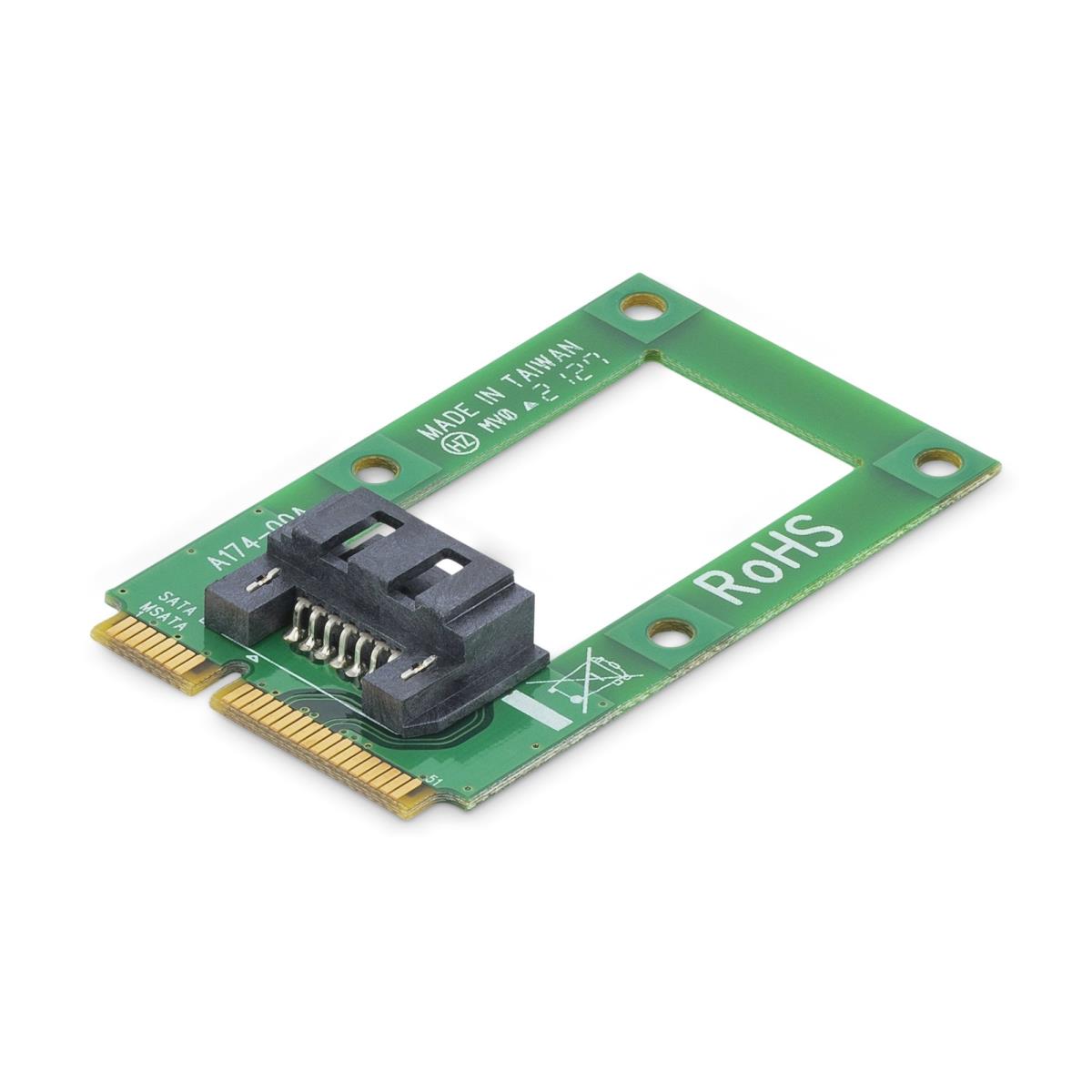

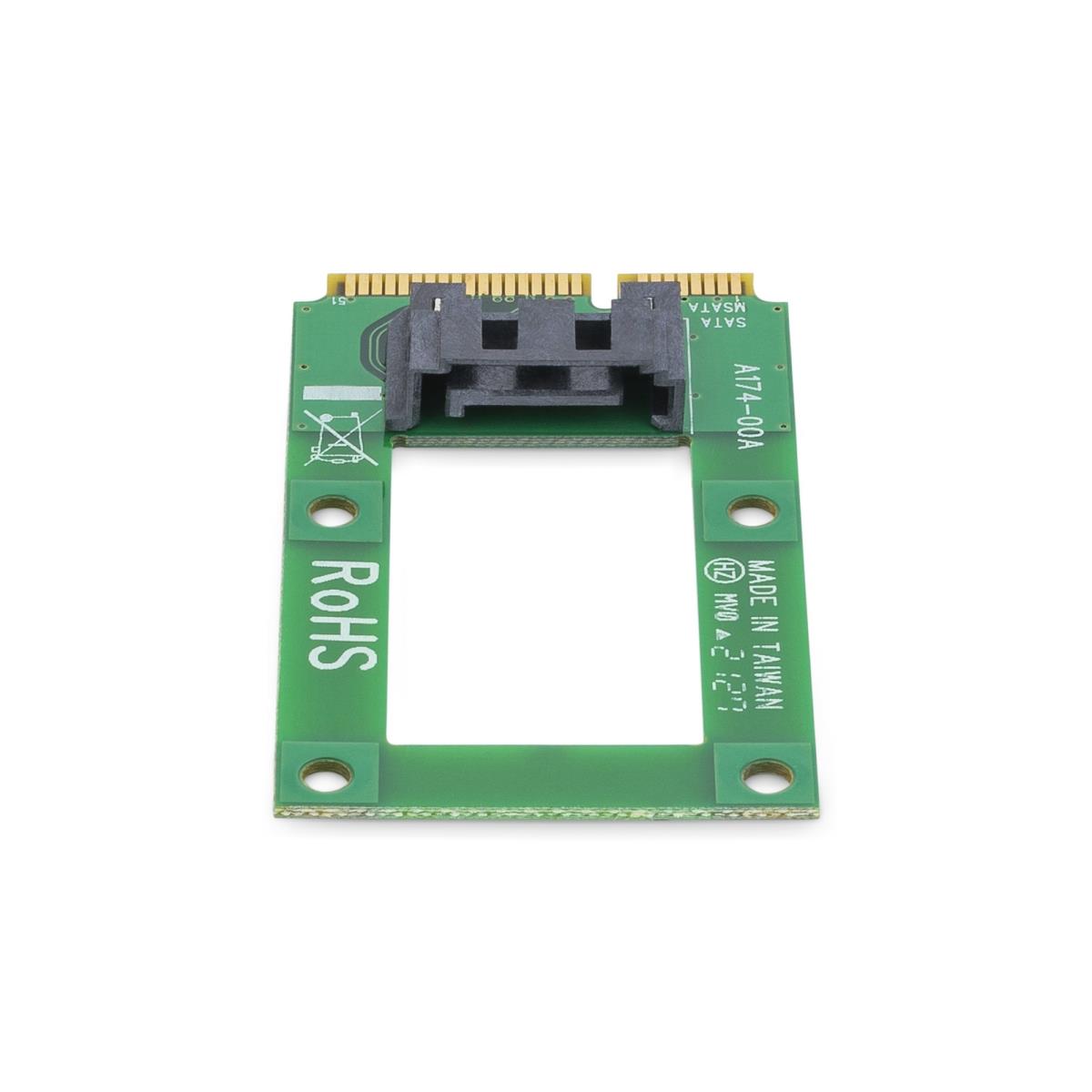

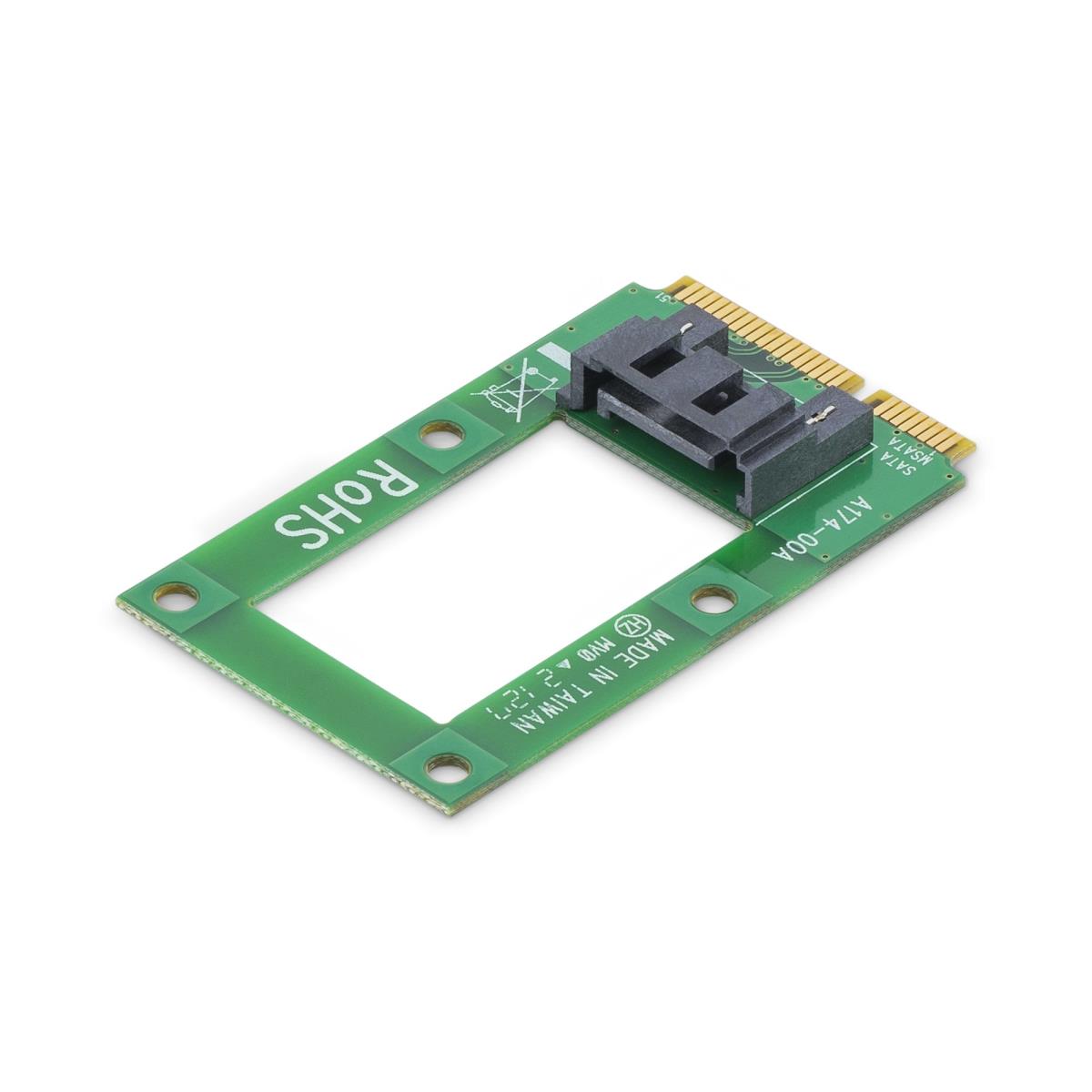

MSATA TO SATA SSD/HDD ADAPTER
Introduction
Turn an mSATA host connection into a standard SATA port
The MSAT2SAT3 mSATA to SATA adapter enables you to connect a standard SATA drive to an available mSATA port.
The adapter improves system capacity by enabling an mSATA port to host a larger SATA hard drive (tested up to 4TB). For guaranteed compatibility and performance the adapter is compliant with SATA I/II/III revisions, allowing for transfer speeds up to 6Gb per second.
The MSAT2SAT3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | SATA |
| SATA revision | 3.0 |
| Host interface | mSATA |
| Technical details | |
| Data transfer rate (max) | 6 Gbit/s |
| Compliance certificates | CE, RoHS |
| Performance | |
| Data transfer rate (max) | 6 Gbit/s |
| Product colour | Green |
| Harmonized System (HS) code | 84733020 |
| Colour | |
| Product colour | Green |
| Design | |
| Internal | Yes |
| Product colour | Green |
| Features | |
| Data transfer rate (max) | 6 Gbit/s |
| Harmonized System (HS) code | 84733020 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 15 - 90% |
| Weight & dimensions | |
| Width | 30 mm |
| Depth | 51 mm |
| Height | 8 mm |
| Weight | 10 g |
| Package width | 126 mm |
| Package depth | 150 mm |
| Package height | 14 mm |
| Package weight | 15 g |
| Packaging data | |
| Package width | 126 mm |
| Package depth | 150 mm |
| Package height | 14 mm |
| Package weight | 15 g |
| User guide | Yes |
| Screws included | Yes |
| Logistics data | |
| Products per master (outer) case | 100 pc(s) |
| Master (outer) case width | 292 mm |
| Master (outer) case length | 686 mm |
| Master (outer) case height | 218 mm |
| Harmonized System (HS) code | 84733020 |
| Packaging content | |
| User guide | Yes |
| Screws included | Yes |
