STARTECH.COM PEX1S953LP STARTECH.COM 1PORT RS232 SERIAL PORT

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

PEX1S953LP STARTECH.COM 1PORT RS232 SERIAL PORT

Part No:PEX1S953LP

Stock:94 In Stock

EAN Code:0065030881159

£43.06 Excl. VAT

£51.67 Incl. VAT

price matchPrice Match
Guarantee
Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

1PORT RS232 SERIAL PORT

Introduction

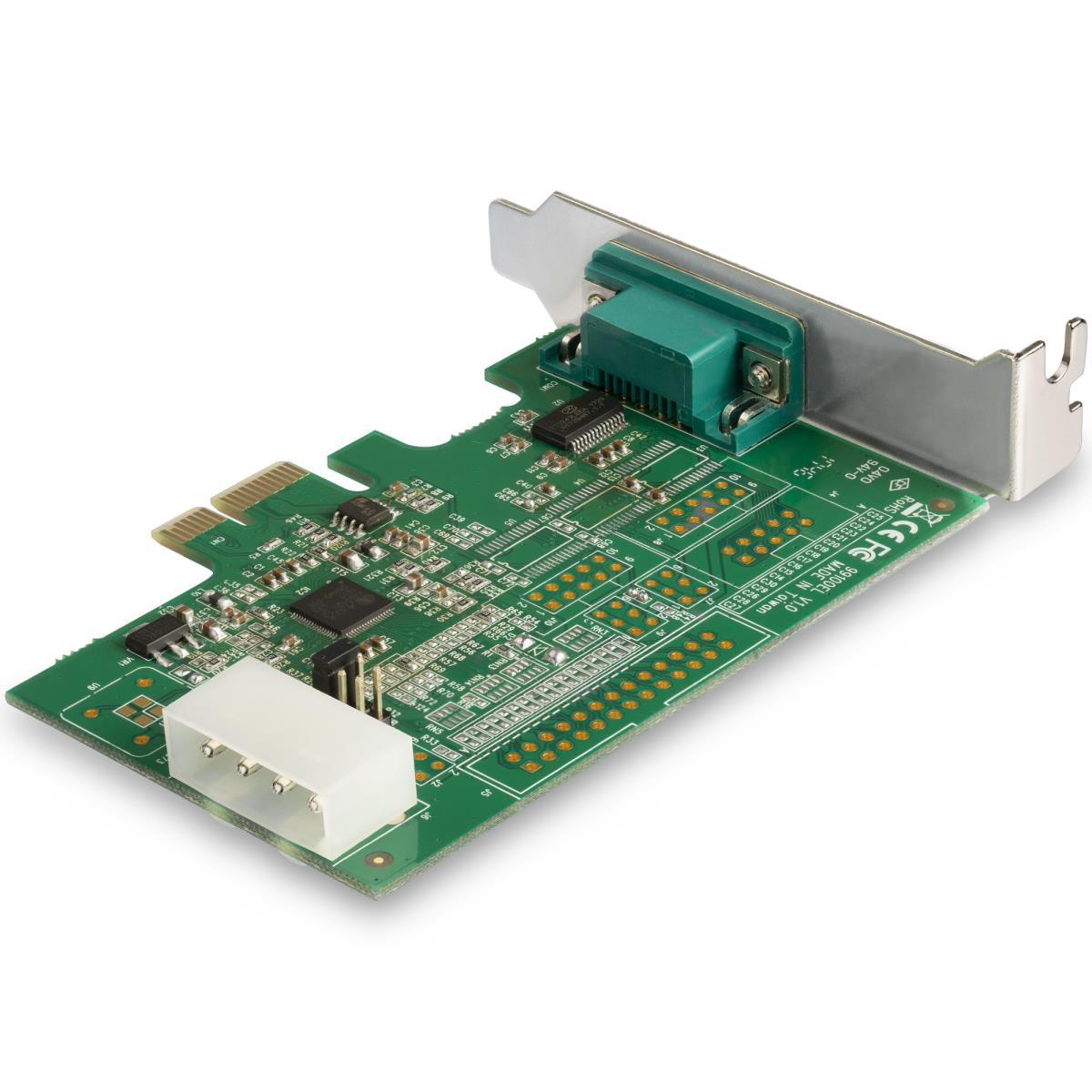

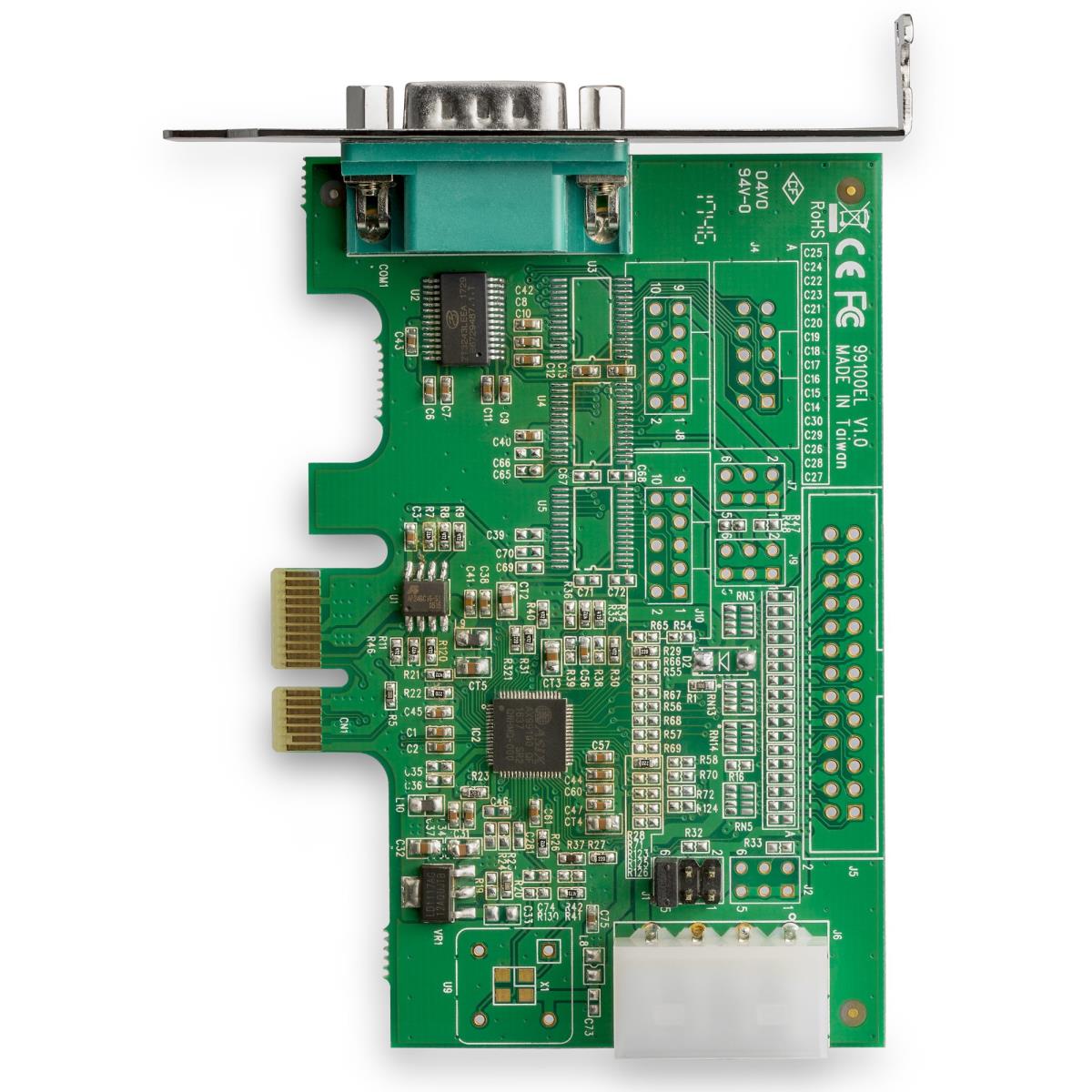

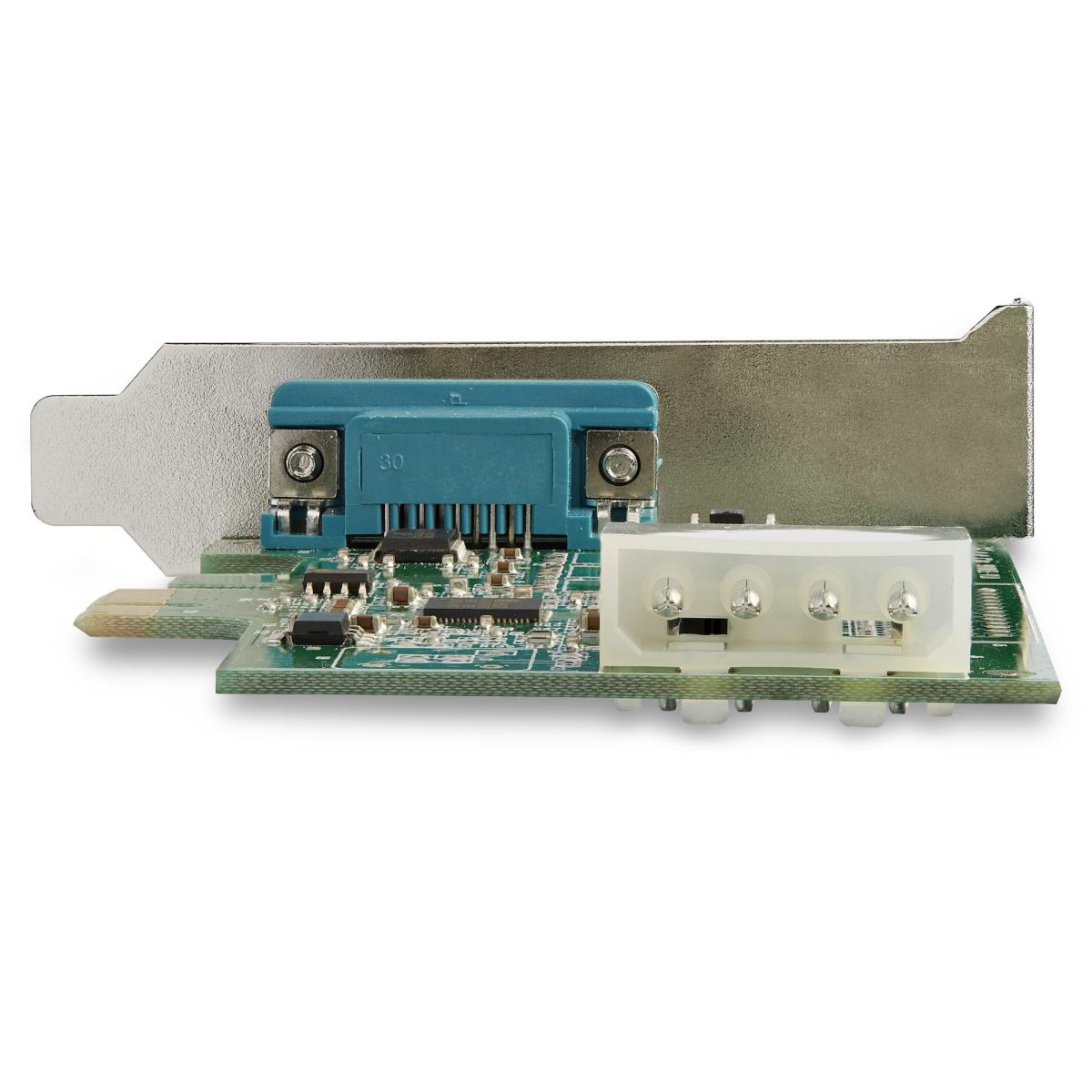

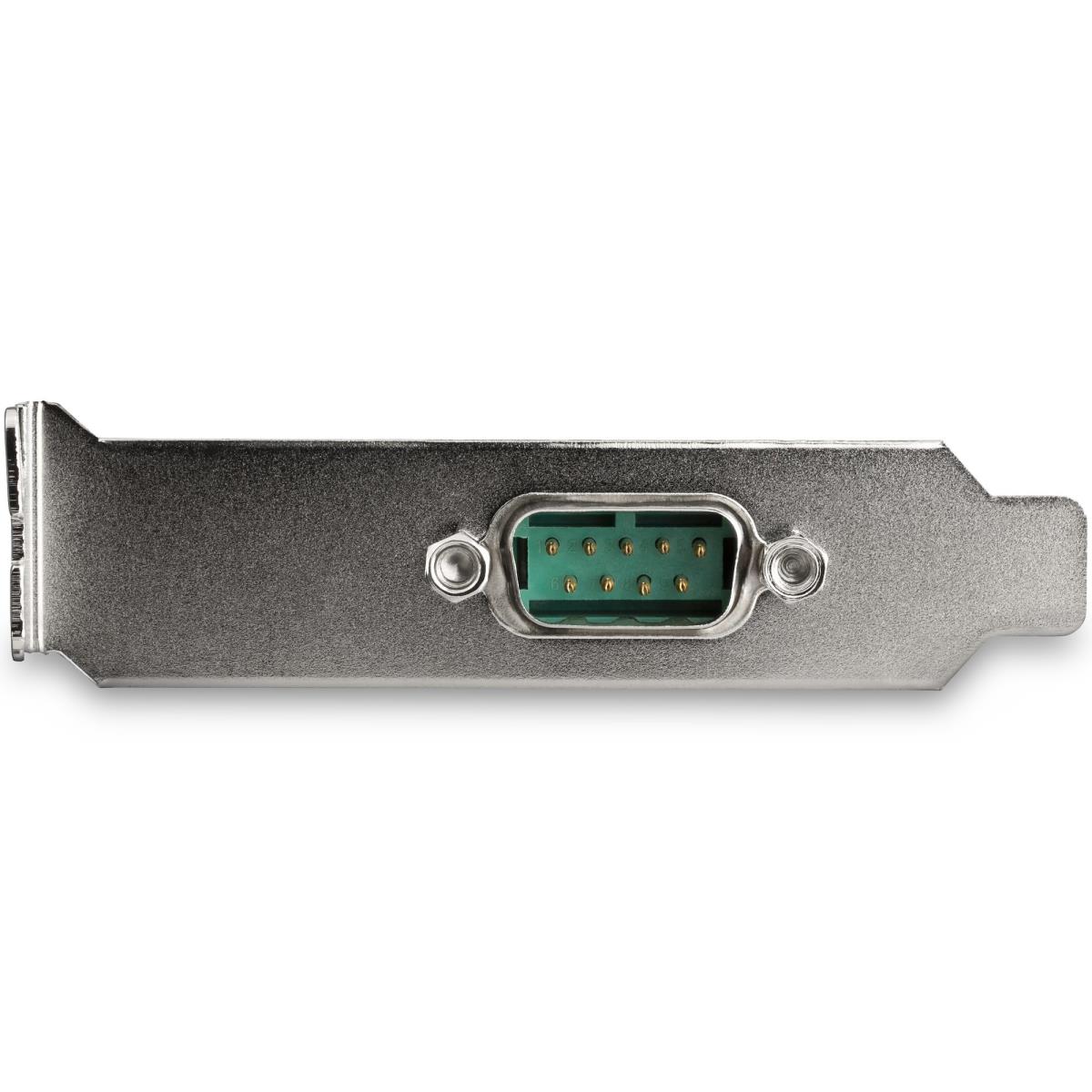

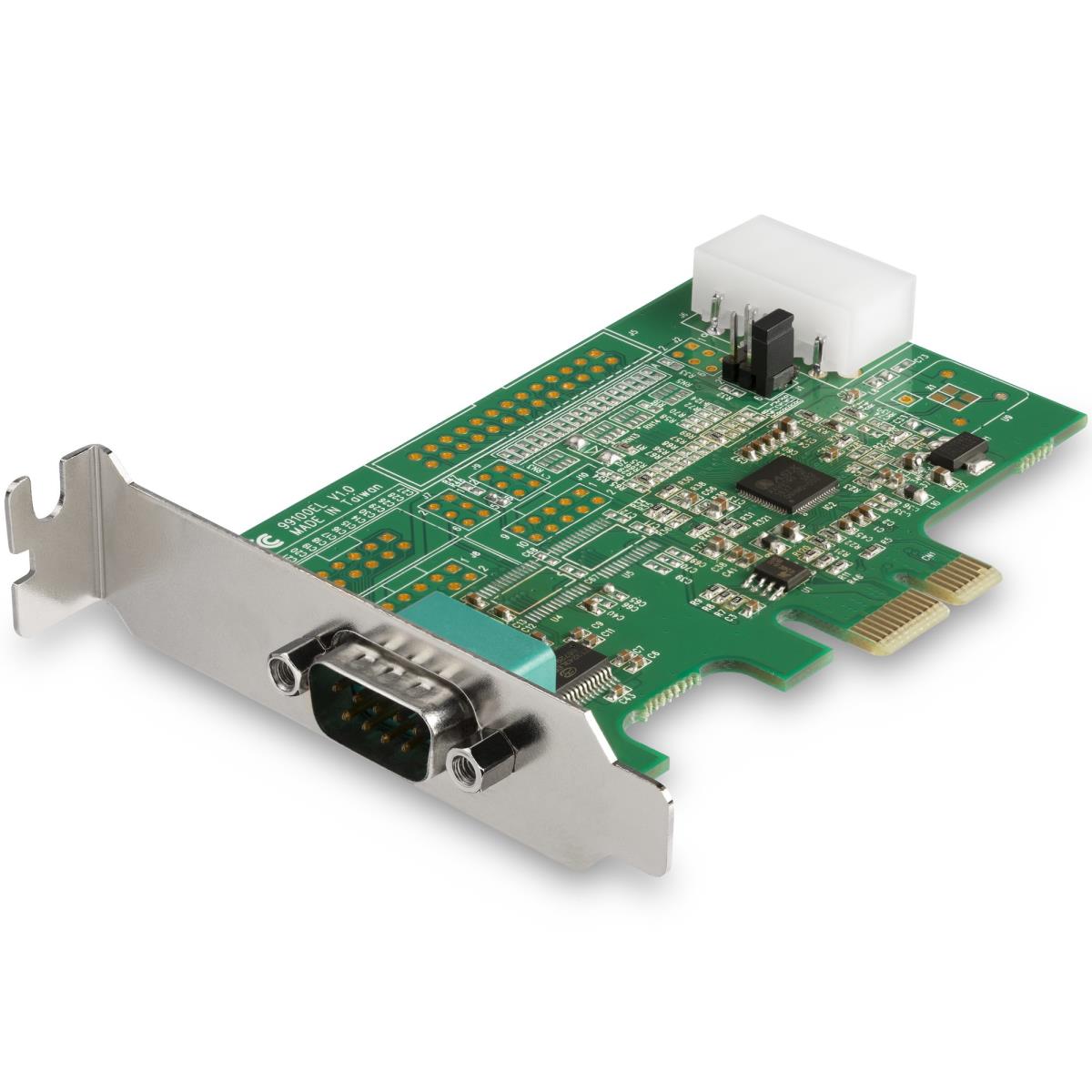

PCI Express to Serial Adapter | 921.4Kbps | Windows® and Linux® CompatibleThis RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.Maximum CompatibilityWith broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.Experience Optimal TechnologyThis PCIe to serial adapter supports the following features:• Compatible with industry standard 16950 UART• Supports max baud rate of up-to 921.4Kbps• Provides 5/12V power output on Pin 9 when external power is connected• 128-byte depth FIFO per transmitter and receiver• Supports 9, 8, 7, 6, 5 data bits• Asix AX99100 chipset• PCI Express 1.1 compliantPEX1S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.The StarTech.com Advantage

Specifications

Ports & interfaces
InternalYes
Output interfaceSerial
Serial interface typeRS-232
Serial ports quantity1
Peripheral (Molex) power connectors (4-pin)1
Host interfacePCIe
Expansion card standardPCIe 1.1
Technical details
ChipsetAsix AX99100
FIFO (First In, First Out)256 B
Sustainability complianceYes
Sustainability certificatesCE, RoHS
Performance
Stop bits1, 1.5, 2
Data bits5, 6, 7, 8, 9
Baud rate921.4 Kbit/s
ChipsetAsix AX99100
FIFO (First In, First Out)256 B
Flow control supportYes
Product colourGreen
Harmonized System (HS) code84733020
Colour
Product colourGreen
Design
Mean time between failures (MTBF)277385 h
InternalYes
Product colourGreen
Features
Stop bits1, 1.5, 2
Data bits5, 6, 7, 8, 9
Baud rate921.4 Kbit/s
ChipsetAsix AX99100
FIFO (First In, First Out)256 B
Flow control supportYes
Parity bitEven, Mark, No, Odd, Space
Flow Control typeNo, RTS/CTS, XON/XOFF
Harmonized System (HS) code84733020
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-20 - 80 °C
Operating relative humidity (H-H)20 - 80%
System requirements
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Weight & dimensions
Width67 mm
Depth98 mm
Height150 mm
Weight44 g
Package width142 mm
Package depth170 mm
Package height30 mm
Package weight112 g
Packaging data
Mounting brackets includedYes
ManualYes
Package width142 mm
Package depth170 mm
Package height30 mm
Package weight112 g
Quantity1
Logistics data
Products per master (outer) case75 pc(s)
Master (outer) case width360 mm
Master (outer) case length685 mm
Master (outer) case height315 mm
Harmonized System (HS) code84733020
Packaging content
Mounting brackets includedYes
ManualYes
Quantity1
Other features
ChipsetAsix AX99100
Flow control supportYes
