STARTECH.COM PEX2S953 STARTECH.COM 2 PORT PCI-E RS232 SERIAL CARD

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

PEX2S953 STARTECH.COM 2 PORT PCI-E RS232 SERIAL CARD

Part No:PEX2S953

Stock:29 In Stock

EAN Code:0065030888332

£44.81 Excl. VAT

£53.77 Incl. VAT

price matchPrice Match
Guarantee
Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

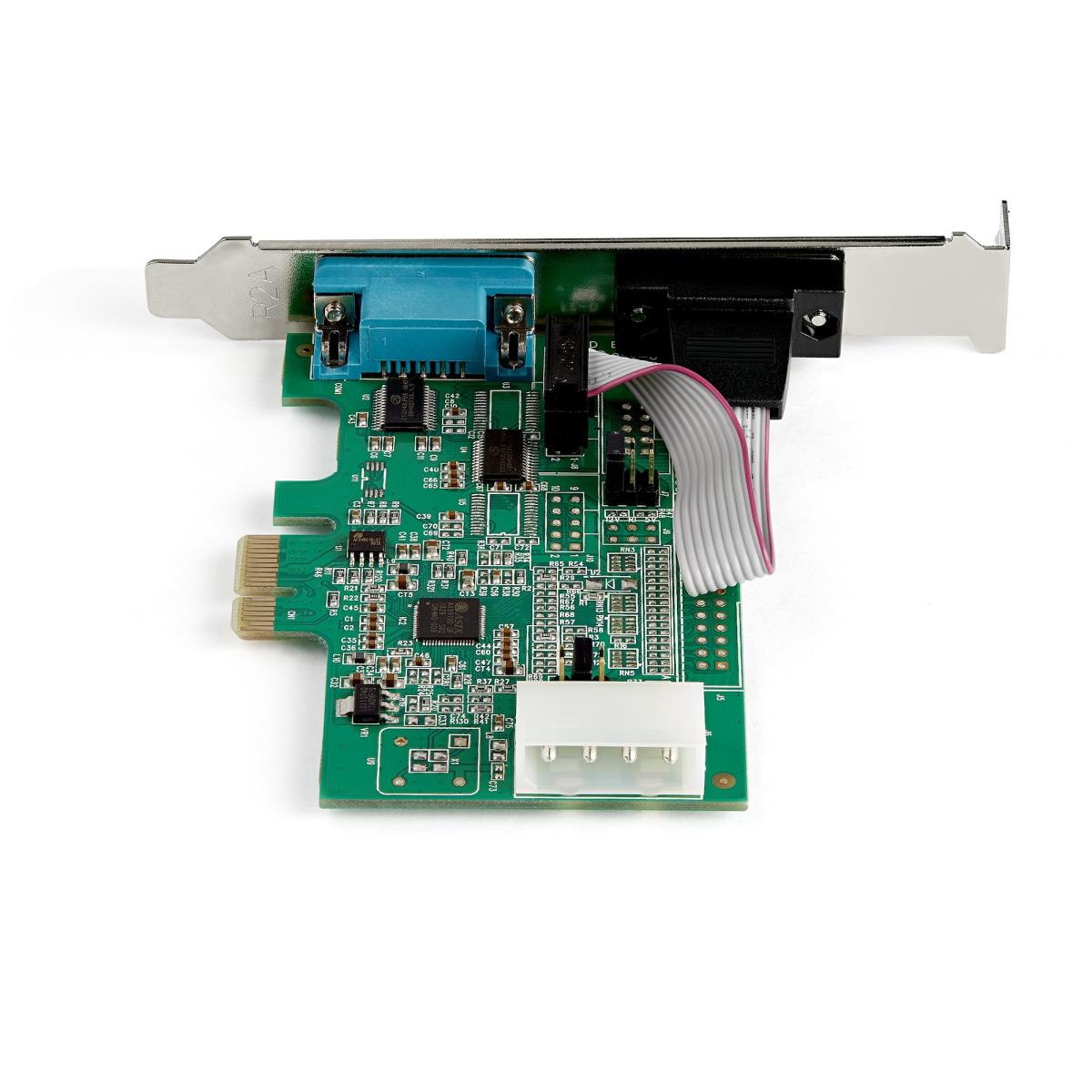

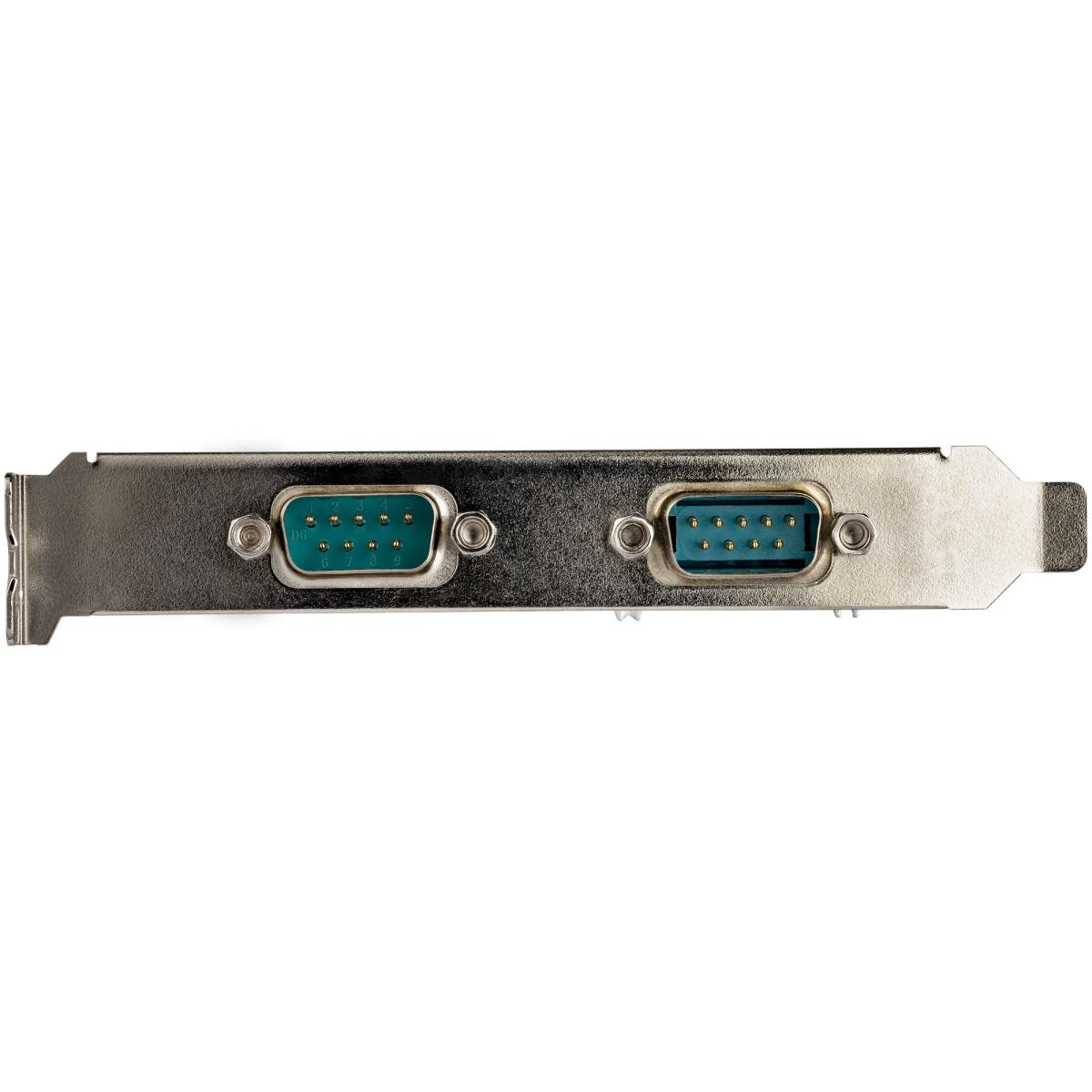

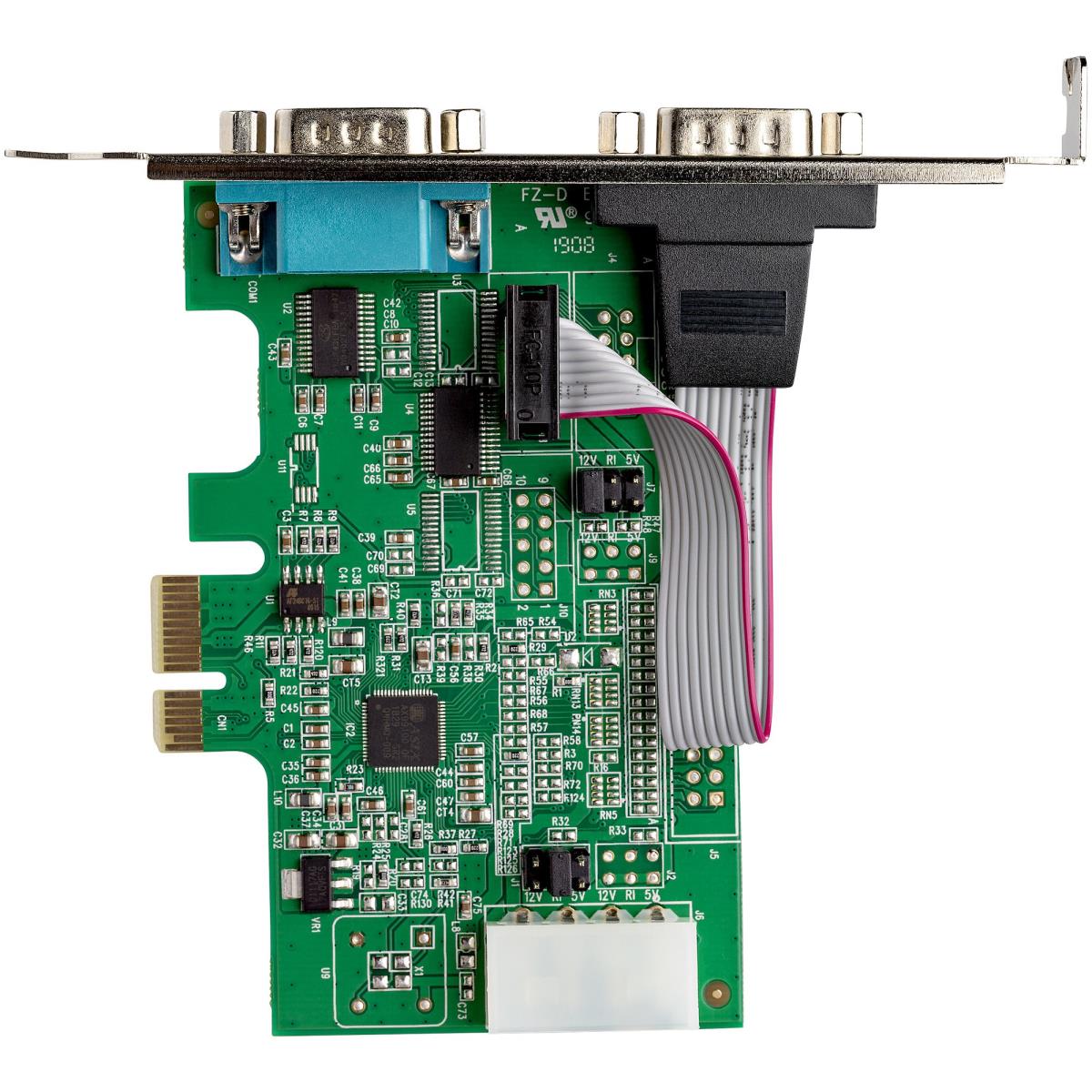

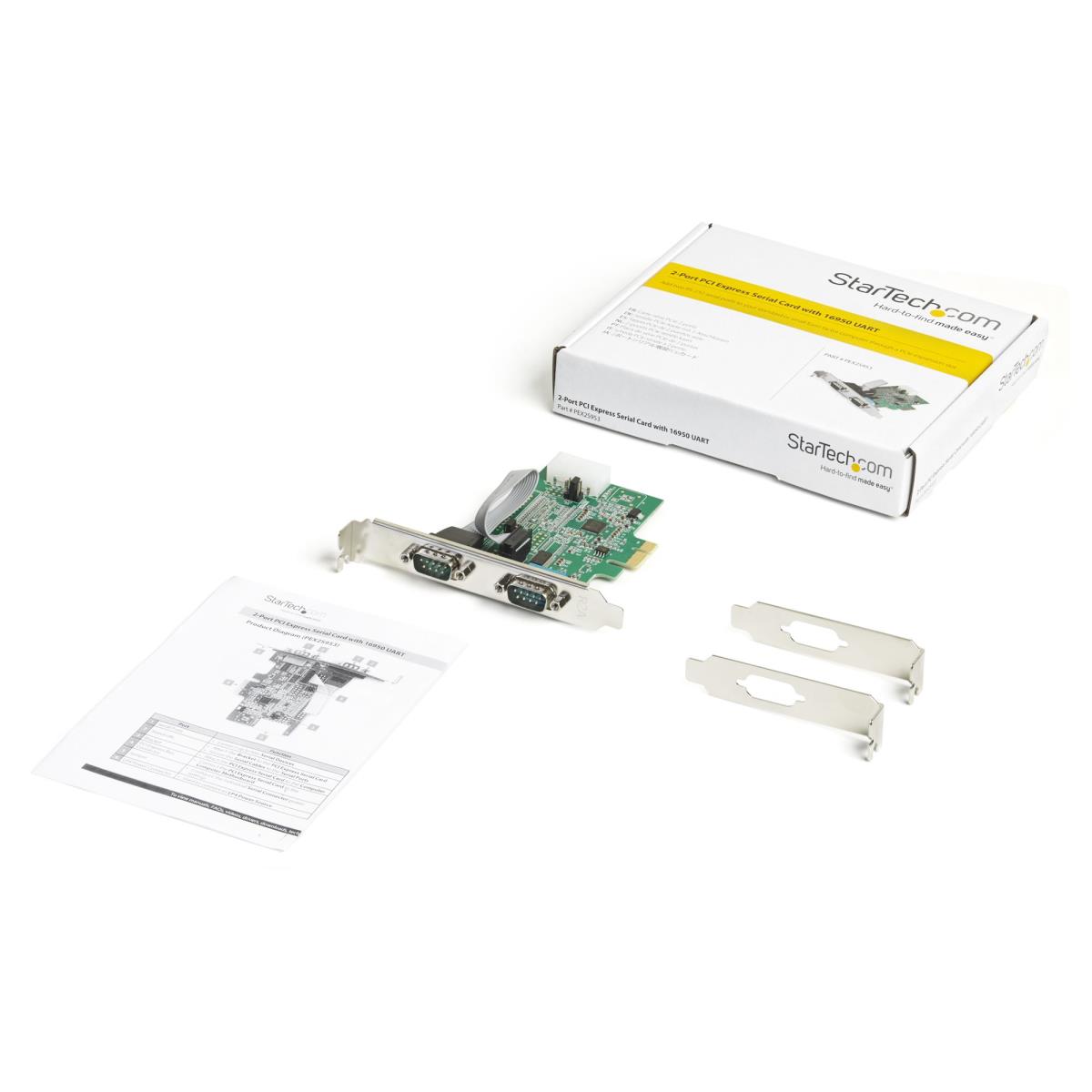

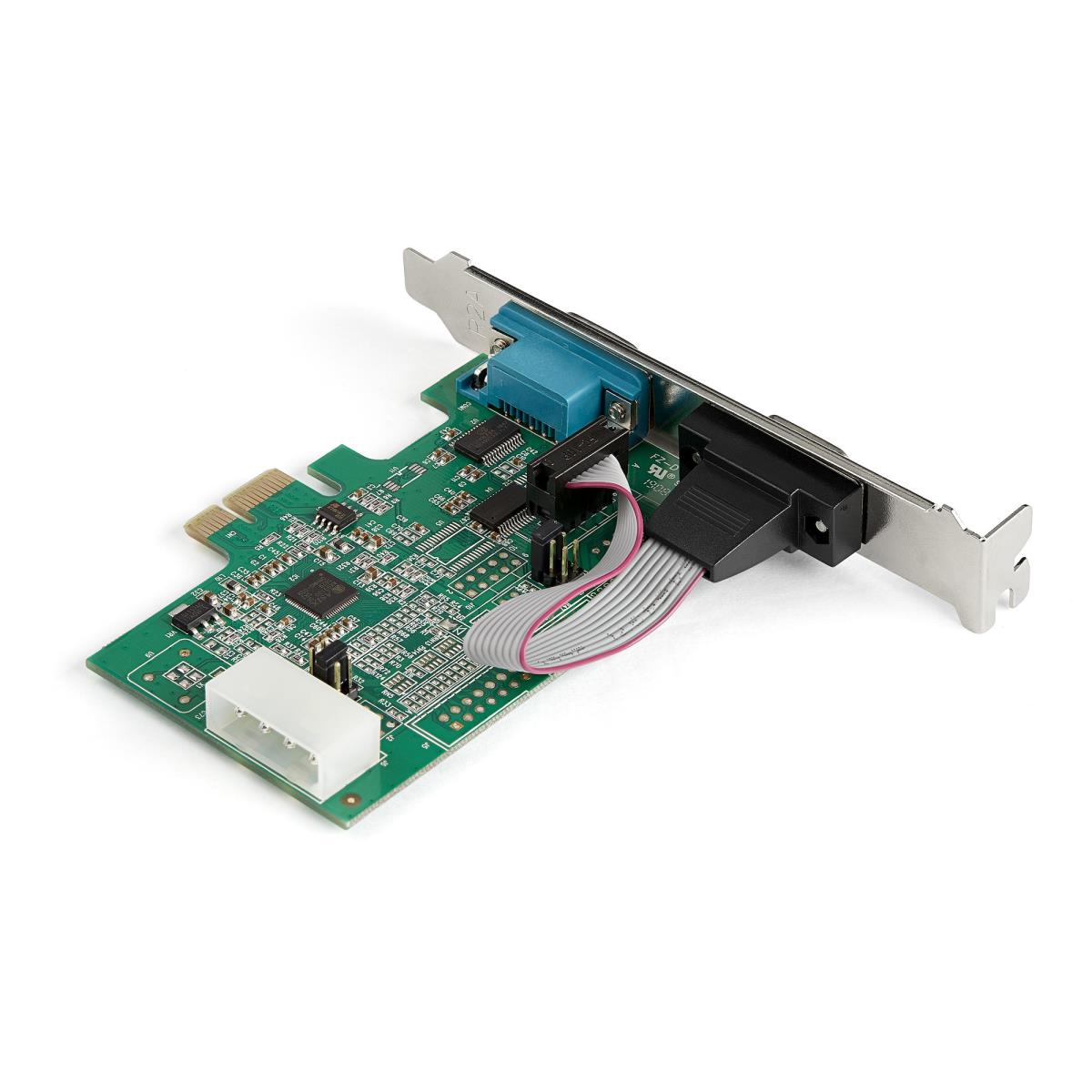

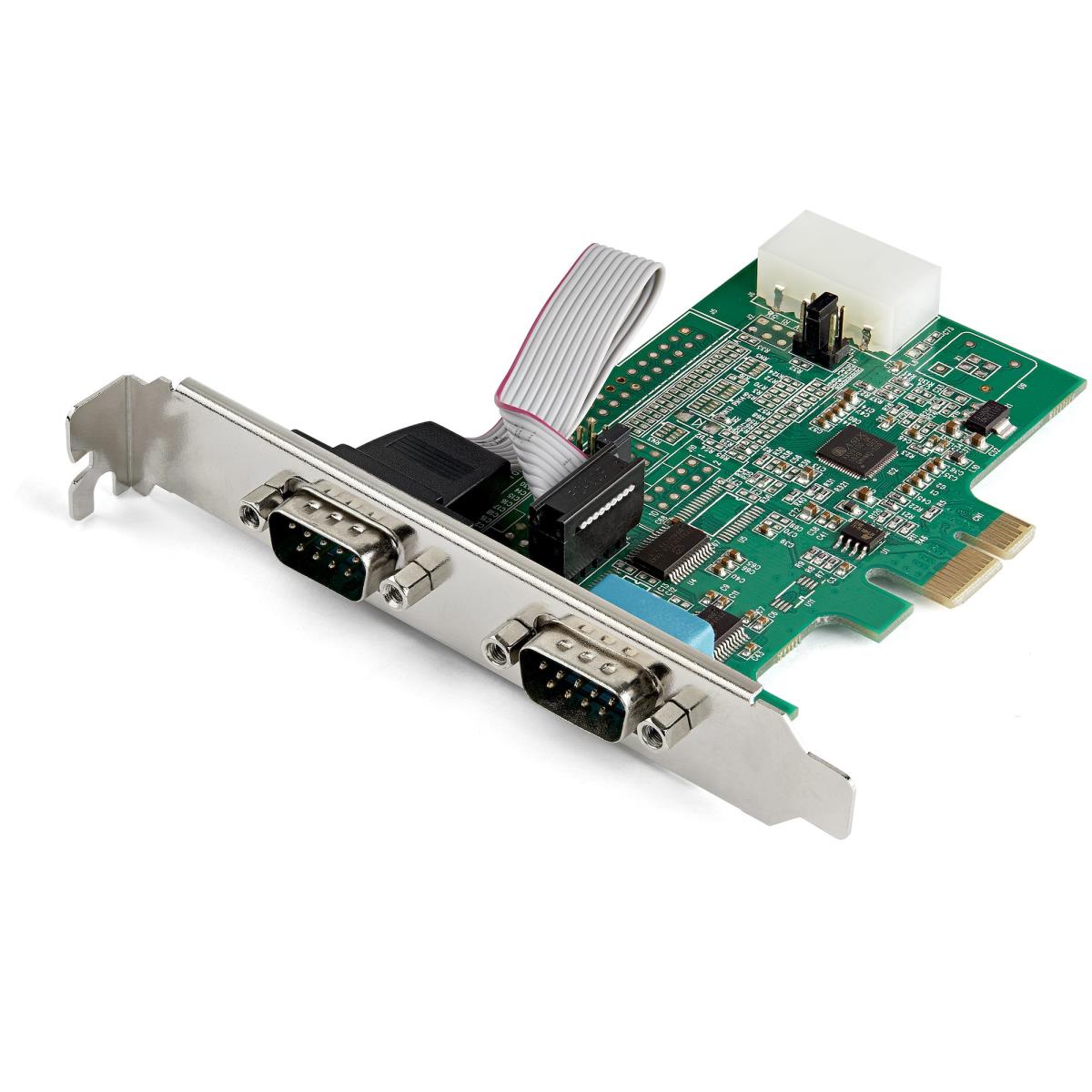

2 PORT PCI-E RS232 SERIAL CARD

Introduction

PCI Express to Serial Adapter | 921.6Kbps | Windows® and Linux® CompatibleThis multiport PCI Express RS232 serial adapter card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot, as if they were native serial ports. The dual port PCIe serial card enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.6Kbps.Maximum CompatibilityWith broad OS support, including for Windows and Linux, this 2 port PCI E serial card is easy to integrate into mixed environments. The card comes pre-configured with a full-profile bracket, and includes optional low-profile brackets, so installation is easy regardless of the case form factor. This card is a direct replacement for PEX2S952 .Experience Optimal TechnologyThis PCIe to serial adapter supports the following features:• Industry standard 16950 UART compatible• Supports max baud rate of up-to 921.6Kbps• Provides 5/12V power output on Pin 9 when external power is connected• 256-byte depth FIFO cache per transmitter and receiver• Supports 9, 8, 7, 6, 5 data bits (one per port)• Asix AX99100 chipset• Base PCI Express 1.1 compliant• Low and full-profile brackets includedThe Choice of IT Pros Since 1985StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.PEX2S953 is backed by a StarTech.com lifetime warranty and free lifetime technical support.The StarTech.com Advantage

Specifications

Ports & interfaces
InternalYes
Output interfaceSerial
Serial interface typeRS-232
Serial ports quantity2
Host interfacePCIe
Expansion card standardPCIe 1.1
Technical details
ChipsetAsix AX99100
FIFO (First In, First Out)256 B
Sustainability complianceYes
Sustainability certificatesCE, RoHS
Performance
Stop bits1, 1.5, 2
Data bits5, 6, 7, 8, 9
Baud rate921.6 Kbit/s
ChipsetAsix AX99100
FIFO (First In, First Out)256 B
Product colourGreen
Harmonized System (HS) code84733020
Colour
Product colourGreen
Design
Mean time between failures (MTBF)222366 h
InternalYes
Product colourGreen
Features
Stop bits1, 1.5, 2
Data bits5, 6, 7, 8, 9
Baud rate921.6 Kbit/s
ChipsetAsix AX99100
FIFO (First In, First Out)256 B
Parity bitEven, Mark, No, Odd, Space
Flow Control typeNo, RTS/CTS, XON/XOFF
Harmonized System (HS) code84733020
Operational conditions
Operating temperature (T-T)-10 - 80 °C
Storage temperature (T-T)-20 - 100 °C
Operating relative humidity (H-H)5 - 85%
System requirements
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Weight & dimensions
Width63 mm
Depth75 mm
Height15 mm
Weight56 g
Package width170 mm
Package depth142 mm
Package height30 mm
Package weight136 g
Packaging data
Package width170 mm
Package depth142 mm
Package height30 mm
Package weight136 g
Quick installation guideYes
Quantity1
Logistics data
Products per master (outer) case75 pc(s)
Master (outer) case width685 mm
Master (outer) case length345 mm
Master (outer) case height306 mm
Harmonized System (HS) code84733020
Packaging content
Quick installation guideYes
Quantity1
Other features
ChipsetAsix AX99100
