Part No:PEX2S953LP
Stock:39 In Stock
EAN Code:0065030881166
PCI Express to Serial Adapter | 921.4Kbps | Windows and Linux Compatible

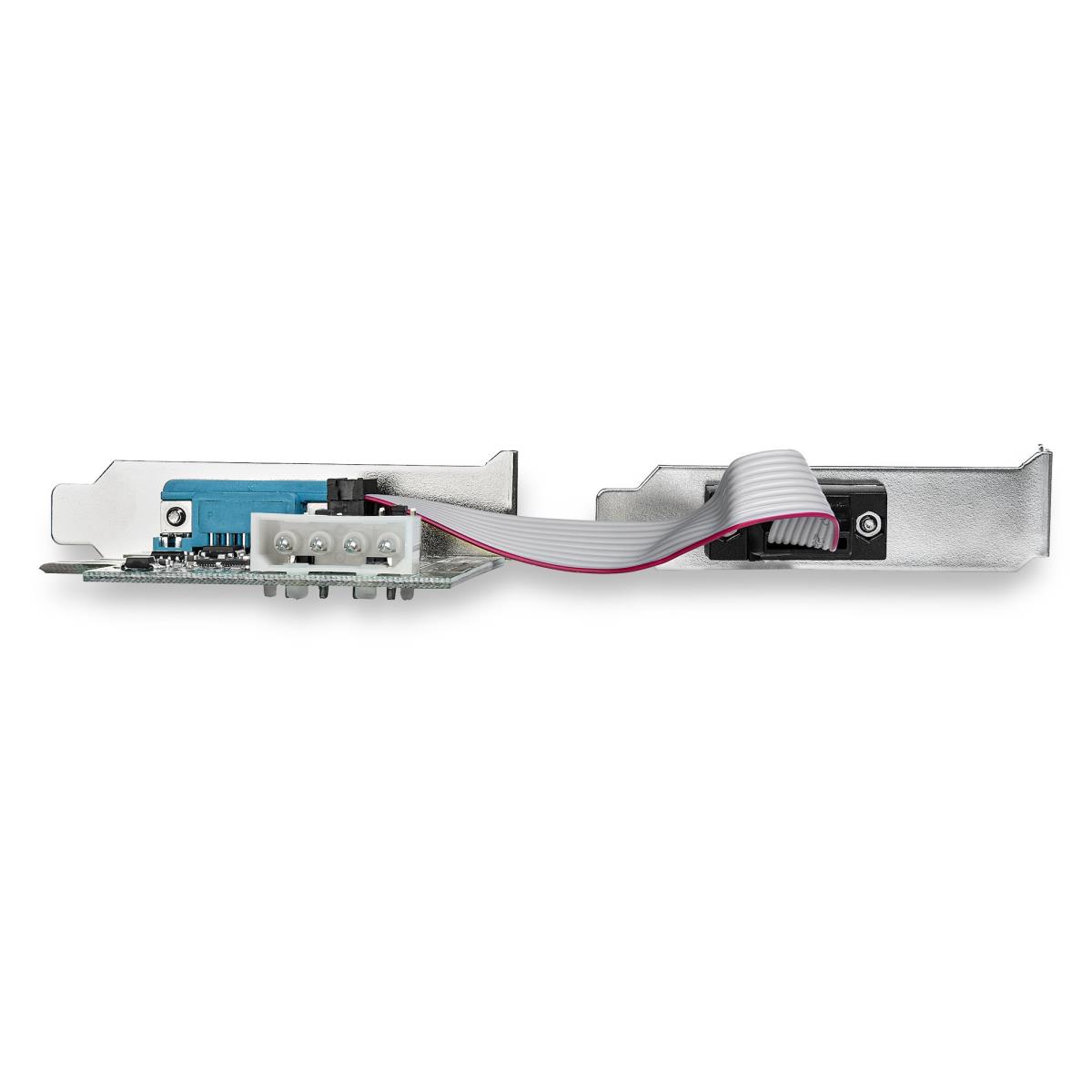

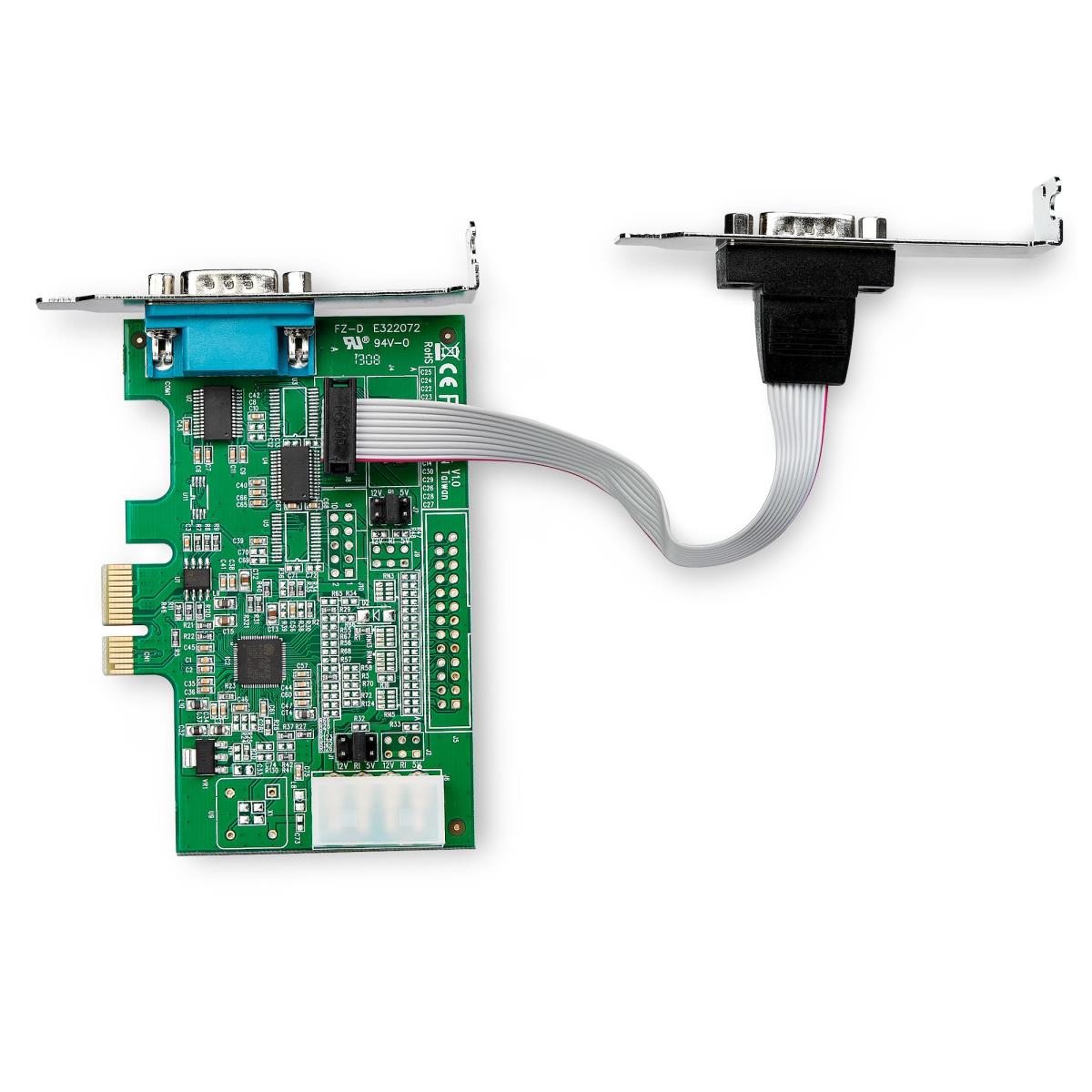

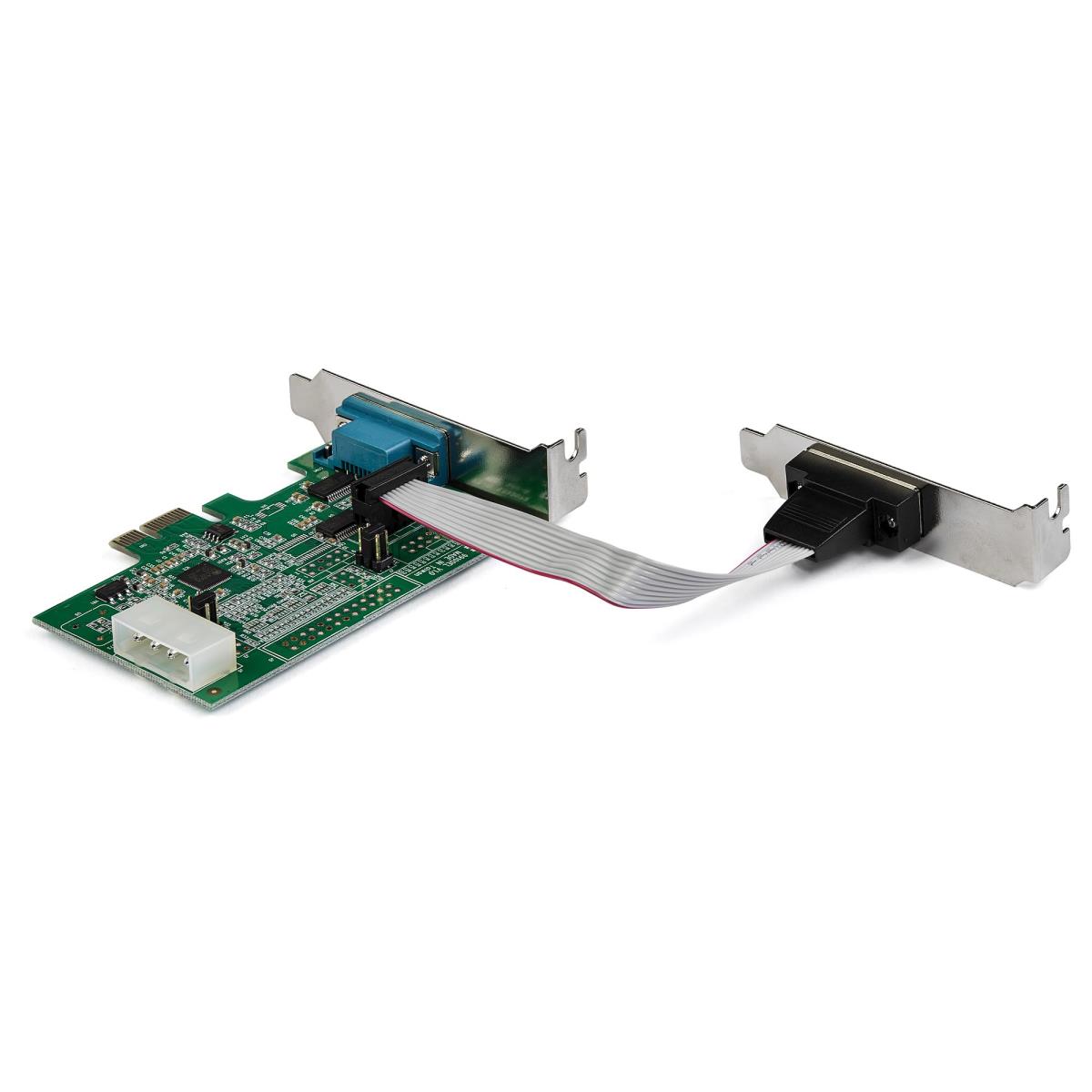

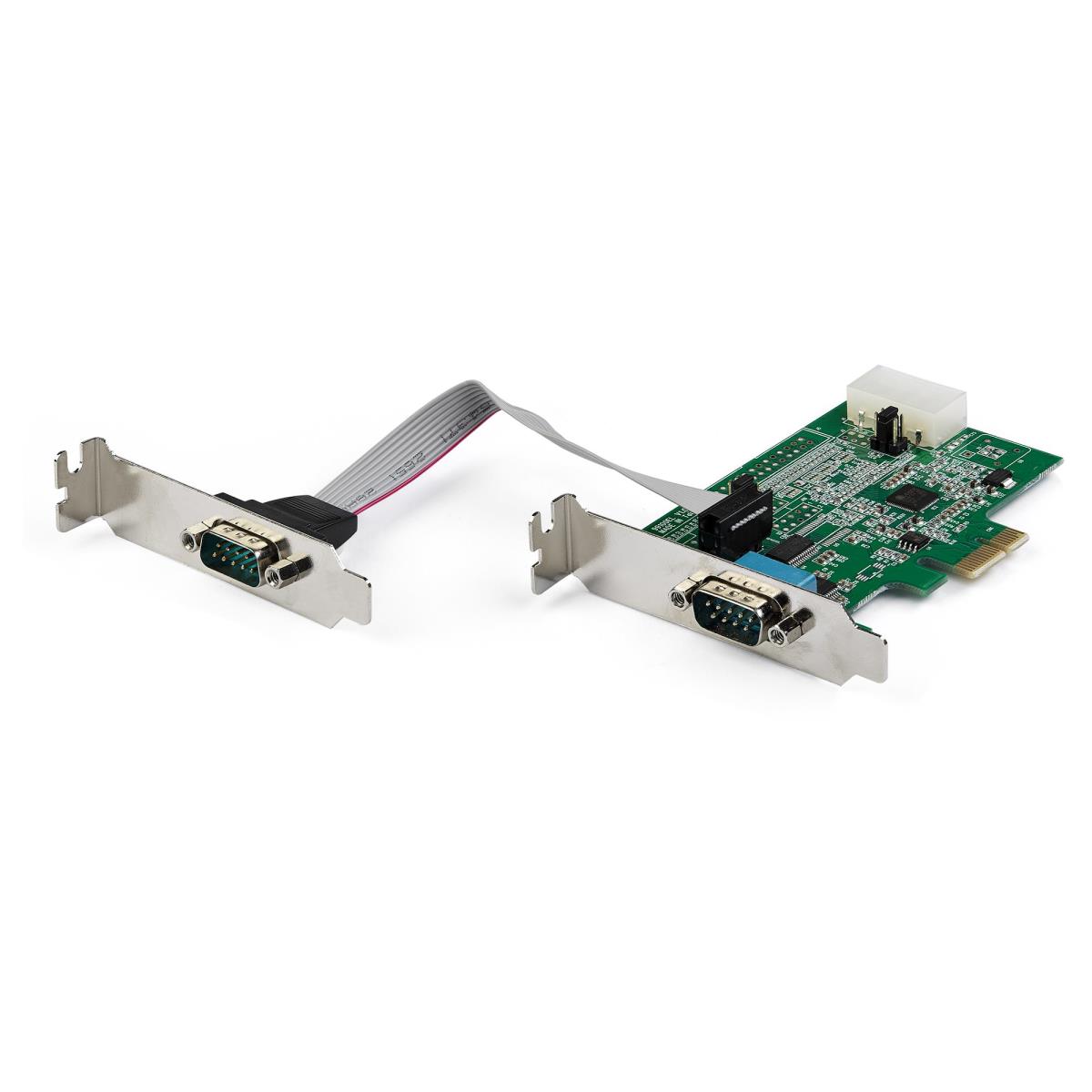

This RS232 Serial Adapter Card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.4Kbps.
Maximum Compatibility

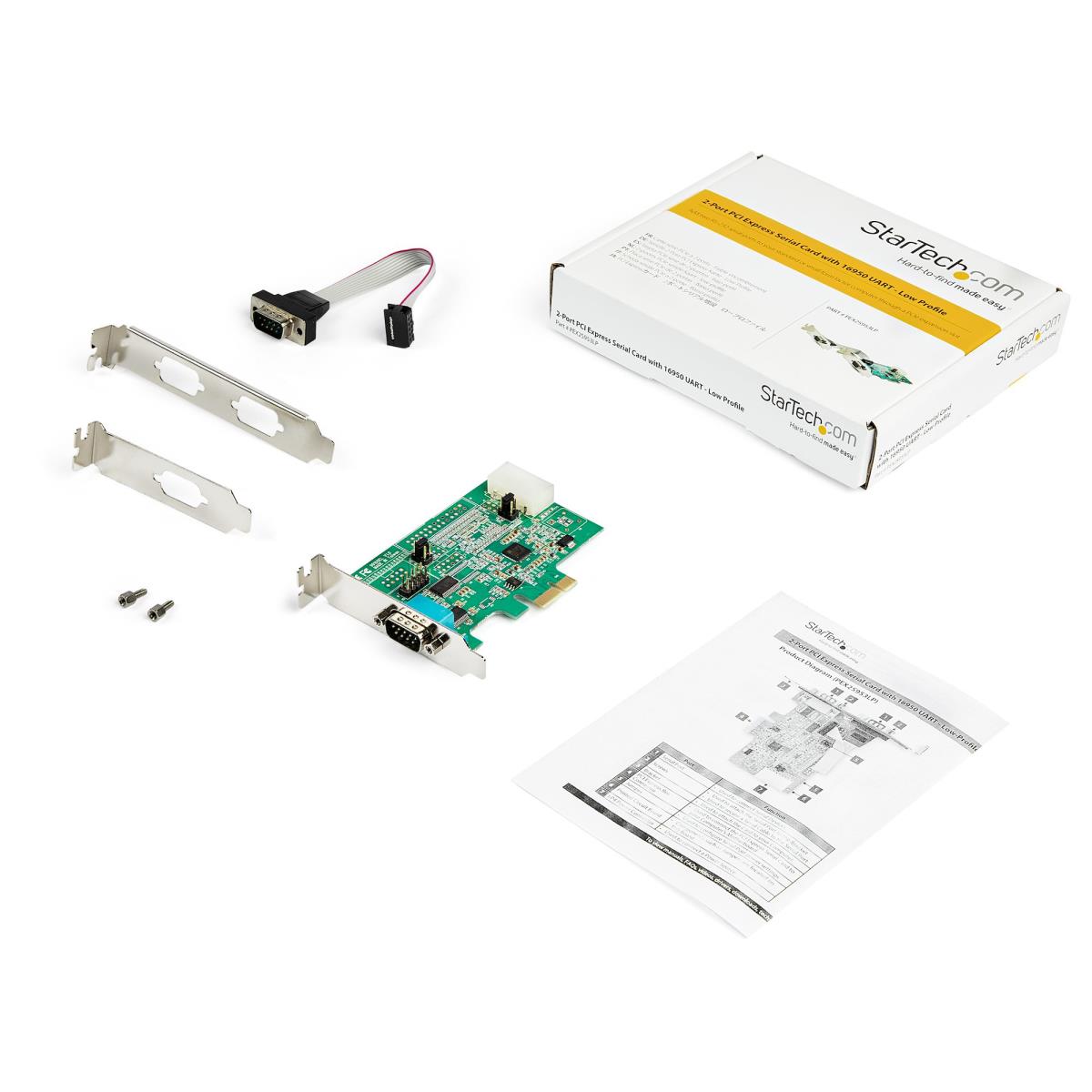

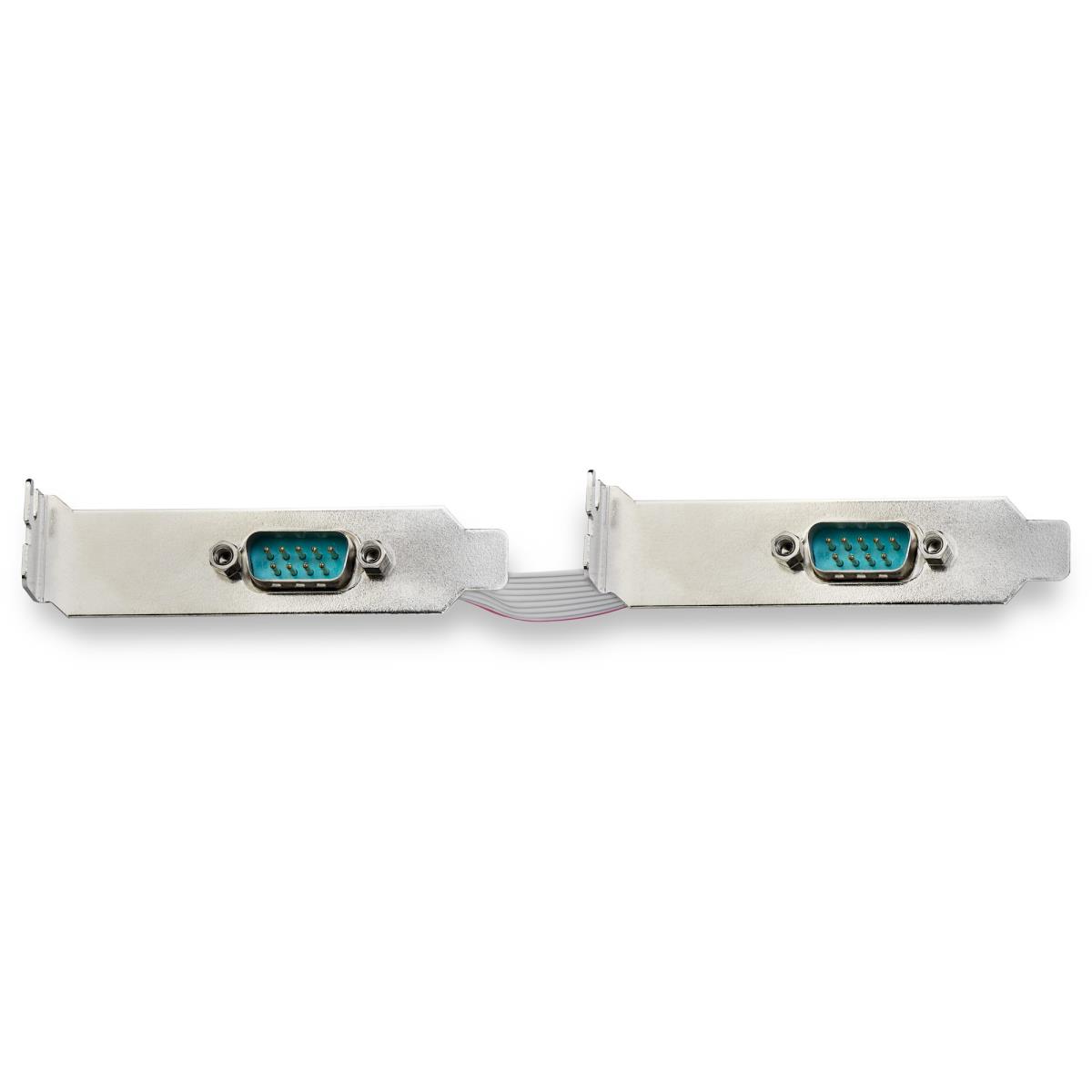

With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.
Experience Optimal Technology
This PCIe to serial adapter supports the following features:
Compatible with industry standard 16950 UART
Supports max baud rate of up-to 921.4Kbps
Provides 5/12V power output on Pin 9 when external power is connected
256-byte depth FIFO per transmitter and receiver
Supports 9, 8, 7, 6, 5 data bits
Asix AX99100 chipset
PCI Express 1.1 compliant
PEX2S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- 2 PORT SERIAL CARD: Serial controller card w/16950 UART based on ASIX AX99100, allows 2x DB9 ports w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit
- OPTIONAL CONFIGURABLE POWER: PCI Express RS232 serial adapter card provides choice of 12v, 5v, or none through pin 9 w/up to 2A total; Each of the 2 ports are individually configurable
- LOW PROFILE BRACKETS PRE-INSTALLED: PCIe multiport serial card comes w/ a low profile bracket preinstalled & a full profile bracket is incl for versatile install; supports Windows XP and up & Linux
Ports & interfaces | |
---|---|
Internal | Yes |
Output interface | Serial |
Serial interface type | RS-232 |
Serial ports quantity | 2 |
Peripheral (Molex) power connectors (4-pin) | 1 |
Host interface | Mini PCI Express |
Expansion card standard | PCIe 1.1 |
Technical details | |
Chipset | Asix AX99100 |
FIFO (First In, First Out) | 256 B |
Sustainability certificates | RoHS |
Performance | |
Stop bits | 1, 1.5, 2 |
Data bits | 5, 6, 7, 8, 9 |
Baud rate | 921.6 Kbit/s |
Chipset | Asix AX99100 |
FIFO (First In, First Out) | 256 B |
Harmonized System (HS) code | 84733020 |
Certificates | |
Certification | CE, FCC |
Design | |
Mean time between failures (MTBF) | 222366 h |
Internal | Yes |
Certification | CE, FCC |
Features | |
Stop bits | 1, 1.5, 2 |
Data bits | 5, 6, 7, 8, 9 |
Baud rate | 921.6 Kbit/s |
Chipset | Asix AX99100 |
FIFO (First In, First Out) | 256 B |
Parity bit | Even, Mark, No, Odd, Space |
Flow Control type | No, RTS/CTS, XON/XOFF |
Harmonized System (HS) code | 84733020 |
Operational conditions | |
Operating temperature (T-T) | -10 - 80 °C |
Storage temperature (T-T) | -20 - 100 °C |
Operating relative humidity (H-H) | 5 - 85% |
System requirements | |
Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Linux operating systems supported | Yes |
Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
Weight & dimensions | |
Width | 67 mm |
Depth | 98 mm |
Height | 18 mm |
Weight | 55.6 g |
Package width | 142 mm |
Package depth | 172 mm |
Package height | 32 mm |
Package weight | 146.4 g |
Packaging data | |
Mounting brackets included | Yes |
Manual | Yes |
Package width | 142 mm |
Package depth | 172 mm |
Package height | 32 mm |
Package weight | 146.4 g |
Quantity | 1 |
Logistics data | |
Products per master (outer) case | 75 pc(s) |
Master (outer) case width | 355 mm |
Master (outer) case length | 690 mm |
Master (outer) case height | 317 mm |
Harmonized System (HS) code | 84733020 |
Packaging content | |
Mounting brackets included | Yes |
Manual | Yes |
Quantity | 1 |
Other features | |
Chipset | Asix AX99100 |
