STARTECH.COM PEX4S953 STARTECH.COM 4 PORT PCI-E RS232 SERIAL CARD

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

PEX4S953 STARTECH.COM 4 PORT PCI-E RS232 SERIAL CARD

Part No:PEX4S953

Stock:51 In Stock

EAN Code:0065030888257

£91.29 Excl. VAT

£109.55 Incl. VAT

price matchPrice Match
Guarantee
Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

4 PORT PCI-E RS232 SERIAL CARD

Introduction

PCI Express to Serial Adapter | 921.6Kbps | Windows and Linux Compatible

This PCI Express RS232 serial adapter card lets you add four RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot, as if they were native serial ports. The 4 port PCIe serial card enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.6Kbps.

Maximum Compatibility

With broad OS support, including for Windows and Linux, this multiport PCI E serial card is easy to integrate into mixed environments. The card comes pre-configured with a full-sized bracket, and includes an optional low-profile bracket, so installation is easy regardless of the case form factor. This expansion card is a direct replacement for PEX4S952.

Experience Optimal Technology

This PCIe to serial adapter supports the following features:

Industry standard 16950 UART compatible

Supports max baud rate of up-to 921.6Kbps

Provides 5/12V power output on Pin 9 when external power is connected

256-byte depth FIFO cache per transmitter and receiver

Supports 9, 8, 7, 6, 5 data bits (one per port)

Asix AX99100 chipset

Base PCI Express 1.1 compliant

The Choice of IT Pros Since 1985

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.

PEX4S953 is backed by a StarTech.com lifetime warranty and free lifetime technical support.

The StarTech.com Advantage

- 4 PORT SERIAL CARD: Serial controller card w/ 16950 UART based on ASIX AX99100, allows 4x DB9 ports w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer
- OPTIONAL CONFIGURABLE POWER: PCIe multiport serial card provides 12v, 5v, or none through pin 9 w/up to 2A total; Each of the 4 ports are individually configurable; DB44 to 4x DB9 breakout cable incl

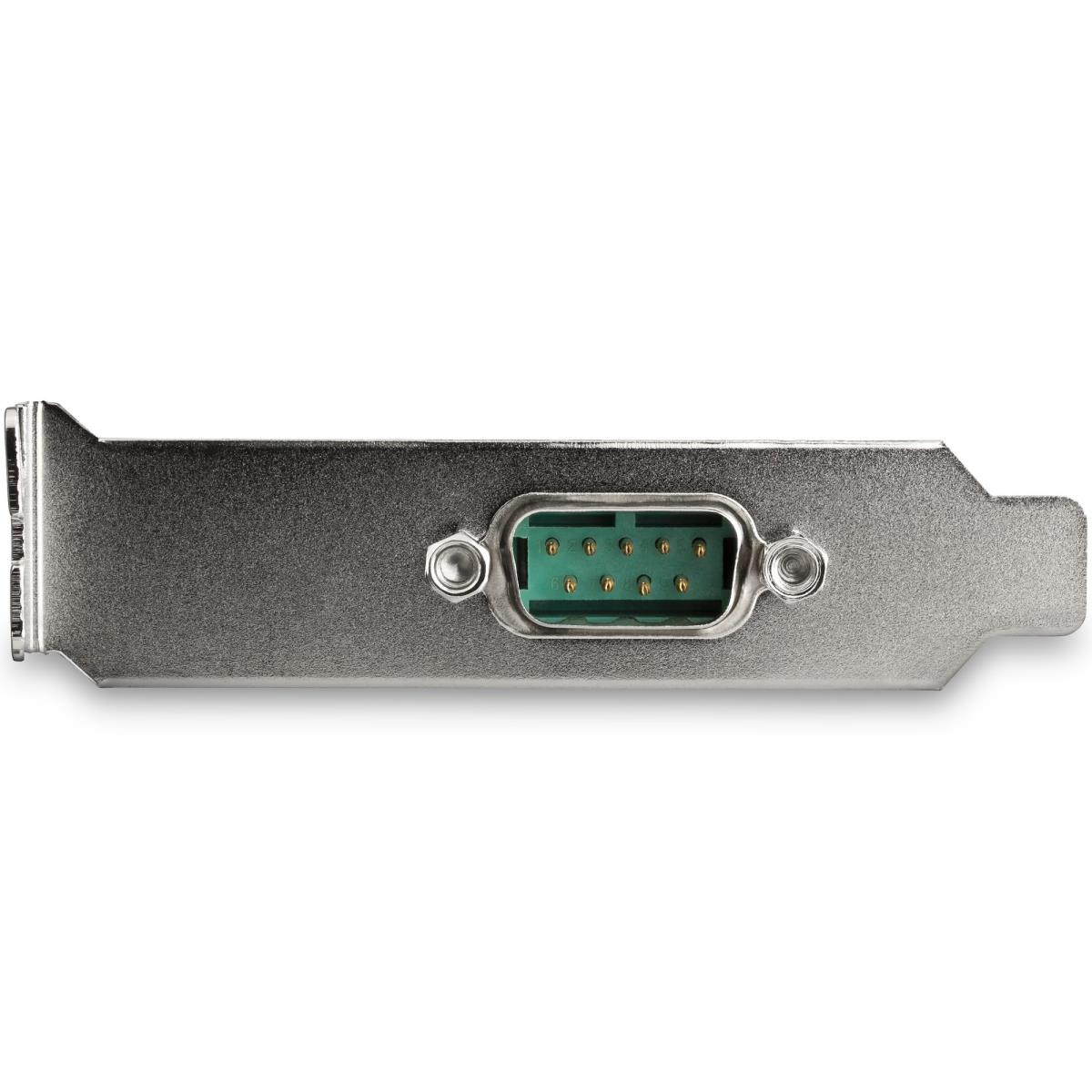

- STANDARD PROFILE & LOW PROFILE BRACKET: PCI Express RS232 serial adapter card has standard bracket pre-installed & 1x low profile bracket incl for versatile install; Supports Windows XP and up & Linux

Specifications

Ports & interfaces
InternalYes
Output interfaceSerial
Serial interface typeRS-232
Serial ports quantity4
Host interfacePCIe
Expansion card form factorFull-height / Low-profile
Technical details
ChipsetAsix AX99100
FIFO (First In, First Out)256 B
Sustainability certificatesRoHS
Performance
Stop bits1, 1.5, 2
Data bits5, 6, 7, 8, 9
Baud rate921.6 Kbit/s
ChipsetAsix AX99100
FIFO (First In, First Out)256 B
Product colourGreen
Harmonized System (HS) code84733020
Certificates
CertificationCE, FCC, Microsoft WHQL
Colour
Product colourGreen
Design
Mean time between failures (MTBF)214358 h
InternalYes
Product colourGreen
CertificationCE, FCC, Microsoft WHQL
Features
Stop bits1, 1.5, 2
Data bits5, 6, 7, 8, 9
Baud rate921.6 Kbit/s
ChipsetAsix AX99100
FIFO (First In, First Out)256 B
Parity bitEven, Mark, No, Odd, Space
Flow Control typeNo, RTS/CTS, XON/XOFF
Harmonized System (HS) code84733020
Operational conditions
Operating temperature (T-T)-10 - 80 °C
Storage temperature (T-T)-20 - 100 °C
Operating relative humidity (H-H)5 - 85%
System requirements
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Weight & dimensions
Width63 mm
Depth75 mm
Height15 mm
Weight50 g
Package width150 mm
Package depth210 mm
Package height50 mm
Package weight371 g
Packaging data
Mounting brackets includedYes
Package width150 mm
Package depth210 mm
Package height50 mm
Package weight371 g
Cables includedSerial
Quick installation guideYes
Quantity1
Logistics data
Products per master (outer) case16 pc(s)
Master (outer) case width340 mm
Master (outer) case length480 mm
Master (outer) case height240 mm
Harmonized System (HS) code84733020

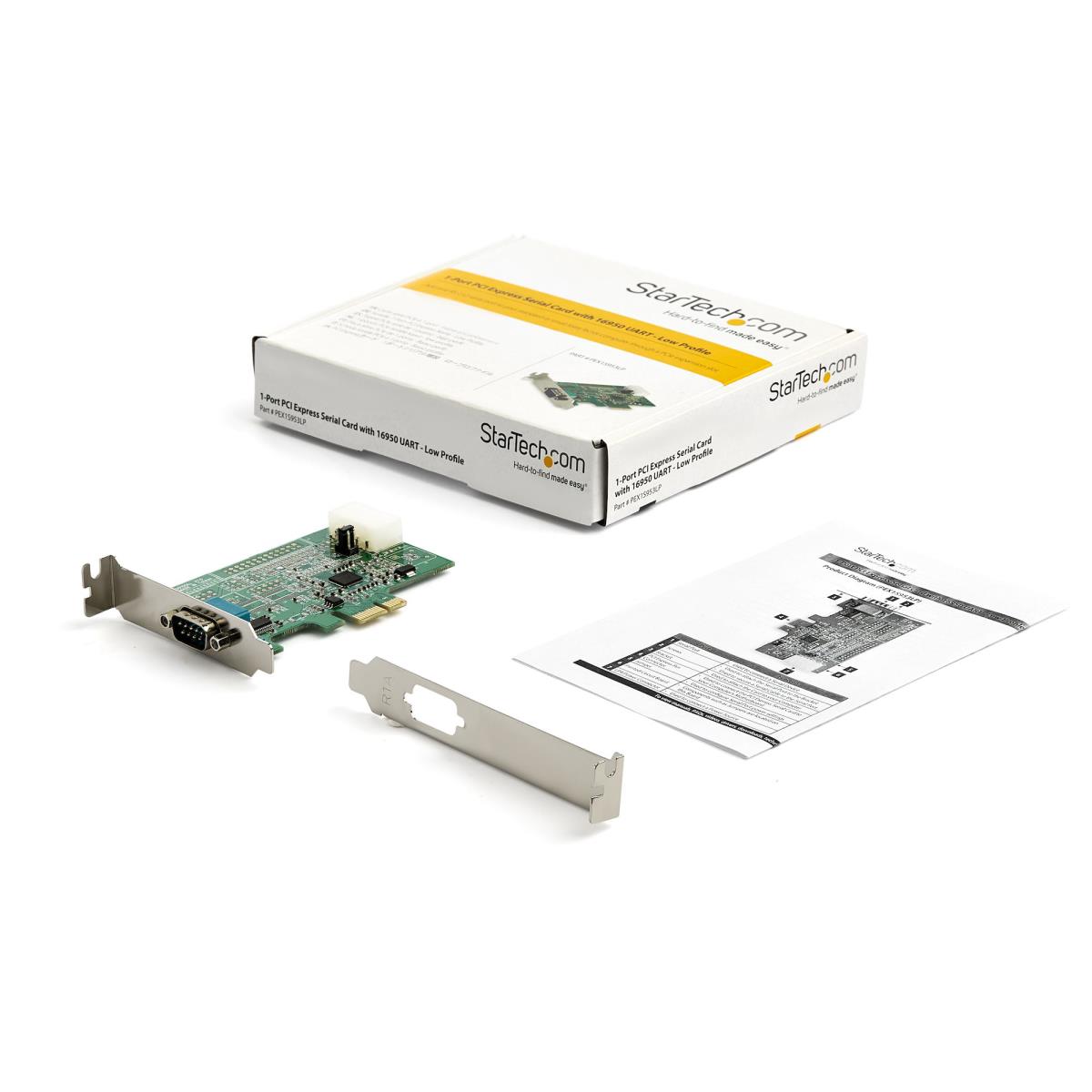

Packaging content
Mounting brackets includedYes
Cables includedSerial
Quick installation guideYes
Quantity1
Other features
ChipsetAsix AX99100
