STARTECH.COM PEX8M2E2 STARTECH.COM X8 DUAL M.2 PCIE SSD ADAPTER

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

PEX8M2E2 STARTECH.COM X8 DUAL M.2 PCIE SSD ADAPTER

Part No:PEX8M2E2

Stock:3 In Stock

EAN Code:0065030886390

£140.17 Excl. VAT

£168.20 Incl. VAT

price matchPrice Match
Guarantee
Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

X8 DUAL M.2 PCIE SSD ADAPTER

Introduction

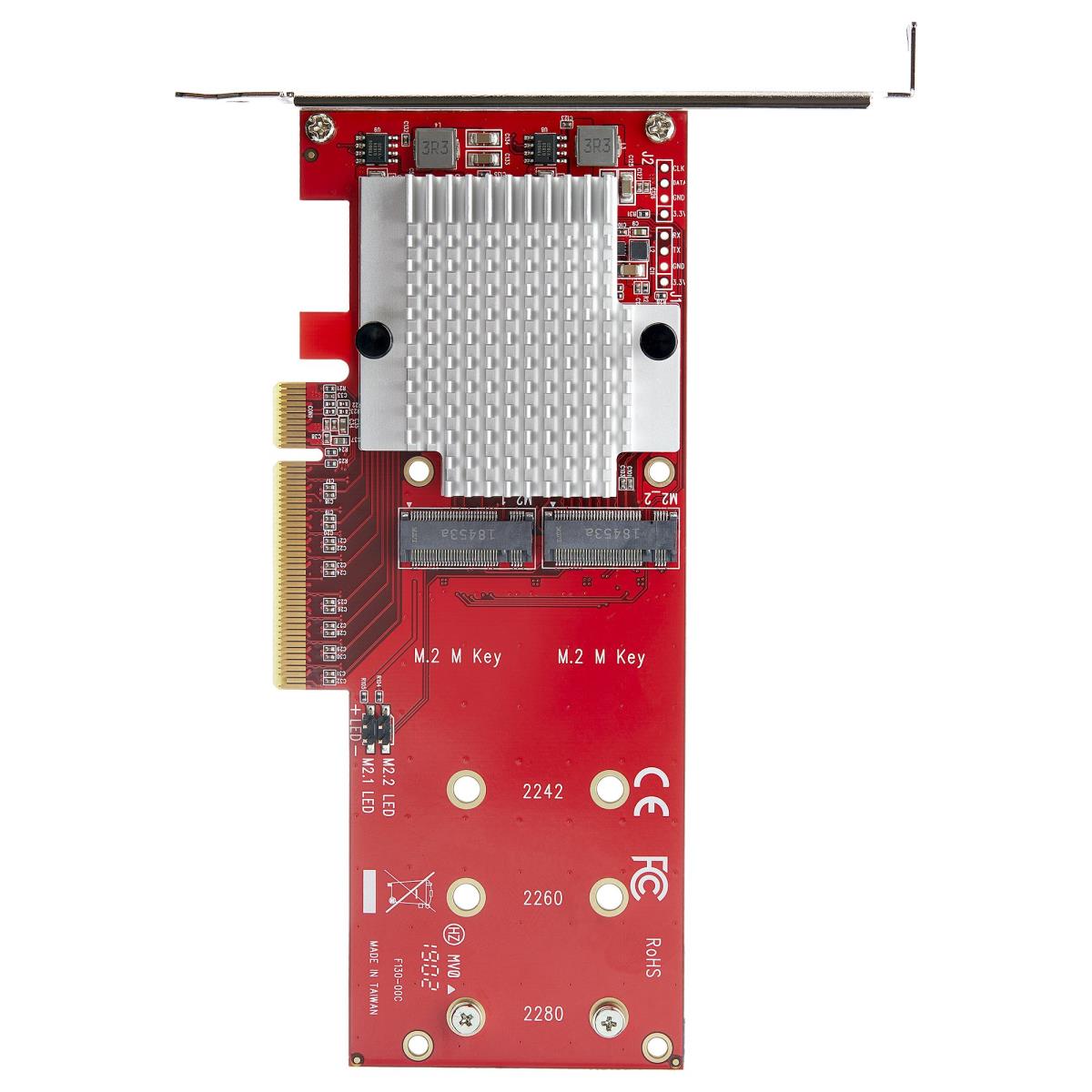

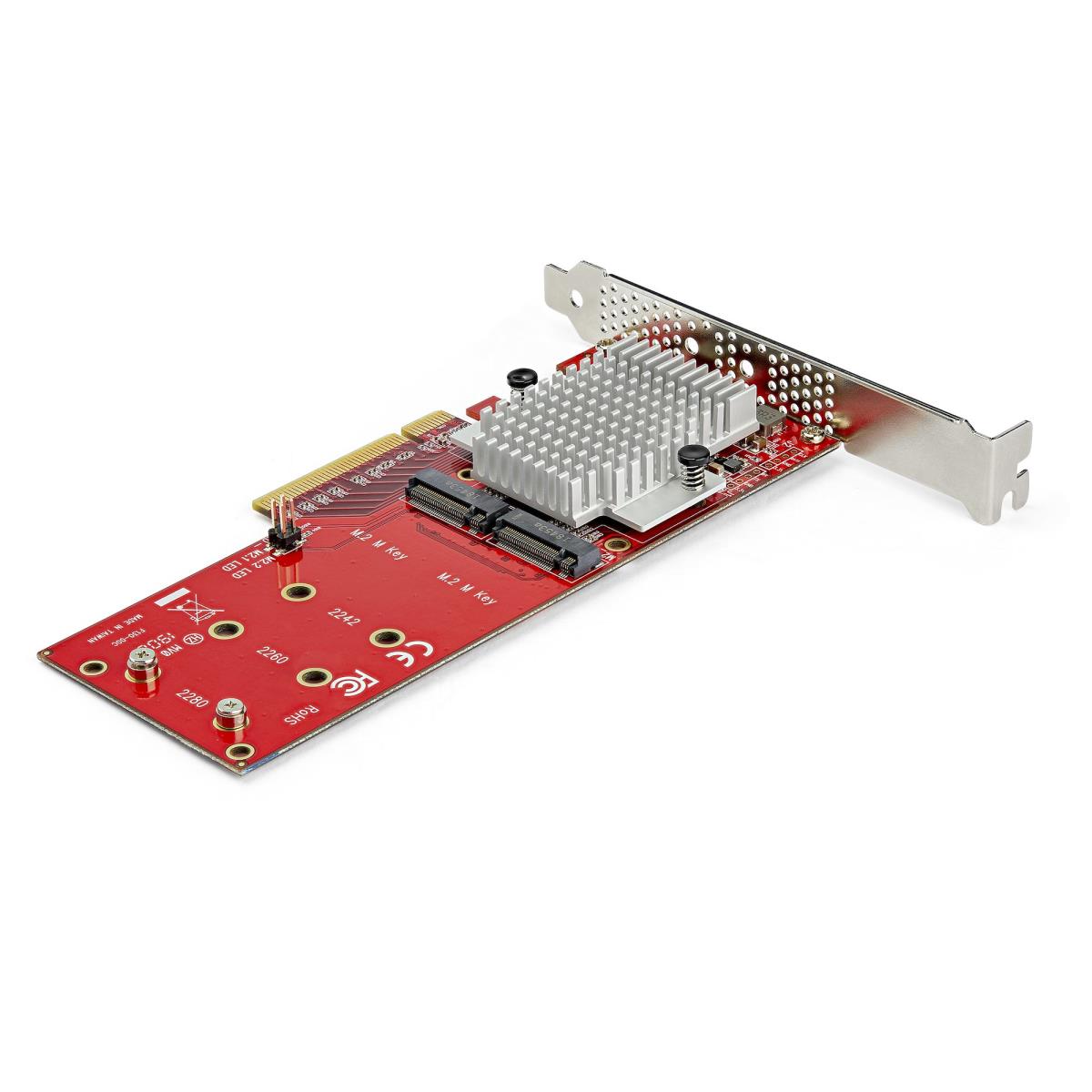

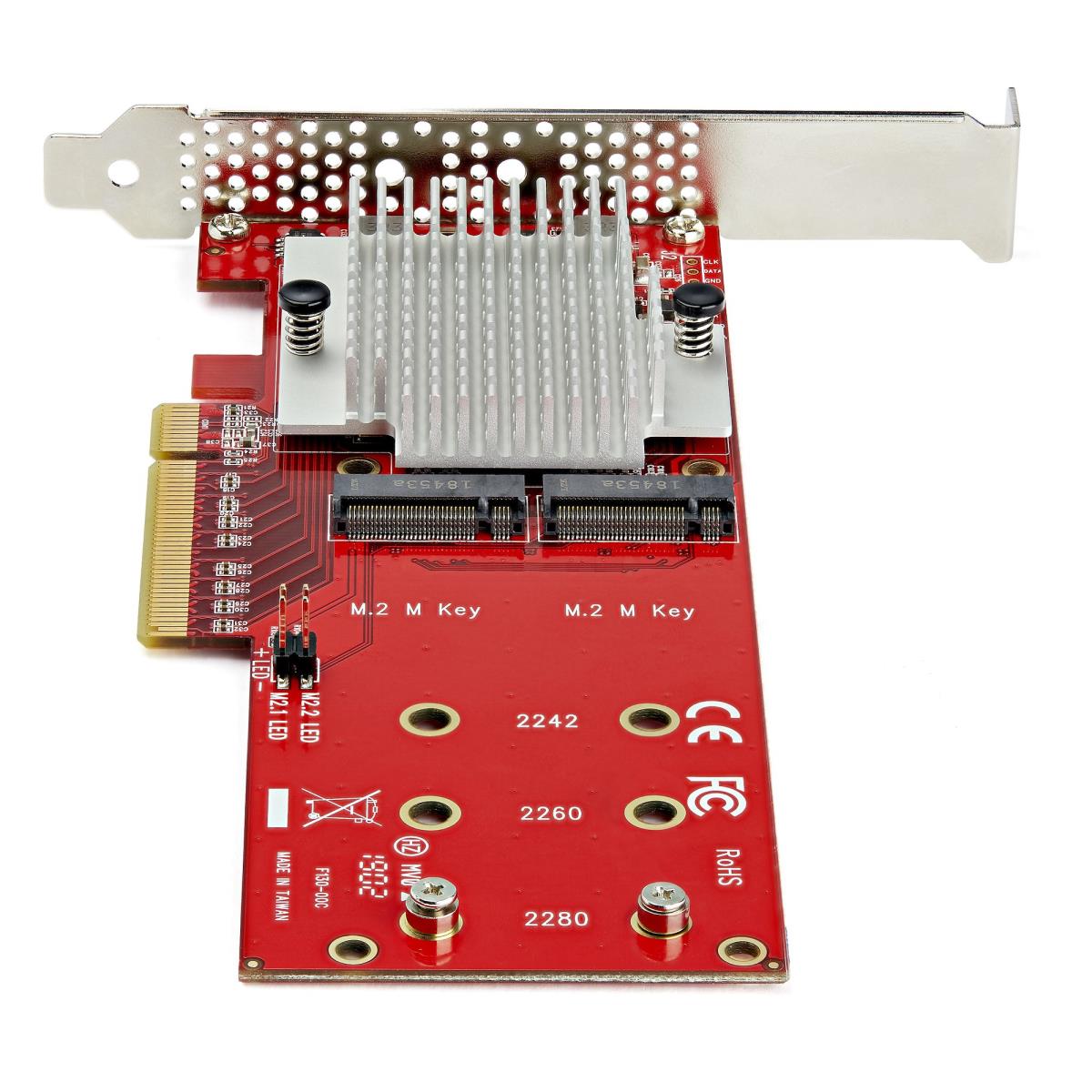

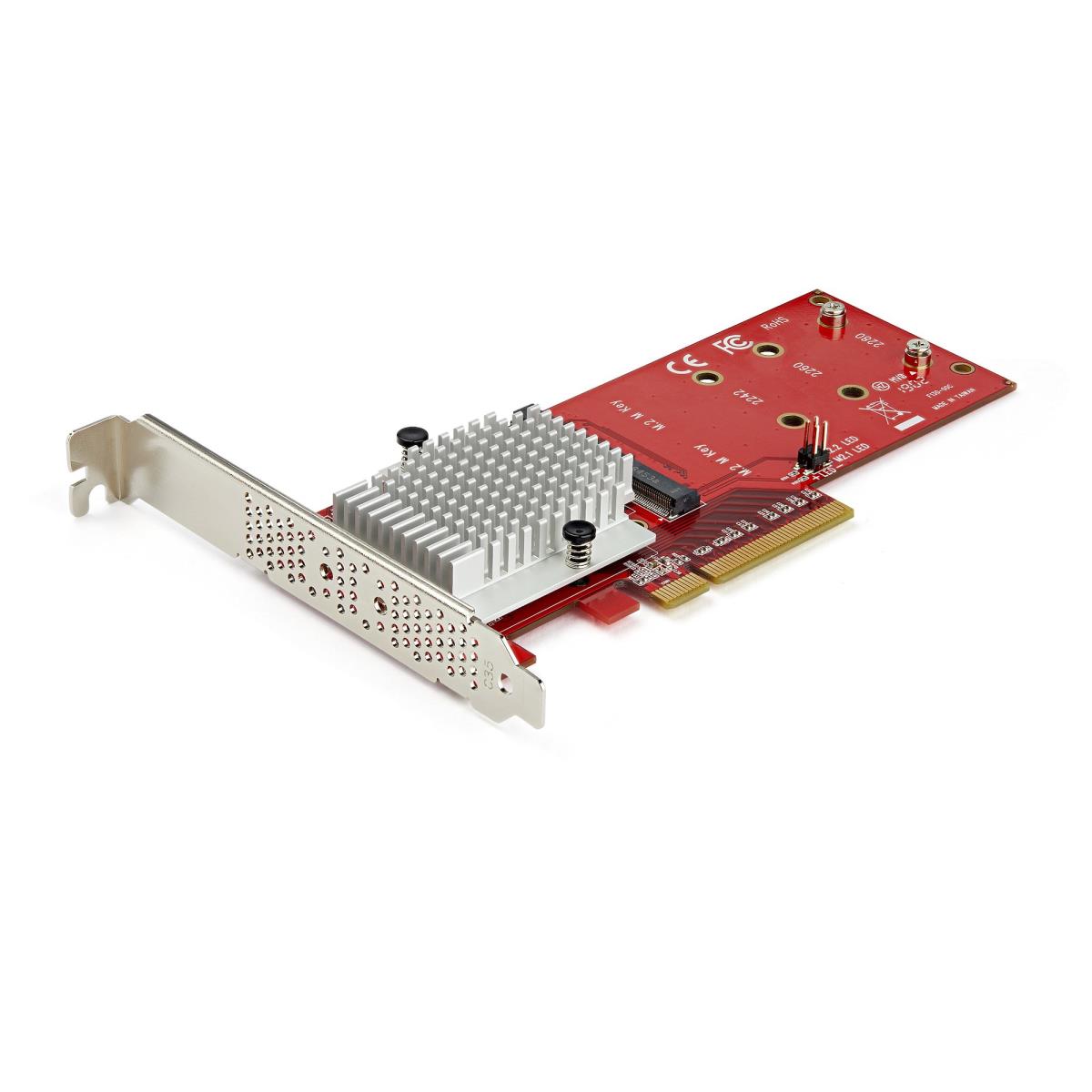

PCI Express 3.0 M.2 SSD Adapter Card | For PCIe NVMe and PCIe AHCI M.2 SSDs

Upgrade your system speed and performance with this Dual M.2 PCIe SSD Adapter. It lets you add two high performance, enterprise-class PCIe 3.0 M.2 SSDs (NVMe and AHCI) into the PCIe 8-lane or larger slot of your desktop workstation or server.

Boost System Performance

The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. With the M.2 PCIe based?drives in place, the adapter?increases your storage capacity and gives your computer a significant speed boost, enhancing data transfer rates.

Access two M.2 PCIe SSDs simultaneously

The dual M.2 to PCIe expansion card employs a high-speed ASM2824 switch, allowing you to access two drives at the same time. Since the adapter card does not rely on PCIe bifurcation, it can easily be integrated into all systems, new and legacy.

The M.2 PCI express adapter also gives you the flexibility to access your M.2 PCIe SSDs individually. Or, you can utilize software RAID to build a RAID array to add redundancy or enhance system performance.

Wide System Compatibility

The adapter?connects directly to your computer motherboard to support two PCIe M.2 SSDs through a x8 PCIe expansion slot. The adapter?is compatible with PCIe 3.0 motherboards and is backward compatible with PCIe 2.0 and PCIe 1.0.

Supports a Wide Range of PCIe M.2 SSDs

The PCIe M.2 NGFF (M Key) adapter supports PCIe 3.0 NVMe and PCIe-AHCI M.2 SSDs including 2242, 2260, and 2280 drives, supporting the most common drive sizes: 42, 60, and 80 mm lengths.

Easy to Install

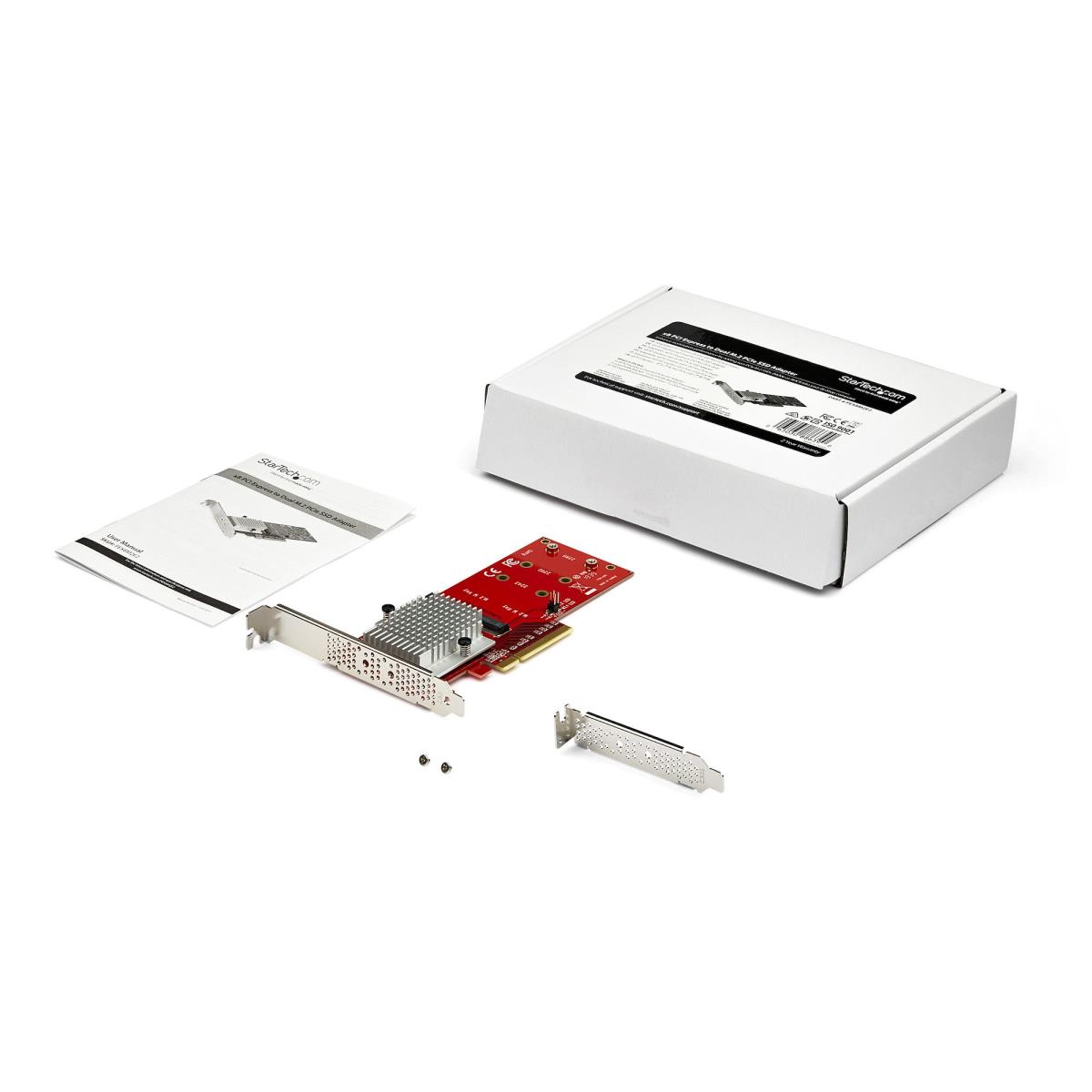

The expansion card comes with a full-profile bracket pre-installed, and includes a half-height / low-profile bracket, for installation in small form-factor computers.

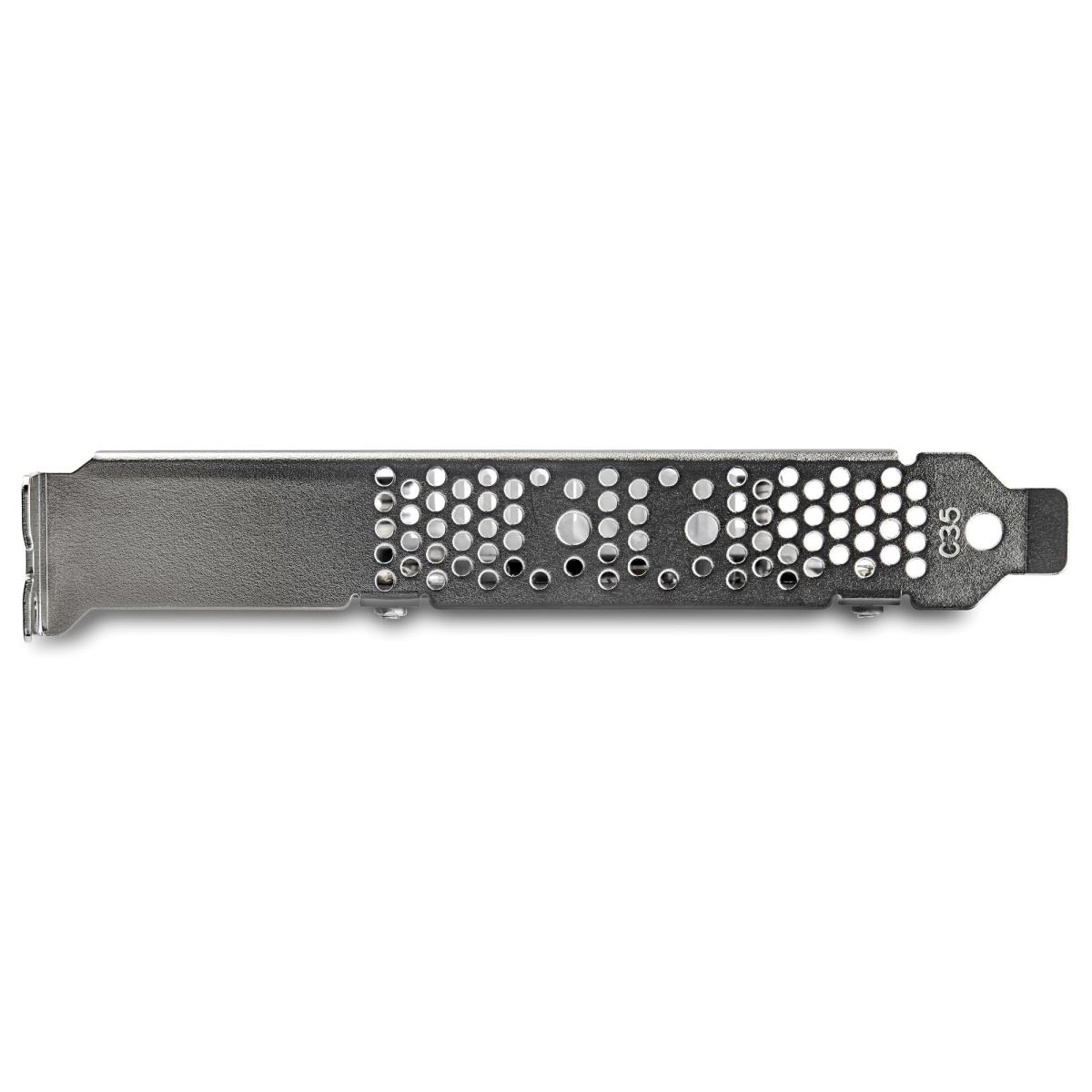

Vented Brackets

Vented brackets on the PCIe M.2 NGFF SSD adapter card increases air flow to assist in heat dissipation.

The TAA compliant PEX8M2E2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- HIGH PERFORMANCE: Install 2 PCIe 3.0 M.2 SSDs (NVMe or AHCI) into your workstation or server for read/write speeds up to 3GB/s and 2.8GB/s for single-drives or 2.4GB/s and 1.42GB/s (per drive) for 2
- WIDE COMPATIBILITY: Dual M.2 PCIe SSD adapter card was extensively tested to ensure compatibility w/ Samsung 970 evo, 950 Pro, SM951, & other 2242, 2260, 2280mm PCIe M-Key M.2 NGFF SSDs (NVMe or AHCI)
- BACKWARD COMPATIBILITY: Compatible w/ PCIe 1.0 & 2.0 and x8 or x16 slots, PCIe bifurcation is not required. Works with all workstation and server OS's such as Windows, Linux, and macOS incl. legacy.

Specifications

Ports & interfaces
InternalYes
Output interfaceM.2
Host interfacePCIe
Number of M.2 (M) slots2
SATA connector insertion cycles60
Expansion card standardPCI 3.0
Technical details
Plug and PlayYes
ChipsetASMedia - ASM2824
Data transfer rate (max)8 Gbit/s
Sustainability certificatesRoHS
Performance
Hot-swapYes
Plug and PlayYes
ChipsetASMedia - ASM2824
Data transfer rate (max)8 Gbit/s
Product colourRed
Supported storage drive heights22 mm
SATA connector insertion cycles60
Harmonized System (HS) code84733020
Design
Supported storage drive heights22 mm
Mean time between failures (MTBF)3336103 h
Hot-swapYes
InternalYes
Product colourRed
CertificationCE, FCC, TAA, REACH
Certificates
CertificationCE, FCC, TAA, REACH
Colour
Product colourRed
Features
Plug and PlayYes
ChipsetASMedia - ASM2824
Data transfer rate (max)8 Gbit/s
Harmonized System (HS) code84733020
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)15 - 90%
System requirements
Supported storage drive heights22 mm
Weight & dimensions
Width16 mm
Depth159 mm
Height69 mm
Weight88 g
Package width157 mm
Package depth217 mm
Package height40 mm
Package weight157 g
Packaging data
Mounting brackets includedYes
Package width157 mm
Package depth217 mm
Package height40 mm
Package weight157 g
User guideYes
Quantity1
Screws includedYes
Logistics data
Products per master (outer) case40 pc(s)
Master (outer) case width340 mm
Master (outer) case length460 mm
Master (outer) case height495 mm
Harmonized System (HS) code84733020
Packaging content
Mounting brackets includedYes
User guideYes
Quantity1
Screws includedYes
Other features
ChipsetASMedia - ASM2824
