STARTECH.COM PEXUSB312C3 STARTECH.COM 2 PORT PCIE USB 3.1 GEN 2 CARD

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

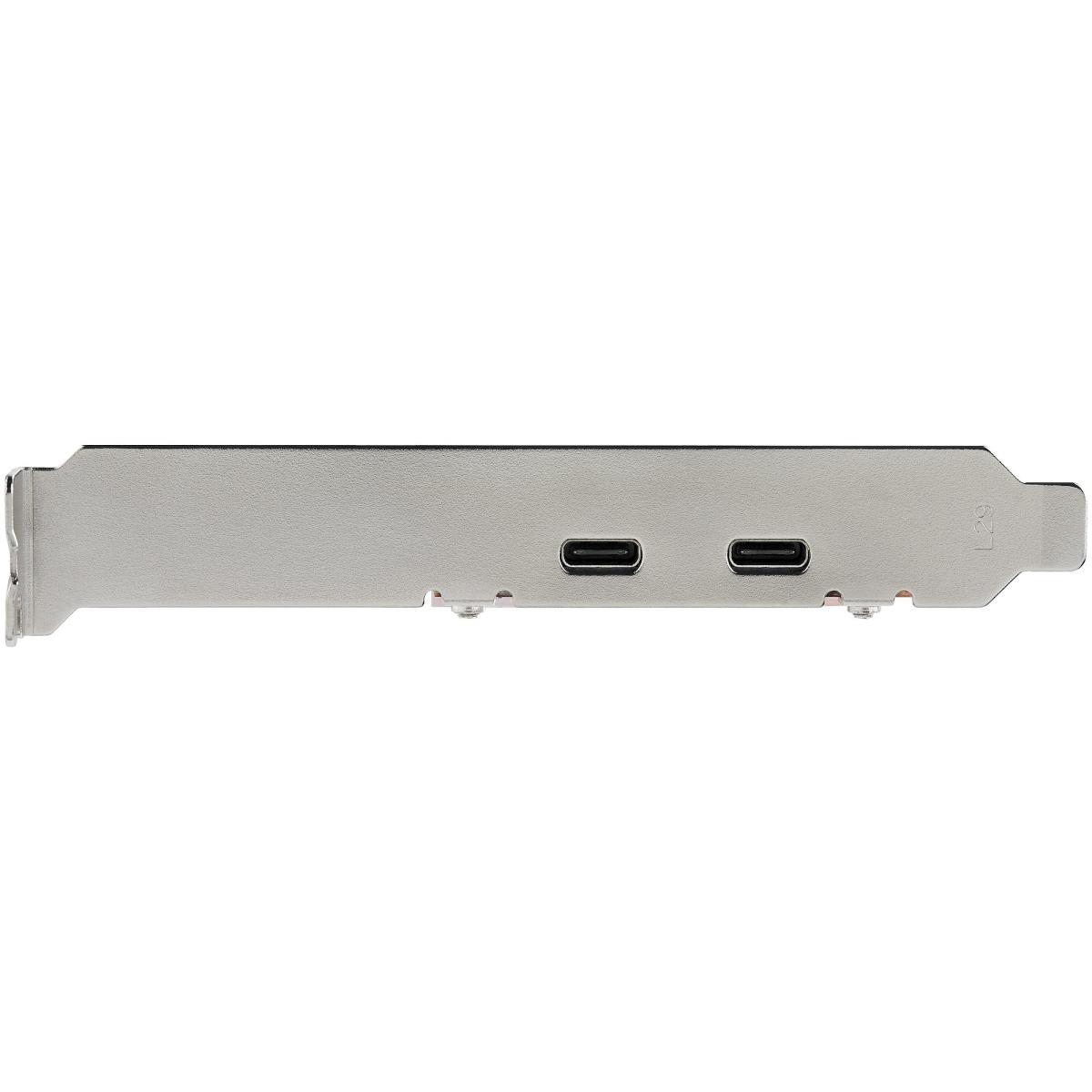

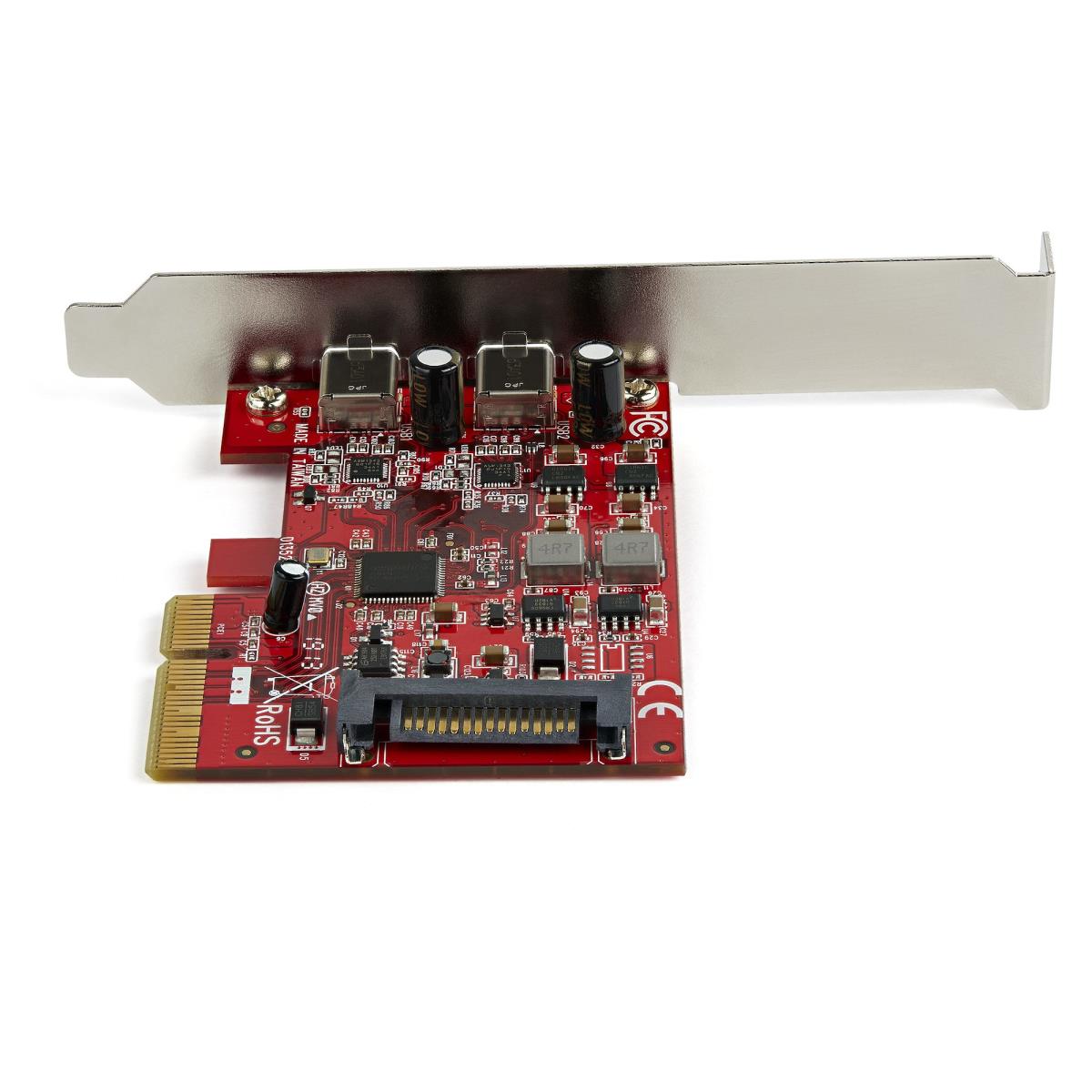

PEXUSB312C3 STARTECH.COM 2 PORT PCIE USB 3.1 GEN 2 CARD

Part No:PEXUSB312C3

Stock:23 In Stock

EAN Code:0065030887434

£43.84 Excl. VAT

£52.61 Incl. VAT

price matchPrice Match
Guarantee
Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

2 PORT PCIE USB 3.1 GEN 2 CARD

Introduction

PCI-Express USB-C Card | 10Gbps | PCIe Gen3 x4 | 2-Year Warranty

This PCIe USB 3.1 Gen 2 card installs into an available PCI-Express slot in your computer and enables you to upgrade your current system by adding two USB-C (10Gbps) ports.

Faster USB Performance

Also known as USB 3.2 Gen 2x1, this USB 3.1 Gen 2 card adds two 10Gbps USB Type-C ports to your computer.

Utilizing an ASMedia ASM3142 chipset, this card harnesses the speed of USB 3.1 Gen 2. With higher data throughput support, this USB 3.1 Gen 2 PCIe expansion card is a necessity for external drives and many other USB 3.1 Gen 2 peripherals and includes an optional SATA power connector for high power devices.

The card is backward compatible with USB 3.0 (5Gbps) and USB 2.0 (480mbps) devices. The card works with newer USB-C devices, but can easily support your existing USB-A peripherals using inexpensive USB Type C cables and adapters. See our Accessories Tab for supported options.

Easy Installation

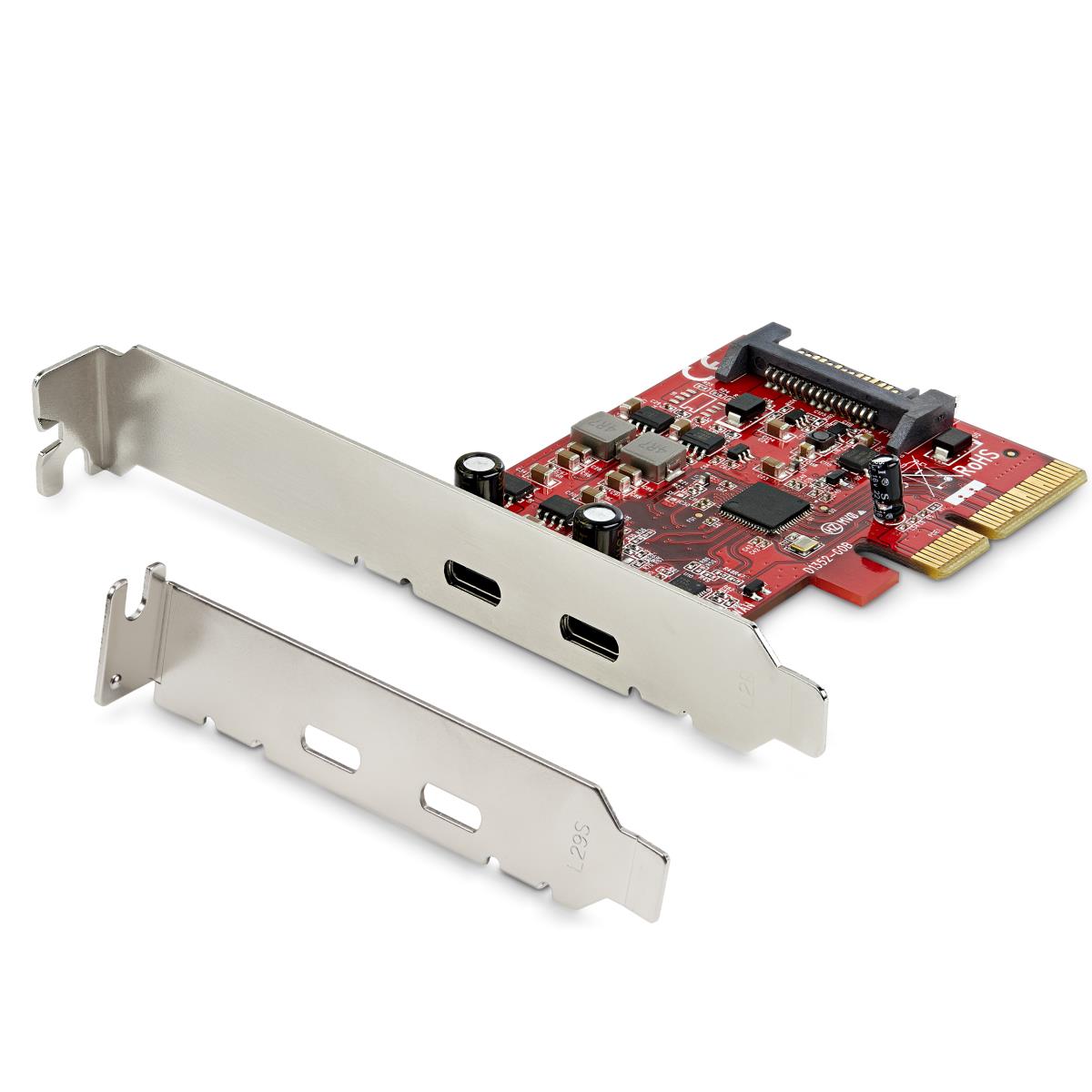

The USB 3.1 card is compatible with Windows, Linux and macOS operating systems. The card includes both standard-profile and low-profile brackets to install in various form-factor PCs and servers.

The Choice of IT Pros Since 1985

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.

The PEXUSB312C3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- HIGH PERFORMANCE: USB 3.1 Gen 2 or USB 3.2 Gen 2x1 PCIe Host Controller card supports Multiple INs, maintains max bandwidth even when mixed speed devices are connected; 2x USB-C 10Gbps per port
- POWER: Expansion card w/ SATA power header supplies supplemental power to the USB Type-C ports (when motherboard power is insufficient) providing up to 5V 3A (15W) via the USB-C ports
- MAX PERFORMANCE WITH USB STORAGE DEVICES: 2-port USB-C PCIe Card adapter supports USB Attached SCSI Protocol (UASP) optimizing USB performance w/ external storage devices like SSDs, HDDs, NVMe drives

Specifications

Ports & interfaces
InternalYes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
Output interfaceUSB 3.2 Gen 1 (3.1 Gen 1)
Host interfacePCIe
Expansion card form factorFull-height / Low-profile
Expansion card standardPCIe 3.0
Technical details
ChipsetASMedia - ASM3142
Data transfer rate (max)10 Gbit/s
Sustainability complianceYes
Sustainability certificatesCE, RoHS
Performance
UASP supportYes
ChipsetASMedia - ASM3142
Data transfer rate (max)10 Gbit/s
Product colourRed
Harmonized System (HS) code84733020
Certificates
CertificationCE, FCC, REACH
Colour
Product colourRed
Design
InternalYes
Product colourRed
CertificationCE, FCC, REACH
Features
UASP supportYes
ChipsetASMedia - ASM3142
Data transfer rate (max)10 Gbit/s
Harmonized System (HS) code84733020
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-20 - 85 °C
Operating relative humidity (H-H)20 - 80%
System requirements
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supportedMac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019
Weight & dimensions
Width80 mm
Depth122 mm
Height18 mm
Weight45 g
Package width142 mm
Package depth173 mm
Package height30 mm
Package weight120 g
Packaging data
Mounting brackets includedYes
Package width142 mm
Package depth173 mm
Package height30 mm
Package weight120 g
User guideYes
Logistics data
Products per master (outer) case60 pc(s)
Master (outer) case width380 mm
Master (outer) case length490 mm
Master (outer) case height320 mm
Harmonized System (HS) code84733020
Packaging content
Mounting brackets includedYes
User guideYes
Other features
ChipsetASMedia - ASM3142
