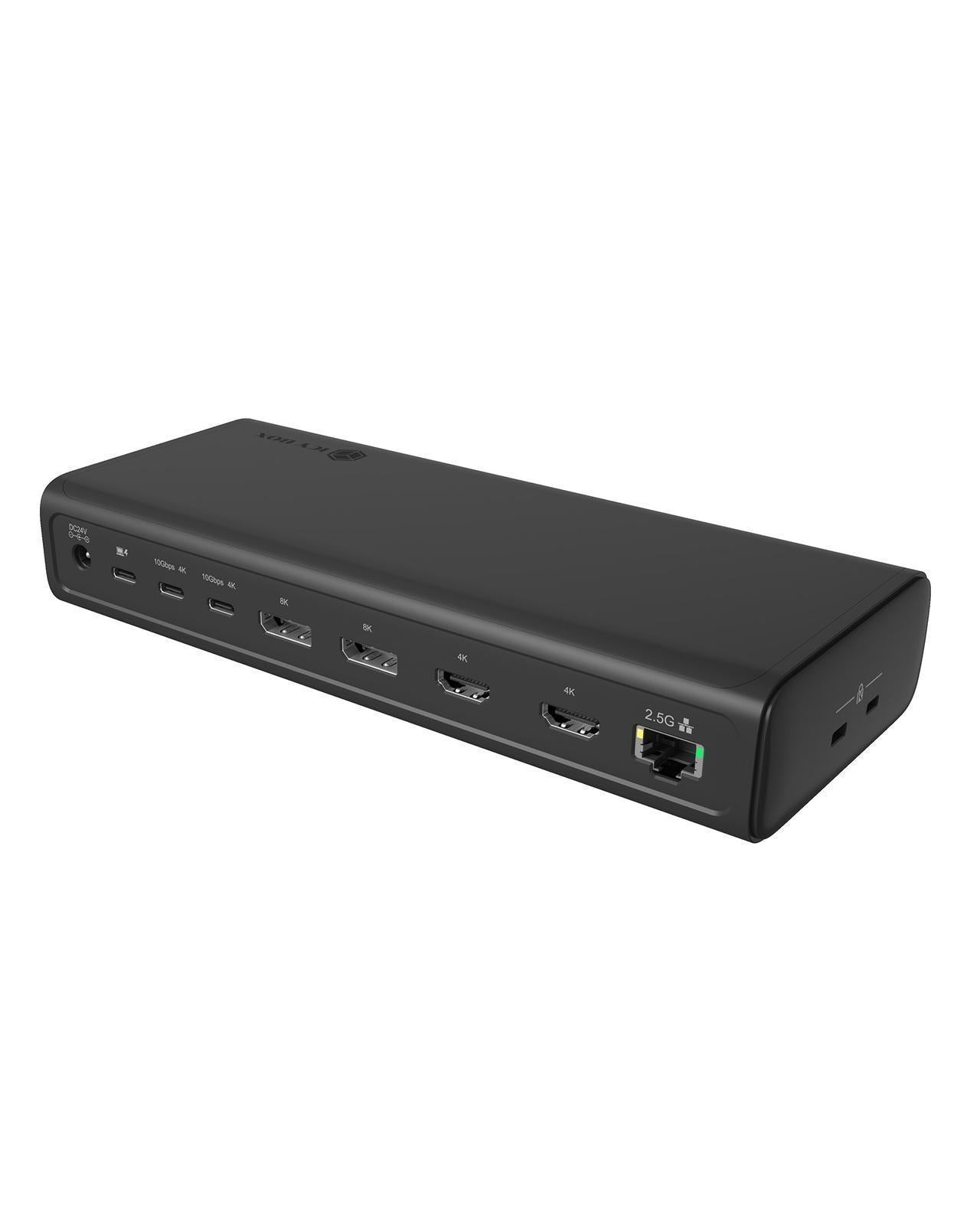

EU Product - - IB-DK7401-CU31 - 17-in-1 Notebook DockingStation, DisplayLink® DL7400 Chip, 6x Video (2x 8k, oder 6x 4K@60Hz), 140 W PD, 2,5 Gb LAN, Host C+A 10 Gbps
Introduction
17-in-1 DockingStation - This 17-port DockingStation is all you need to power your entire setup. It brings convenience to your desk by combining charging, display output, data transfer, networking, audio, and storage access into one device. Say goodbye to cable mess and enjoy a clean, connected workspace with everything in one place.
View with Six Screens - This DockingStation supports up to six external monitors, delivering high-quality 4K@60Hz visuals with smooth refresh rates. For an optimal viewing experience, it also supports 8K resolution on a dual display via DP port. With support for high resolutions, every detail remains sharp, making it ideal for professionals who need a seamless multi-screen experience
USB Type-A Connectivity - Equipped with four USB Type-A 3.2 Gen 2 ports, this docking station gives you up to 10 Gbit/s data transfer speeds. Two of the ports also support BC 1.2 fast charging, so you can power up your devices while transferring files or running devices like keyboards, mice, or enclosures.
Power Delivery 3.1 - Keep your laptop powered and ready with our DockingStation, offering Power Delivery (PD) upstream of up to 140W. This high-capacity charging allows your device stays charged even during demanding tasks, eliminating the need for additional power adapters.
Extra Convenience - Stay connected and organized with a 2.5 Gbps Ethernet port, a 3.5 mm combo audio jack for your headset, and SD/microSD slots for fast media access. These commonly needed features are integrated directly into the dock, reducing your need for extra dongles or separate devices on your desk.
Specifications
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 4 |
| Headphone connectivity | 3.5 mm |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.1 |
| USB Power Delivery up to | 140 W |
| DisplayPort version | 1.4 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum digital resolution | 7680 x 4320 pixels |
| Number of displays supported | 6 |
| On/off switch | Yes |
| Country of origin | China |
| Product colour | Black |
| Card reader integrated | Yes |
| Cable lock slot | Yes |
| LED indicators | Power |
| Compatible memory cards | SD, SDHC, SDXC, MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Cable lock slot type | Kensington |
| HD type | 8K Ultra HD |
| VESA mounting | Yes |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Maximum refresh rate | 144 Hz |
| Technical details | |
| Product colour | Black |
| Cable lock slot | Yes |
| Package volume | 6619800 cm³ |
| Harmonized System (HS) code | 84718000 |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC, MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Power | |
| Power source type | DC |
| Power consumption (max) | 240 W |
| Power cable length | 1.8 m |
| USB cable length | 1 m |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
| Mobile operating systems supported | Android |
| Indication | |
| LED indicators | Power |
| Design | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Country of origin | China |
| Product colour | Black |
| Cable lock slot | Yes |
| LED indicators | Power |
| Cable lock slot type | Kensington |
| Packaging data | |
| Package width | 870 mm |
| Package depth | 215 mm |
| Package height | 39 mm |
| Packaging content | |
| Manual | Yes |
| Cables included | USB Type-C to USB Type-C, USB Type-C to USB Type-A |
| Weight & dimensions | |
| Package width | 870 mm |
| Package depth | 215 mm |
| Package height | 39 mm |
| Logistics data | |
| Harmonized System (HS) code | 84718000 |
