50CM INTERNAL MINI SAS CABLE -
Introduction
Connect a SAS Controller to 4 SAS drives

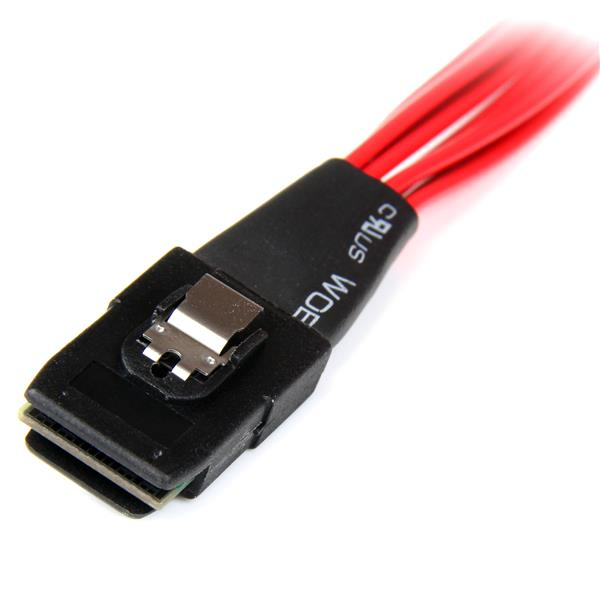

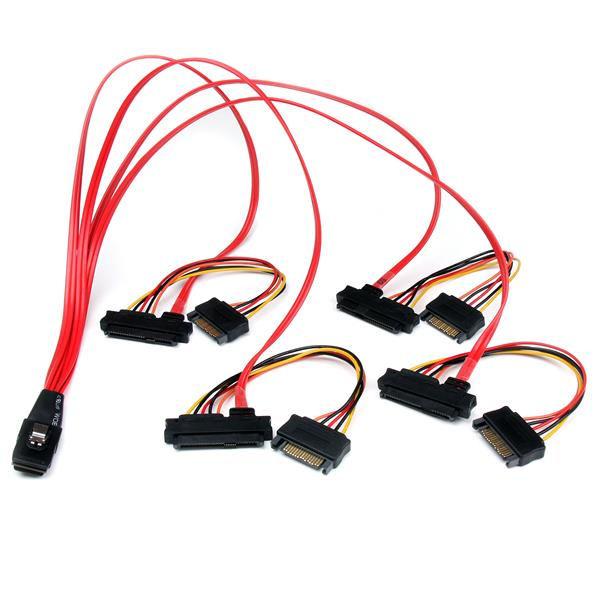

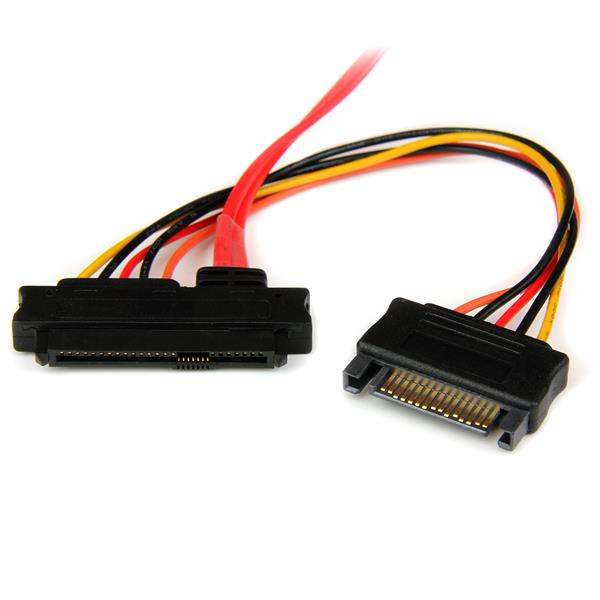

The SAS808782P50 Mini SAS to SAS cable (50cm) features one 36-pin SFF-8087 plug, which fans out to four individual 29-pin SFF-8482 receptacles, providing a reliable solution for connecting multiple SAS HDD drives (with both data and power) to a single mini SAS controller connection.
This high quality internal Mini SAS to SAS cable is designed for long-lasting dependability and reliable performance and is backed by our lifetime warranty.
The StarTech.com Advantage
- Saves money and reduces clutter by connecting 4x SFF-8482 SAS drives to 1x SFF-8087 SAS controller connection, through a single cable
- Provides reliable, high-performance drive and Mini SAS controller connectivity
- Backed by StarTech.com lifetime warranty
Specifications
| Features | |
|---|---|
| Connector gender | Male/Female |
| Weight | 100 g |
| Connector 2 | 4 x SATA, 4 x SFF-8482 |
| Connector 1 | 1 x SFF-8087 |
| Product colour | Black, Red |
| Cable length | 0.5 m |
| Technical details | |
| Package width | 60 mm |
| Package height | 60 mm |
| Cable length | 0.5 m |
| Colour | |
| Product colour | Black, Red |
| Ports & interfaces | |
| Connector 2 | 4 x SATA, 4 x SFF-8482 |
| Connector 1 | 1 x SFF-8087 |
| Weight & dimensions | |
| Weight | 100 g |
| Cable length | 0.5 m |
| Packaging data | |
| Package depth | 140 mm |
| Package weight | 98 g |
| Package width | 60 mm |
| Package height | 60 mm |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Other features | |
| Harmonized System (HS) code | 84733080 |
