EU Product - PCEA-S2N Schnittstellenkarte/Adapter Eingebaut RS-232 - RS-232
Introduction

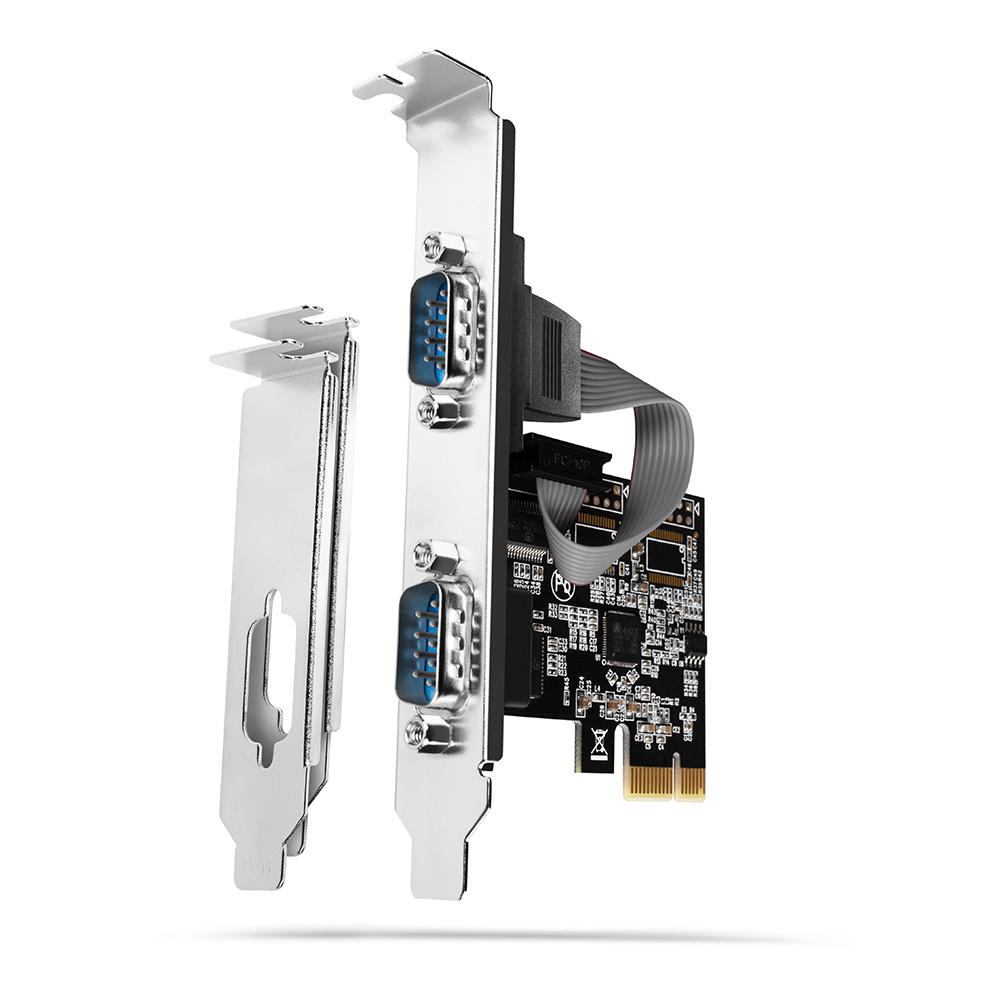

The AXAGON PCEA-S2N PCI-Express card extends your desktop PC by two RS-232 serial ports with DB-9 connectors.
High performance, seamless compatibility and wide port options are ensured by proven ASIX chipset.
Included low profile brackets allow controller installation into standard and also low profile PC cases.
Input:
• PCI-Express 2.0 interface compatible with PCI-Express 1.0a / 1.1 / 2.1 / 3.0.
• Number of lines 1-Lane (x1), compatible with x1 / x4 / x8 / x16 PCIe slots.
• The bandwidth of 1-Lane PCI-Express 2.0 bus 5 Gb/s.
Output:
• 2x serial RS-232 port with DB9 male connectors, the ports are placed on the card’s bracket.
• Guaranteed data flow of used RS232 drivers up to 250 kBd.
• Compatible with 16C550 / Extended 16C550 / 16C950 UART.
Other features:
• Plug and Play Support - automatic selection of IRQ and I/O address.
• 256-Byte transmit & receive FIFO buffer for each port.
• Serial port baud rate setting.
• Adjustable word length 5, 6, 7, 8 or 9 bits.
• Adjustable parity (even, odd, none, mark, space), 1, 1.5 or 2 stop bits.
• Adjustable flow control Xon/Xoff, hardware or none.
• The COM port number change.
• Advanced 9-bit data transfer settings and custom baud rate settings.
• Supports TXD, RXD, RTS, CTS, DTR, DCD, DSR, and RI serial signals.
• Serial port electrostatic discharge (ESD) protection exceeding ±15KV Air Gap Discharge and ±8KV Contact Discharge.
• Supports connecting serial devices such as ATMs, cash registers, barcode readers, CNC machines, tablets, modems, POSs or PDAs.
• The ASIX AX99100 chipset is used.
Supported operating systems:
• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported all 32 and 64-bit Windows OS versions), with kernel 2.6.11 and above.
Package contains:
• PCI-Express card with a standard bracket,
• low profile brackets,
• multilingual guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
• packed in a cardboard box.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | RS-232 |
| Serial interface type | RS-232 |
| Serial ports quantity | 2 |
| Host interface | PCIe |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCIe 2.0 |
| Host interface gender | Male |
| Technical details | |
| Plug and Play | Yes |
| FIFO (First In, First Out) | 256 B |
| Data transfer rate (max) | 5 Gbit/s |
| Quantity per pack | 1 pc(s) |
| Warranty period | 3 year(s) |
| Compliance certificates | RoHS, CE |
| Performance | |
| Plug and Play | Yes |
| FIFO (First In, First Out) | 256 B |
| Flow control support | Yes |
| Data transfer rate (max) | 5 Gbit/s |
| Product colour | Black |
| Certificates | |
| Certification | CE, RoHS |
| Colour | |
| Product colour | Black |
| Design | |
| Country of origin | China |
| Internal | Yes |
| Product colour | Black |
| Certification | CE, RoHS |
| Features | |
| Plug and Play | Yes |
| FIFO (First In, First Out) | 256 B |
| Flow control support | Yes |
| Data transfer rate (max) | 5 Gbit/s |
| Flow Control type | XON/XOFF |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | Yes |
| Packaging data | |
| Manual | Yes |
| Package type | Box |
| Package width | 110 mm |
| Package depth | 25 mm |
| Package height | 145 mm |
| Package weight | 87 g |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Package width | 110 mm |
| Package depth | 25 mm |
| Package height | 145 mm |
| Package weight | 87 g |
| Packaging content | |
| Manual | Yes |
| Package type | Box |
| Other features | |
| Flow control support | Yes |
