EU Product - 4 por DVI / US KVMP Swich
Introduction

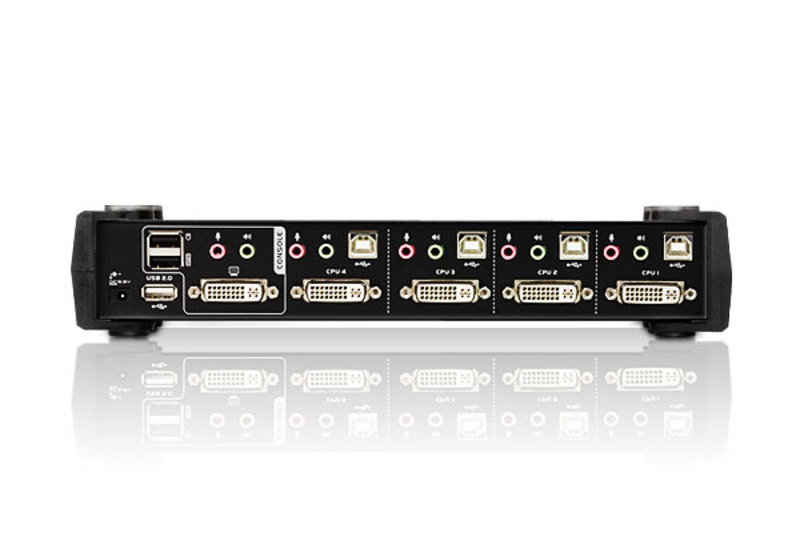

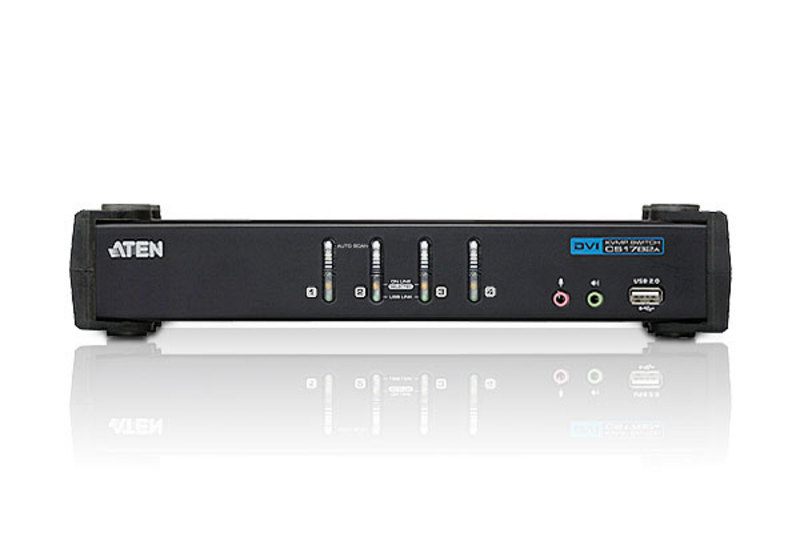

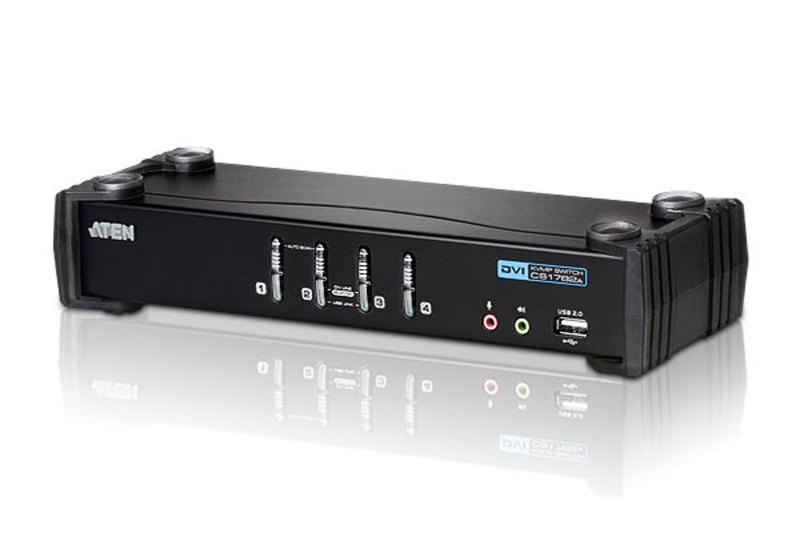

The CubiQ™ CS1764A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 4 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).
1 x CS1764A USB 2.0 DVI KVMP™ Switch
4 x 2L-7D02U USB DVI-D Single Link KVM Cables (1.8m)
1 x 0AD8-1605-24M1 Power Adapter
1 x User Instructions
Specifications
| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 4 |
| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| USB connector type | USB Type-A, USB Type-B |
| Number of microphone inputs | 6 |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| Audio connections | Yes |
| Headphone outputs | 6 |
| DVI-I ports quantity | 4 |
| DC-in jack | Yes |
| USB hub | Yes |
| USB 2.0 Type-B ports quantity | 4 |
| Performance | |
| DDC2B support | Yes |
| HD type | WUXGA |
| Video bandwidth | 60 Hz |
| Maximum resolution | 1920 x 1200 pixels |
| Scan interval | 1,5,99 s |
| Technical details | |
| Product colour | Black |
| Scan interval | 1,5,99 s |
| Push button | Yes |
| LED indicators | Yes |
| Hot keys | Yes |
| USB hub | Yes |
| Design | |
| Product colour | Black |
| Push button | Yes |
| LED indicators | Yes |
| Hot keys | Yes |
| Housing material | Metal |
| Display | |
| Built-in display | No |
| Power | |
| Power source | DC |
| Power consumption (typical) | 4.8 W |
| Input voltage | 5.3 V |
| Video | |
| HD type | WUXGA |
| Video bandwidth | 60 Hz |
| Maximum resolution | 1920 x 1200 pixels |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 270 mm |
| Depth | 88 mm |
| Height | 55.5 mm |
| Weight | 2.1 kg |
| Package width | 98 mm |
| Package depth | 325 mm |
| Package height | 210 mm |
| Package weight | 2.41 kg |
| Packaging data | |
| Package width | 98 mm |
| Package depth | 325 mm |
| Package height | 210 mm |
| Package weight | 2.41 kg |
| Packaging content | |
| Quick installation guide | Yes |
| Manual | Yes |
| Other features | |
| Push button | Yes |
| Hot keys | Yes |
