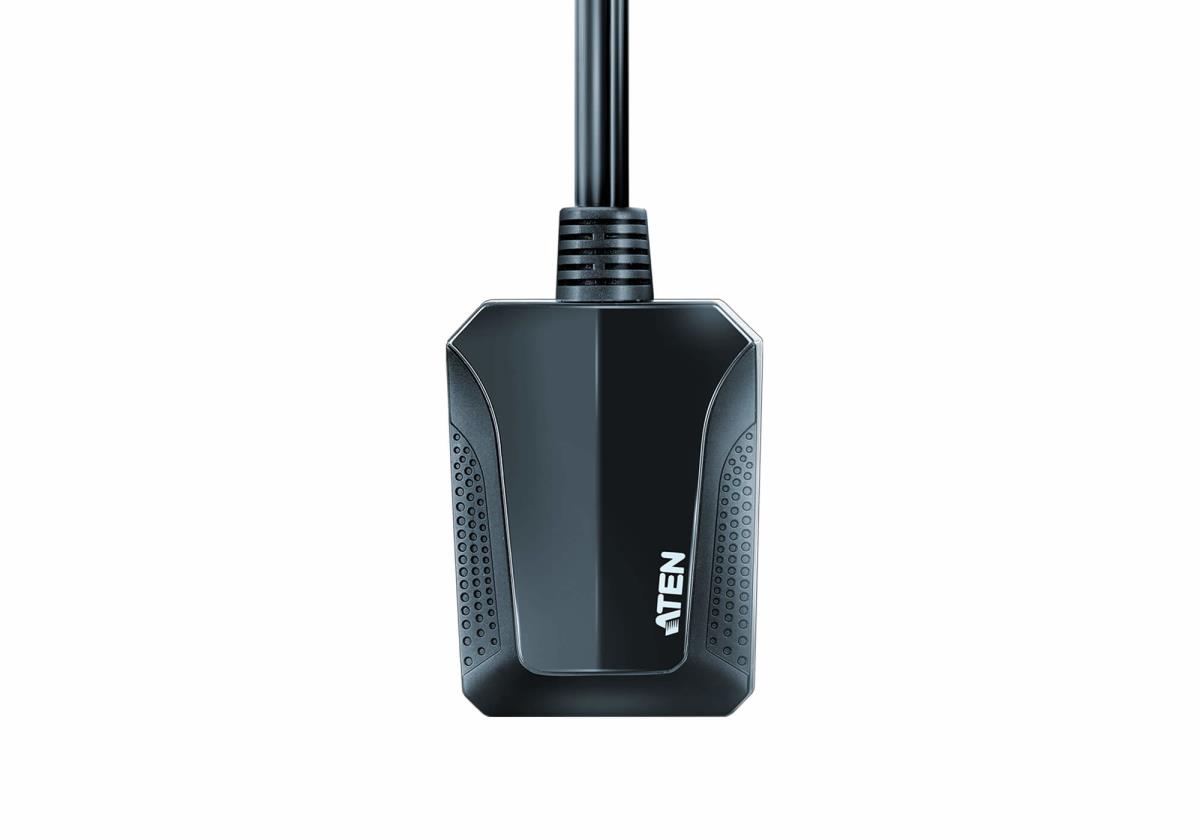

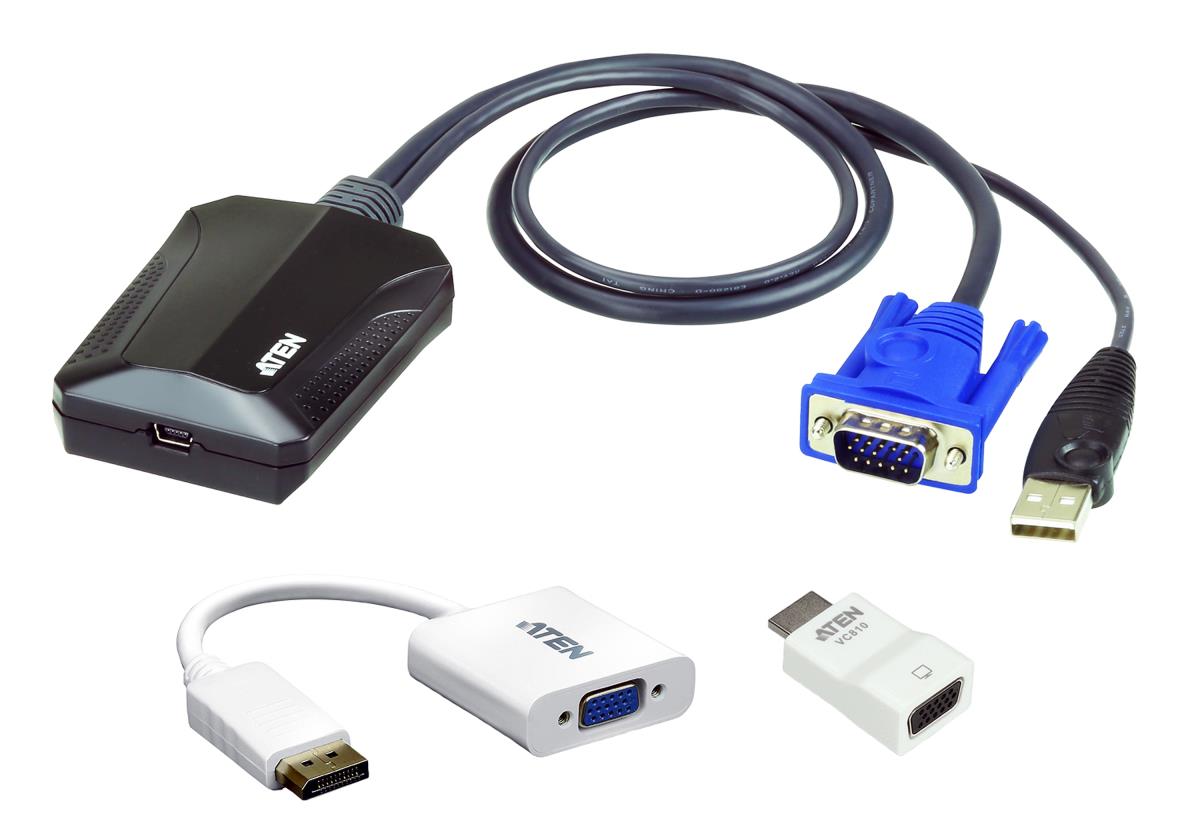

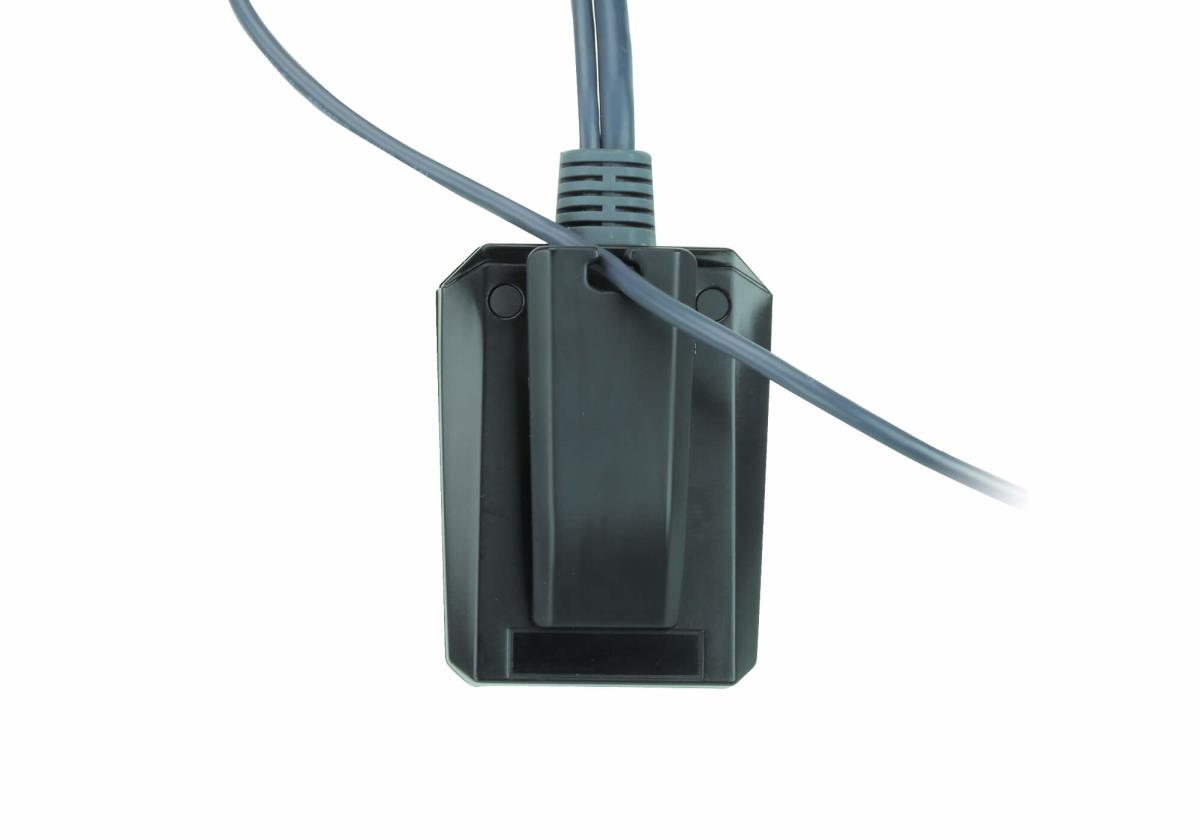

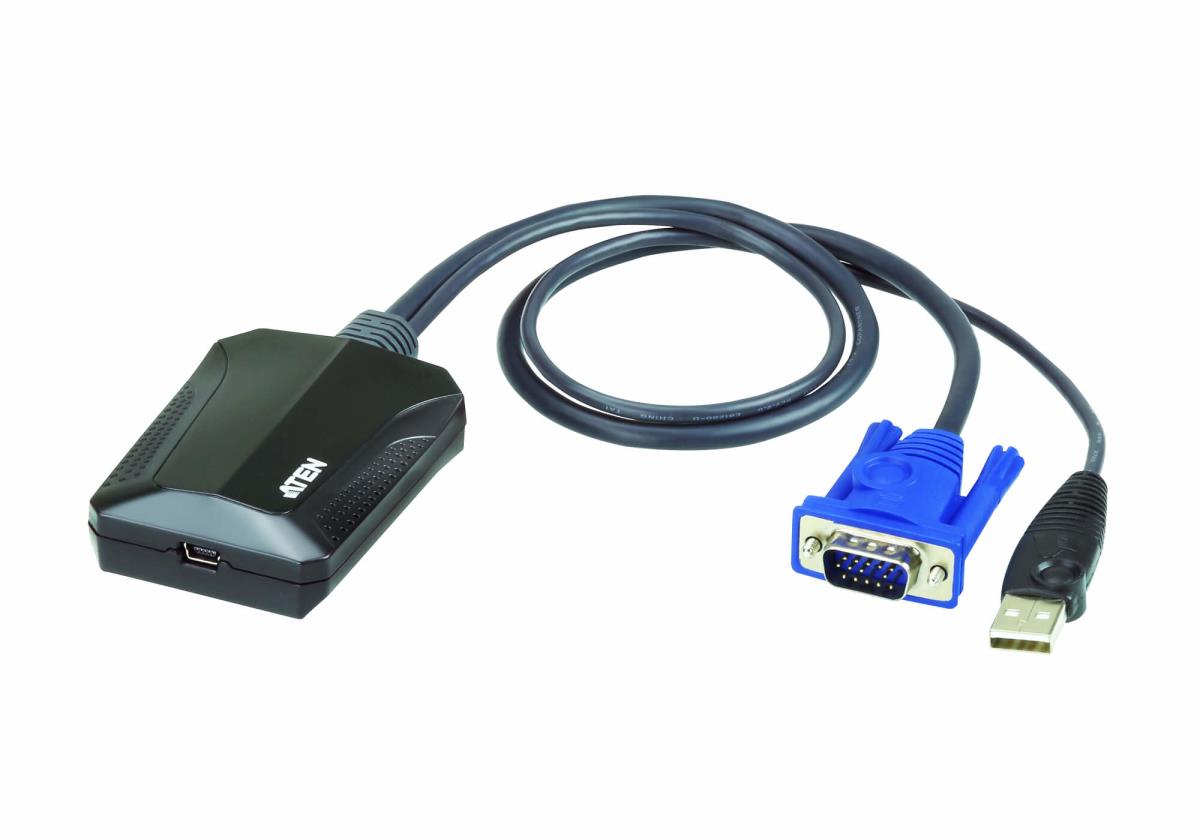

CV211CP
Introduction

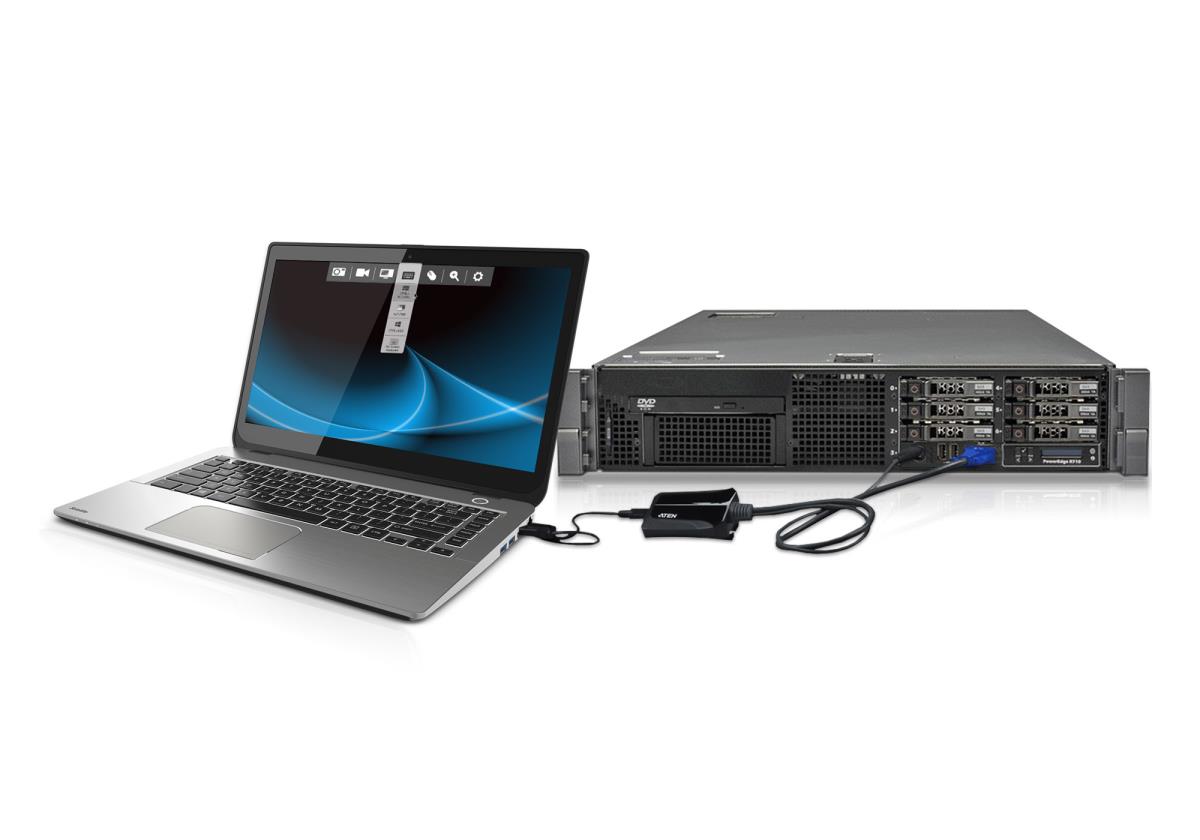

ATEN's CV211 is a laptop USB KVM console adapter designed specifically for frustrated mobile IT managers. It is the perfect crash cart replacement that turns your laptop into a KVM console combining the functionality of a wormhole switch, capture box, external DVD-ROM, keyboard, mouse and monitor all in one compact and convenient unit. You are free to quickly and professionally diagnose and troubleshoot servers, ATMs or PoS systems with ease.
Specifications
| Ports & interfaces | |
|---|---|
| Console ports | Mini-USB B |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| USB 2.0 Type-B ports quantity | 1 |
| Performance | |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| Design | |
| Product colour | Black |
| Rack mounting | No |
| Housing material | Plastic |
| Video | |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 53.7 mm |
| Depth | 70.5 mm |
| Height | 30.1 mm |
| Weight | 130 g |
| Packaging content | |
| Quick installation guide | Yes |
