Part No:SV231DHU34K6
Stock:4 In Stock
EAN Code:0065030881999
KVM with USB | TAA Compliant | USB 3.0 Hub | HDMI 2.0 | Digital & Analog Audio

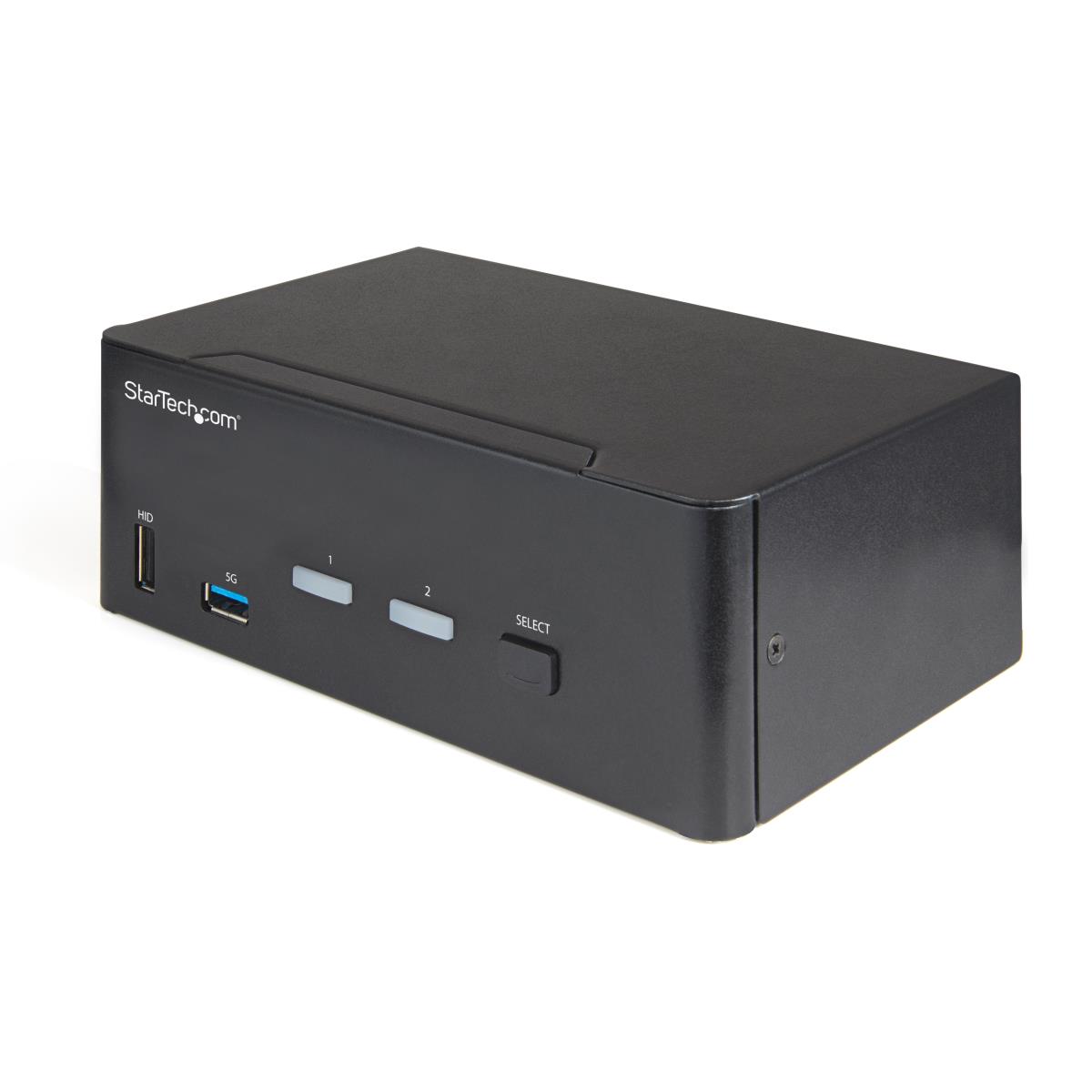

This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.
4K 60Hz Picture and Full Audio Support
The HDMI KVM switch supports resolutions up to 4K at 60Hz. It drives two large monitors at the full 4K resolution. Includes EDID and HDCP signal emulation so monitors always remain synced for faster switching times, and desktop settings are maintained to avoid disrupting your workflow.
With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the HDMI 2.0 KVM switch delivers full audio compatibility.

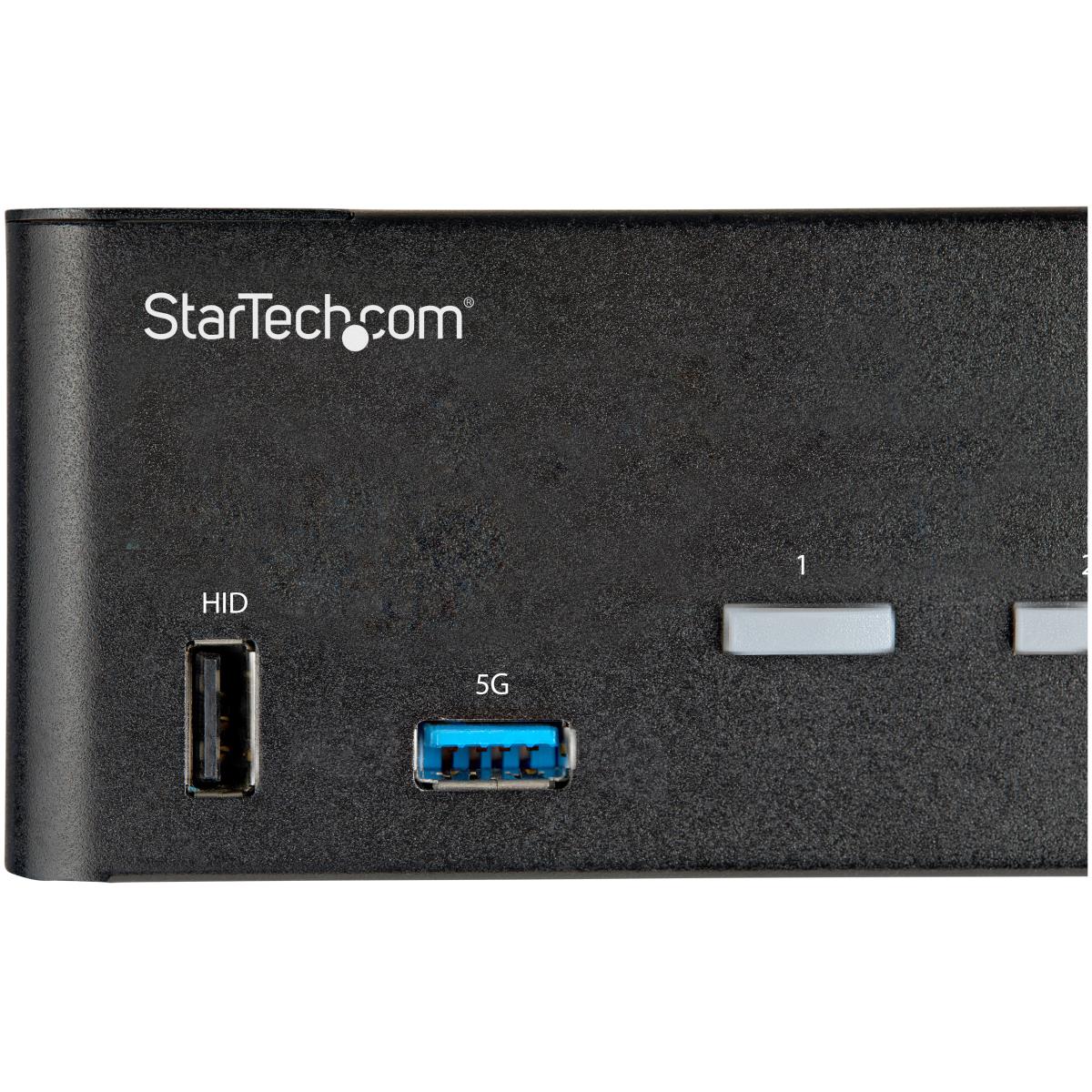

Integrated USB Hub
The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.
Windows, Mac & Linux Compatible
While supporting Windows, this HDMI KVM switch is also compatible with Mac and Linux operating systems.

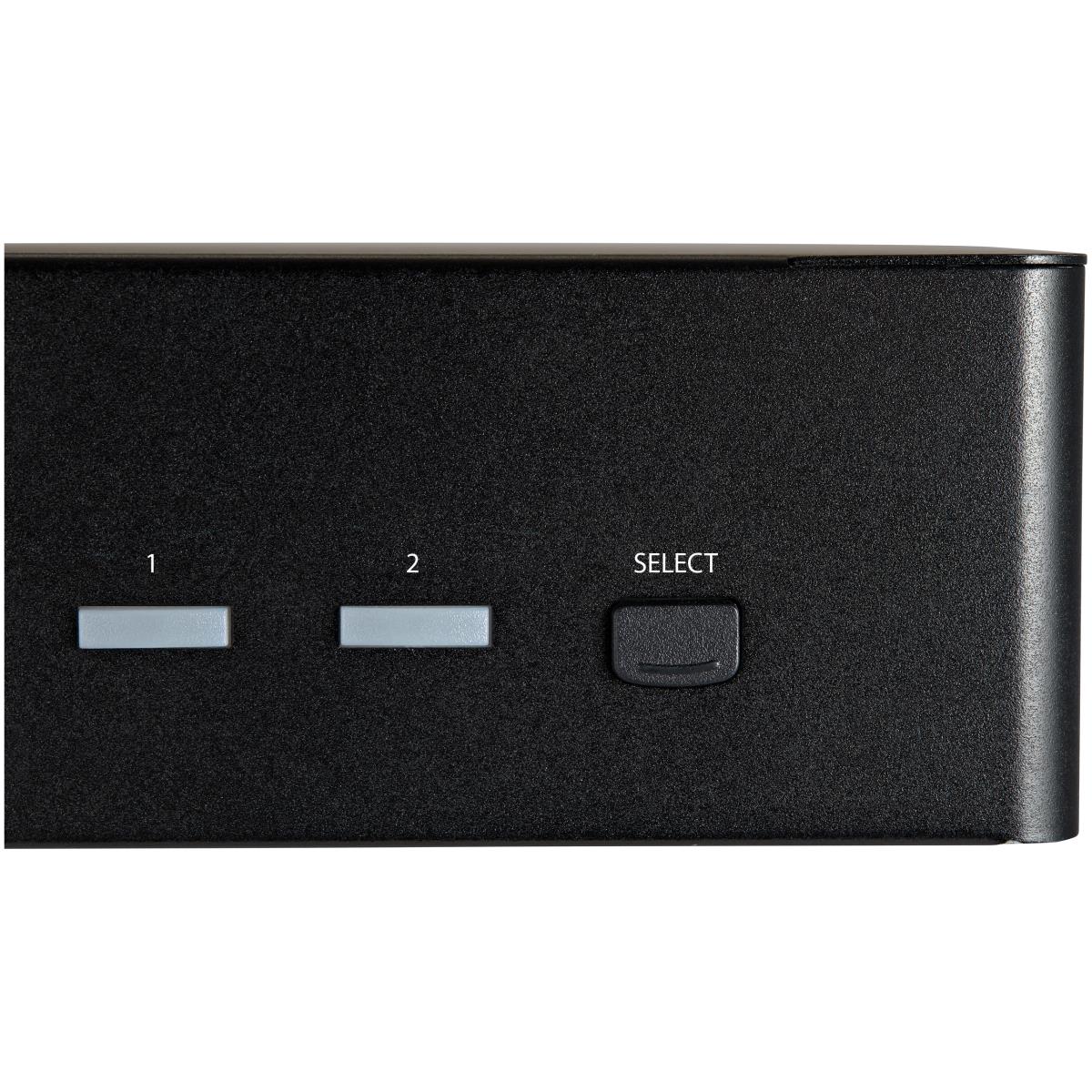

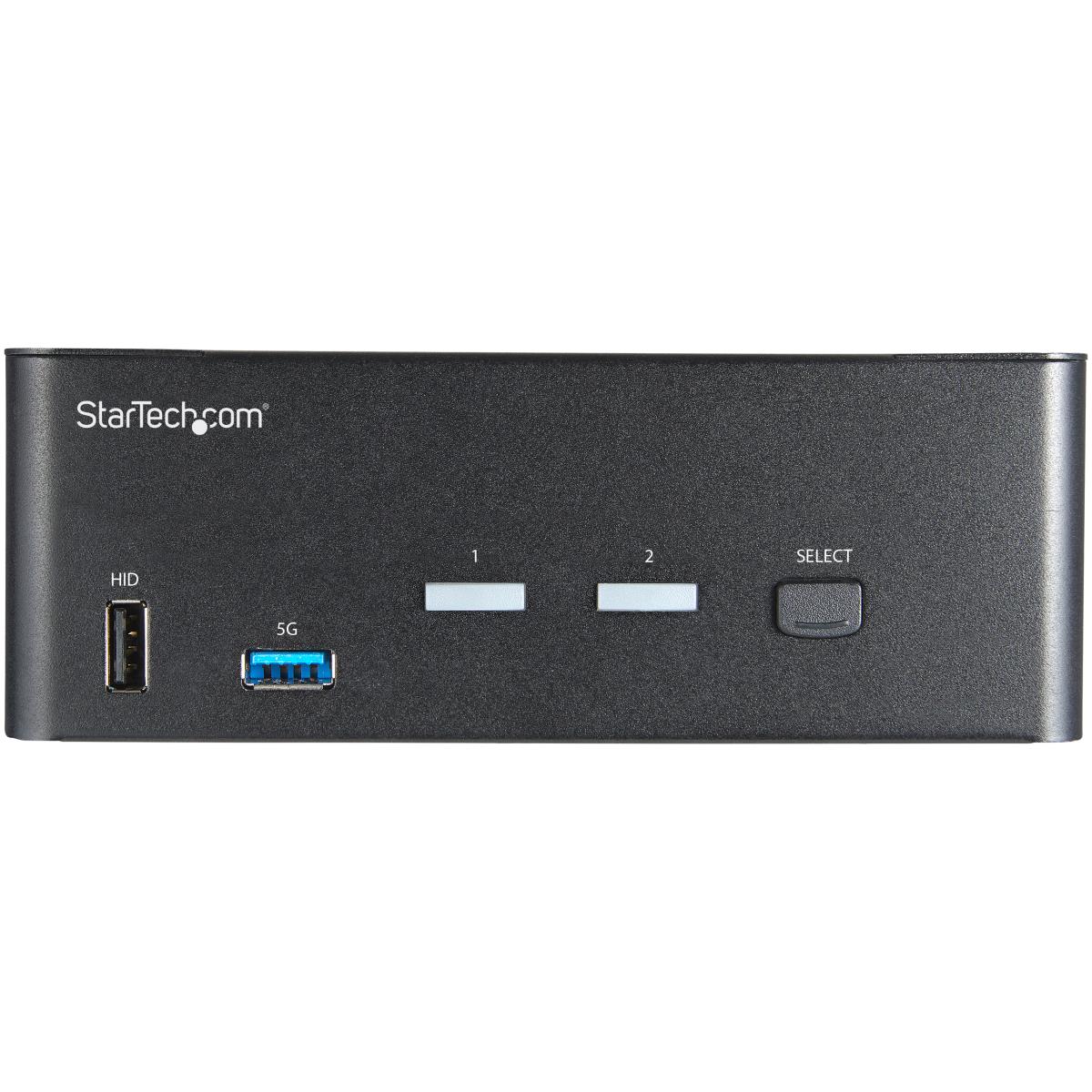

Easy to Operate
The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.
StarTech.com?offers?a wide selection of high-quality KVM?switches?and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors.
This?2-port HDMI KVM switch?is backed by a?2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- DUAL 4K 60Hz UHD: 2 Port HDMI Dual Screen KVM switch supports up to 4K at 60Hz on two monitors for applications like CAD/CAM, video editing and content creation; works with major brands including Dell, HP, and Lenovo
- FAST SWITCHING: Includes EDID and HDCP signal emulation so monitors stay synced for faster switching times, and desktop settings are maintained to avoid disrupting your workflow while switching between up to 2 computers
- TECH SPECS: 2-Port Dual Screen HDMI 2.0
Technical details | |
---|---|
Product colour | Black |
Rack mounting | No |
Scan interval | 3,8,15,30 s |
Push button | Yes |
On Screen Display (OSD) | No |
Number of users | 1 user(s) |
LED indicators | Yes |
Hot keys | Yes |
IP control | No |
Audio support | Yes |
USB hub | Yes |
Video | |
HD type | 4K Ultra HD |
Maximum resolution | 3840 x 2160 pixels |

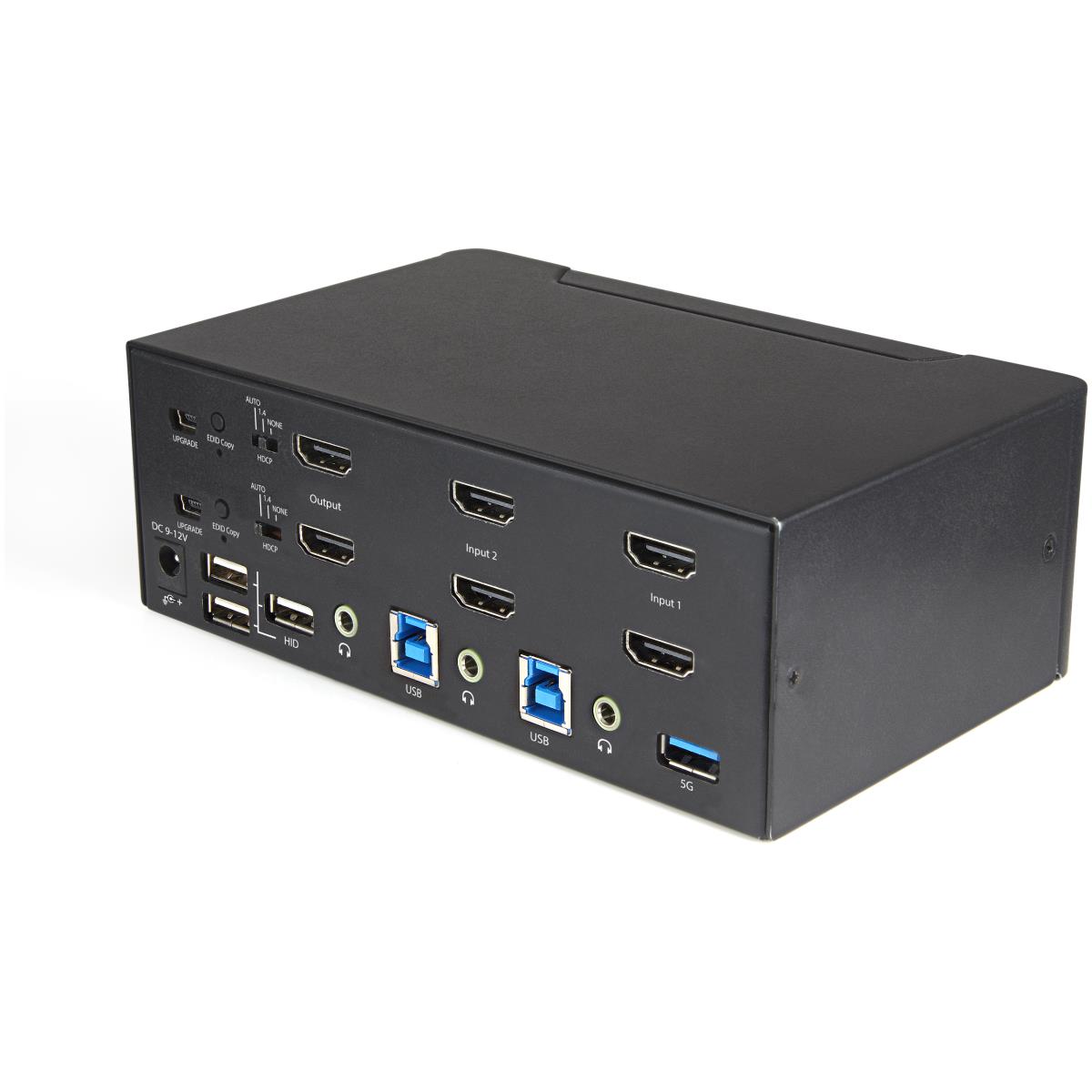

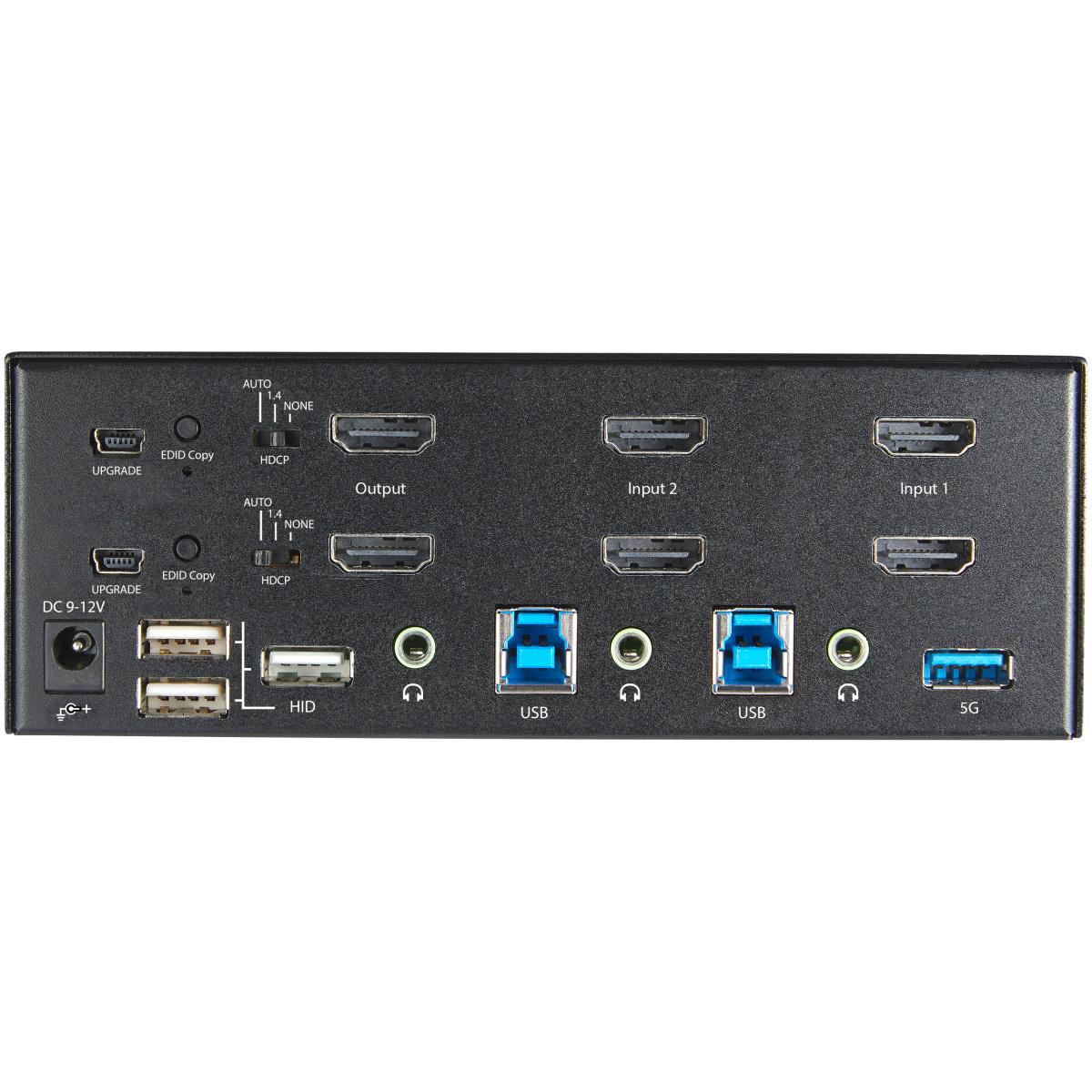

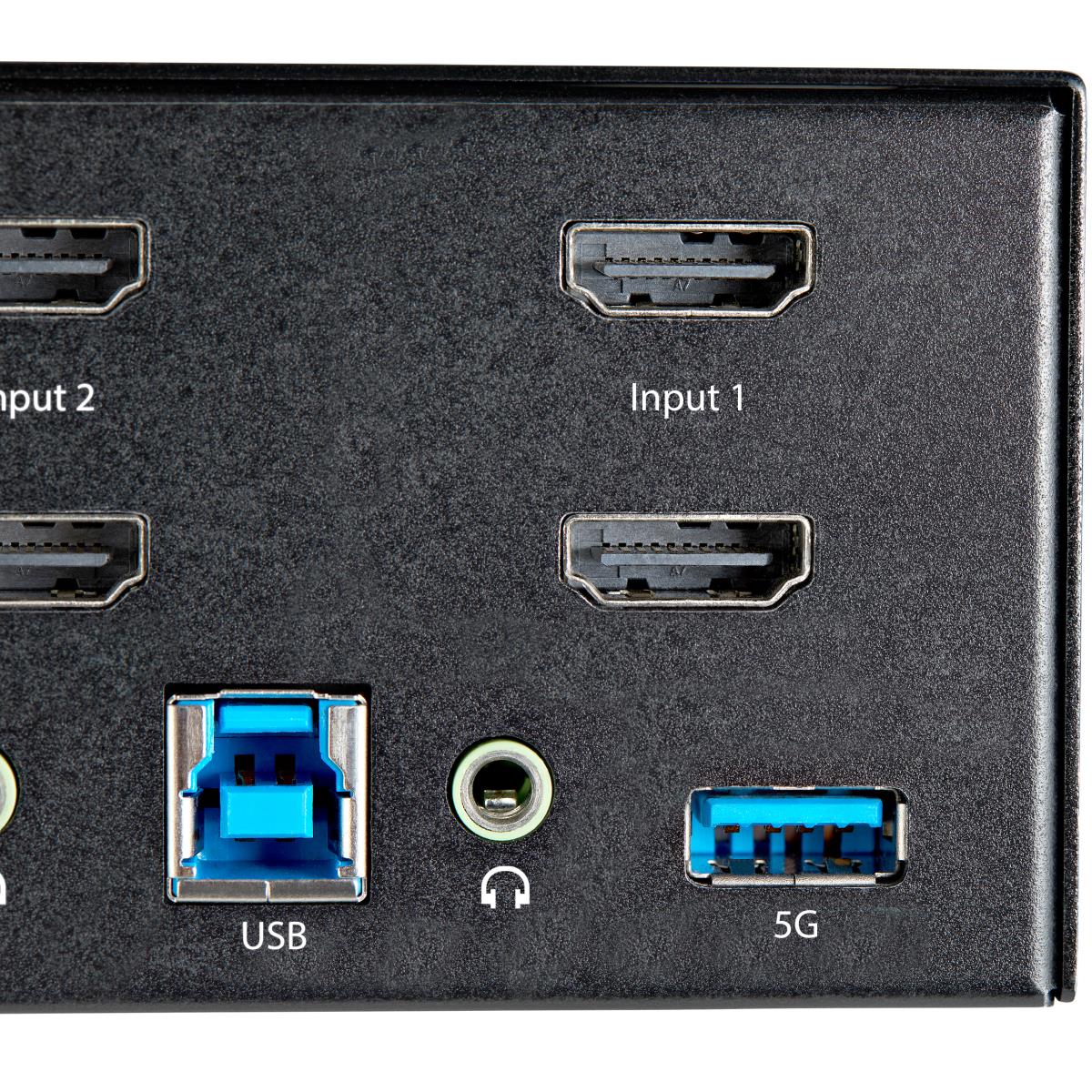

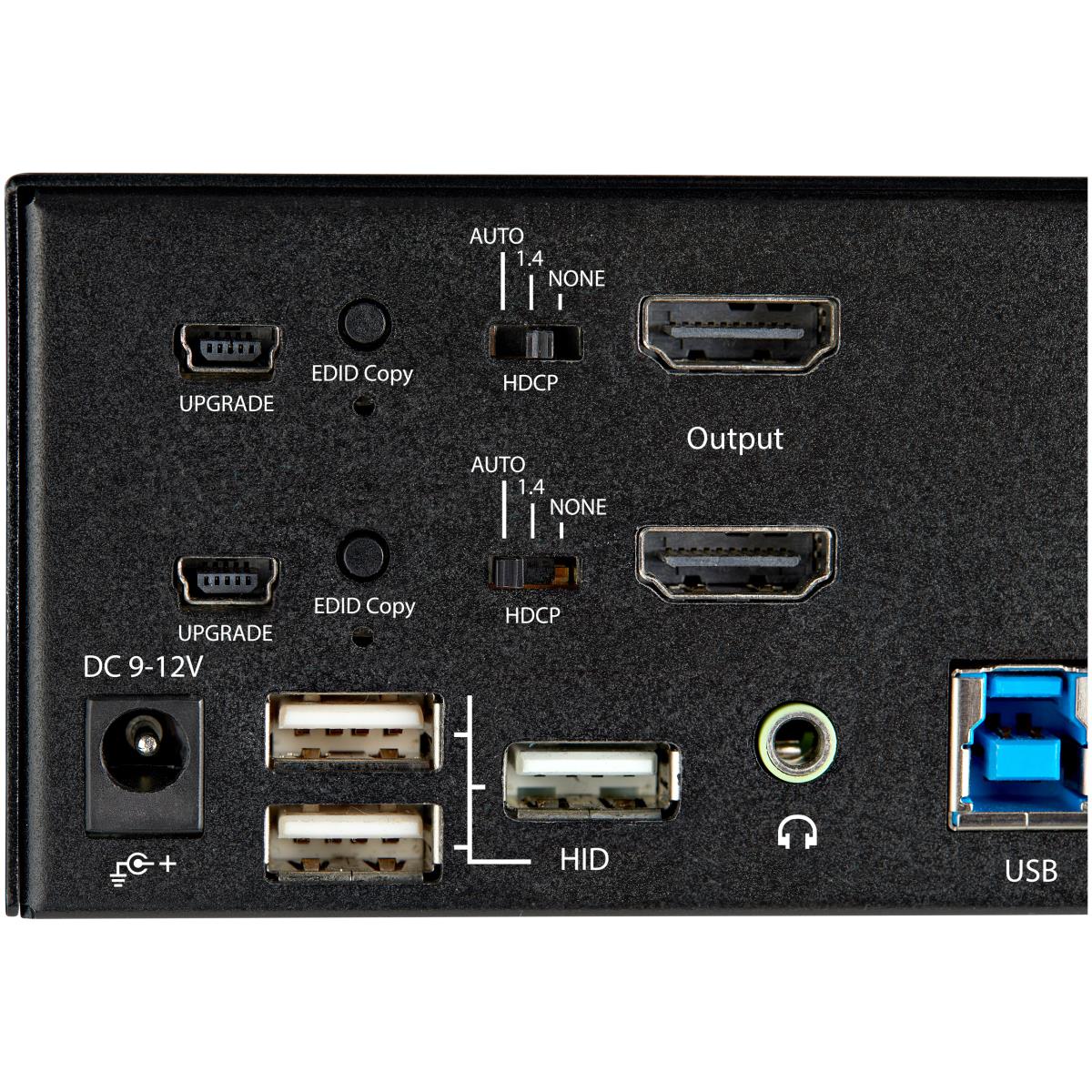

Ports & interfaces | |
Console USB ports quantity | 4 |
Console ports | 3.5mm headphone, HDMI, USB A |
HDCP | Yes |
USB connector type | Mini-USB B, USB Type-A, USB Type-B |
HDMI version | 2.0 |
Number of computers controlled | 2 |
Keyboard port type | USB |
Mouse port type | USB |
Video port type | HDMI |
Audio connections | Yes |
Headphone outputs | 3 |
HDMI ports quantity | 6 |
USB hub | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
Performance | |
Daisy chain | No |
Chipset | Genesys Logic - GL3523 |
HDCP | Yes |
Data transfer rate (max) | 5 Gbit/s |
HD type | 4K Ultra HD |
Maximum resolution | 3840 x 2160 pixels |
Scan interval | 3,8,15,30 s |
Number of users | 1 user(s) |
Audio channels | 7.1 |
Design | |
Mean time between failures (MTBF) | 156000 h |
Product colour | Black |
Rack mounting | No |
Push button | Yes |
LED indicators | Yes |
Hot keys | Yes |
Certification | CE, FCC, RoHS |
Housing material | Steel |
Display | |
Built-in display | No |
On Screen Display (OSD) | No |
Power | |
Input current | 1 A |
Output current | 3 A |
Power plug type | Type M |
Compatible power plug types | AU, EU, JP, UK, US |
Output voltage | 12 V |
AC input voltage | 100 - 240 V |
Power consumption (typical) | 36 W |
External power adapter | Yes |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -10 - 60 °C |
Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions | |
Width | 100 mm |
Depth | 160 mm |
Height | 58 mm |
Weight | 779 g |
Package width | 238 mm |
Package depth | 189 mm |
Package height | 91 mm |
Package weight | 147 g |
Packaging data | |
Package width | 238 mm |
Package depth | 189 mm |
Package height | 91 mm |
Package weight | 147 g |
Packaging content | |
Rubber feet | Yes |
Manual | Yes |
AC adapter included | Yes |
Certificates | |
Certification | CE, FCC, RoHS |
Logistics data | |
Master (outer) case width | 397 mm |
Master (outer) case length | 315 mm |
Master (outer) case height | 277 mm |
Products per master (outer) case | 6 pc(s) |
Harmonized System (HS) code | 85176200 |
Other features | |
Push button | Yes |
Hot keys | Yes |
IP control | No |
Audio support | Yes |
