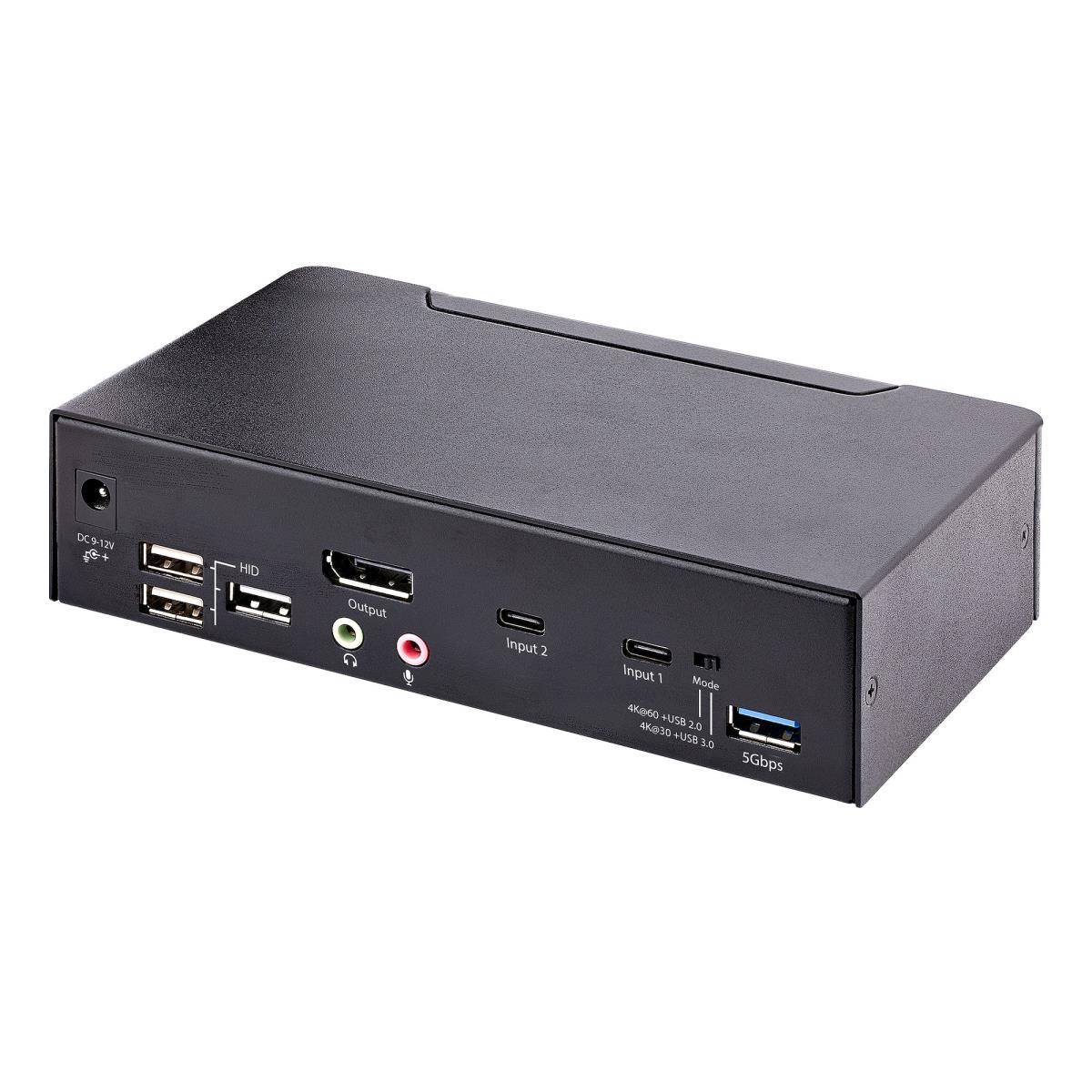

STARTECH.COM SV231DPUCA STARTECH.COM 2 PORT USB C DP KVM SWITCH - 4K

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

SV231DPUCA STARTECH.COM 2 PORT USB C DP KVM SWITCH - 4K

Part No:SV231DPUCA

Stock:3 In Stock

EAN Code:0065030872201

£229.58 Excl. VAT

£275.50 Incl. VAT

price matchPrice Match
Guarantee
Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

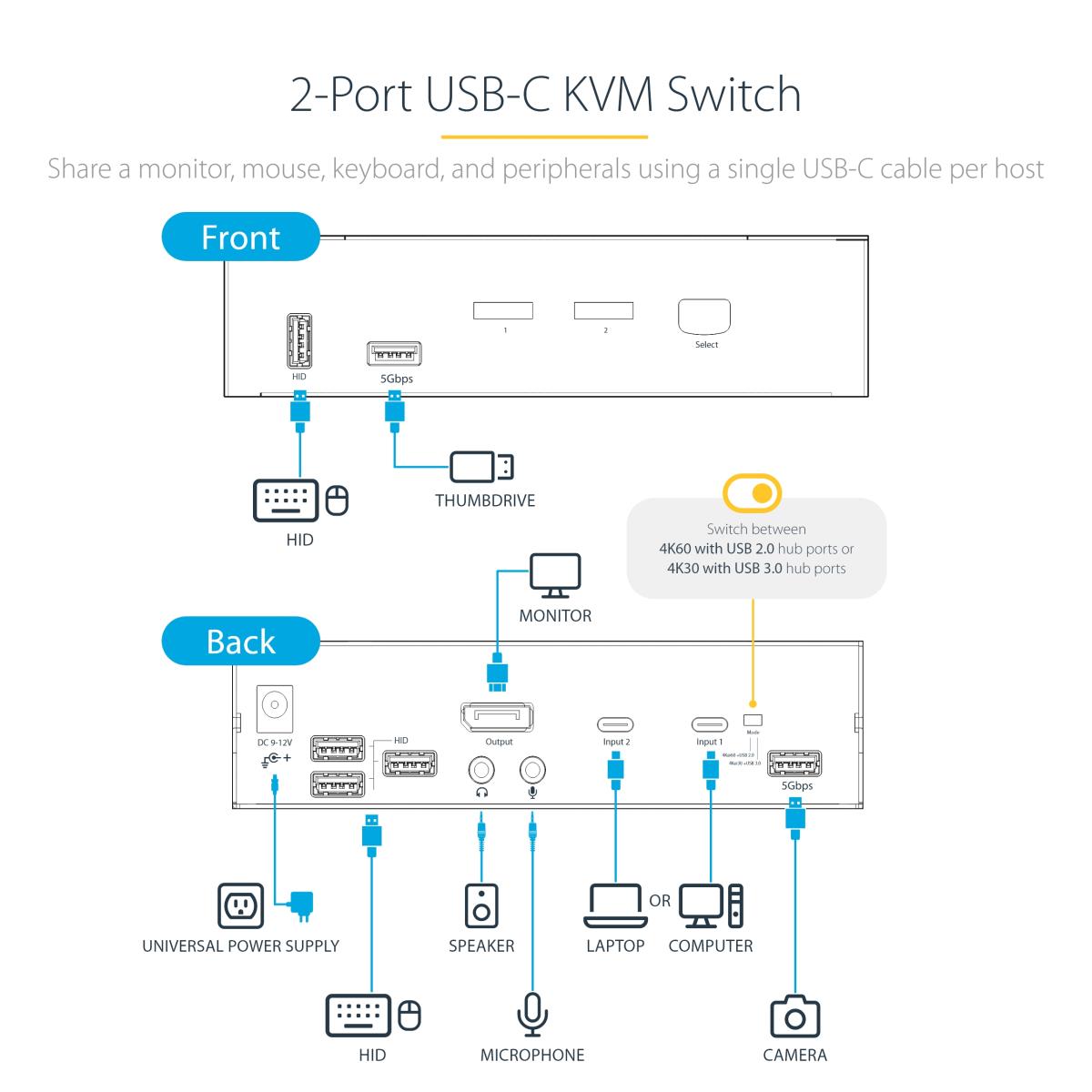

2 PORT USB C DP KVM SWITCH - 4K

Introduction

StarTech.com SV231DPUCA. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 5120 x 1440 pixels, Video bandwidth: 60 Hz. Product colour: Black, Mean time between failures (MTBF): 158000 h. Power source: AC, AC input voltage: 100 - 240 V, Input current: 1.2 A. Width: 140 mm, Depth: 160 mm, Height: 40 mm

Specifications

Technical details
Product colourBlack
Rack mountingNo
Scan interval3,8,15,30 s
Push buttonYes
LED indicatorsYes
Hot keysYes
IP controlNo
USB hubYes
Video
HD type4K Ultra HD
Video bandwidth60 Hz
Maximum resolution5120 x 1440 pixels

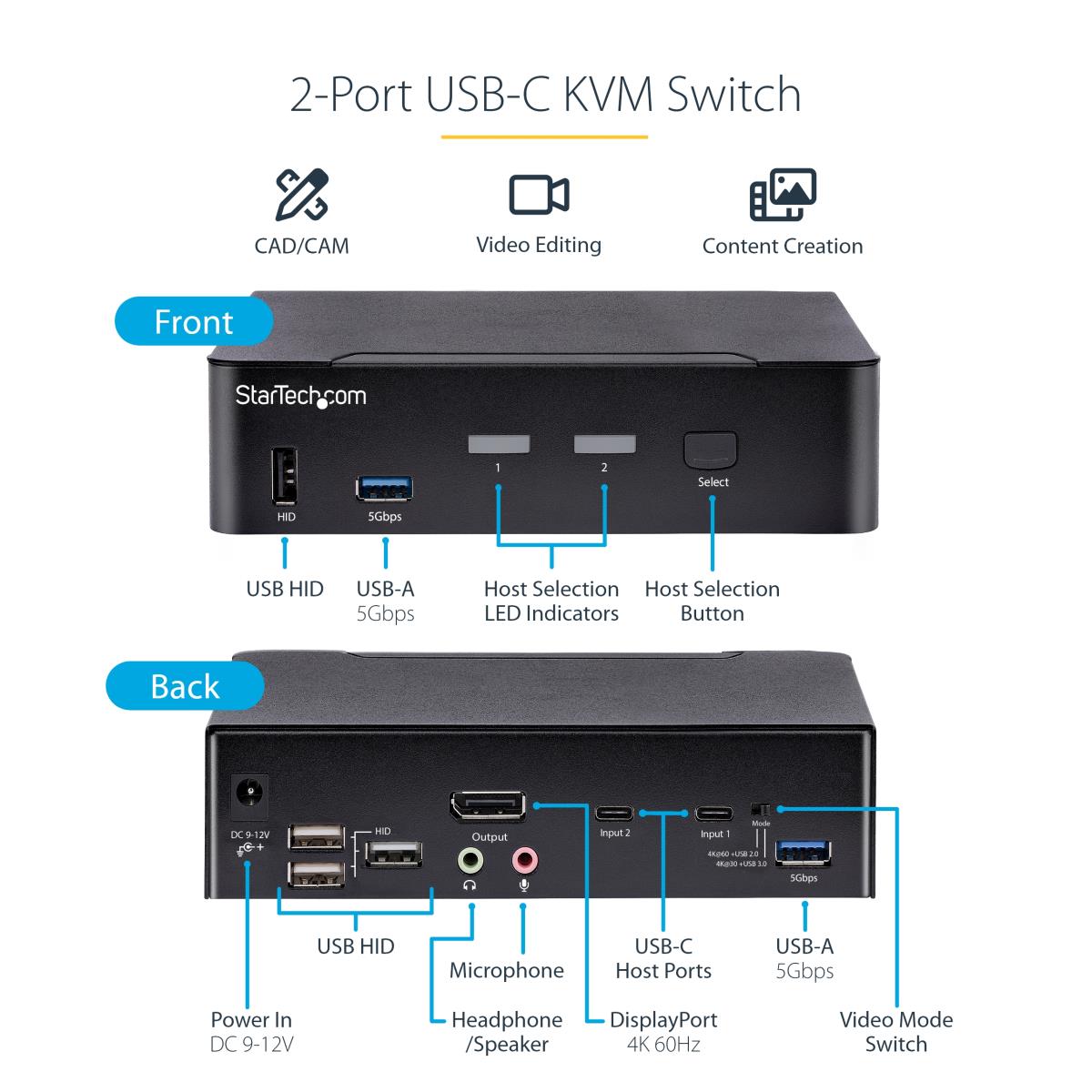

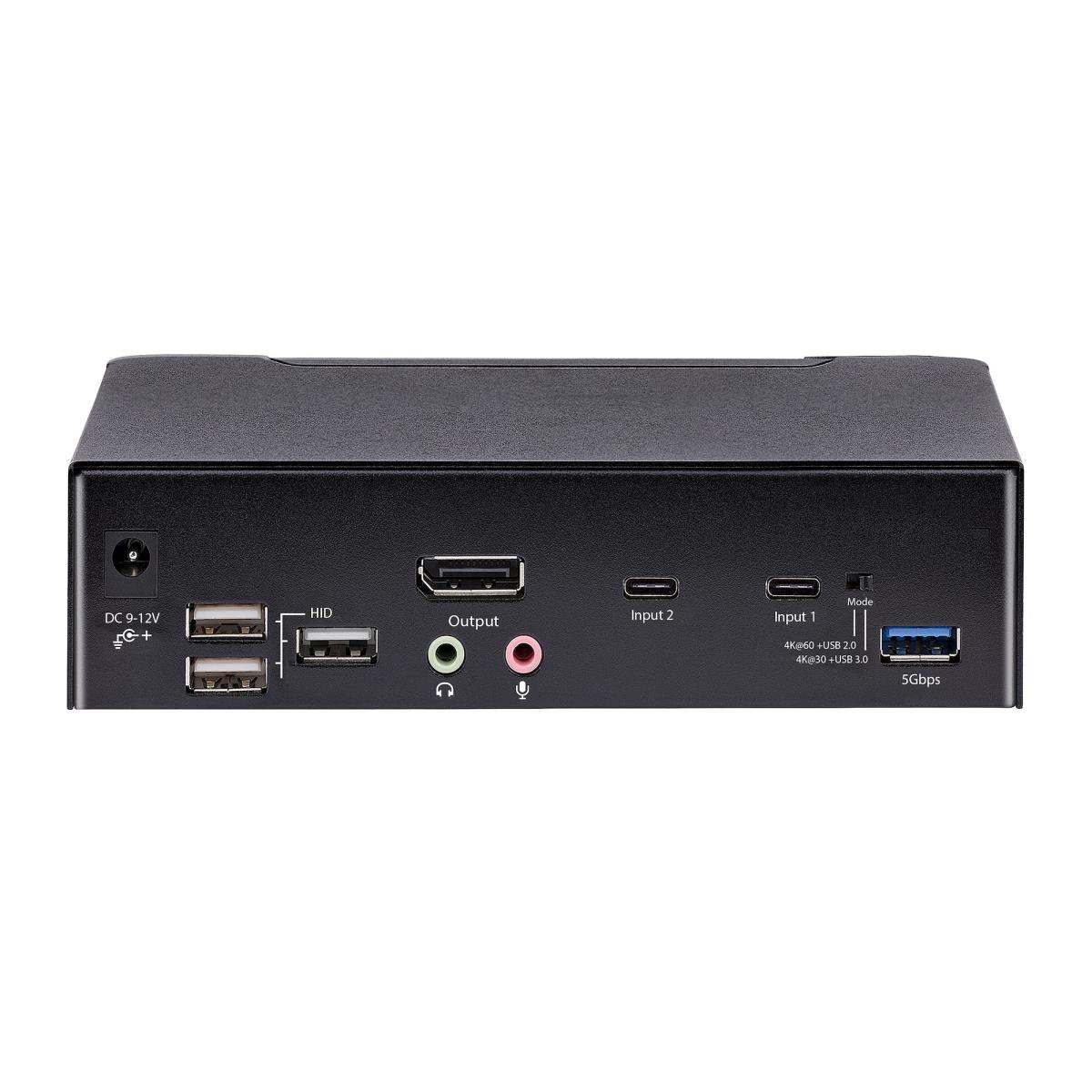

Ports & interfaces
Console USB ports quantity6
Console ports3.5mm headphone, 3.5mm mic, DisplayPort
HDCPYes
Number of microphone inputs1
DisplayPort version1.2
Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
Headphone outputs1
USB hubYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity2
Console DisplayPorts ports quantity1
Performance
ChipsetParade - PS8461, Etron - EJ899I
HDCPYes
Data transfer rate (max)5 Gbit/s
HD type4K Ultra HD
Video bandwidth60 Hz
Maximum resolution5120 x 1440 pixels
Scan interval3,8,15,30 s
Audio channels2.0
Number of displays supported1
Design
Mean time between failures (MTBF)158000 h
Product colourBlack
Rack mountingNo
Push buttonYes
LED indicatorsYes
Hot keysYes
Display
Built-in displayNo
Power
Input current1.2 A
Output current3 A
Power plug typeType M
Output voltage12 V
Power sourceAC
AC input voltage100 - 240 V
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)0 - 80%
Weight & dimensions
Width140 mm
Depth160 mm
Height40 mm
Weight600 g
Package width184 mm
Package depth238 mm
Package height89 mm
Package weight1 kg
Packaging data
Package width184 mm
Package depth238 mm
Package height89 mm
Package weight1 kg

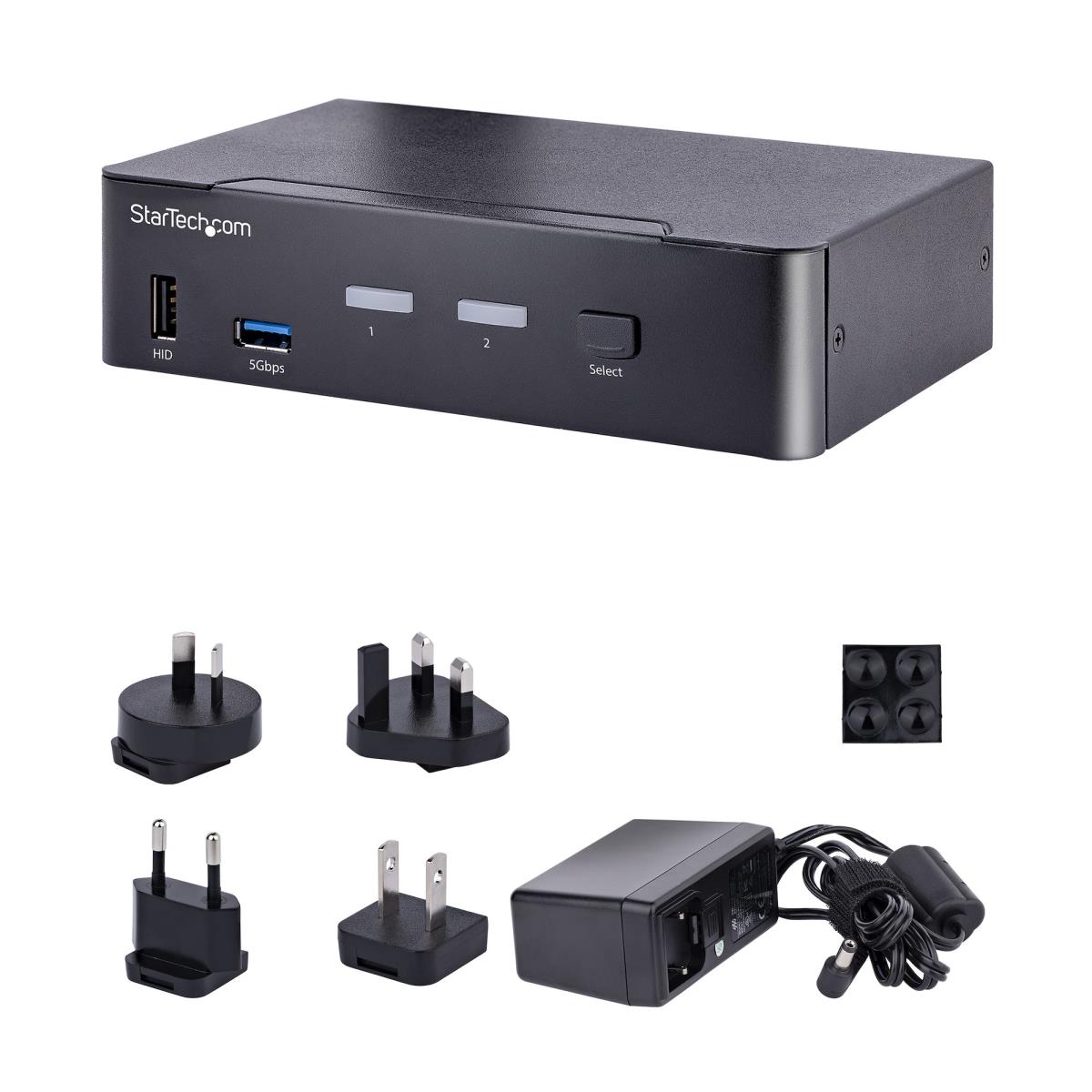

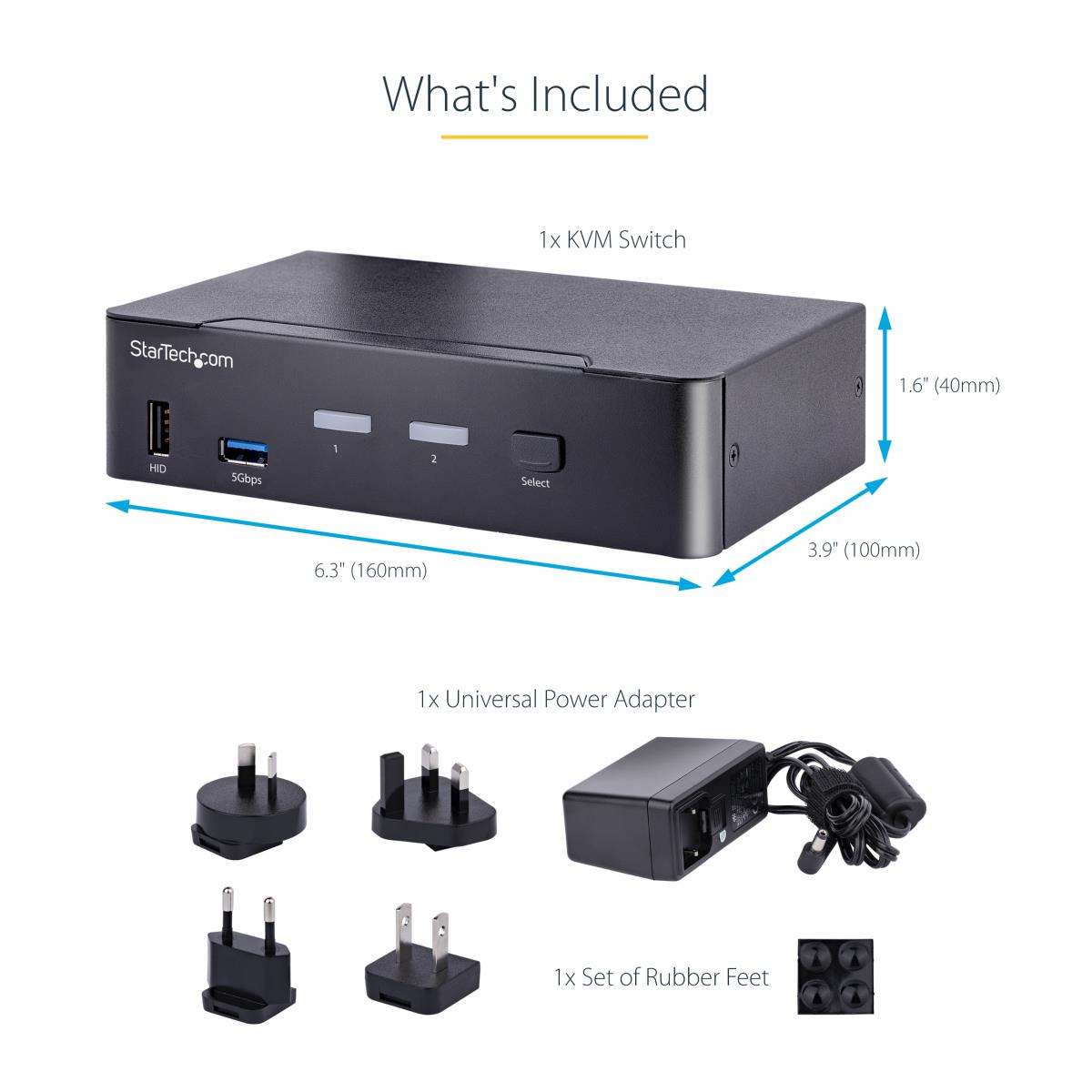

Packaging content
Rubber feetYes
Quick installation guideYes
AC adapter includedYes
Logistics data
Master (outer) case width300 mm
Master (outer) case length397 mm
Master (outer) case height257 mm
Products per master (outer) case6 pc(s)
Other features
Push buttonYes
Hot keysYes
IP controlNo
