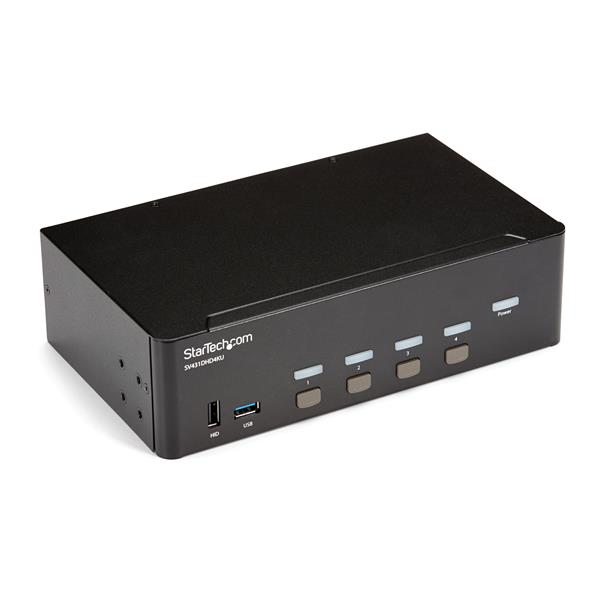

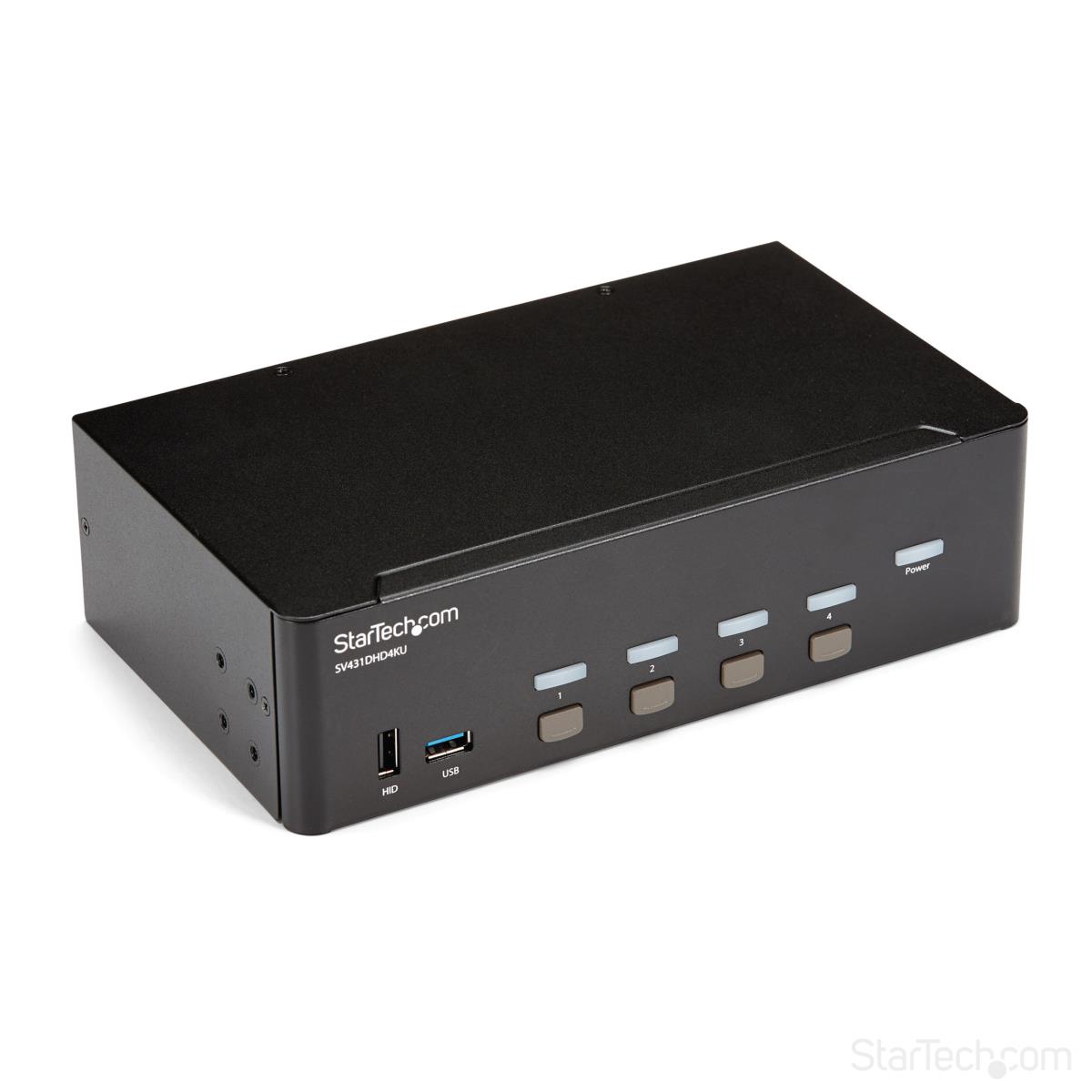

StarTech.com 4-Port Dual Monitor HDMI KVM Switch with Audio & USB 3.0 hub - 4K 30Hz - 4 PC Mac Computer KVM Switch Box for HDMI Display (SV431DHD4KU) - KVM / audio / USB switch - 4 x KVM / audio / USB - rack-mountable
Introduction

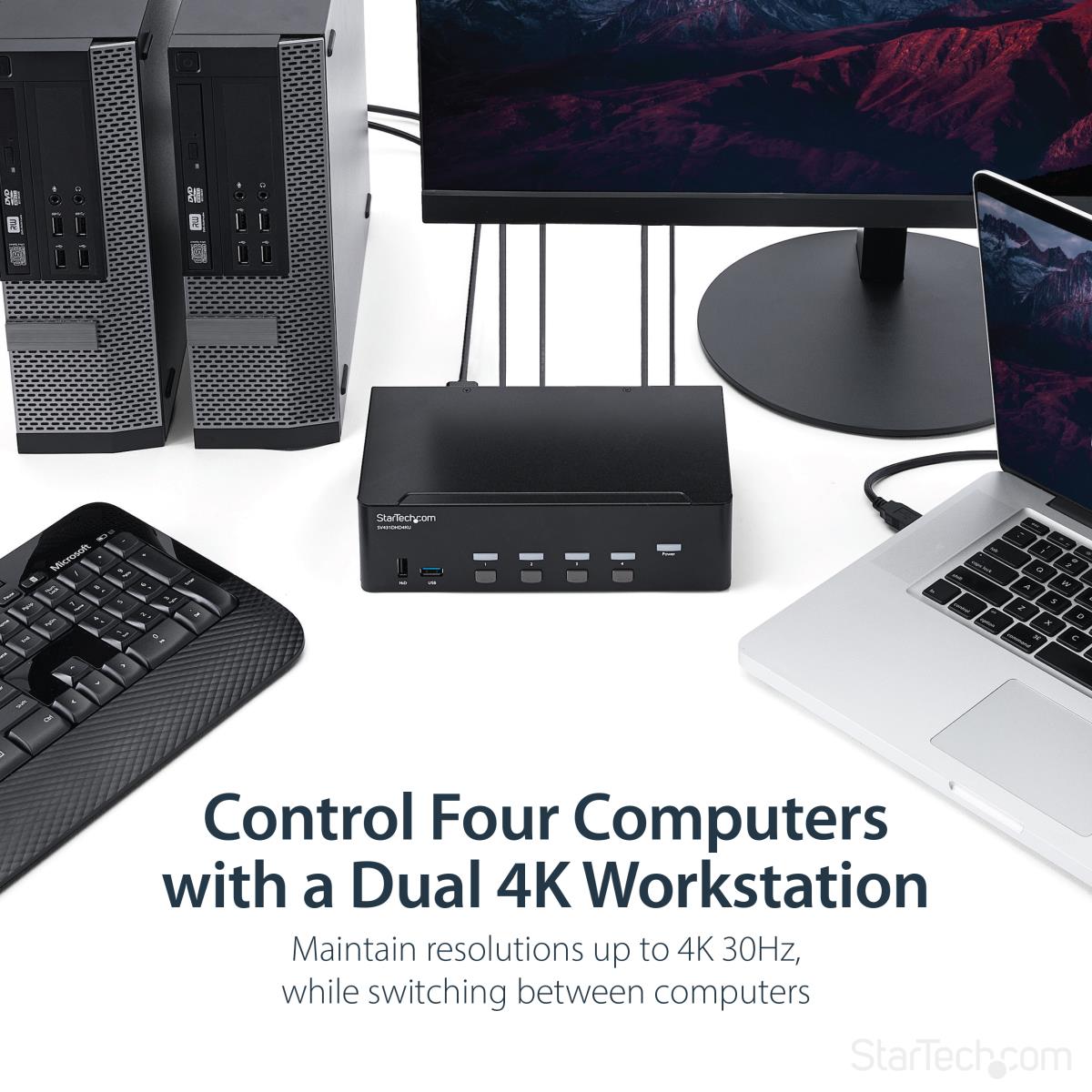

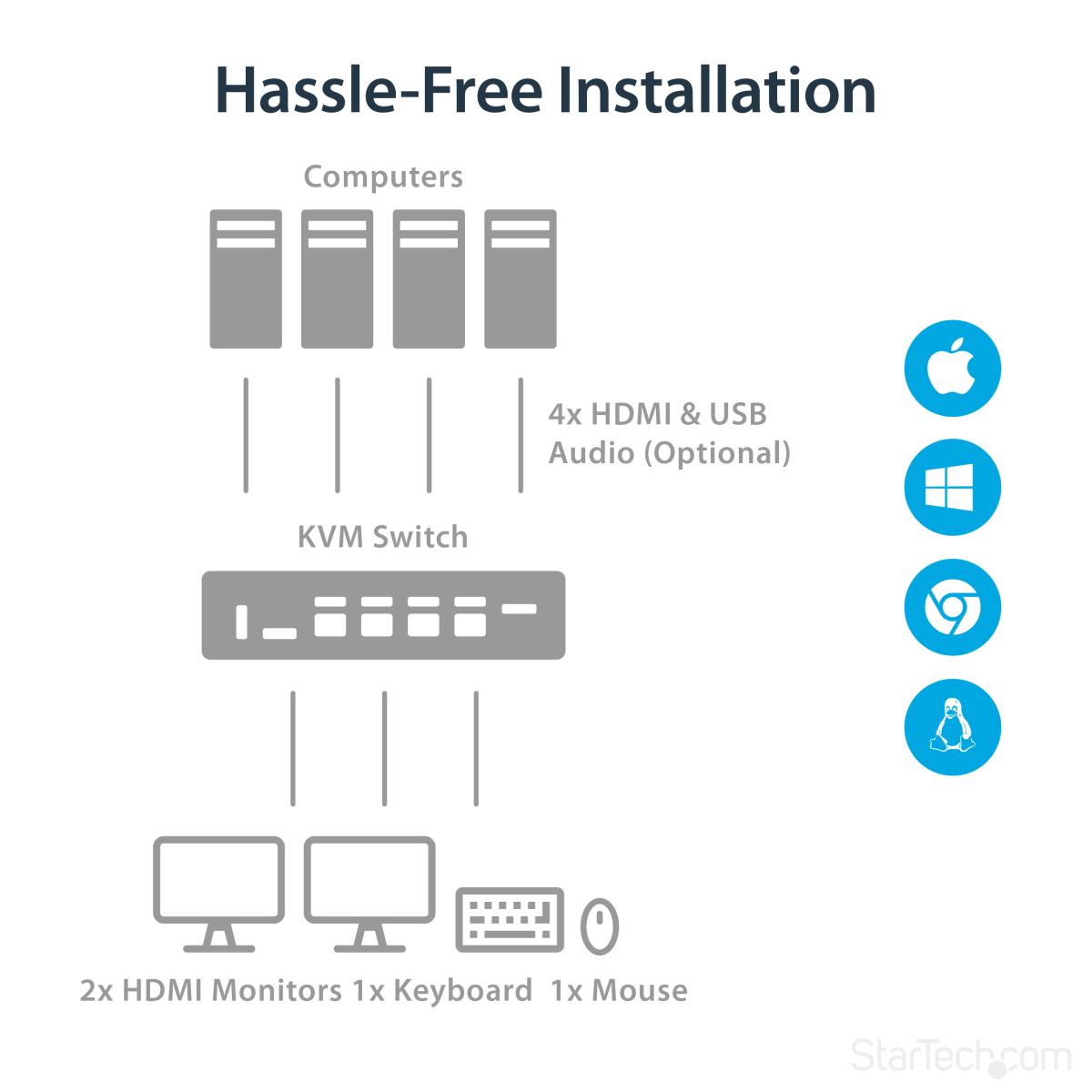

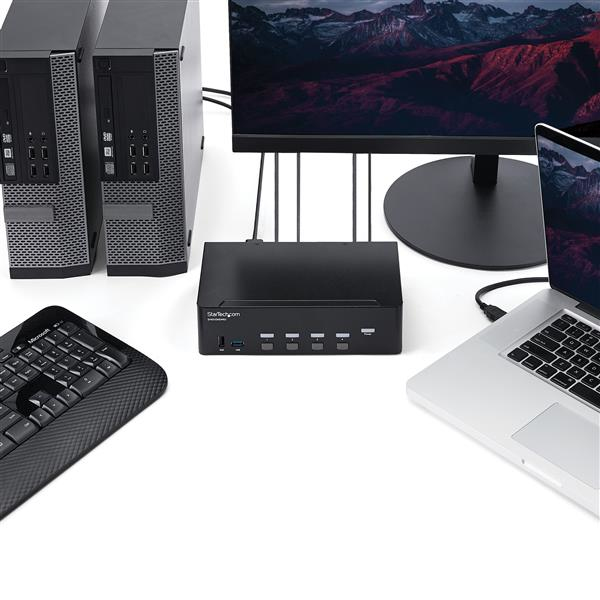

This 4K HDMI KVM with dual monitor support lets you control four HDMI computers with a single mouse, keyboard and dual monitors up to 4K at 30Hz
This 4-port HDMI KVM switch lets you control four HDMI computers with a single mouse, keyboard and monitor up to 4K 30Hz. The KVM also features 3.5 mm audio and a built-in 2-port USB 3.0 hub.
4K at 30Hz UHD dual display
With support for ultra-high-definition 4K 30Hz resolutions, this 4-port KVM switch can drive dual HDMI displays with crystal clarity, making it ideal for graphical applications that require UHD capability.
Convenient and cost-effective USB 3.0 peripheral sharing

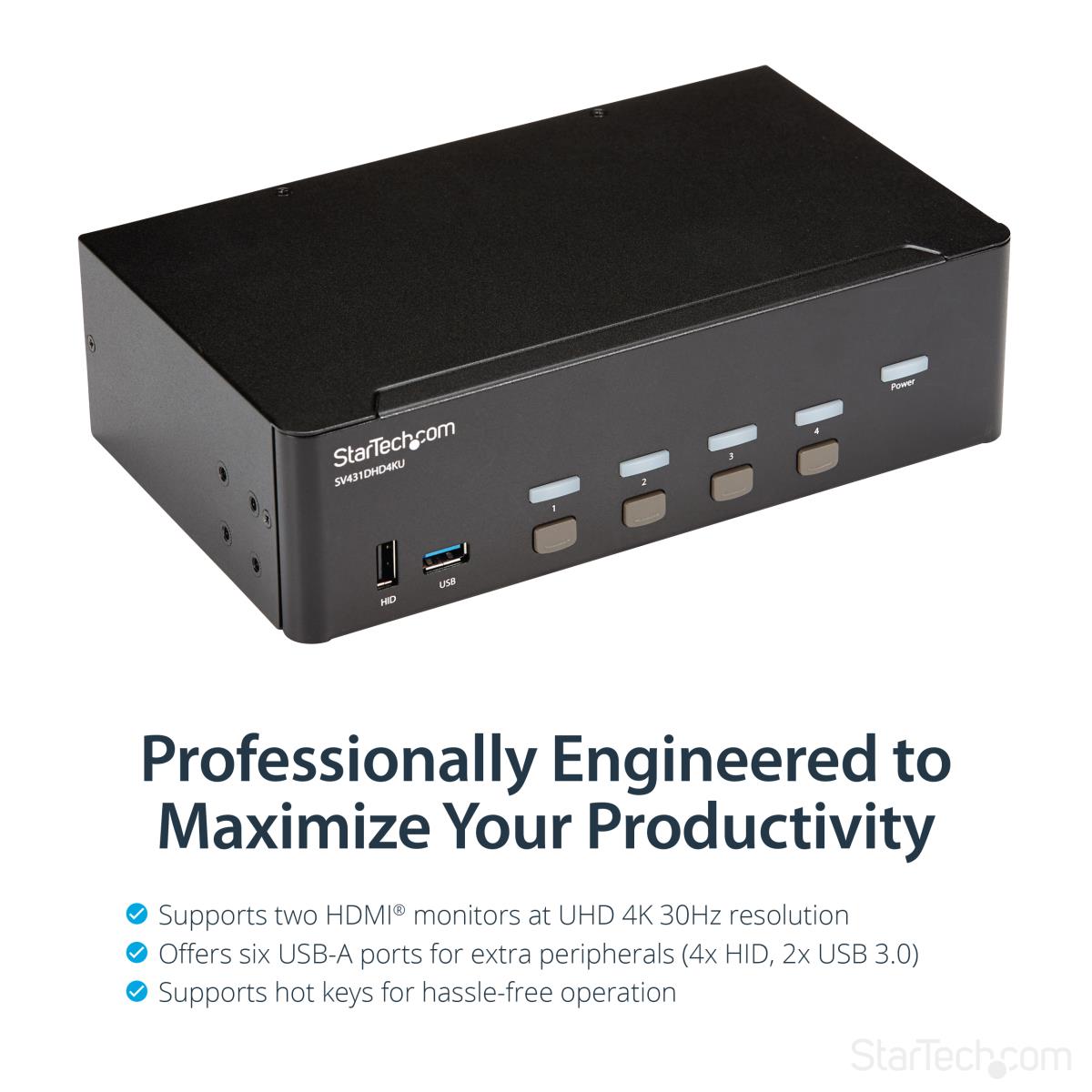

This 4-port KVM switch offers two USB 3.0 ports, as well as four HID keyboard and mouse ports, so you can share peripheral devices between each computer and avoid the cost of separate equipment. The USB 3.0 hub automatically switches your connected devices to the selected computer, saving you the hassle of disconnecting and reconnecting peripherals.
Complete multimedia capability
Along with dual UHD video capability, this KVM switch features auxiliary 3.5 mm dual-channel bi-directional audio ports. This independent analog audio lets you share your analog audio devices such as speakers or a microphone between each of your connected computers, giving you complete multimedia control of your systems.
The SV431DHD4KU is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.
Specifications

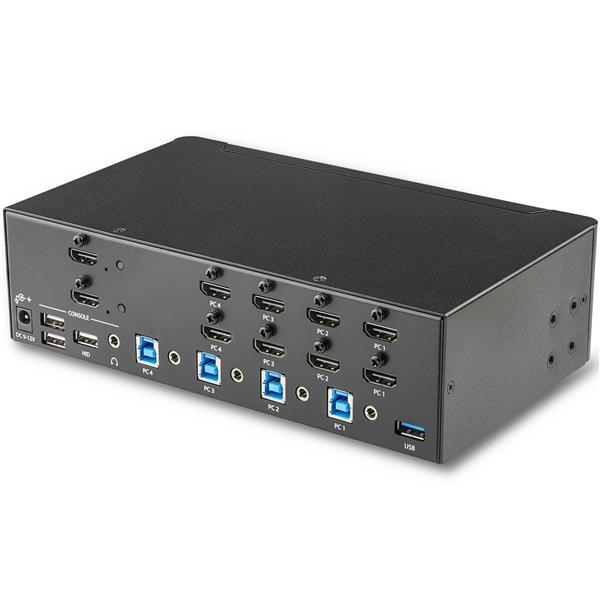

| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 6 |

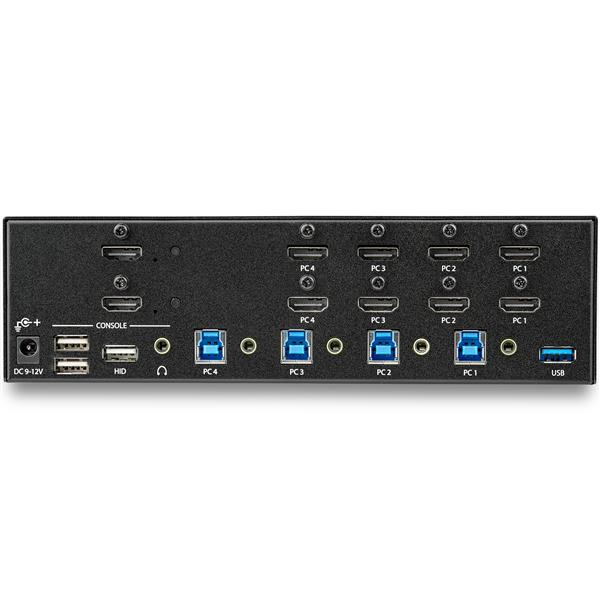

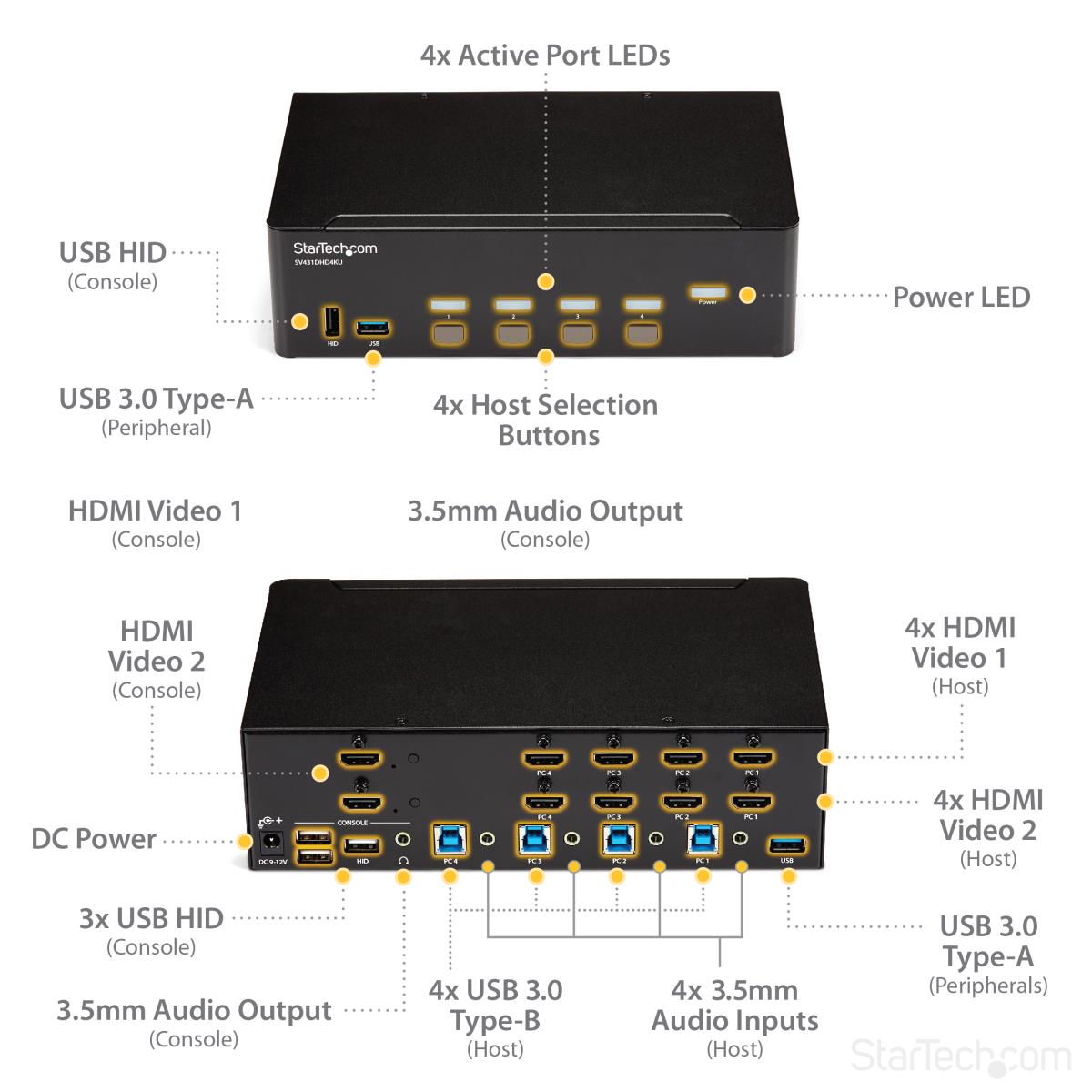

| Console ports | 3.5mm headphone, HDMI, USB A |
| USB connector type | USB Type-A |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| Headphone outputs | 4 |
| HDMI ports quantity | 10 |
| Performance | |
| Data transfer rate (max) | 5 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Scan interval | 3,8,15,30 s |
| Technical details | |
| Product colour | Black |
| Rack mounting | Yes |
| Scan interval | 3,8,15,30 s |

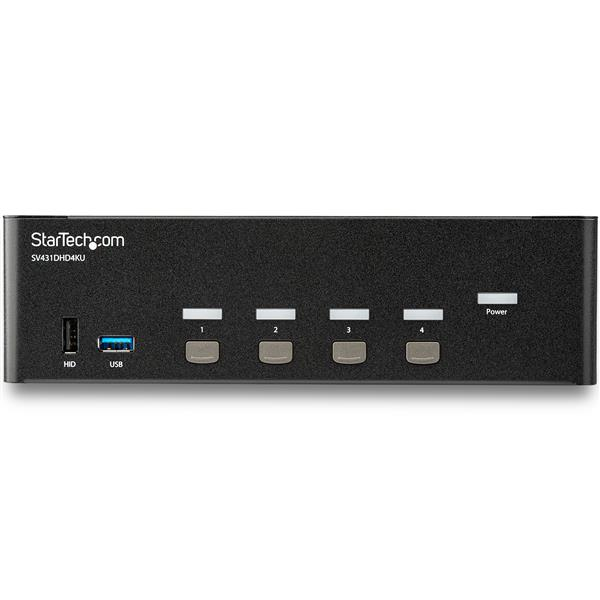

| LED indicators | Power, Status |
| Hot keys | Yes |
| IP control | No |
| Compliance certificates | RoHS |
| Design | |
| Mean time between failures (MTBF) | 168000 h |
| Product colour | Black |
| Rack mounting | Yes |
| LED indicators | Power, Status |
| Hot keys | Yes |
| Certification | CE, FCC, TAA, REACH |
| Housing material | Steel |
| Display | |
| Built-in display | No |
| Power | |
| Input current | 0.6 A |
| Output current | 1.5 A |
| Compatible power plug types | AU, EU, JP, UK, US |
| Output voltage | 12 V |
| Power source | AC |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Input voltage | 100 - 240 V |
| Video | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 130 mm |
| Depth | 220 mm |
| Height | 63 mm |
| Weight | 1.2 kg |
| Package width | 296 mm |
| Package depth | 252 mm |
| Package height | 88 mm |
| Package weight | 1.8 kg |
| Packaging data | |
| Package width | 296 mm |
| Package depth | 252 mm |
| Package height | 88 mm |
| Package weight | 1.8 kg |

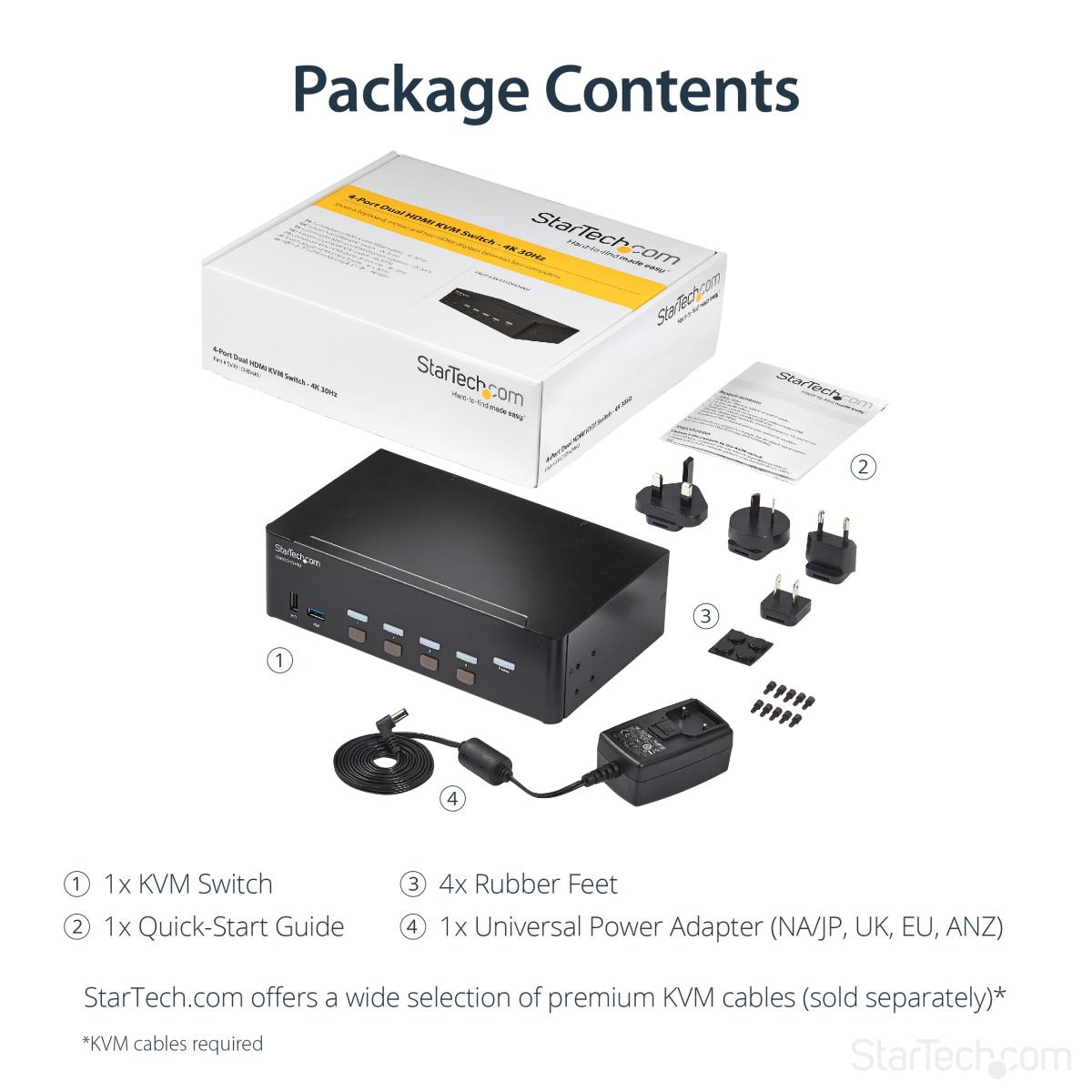

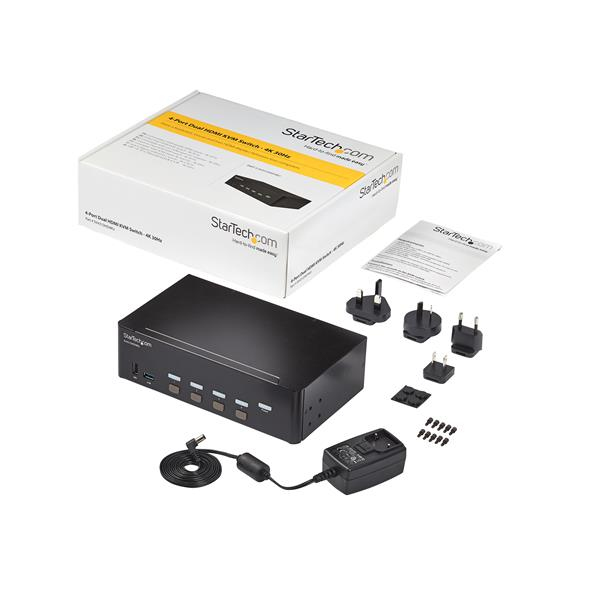

| Packaging content | |
| Rubber feet | Yes |
| Quick installation guide | Yes |
| Certificates | |
| Certification | CE, FCC, TAA, REACH |
| Other features | |
| IP control | No |
| Hot keys | Yes |
| Logistics data | |
| Master (outer) case width | 509 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case height | 298 mm |
| Products per master (outer) case | 6 pc(s) |
| Harmonized System (HS) code | 85176200 |
