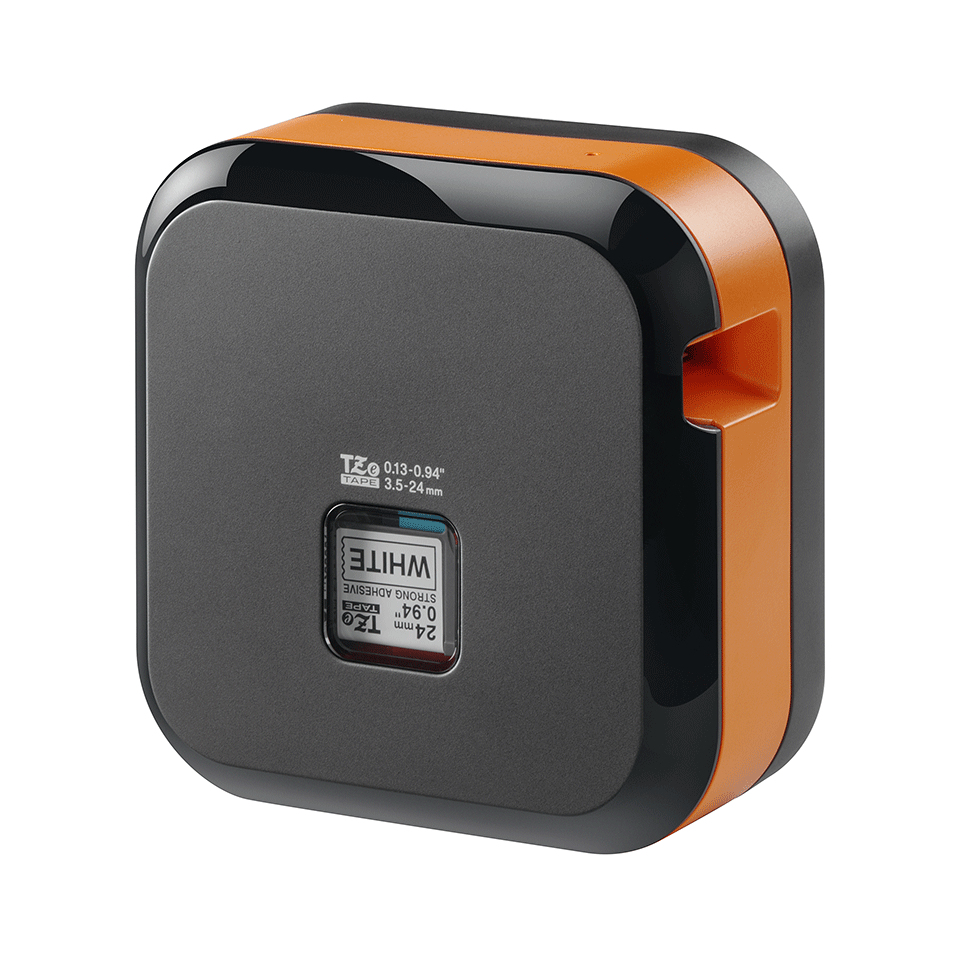

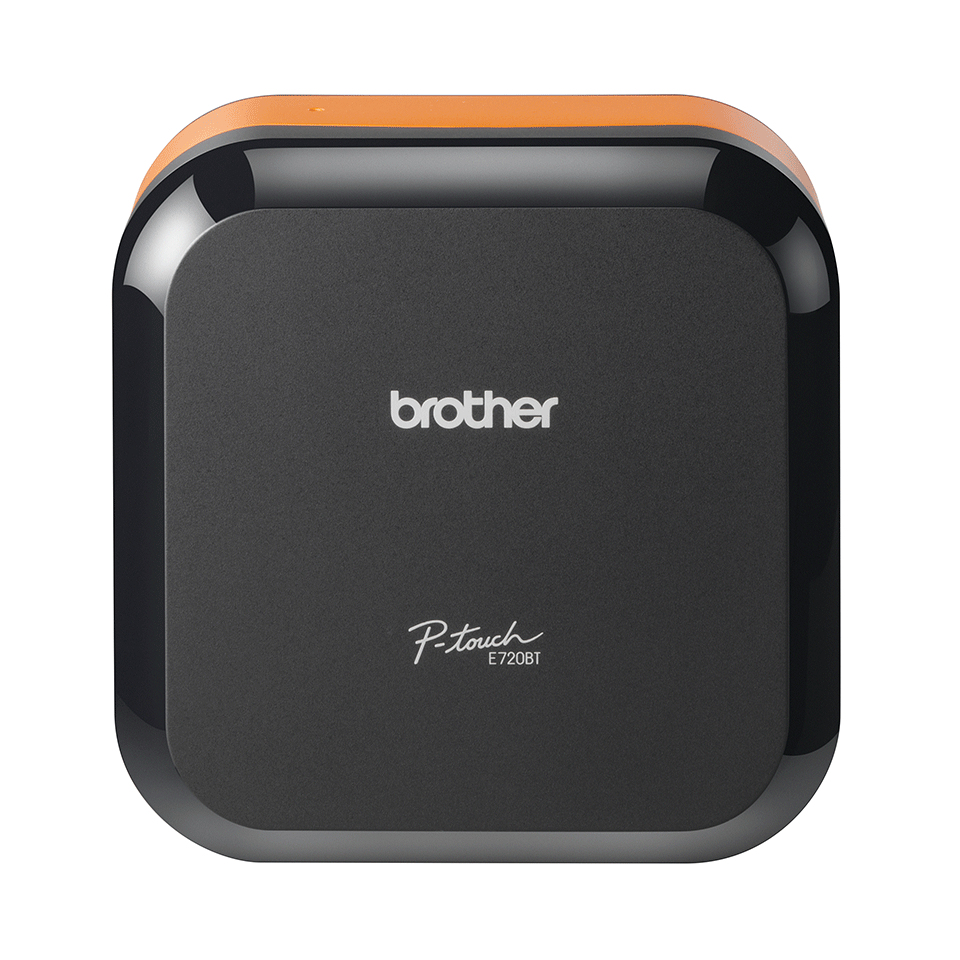

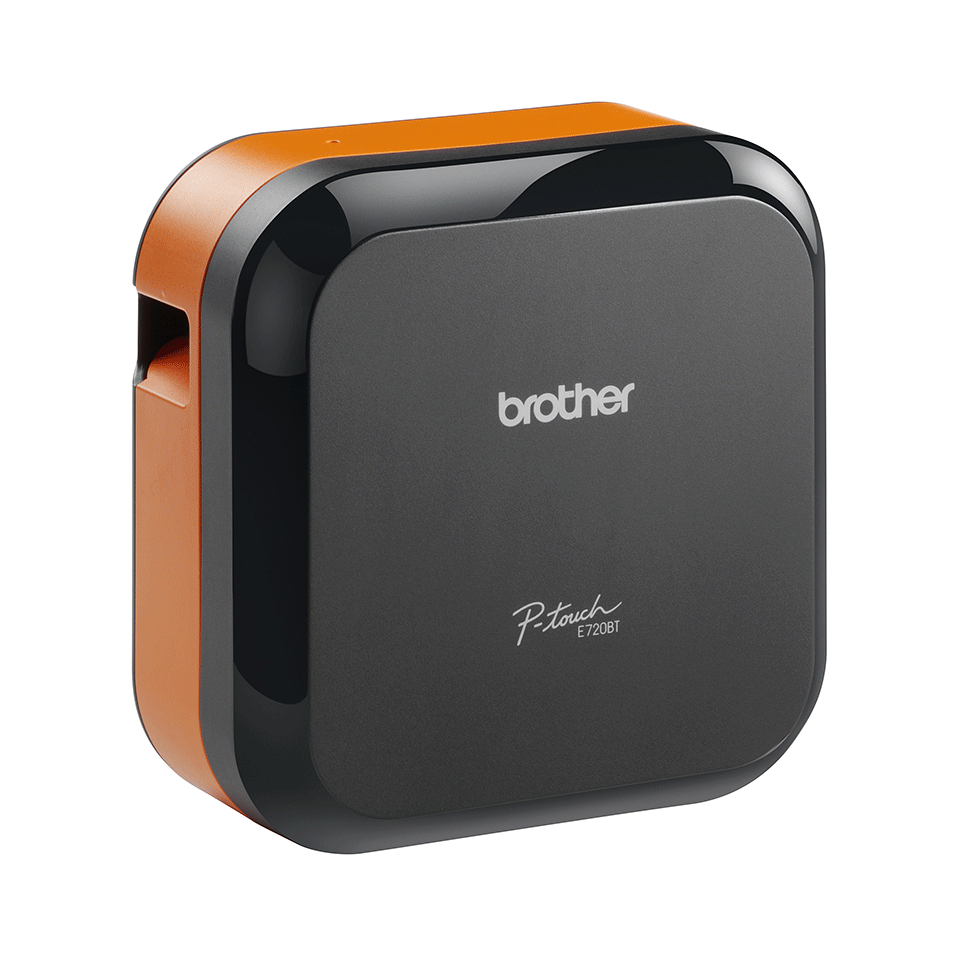

PT-E720BT P-Touch CUBE Labelling Machine
Introduction

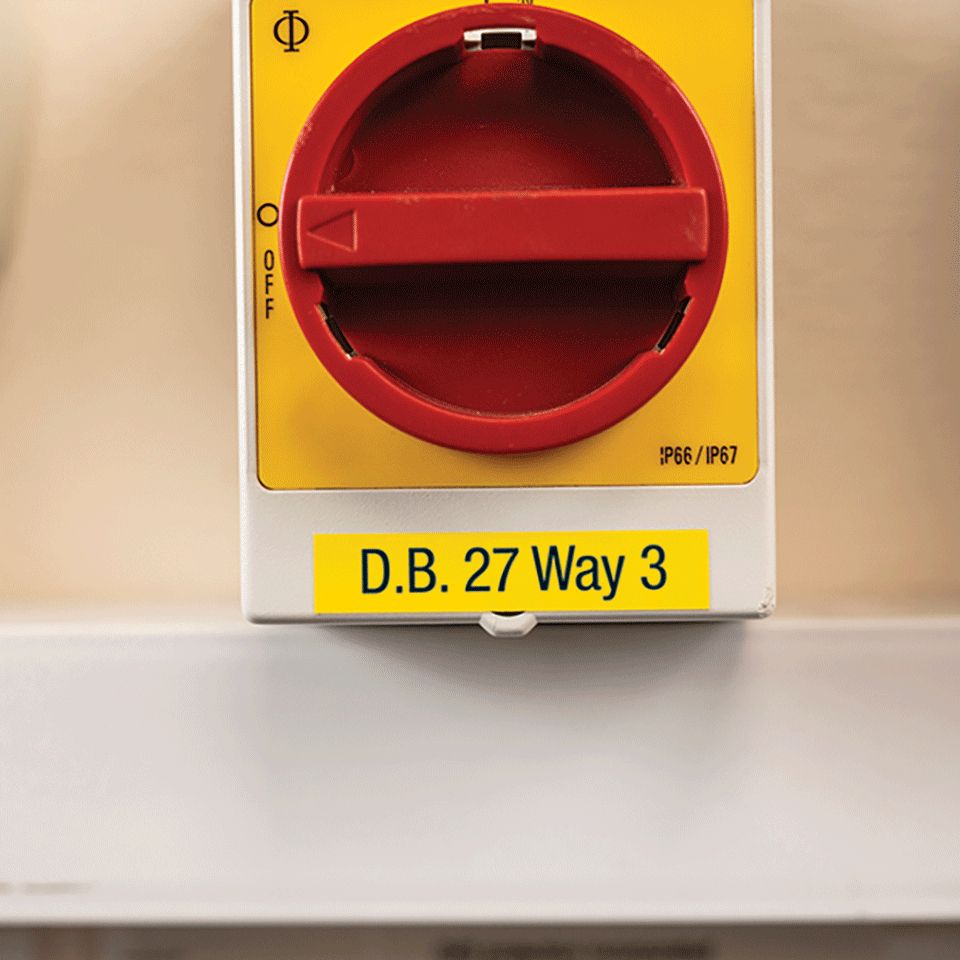

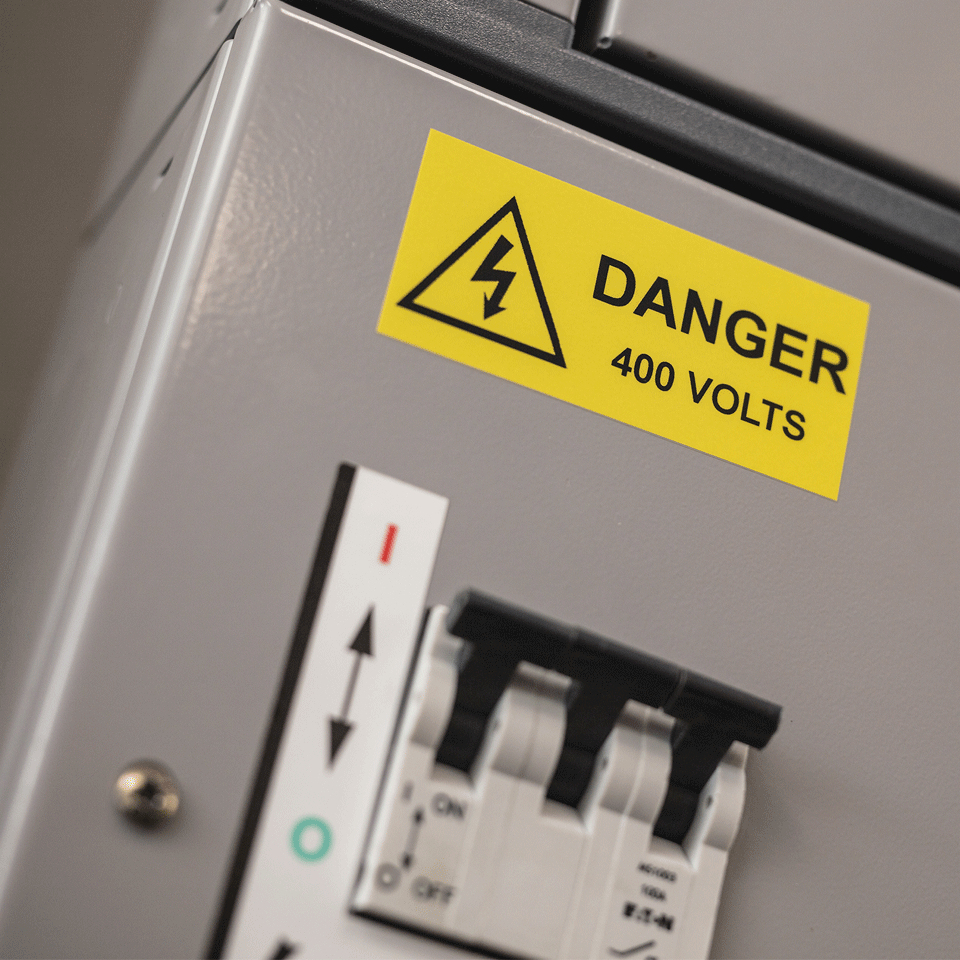

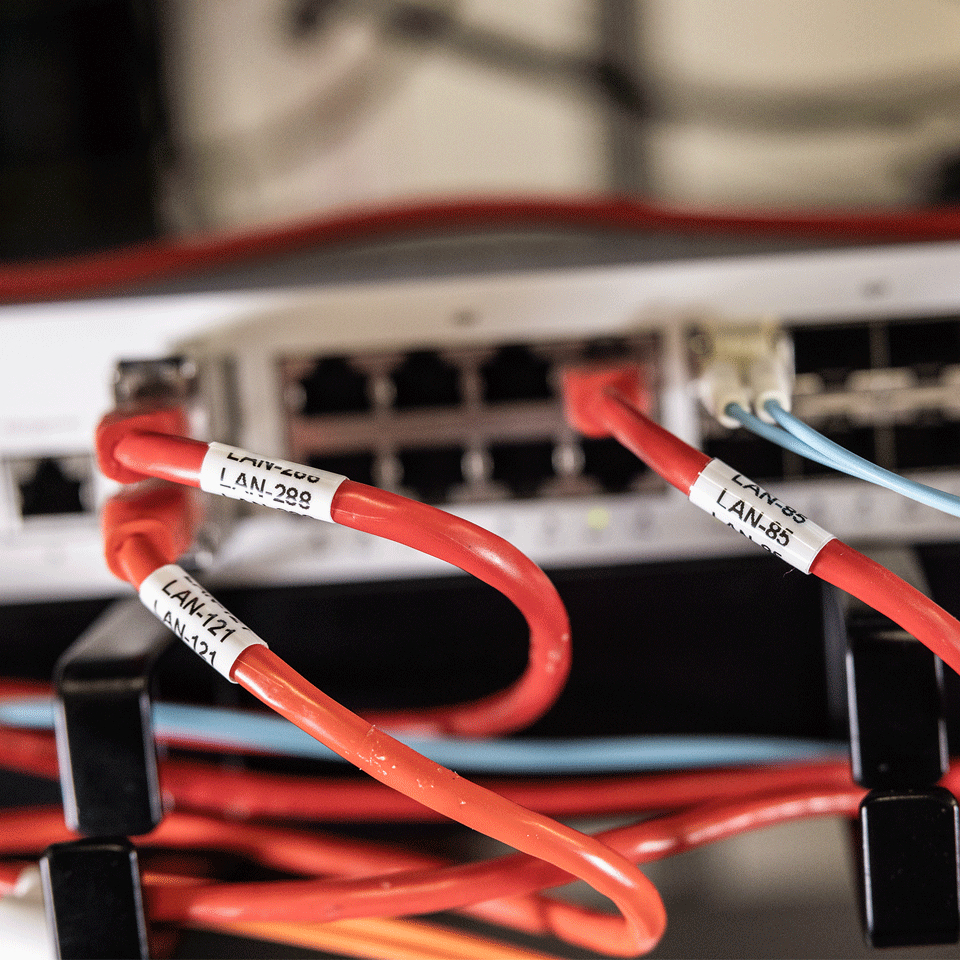

Ensure durable, long-life identification of electrical installations, including danger/warning signs, solar panels and AV equipment, cables and wires.The PT-E720BT CUBE Pro labelling machine is compact, portable, and packed with features designed to make on-site labelling faster and easier than ever. With built-in Bluetooth, users can design and print labels on-demand directly from a smartphone or PC, and the lightweight design ensures ease-of-portability from one job to the next.Compatible with Brother's industrial Pro Tapes to produce durable labels that provide resistance to water, chemicals, extreme temperatures and abrasion in the toughest environments.
Specifications
| Print quality | |
|---|---|
| Maximum resolution | 180 x 180 DPI |
| Maximum printing width | 2.4 cm |
| Printing | |
| Colour | No |
| Print speed | 20 mm/sec |
| Maximum resolution | 180 x 180 DPI |
| Maximum printing width | 2.4 cm |
| Print technology | Thermal transfer |
| Network | |
| Wi-Fi | No |
| Ethernet LAN | No |
| Paper handling | |
| Maximum label length | 1 m |
| Autocutter | Yes |
| Ports & interfaces | |
| Bluetooth profiles | SPP |
| Connectivity technology | Wireless |
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| Wi-Fi | No |
| Ethernet LAN | No |
| USB port | Yes |
| Performance | |
| Mobile operating systems supported | Android, iOS |
| Tape type | TZe |
| Tape cutting | Automatic |
| Design | |
| Product colour | Black, Orange |
| Power | |
| Battery type | Built-in battery |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 1750 mAh |
| Auto power off | Yes |
| AC input frequency | 50 Hz |
| Power source type | Battery |
| Technical details | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Product colour | Black, Orange |
| Tape type | TZe |
| Tape cutting | Automatic |
| Maximum label length | 1 m |
| I/O ports | USB 2.0 (Micro-B) |
| Battery | |
| Battery type | Built-in battery |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 1750 mAh |
| Battery weight | 70 g |
| Rechargeable battery | Yes |
| Number of battery cells | 1 |
| System requirements | |
| Mobile operating systems supported | Android, iOS |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Weight & dimensions | |
| Package width | 98 mm |
| Package depth | 210 mm |
| Package height | 194 mm |
| Width | 67 mm |
| Depth | 128 mm |
| Height | 128 mm |
| Weight | 640 g |
| Package type | Box |
| Package weight | 1.1 kg |
| Packaging data | |
| Package width | 98 mm |
| Package depth | 210 mm |
| Package height | 194 mm |
| Package type | Box |
| Package weight | 1.1 kg |
| Packaging content | |
| Cables included | USB |
| Batteries included | Yes |
| Other features | |
| I/O ports | USB 2.0 (Micro-B) |
