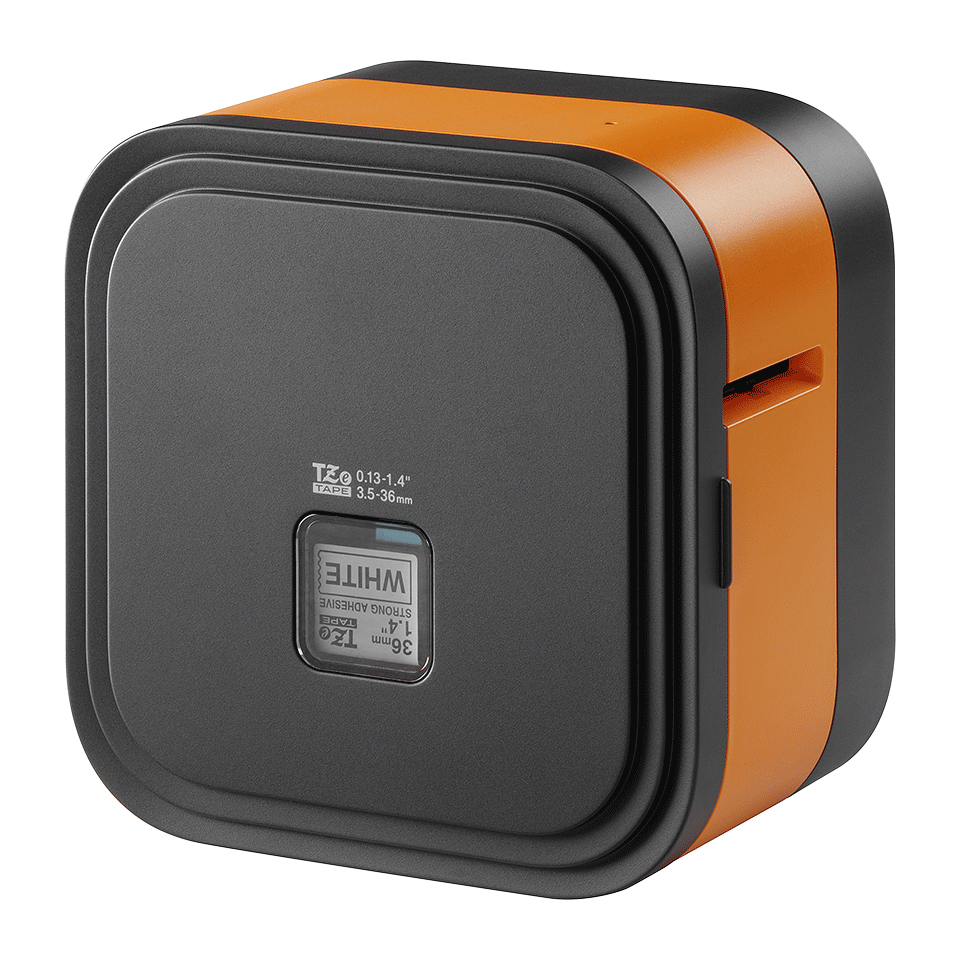

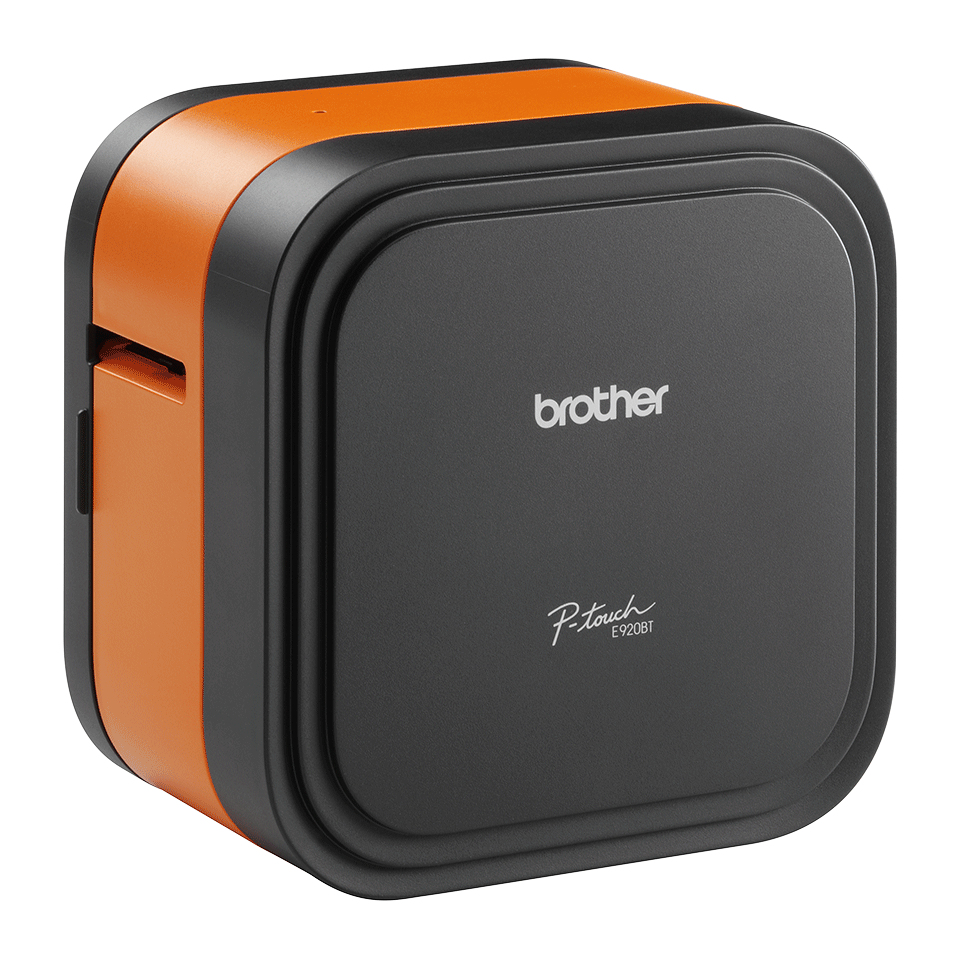

PT-E920BT P-Touch CUBE Labelling Machine
Introduction

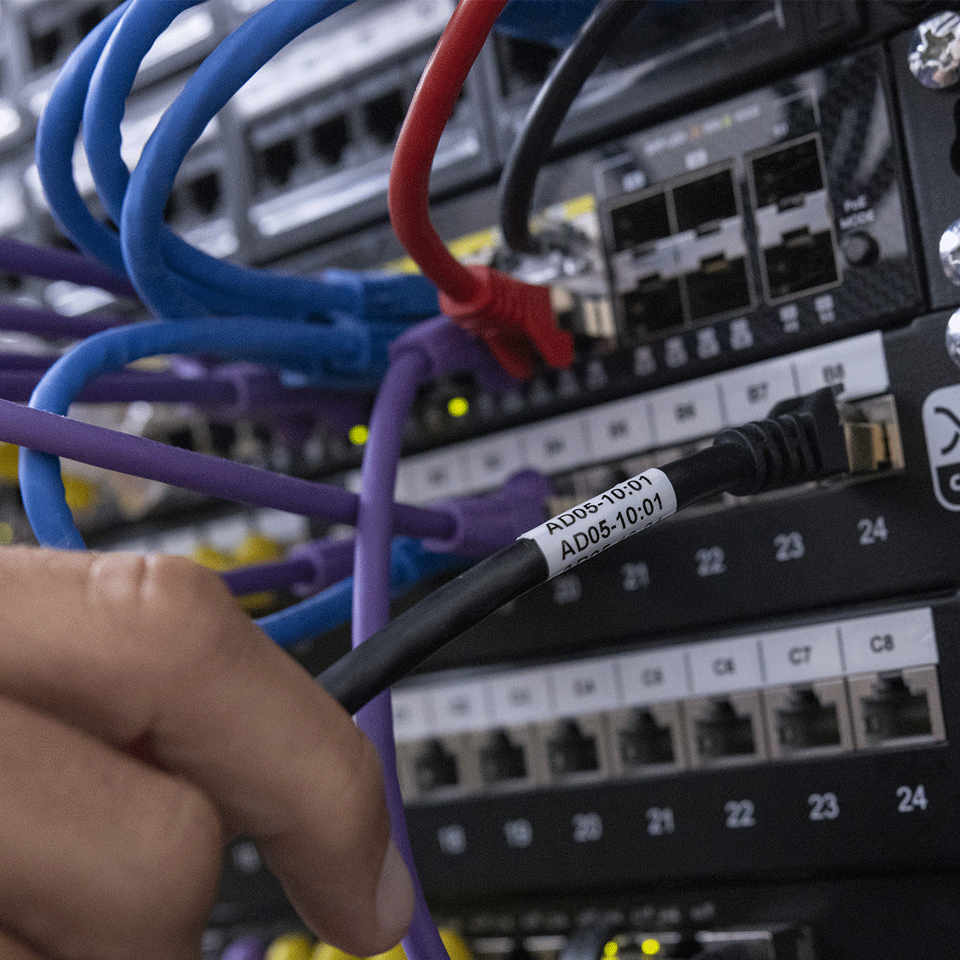

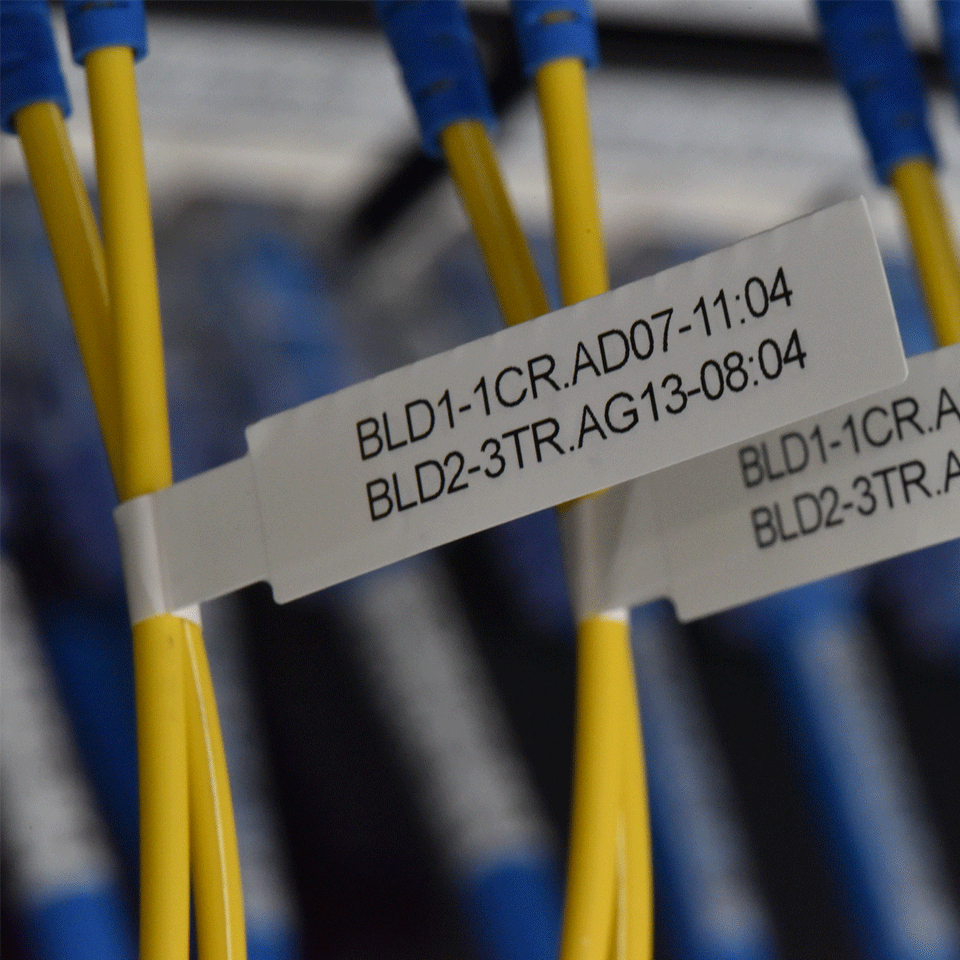

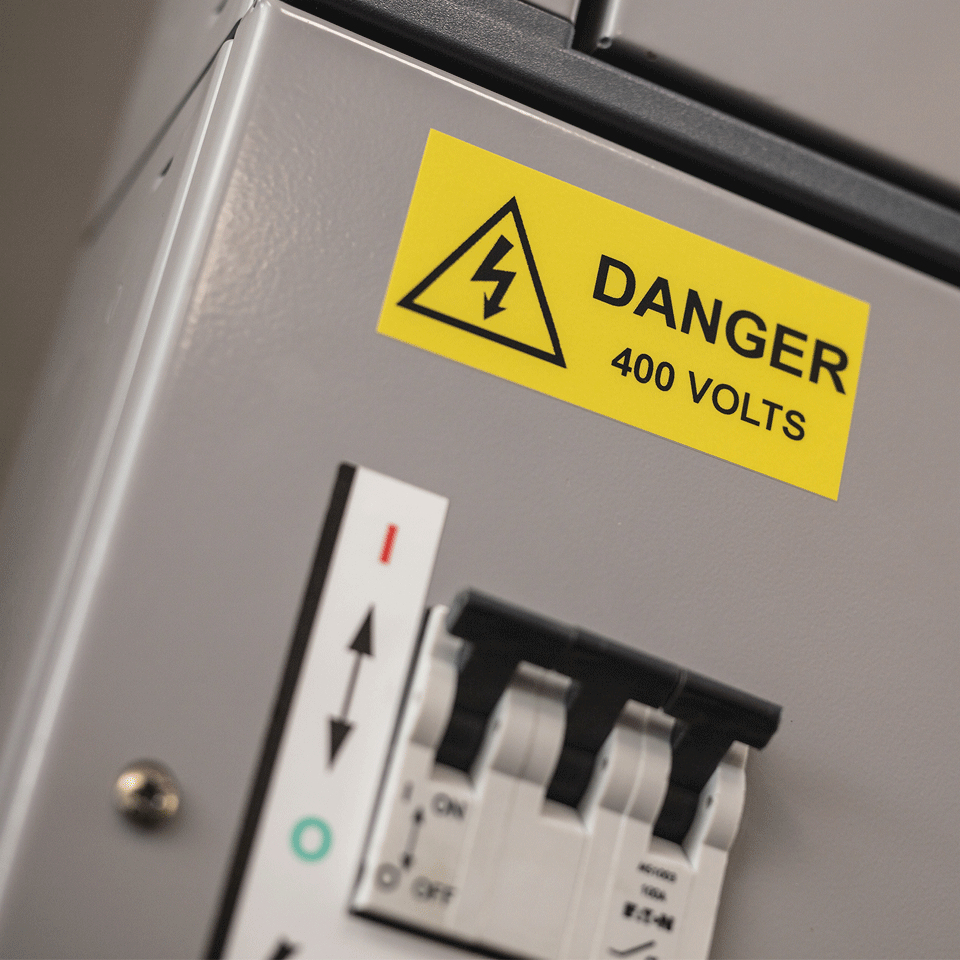

Clear identification and safety are critical for any electrical or datacom installation, including danger and warning signs, switch gear, electrical wires, consumer units, patch panels, racks and cabinets, CAT5E / CAT6A network cabling and more.The PT-E920BT CUBE Pro labelling machine is compact, portable, and packed with features designed to make on-site labelling faster and easier than ever. With built-in Bluetooth, users can design and print labels on-demand directly from a smartphone or PC, and the lightweight design ensures ease-of-portability from one job to the next.Compatible with Brother's industrial Pro Tapes to produce durable labels that provide resistance to water, chemicals, extreme temperatures and abrasion in the toughest environments.
Specifications
| Print quality | |
|---|---|
| Maximum resolution | 360 x 360 DPI |
| Maximum printing width | 3.6 cm |
| Printing | |
| Colour | No |
| Print speed | 20 mm/sec |
| Maximum resolution | 360 x 360 DPI |
| Maximum printing width | 3.6 cm |
| Print technology | Thermal transfer |
| Network | |
| Wi-Fi | No |
| Ethernet LAN | No |
| Paper handling | |
| Maximum label length | 1 m |
| Autocutter | Yes |
| Half-cutter | Yes |
| Ports & interfaces | |
| Bluetooth profiles | SPP |
| Connectivity technology | Wireless |
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| Wi-Fi | No |
| Ethernet LAN | No |
| USB port | Yes |
| Performance | |
| Mobile operating systems supported | Android, iOS |
| Tape type | TZe |
| Tape cutting | Automatic |
| Design | |
| Product colour | Black, Orange |
| Power | |
| Battery type | Built-in battery |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 1750 mAh |
| Auto power off | Yes |
| AC input frequency | 50 Hz |
| Power source type | Battery |
| Technical details | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Product colour | Black, Orange |
| Tape type | TZe |
| Tape cutting | Automatic |
| Maximum label length | 1 m |
| I/O ports | USB-C |
| Battery | |
| Battery type | Built-in battery |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 1750 mAh |
| Battery weight | 70 g |
| Rechargeable battery | Yes |
| Number of battery cells | 1 |
| System requirements | |
| Mobile operating systems supported | Android, iOS |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Weight & dimensions | |
| Package width | 128 mm |
| Package depth | 212 mm |
| Package height | 244 mm |
| Width | 94 mm |
| Depth | 138 mm |
| Height | 138 mm |
| Weight | 1.17 kg |
| Package type | Box |
| Package weight | 1.81 kg |
| Packaging data | |
| Package width | 128 mm |
| Package depth | 212 mm |
| Package height | 244 mm |
| Package type | Box |
| Package weight | 1.81 kg |
| Packaging content | |
| Cables included | USB |
| Batteries included | Yes |
| Other features | |
| I/O ports | USB-C |
