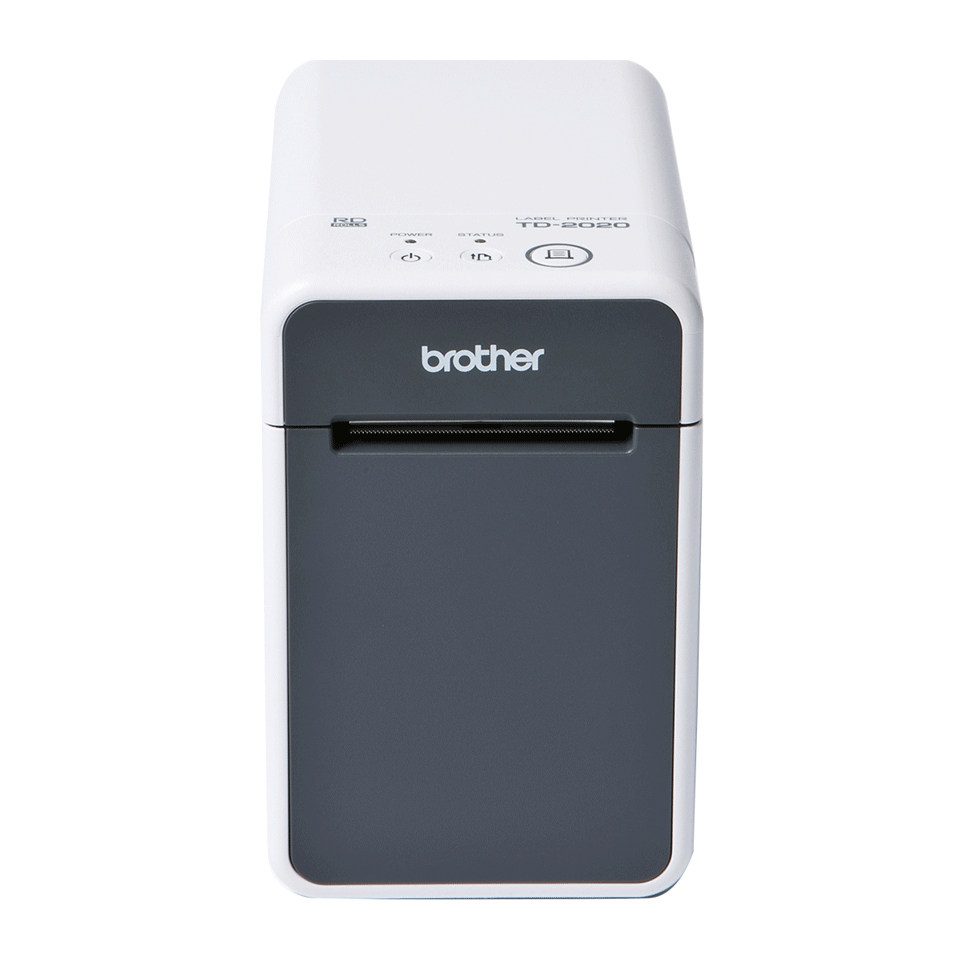

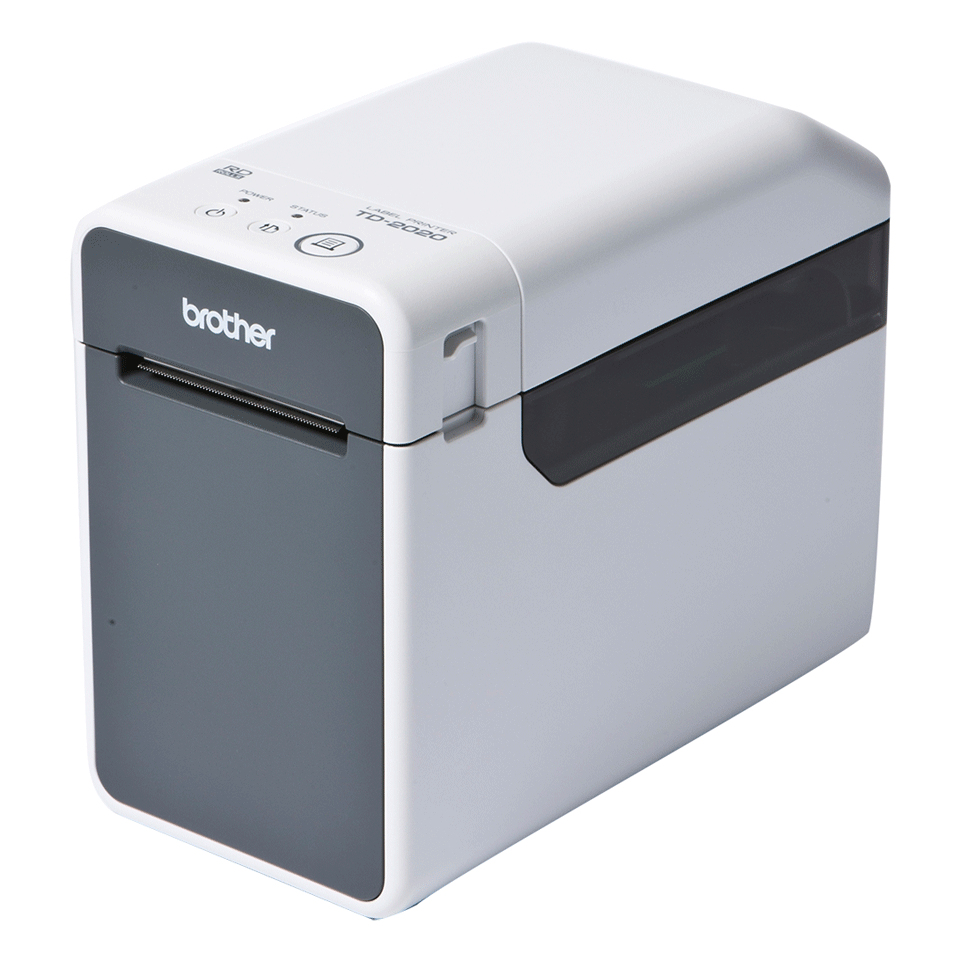

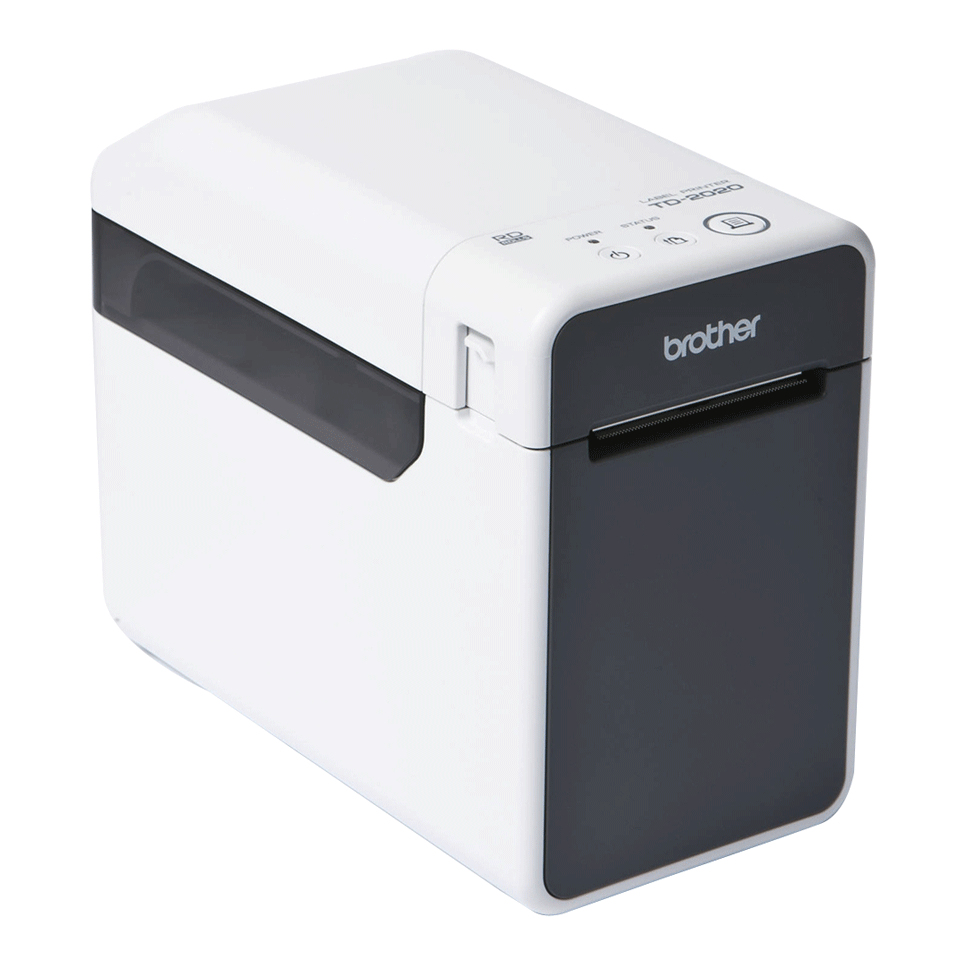

Compact 2-inch direct thermal printer for basic labeling needs with USB connectivity. 203dpi Direct Thermal USB
Introduction
Increasing productivity and reducing costs are priorities in any workplace. When it comes to label printing, the TD-2020A combines proven desktop printer performance with new levels of efficiency to help you do more for less.
Specifications
| Print quality | |
|---|---|
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 5.6 cm |
| Maximum print height | 9.86 cm |
| Printing | |
| Minimum print length | 6 mm |
| Print speed | 152.4 mm/sec |
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 5.6 cm |
| Maximum print height | 9.86 cm |
| Print technology | Direct thermal |
| Network | |
| Wi-Fi | No |
| Ethernet LAN | No |
| Memory | |
| Internal memory | 6 MB |
| Paper handling | |
| Media thickness | 0.058 - 0.279 mm |
| Maximum label length | 1 m |
| Core diameter | 2.54 cm |
| Autocutter | Yes |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Optional connectivity | Serial (RS-232), USB 2.0 |
| Connectivity technology | Wired |
| Wi-Fi | No |
| Ethernet LAN | No |
| USB port | Yes |
| Performance | |
| Underline | Yes |
| Built-in barcodes | QR Code |
| Number of fonts | 7 |
| Tape cutting | Automatic |
| Internal memory | 6 MB |
| Character sets | Abicomp, ASCII, BRASCII, ISO 8859-15, ISO Latin 1, Italic, PC437, PC850, PC858, PC860, PC861, PC863, PC865, Roman 8 |
| Design | |
| Product colour | White |
| Technical details | |
| Windows operating systems supported | Yes |
| Product colour | White |
| Underline | Yes |
| Built-in barcodes | QR Code |
| Number of fonts | 7 |
| Tape cutting | Automatic |
| Maximum label length | 1 m |
| Country of origin | China |
| Character sets | Abicomp, ASCII, BRASCII, ISO 8859-15, ISO Latin 1, Italic, PC437, PC850, PC858, PC860, PC861, PC863, PC865, Roman 8 |
| Products per pallet | 90 pc(s) |
| Layers per pallet | 5 pc(s) |
| Master (outer) cases per pallet | 30 pc(s) |
| Pallet type | 800 x 1200 mm |
| Software | |
| Drivers included | Yes |
| System requirements | |
| Windows operating systems supported | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Width | 284 mm |
| Depth | 180 mm |
| Height | 264 mm |
| Weight | 2.12 kg |
| Package weight | 2.83 kg |
| Packaging data | |
| Package weight | 2.83 kg |
| Packaging content | |
| Cables included | USB |
| Drivers included | Yes |
| Other features | |
| Products per pallet | 90 pc(s) |
| Layers per pallet | 5 pc(s) |
| Master (outer) cases per pallet | 30 pc(s) |
| Country of origin | China |
| Character sets | Abicomp, ASCII, BRASCII, ISO 8859-15, ISO Latin 1, Italic, PC437, PC850, PC858, PC860, PC861, PC863, PC865, Roman 8 |
| Logistics data | |
| Pallet gross height | 15.7 cm |
| Master (outer) cases per pallet layer | 6 pc(s) |
| Pallet gross weight | 285.6 kg |
| Products per pallet | 90 pc(s) |
| Layers per pallet | 5 pc(s) |
| Master (outer) cases per pallet | 30 pc(s) |
