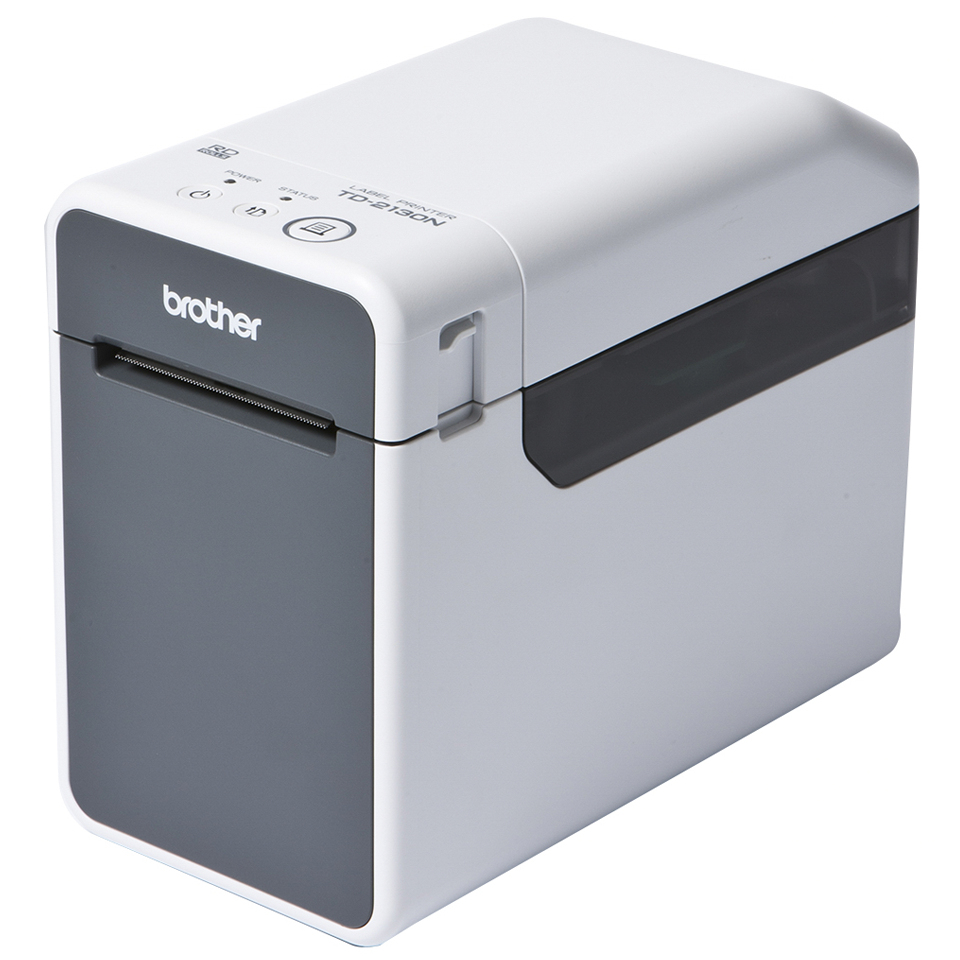

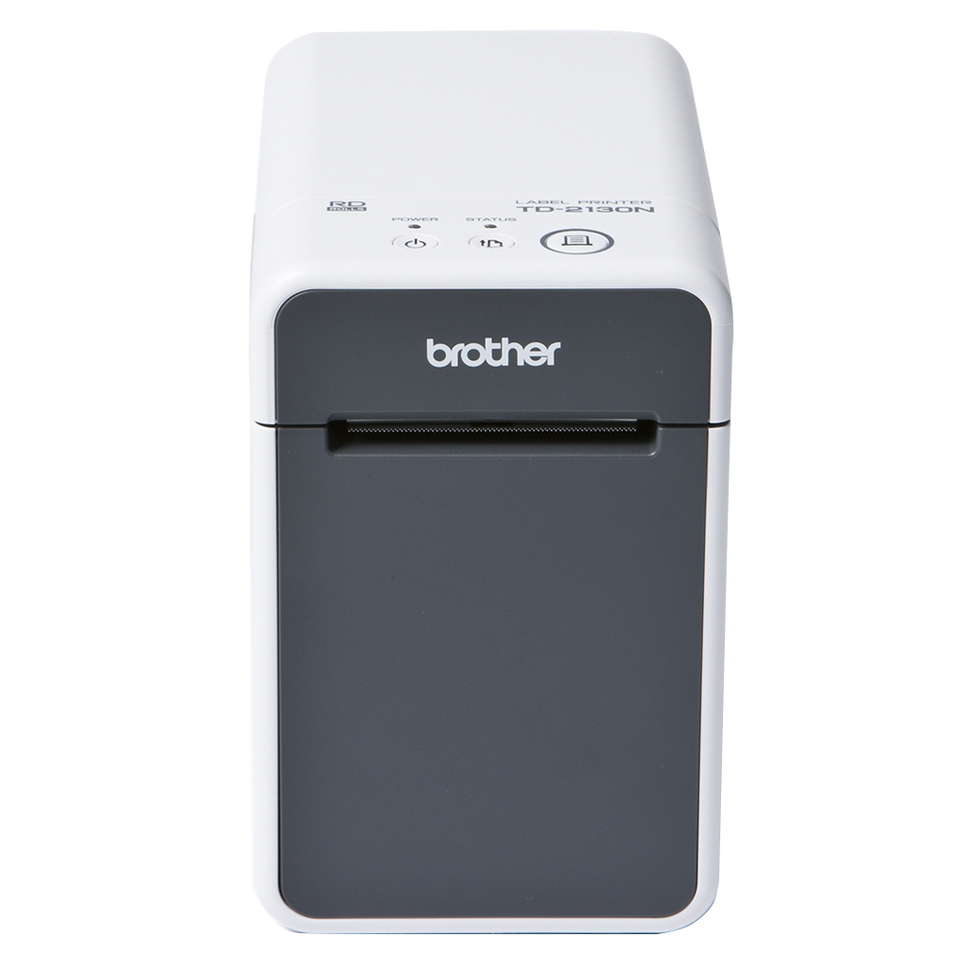

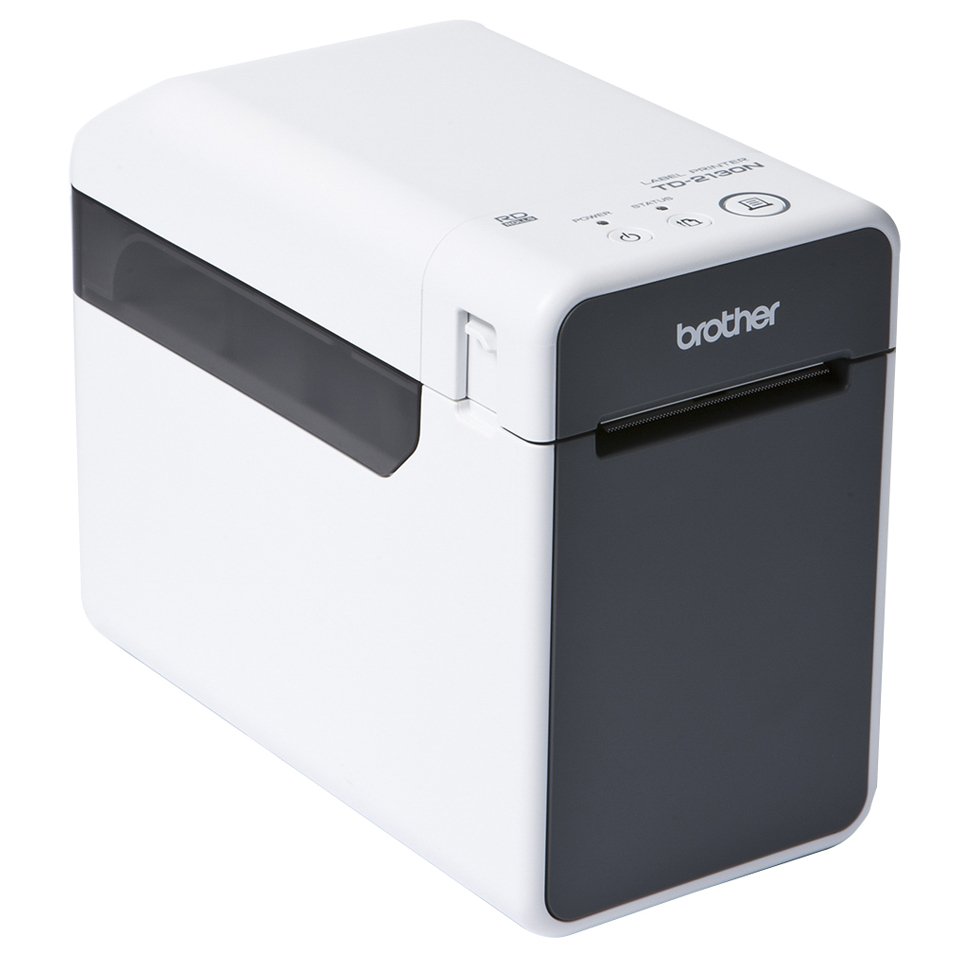

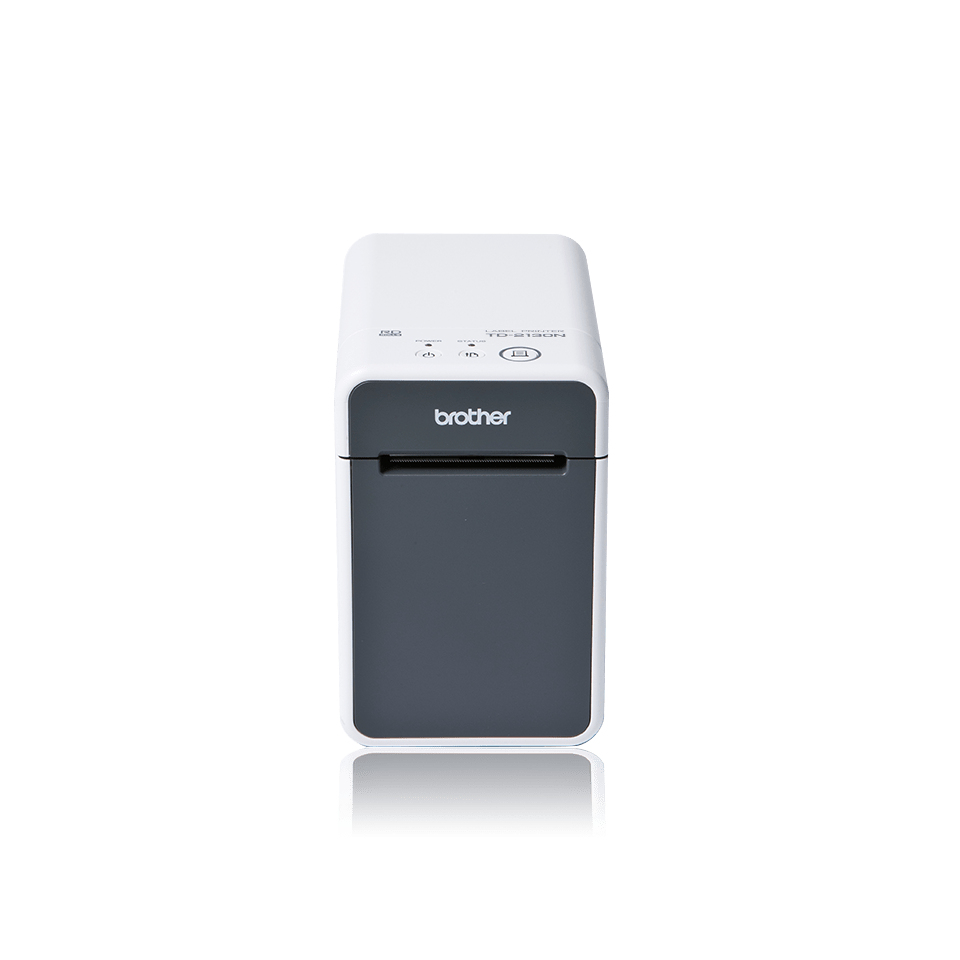

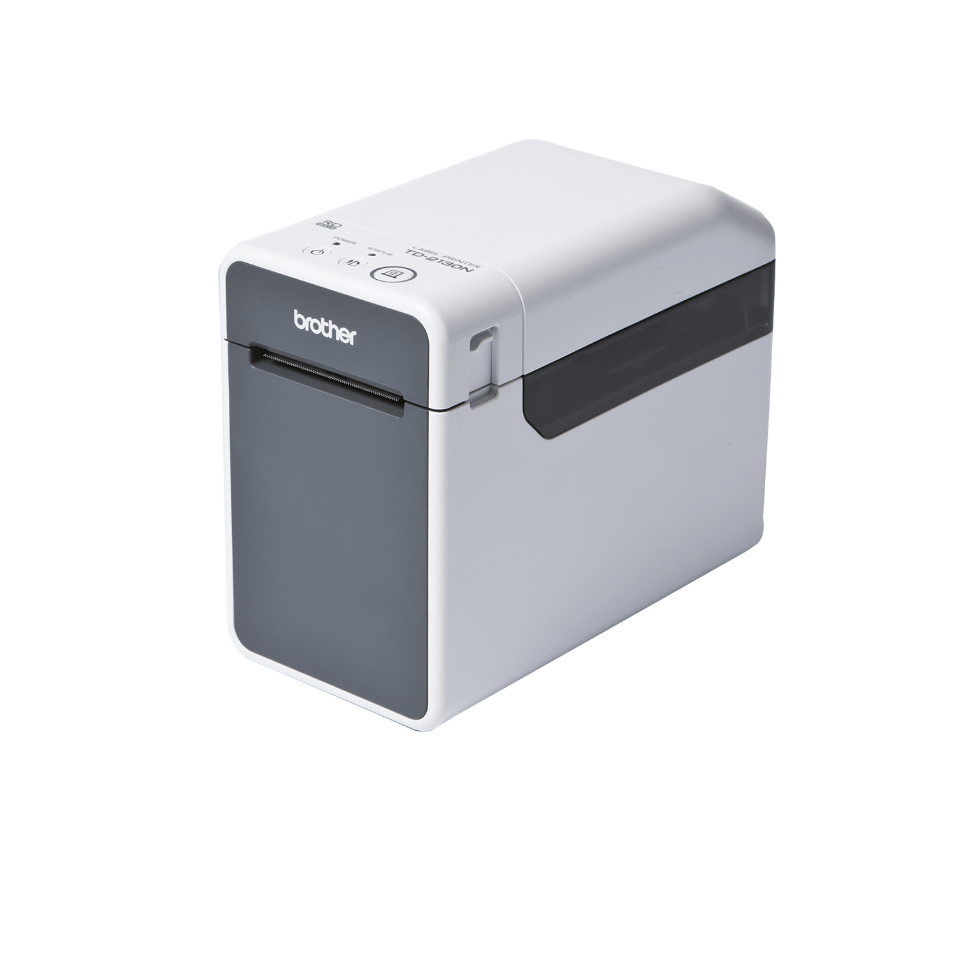

2-inch direct thermal printer delivering crisp 300dpi labels with network connectivity. 300dpi Direct Thermal USB Ethernet
Introduction
The TD-2135N's range of specialised features mean it is the perfect label printer for healthcare, retail, warehousing, logistics and manufacturing – plus any other sector where you need to be able to print receipts, labels or wristbands. Ideal for printing stock rotation labels, pre-packaged food ingredients labels, barcode labels, specimen, pathology and phlebotomy labels and shelf edge labels. With a higher print resolution of 300dpi, the TD-2135N prints high quality labels at speeds of 152mm/sec.
Specifications
| Print quality | |
|---|---|
| Maximum resolution | 300 x 300 DPI |
| Maximum printing width | 100 cm |
| Printing | |
| Print speed | 152.4 mm/sec |
| Maximum resolution | 300 x 300 DPI |
| Maximum printing width | 100 cm |
| Print technology | Direct thermal |
| Network | |
| Ethernet LAN | Yes |
| Memory | |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| Optional connectivity | Serial (RS-232) |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN | Yes |
| USB port | Yes |
| Performance | |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Design | |
| Product colour | Grey, White |
| Control type | Buttons |
| Technical details | |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Windows operating systems supported | Windows 10, Windows 11, Windows 8, Windows 8.1 |
| Product colour | Grey, White |
| Country of origin | China |
| Products per pallet | 108 pc(s) |
| Layers per pallet | 6 pc(s) |
| Master (outer) cases per pallet | 36 pc(s) |
| Warranty period | 3 year(s) |
| Pallet type | 1200 x 1000 mm |
| System requirements | |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Windows operating systems supported | Windows 10, Windows 11, Windows 8, Windows 8.1 |
| Weight & dimensions | |
| Width | 180 mm |
| Depth | 284 mm |
| Height | 265 mm |
| Weight | 2.12 kg |
| Package weight | 2.83 kg |
| Packaging data | |
| Package weight | 2.83 kg |
| Packaging content | |
| Cables included | AC, USB |
| Other features | |
| Products per pallet | 108 pc(s) |
| Layers per pallet | 6 pc(s) |
| Master (outer) cases per pallet | 36 pc(s) |
| Country of origin | China |
| Warranty period | 3 year(s) |
| Logistics data | |
| Pallet gross height | 18.5 cm |
| Master (outer) cases per pallet layer | 6 pc(s) |
| Pallet gross weight | 363.6 kg |
| Products per pallet | 108 pc(s) |
| Layers per pallet | 6 pc(s) |
| Master (outer) cases per pallet | 36 pc(s) |
