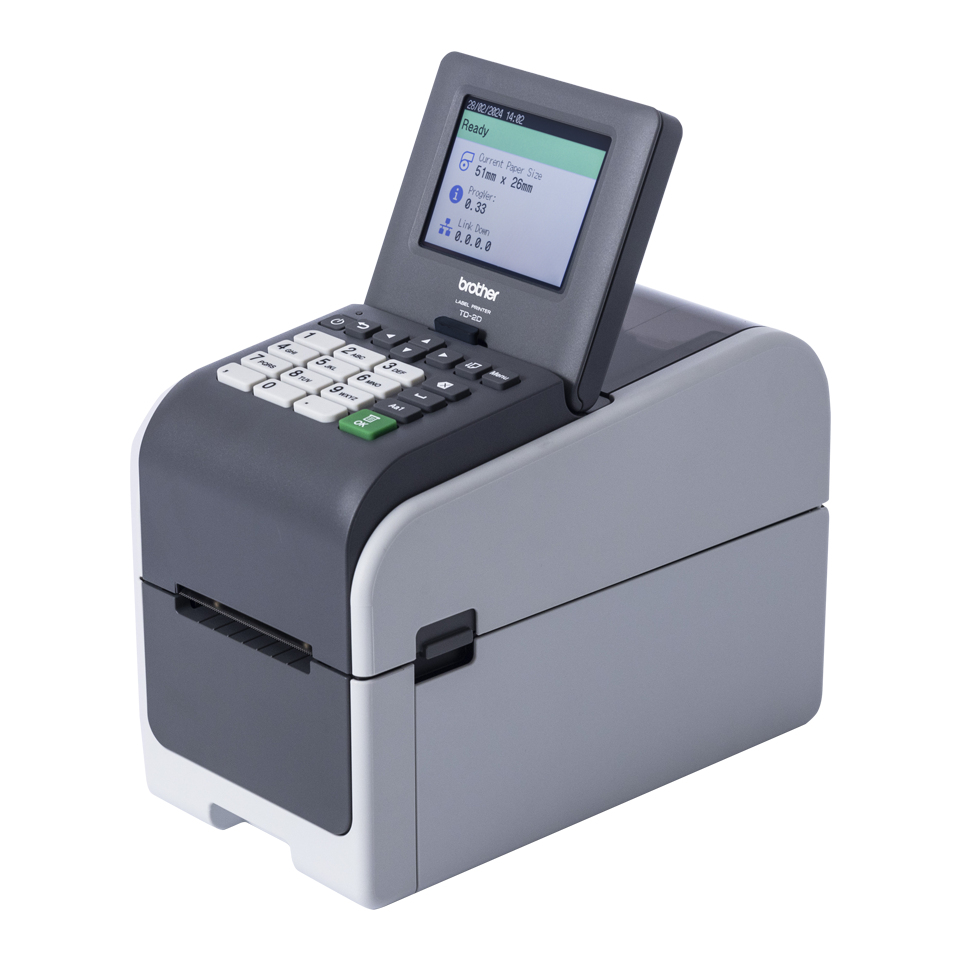

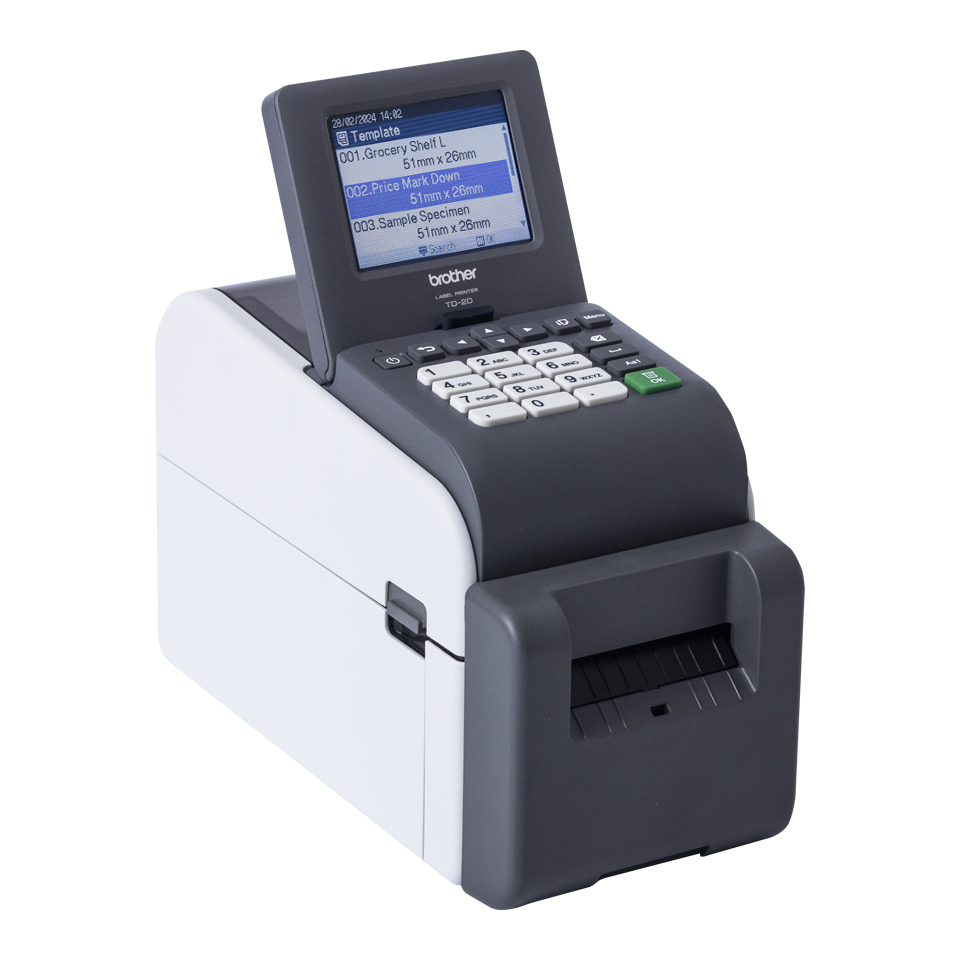

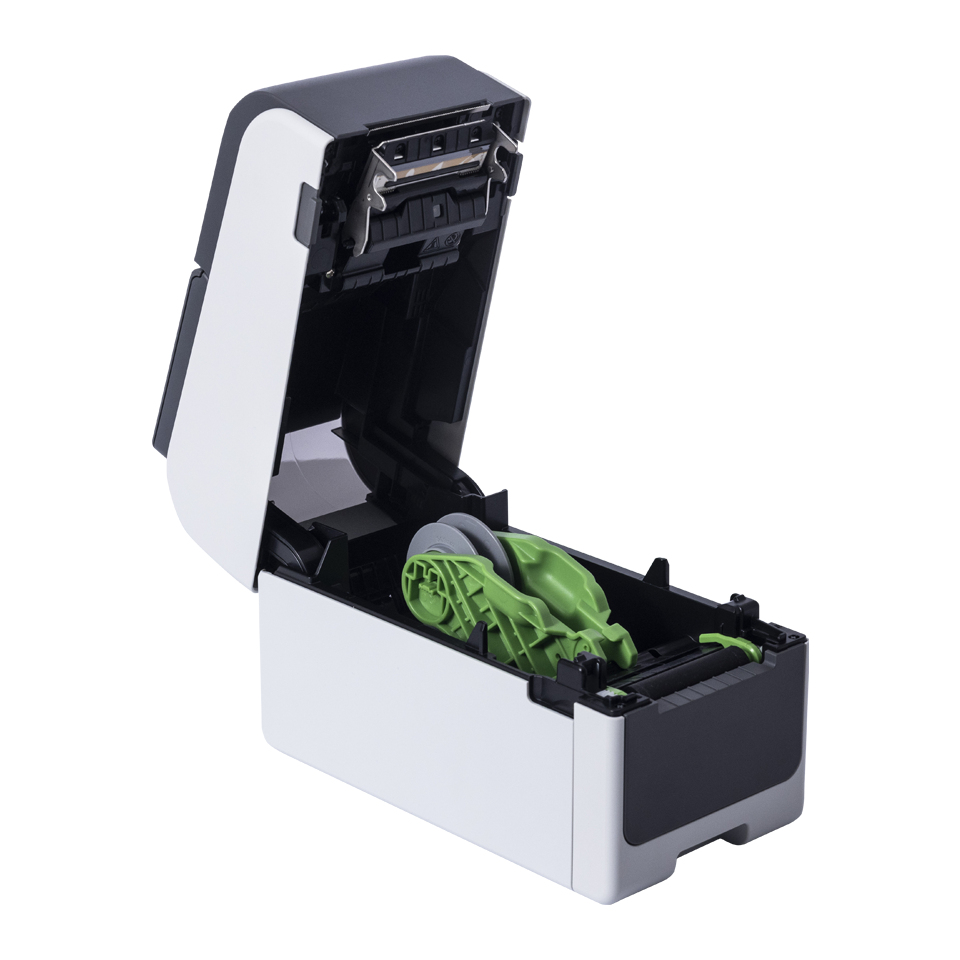

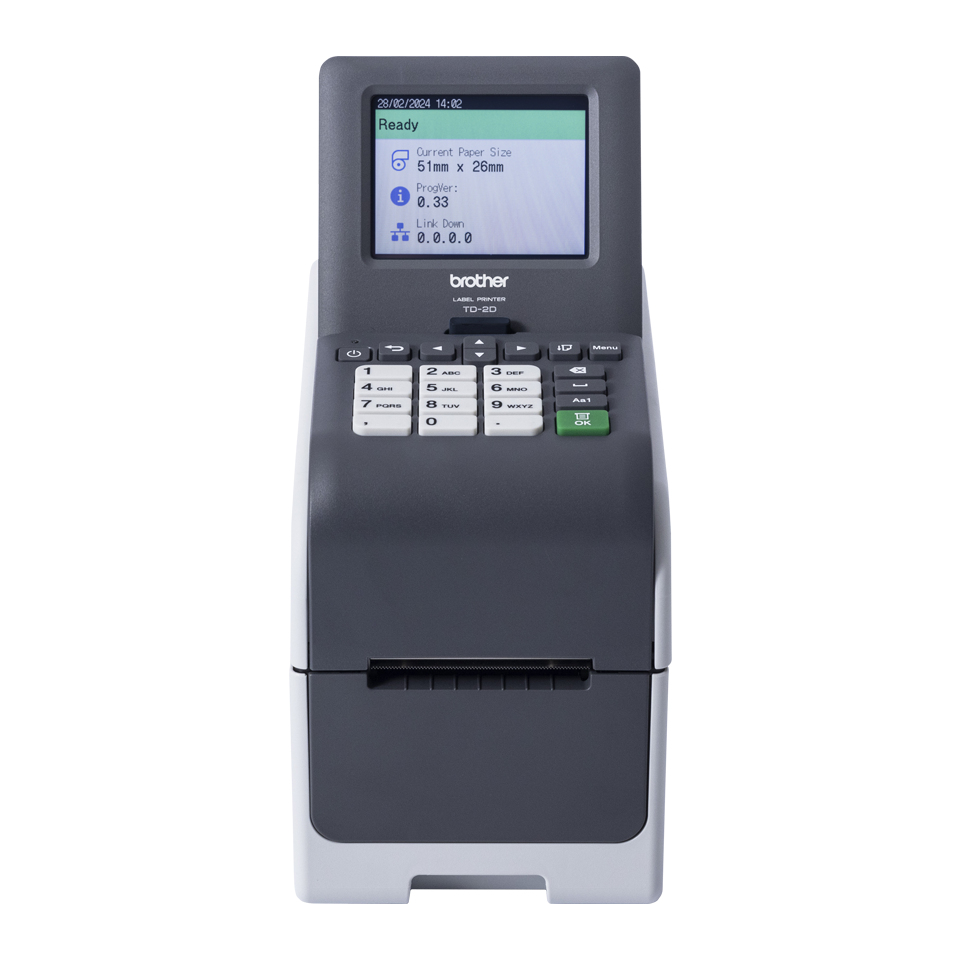

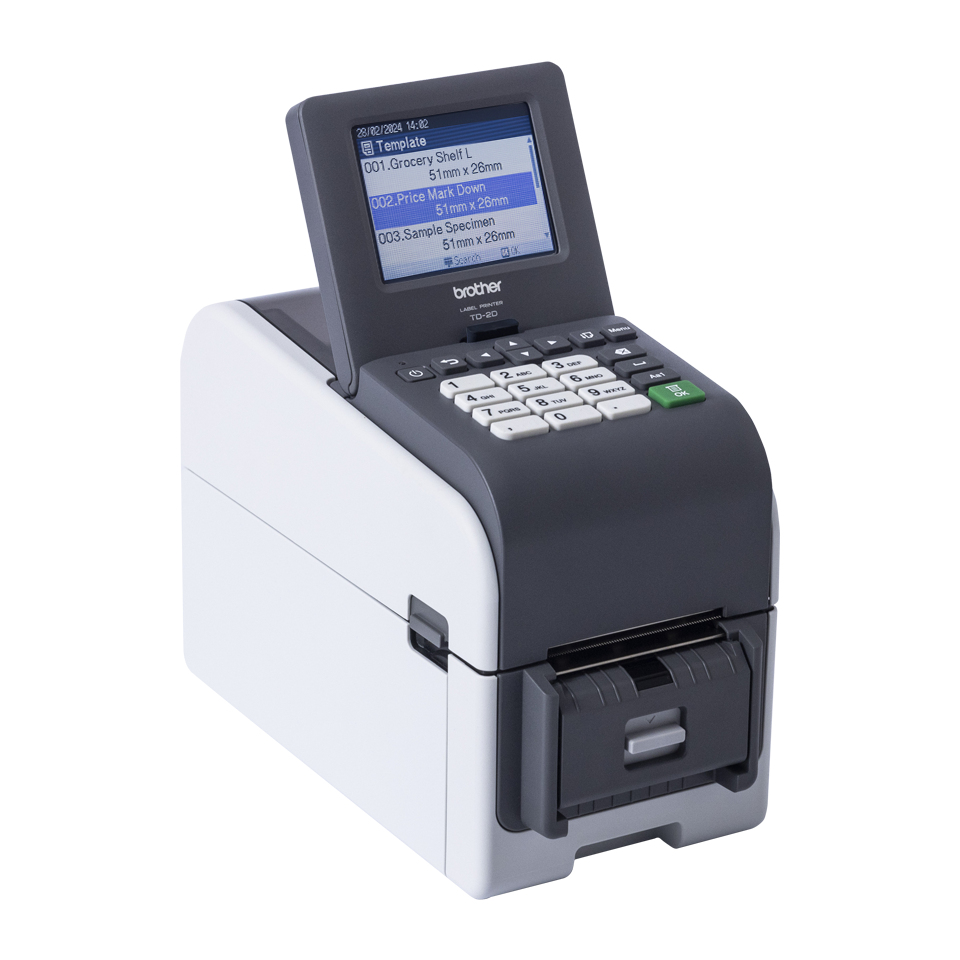

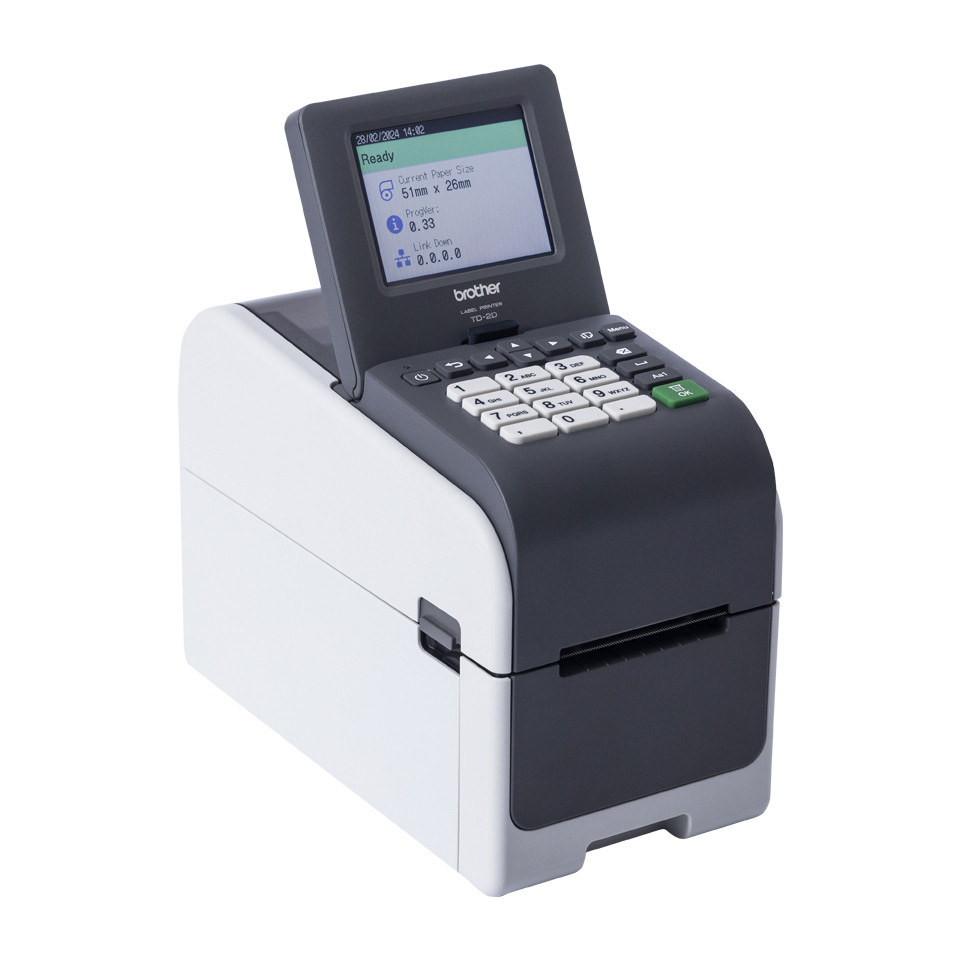

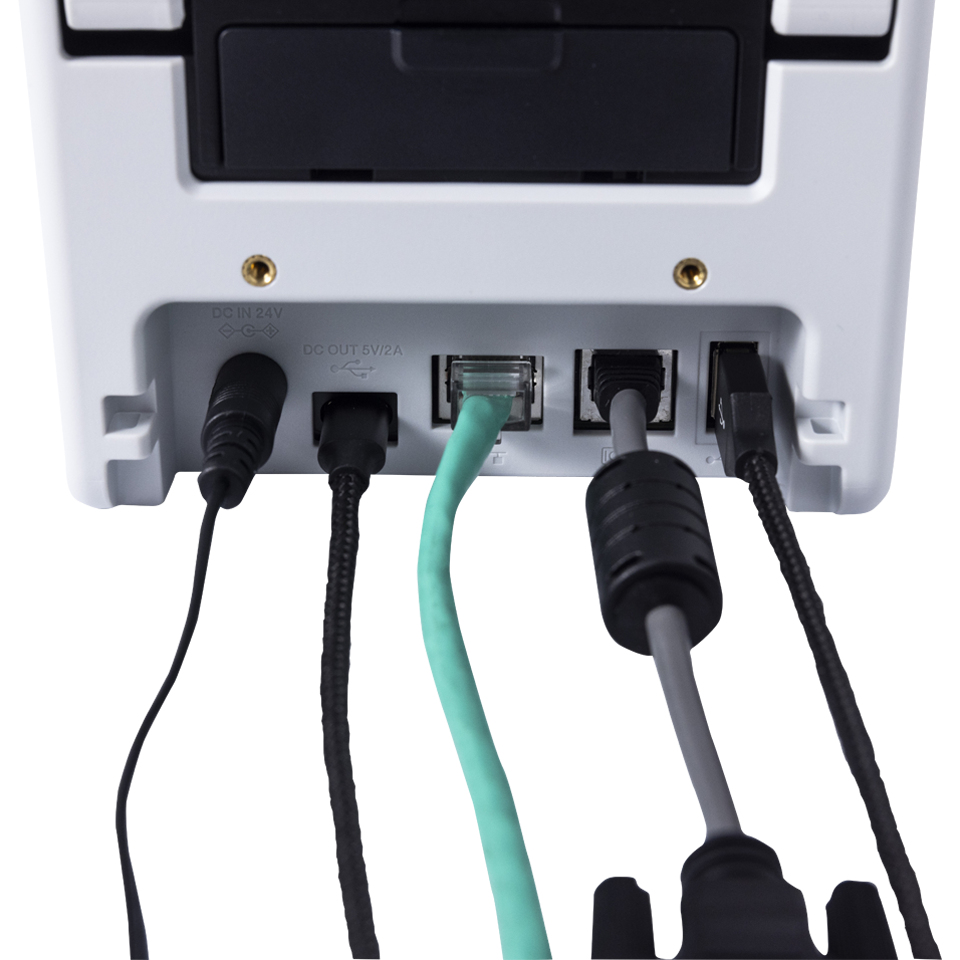

2-inch direct thermal printer with 203dpi and smart touchscreen control. 203dpi Direct Thermal USB Ethernet Touchscreen
Introduction
Increasing productivity and reducing costs are key priorities in any workplace. And when it comes to label printing, the TD-2320DSA203 combines proven desktop printer performance with the versatility to operate in multiple locations, helping you to achieve greater efficiencies across your business. The TD-2320DSA203 works as a standalone printing solution with its 3.5" colour touch screen display and keyboard.
With a range of specialised features and high-quality print resolutions, the TD-2D is the perfect label printer for retail price mark down labels and food traceability ingredient labels – where you need to print high-quality labels in any location.
Specifications
| Print quality | |
|---|---|
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 5.9 cm |
| Printing | |
| Minimum print length | 6.4 mm |
| Colour | No |
| Print speed | 152 mm/sec |
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 5.9 cm |
| Print technology | Direct thermal |
| Display | |
| Display diagonal | 8.89 cm (3.5") |
| Colour display | Yes |
| Network | |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Memory | |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Paper handling | |
| Media thickness | 0.058 - 0.279 mm |
| Core diameter | 3.81 cm |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| USB port | Yes |
| Performance | |
| Built-in barcodes | AZTECCODE, Data Matrix, MSI, CODABAR (NW-7), UPC-A, MaxiCode, Micro QR Code, UPC-E, EAN13, Code 128 (A/B/C), EAN8, POSTNET, Code 39, GS1 DataBar, QR Code, Code 93 |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Design | |
| Display diagonal | 8.89 cm (3.5") |
| Colour display | Yes |
| Product colour | Black, Grey |
| Control type | Buttons, Touch |
| Built-in display | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source type | AC |
| Technical details | |
| Server operating systems supported | Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Windows operating systems supported | Windows 10, Windows 11 |
| Product colour | Black, Grey |
| Built-in barcodes | AZTECCODE, Data Matrix, MSI, CODABAR (NW-7), UPC-A, MaxiCode, Micro QR Code, UPC-E, EAN13, Code 128 (A/B/C), EAN8, POSTNET, Code 39, GS1 DataBar, QR Code, Code 93 |
| Country of origin | Vietnam |
| Products per pallet | 60 pc(s) |
| Layers per pallet | 5 pc(s) |
| Master (outer) cases per pallet | 20 pc(s) |
| Warranty period | 3 year(s) |
| Pallet type | 800 x 1200 mm |
| System requirements | |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Windows operating systems supported | Windows 10, Windows 11 |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Package width | 306 mm |
| Package depth | 181 mm |
| Package height | 325 mm |
| Width | 119 mm |
| Depth | 224 mm |
| Height | 176 mm |
| Weight | 1.77 kg |
| Package weight | 2.9 kg |
| Packaging data | |
| Package width | 306 mm |
| Package depth | 181 mm |
| Package height | 325 mm |
| Package weight | 2.9 kg |
| Packaging content | |
| Cables included | AC, USB |
| Other features | |
| Products per pallet | 60 pc(s) |
| Layers per pallet | 5 pc(s) |
| Master (outer) cases per pallet | 20 pc(s) |
| Country of origin | Vietnam |
| Warranty period | 3 year(s) |
| Spare part retention | 5 year(s) |
| Logistics data | |
| Pallet gross height | 17.5 cm |
| Master (outer) cases per pallet layer | 4 pc(s) |
| Pallet gross weight | 631.2 kg |
| Products per pallet | 60 pc(s) |
| Layers per pallet | 5 pc(s) |
| Master (outer) cases per pallet | 20 pc(s) |
