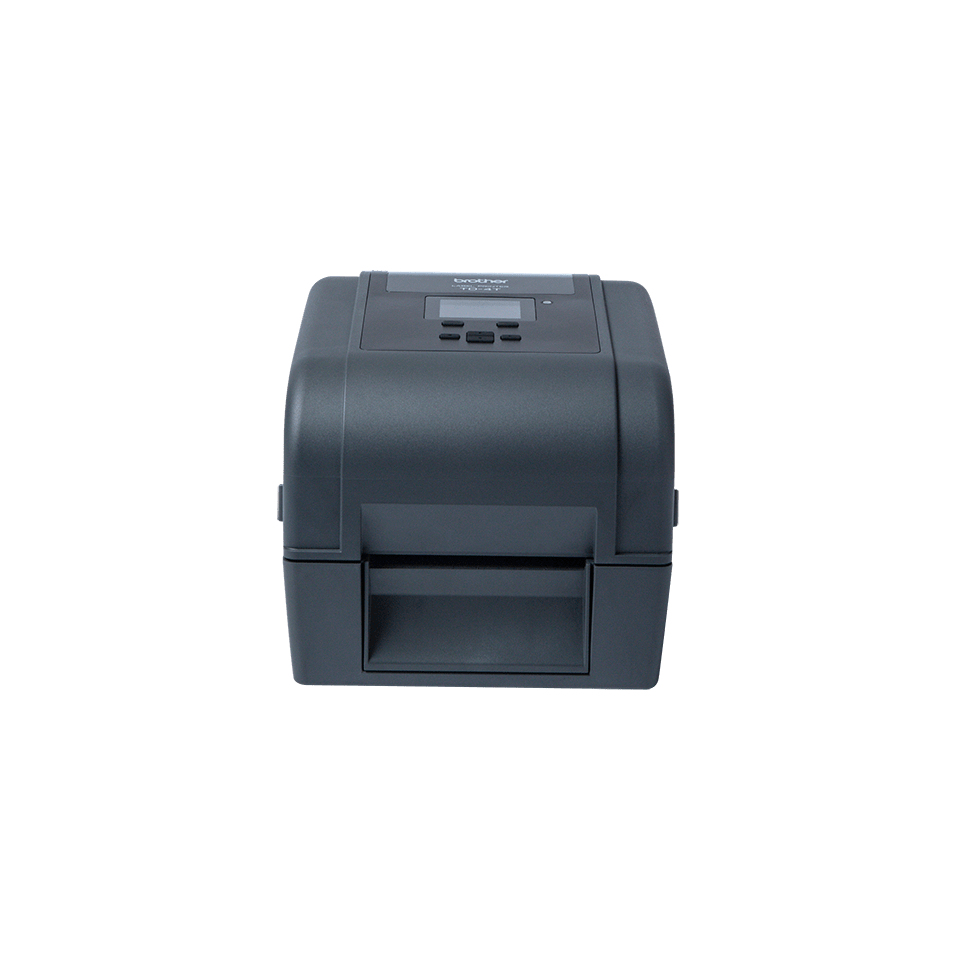

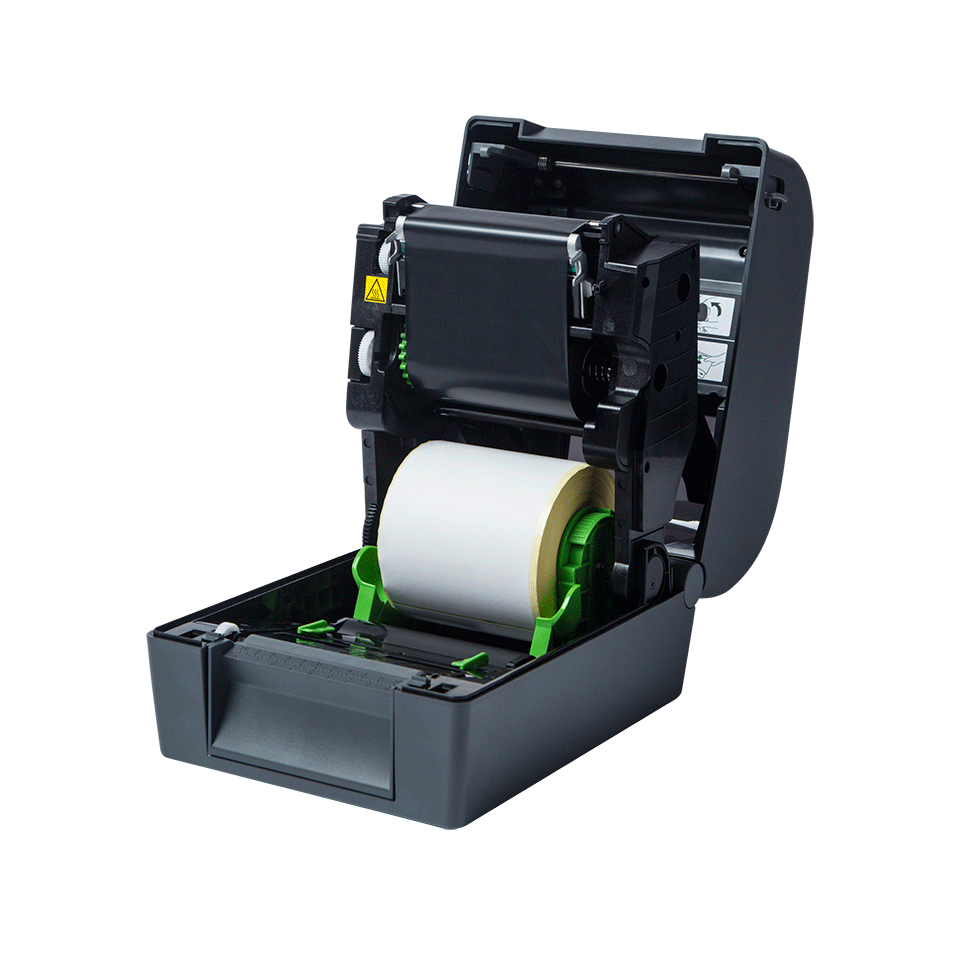

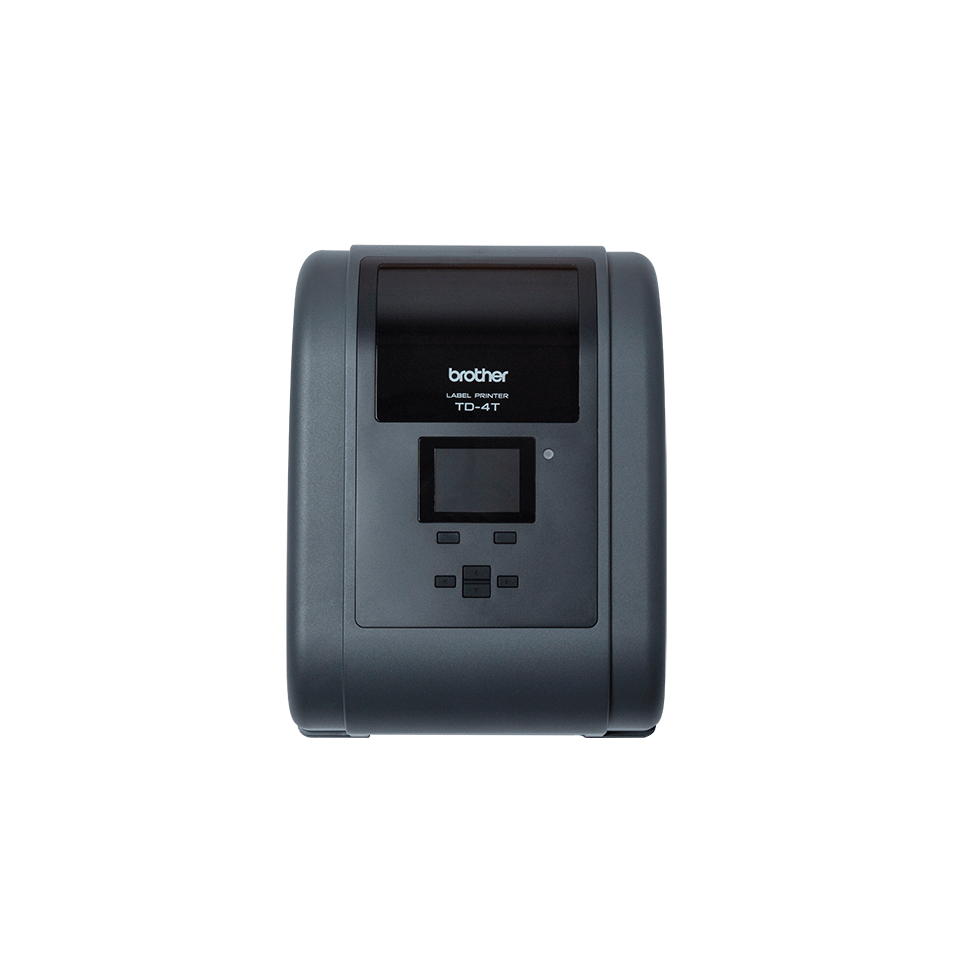

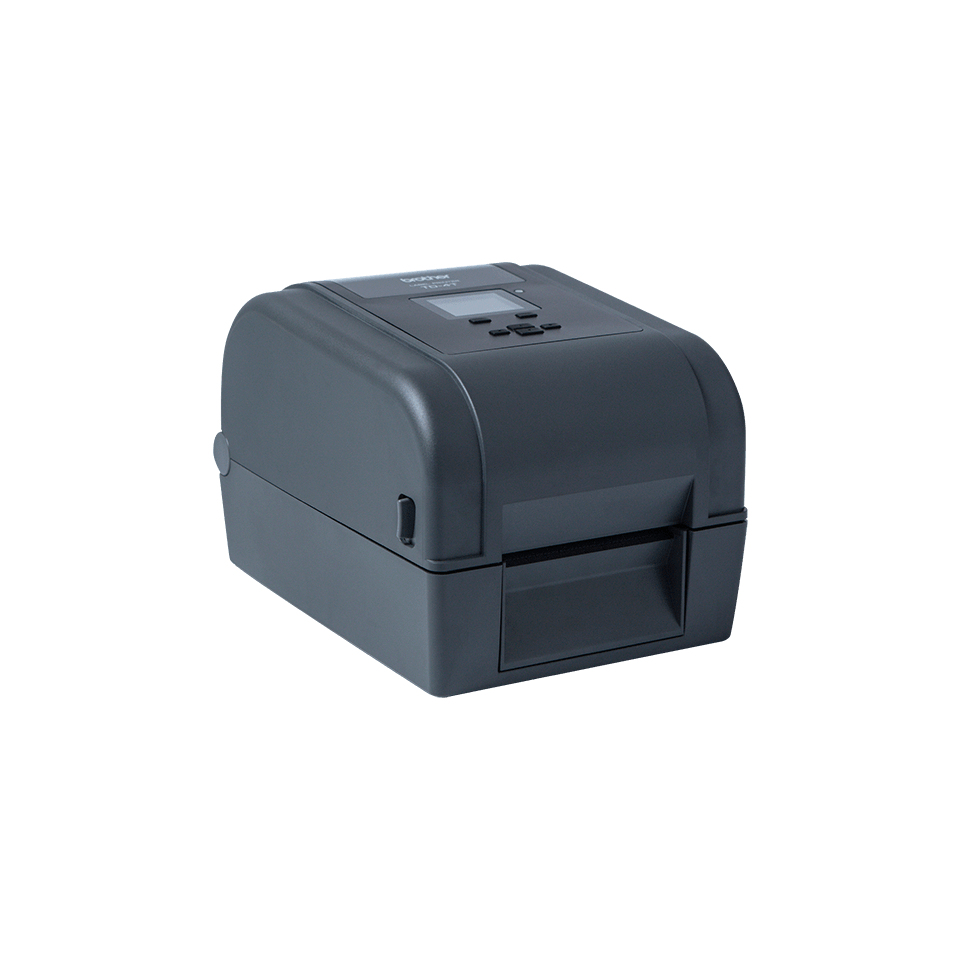

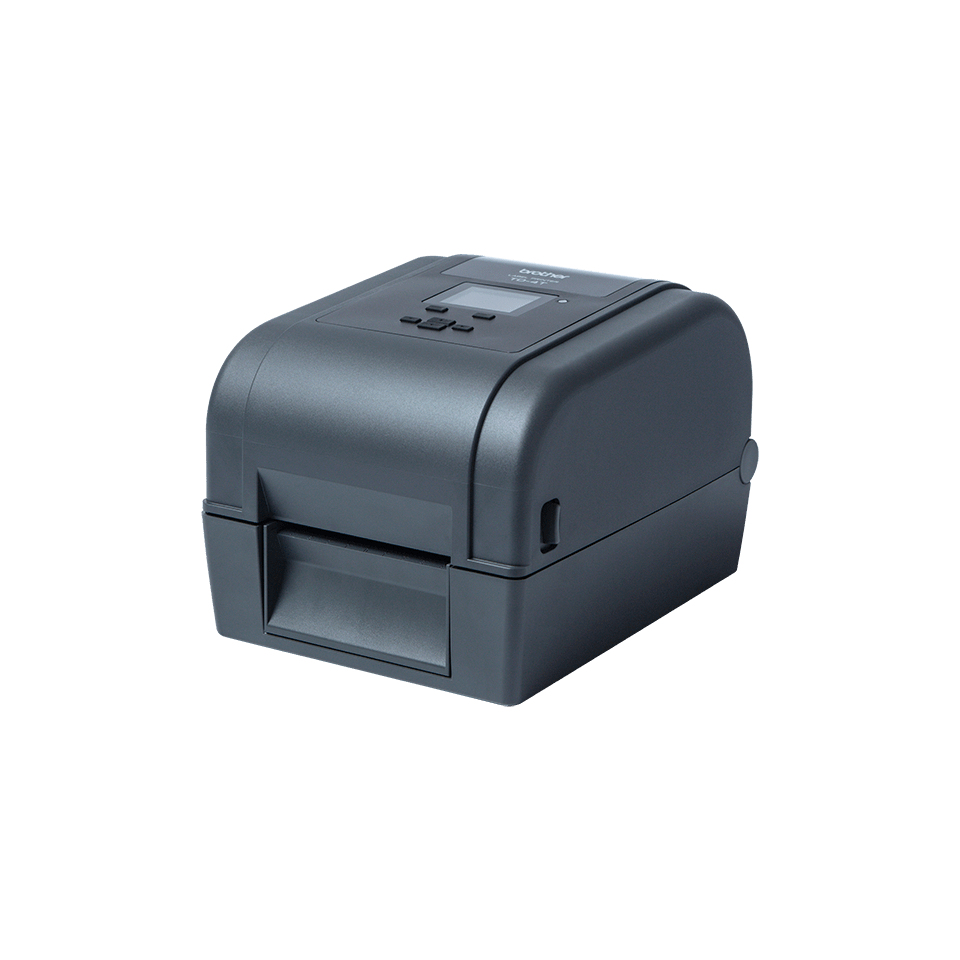

4inch thermal transfer printer with 203dpi and wireless flexibility. Suited for precise labeling. Thermal Transfer. WiFi. Bluetooth. USB. Serial Ethernet
Introduction
The TD-4650TNWB versatile thermal label printer uses high capacity thermal transfer ink ribbons for durable labelling and ultimate productivity. Seamlessly integrate into your existing systems with industry standard printer command languages.
Specifications
| Print quality | |
|---|---|
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 10.8 cm |
| Printing | |
| Colour | No |
| Print speed | 203.2 mm/sec |
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 10.8 cm |
| Print technology | Direct thermal / Thermal transfer |
| Maximum print length | 25.4 m |
| Display | |
| Display diagonal | 5.84 cm (2.3") |
| Colour display | Yes |
| Display | LCD |
| Network | |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Memory | |
| Internal memory | 128 MB |
| Flash memory | 128 MB |
| Paper handling | |
| Maximum roll diameter | 12.7 cm |
| Maximum label width | 11.2 cm |
| Ports & interfaces | |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Connectivity technology | Wired & Wireless |
| Bluetooth version | 4.2 |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| USB port | Yes |
| Performance | |
| Languages support | Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Norwegian, Portuguese, Slovenian |
| Built-in barcodes | AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Code-128 Codabar Library, EAN128, EAN13, EAN8, GS1 DataBar, ITF-14, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E |
| Internal memory | 128 MB |
| Flash memory | 128 MB |
| Design | |
| Display diagonal | 5.84 cm (2.3") |
| Colour display | Yes |
| Display | LCD |
| Product colour | Black |
| Control type | Buttons |
| Built-in display | Yes |
| Technical details | |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Product colour | Black |
| Built-in barcodes | AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Code-128 Codabar Library, EAN128, EAN13, EAN8, GS1 DataBar, ITF-14, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E |
| Maximum label width | 11.2 cm |
| Country of origin | Taiwan |
| Products per pallet | 30 pc(s) |
| Layers per pallet | 5 pc(s) |
| Master (outer) cases per pallet | 30 pc(s) |
| Sustainability certificates | ENERGY STAR |
| Harmonized System (HS) code | 84433210 |
| Pallet type | 800 x 1200 mm |
| Software | |
| Bundled software | Bartender Ultra Lite Edition |
| System requirements | |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Operational conditions | |
| Storage temperature (T-T) | 10 - 90 °C |
| Storage relative humidity (H-H) | 25 - 85% |
| Operating temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 5 - 40% |
| Weight & dimensions | |
| Width | 219 mm |
| Depth | 285 mm |
| Height | 191 mm |
| Weight | 3 kg |
| Package weight | 4.77 kg |
| Packaging data | |
| Package weight | 4.77 kg |
| Packaging content | |
| Software development kit (SDK) | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Cables included | AC, USB |
| Bundled software | Bartender Ultra Lite Edition |
| Other features | |
| Products per pallet | 30 pc(s) |
| Layers per pallet | 5 pc(s) |
| Master (outer) cases per pallet | 30 pc(s) |
| Languages support | Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Norwegian, Portuguese, Slovenian |
| Country of origin | Taiwan |
| Spare part retention | 5 year(s) |
| Logistics data | |
| Pallet gross height | 13.8 cm |
| Master (outer) cases per pallet layer | 6 pc(s) |
| Pallet gross weight | 163.2 kg |
| Products per pallet | 30 pc(s) |
| Layers per pallet | 5 pc(s) |
| Master (outer) cases per pallet | 30 pc(s) |
| Harmonized System (HS) code | 84433210 |
