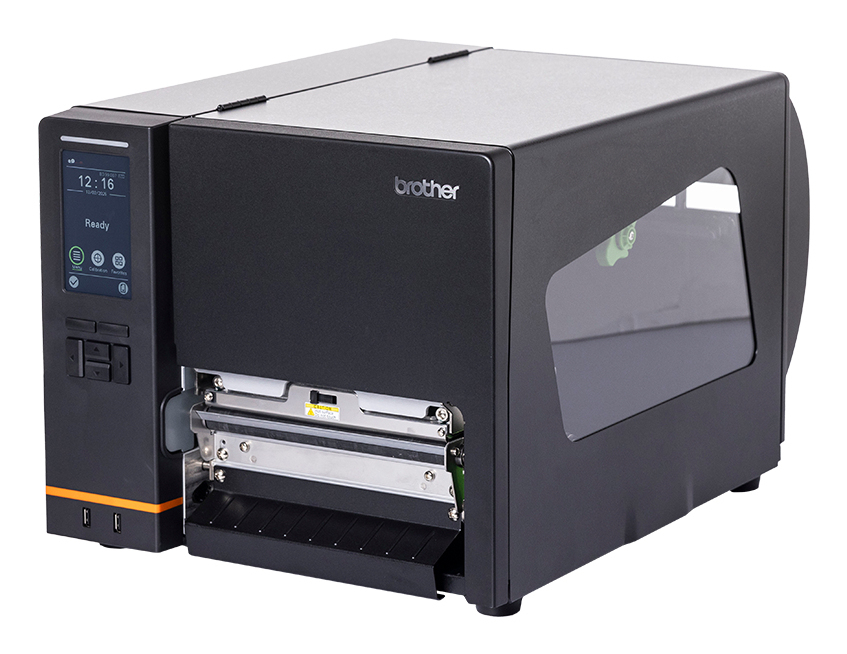

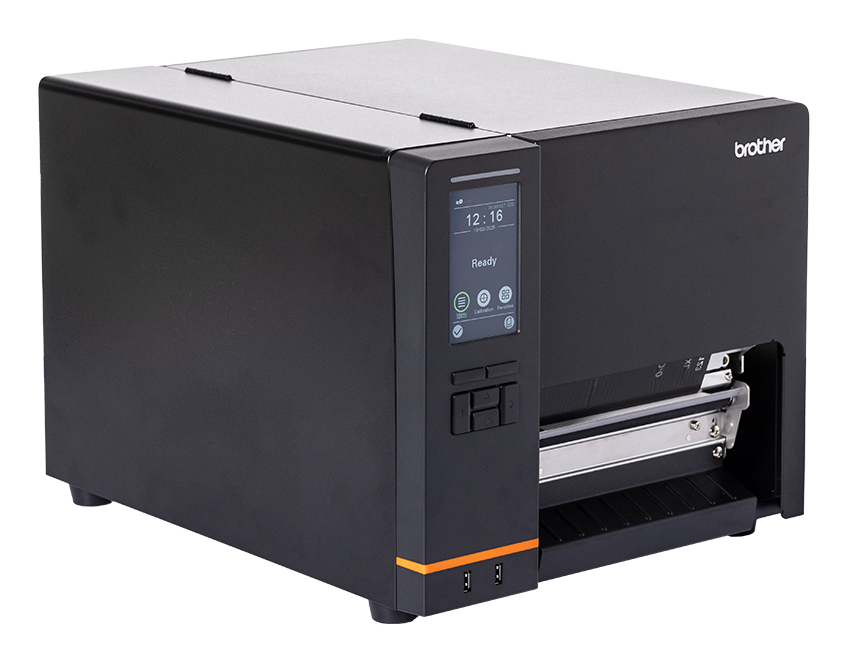

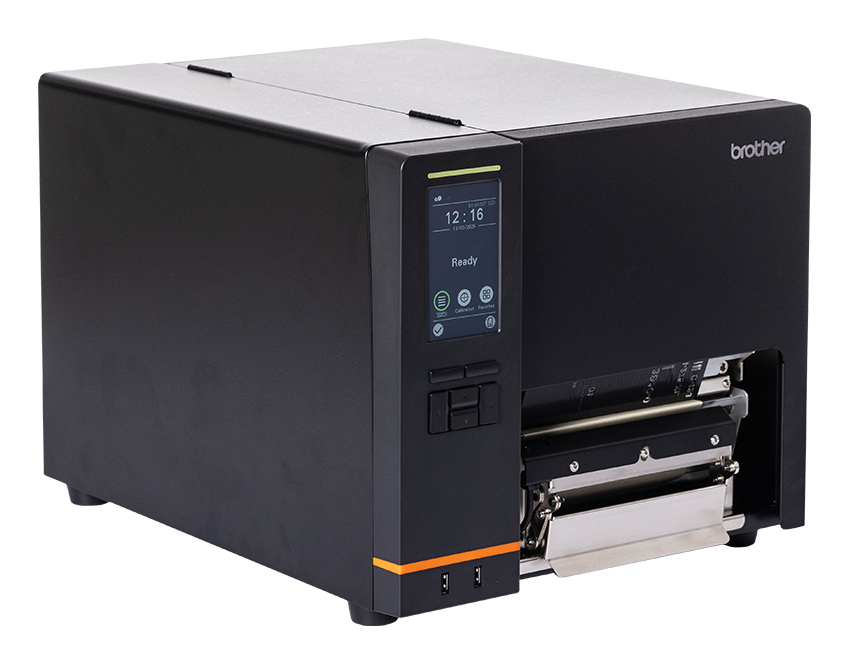

Industrial 6-inch thermal transfer printer delivering sharp 300dpi output. Built for demanding environments with LED and touchscreen. 300dpi Thermal Transfer LED Touchscreen
Introduction
The industry of transport and logistics are constantly looking for productivity advances, the TJ-6421TN incorporates modern label printing technology with traditional product durability.
The TJ-6421TN is built to last within tough working conditions, deliver on performance and print high-quality labels. This label printer becomes part of the team assisting floor staff with picking orders, pallet labels and manufacturing labelling.
This 6-inch label printer was designed for SSCC product labelling so that logistics companies can keep up with demands of tracking and traceability.
Specifications
| Print quality | |
|---|---|
| Maximum resolution | 203 x 300 DPI |
| Maximum printing width | 17.3 cm |
| Printing | |
| Minimum print length | 14.7 m |
| Colour | Yes |
| Print speed | 10 lpm |
| Print speed | 304.8 mm/sec |
| Maximum resolution | 203 x 300 DPI |
| Maximum printing width | 17.3 cm |
| Print technology | Direct thermal / Thermal transfer |
| Display | |
| Display diagonal | 10.9 cm (4.3") |
| Display | LED |
| Network | |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Memory | |
| Internal memory | 256 MB |
| Flash memory | 512 MB |
| Paper handling | |
| Ribbon width | 17.8 cm |
| Ribbon length | 450 m |
| Maximum roll diameter | 20.8 cm |
| Autocutter | Yes |
| Core diameters supported | 38.1 mm (1.5") |

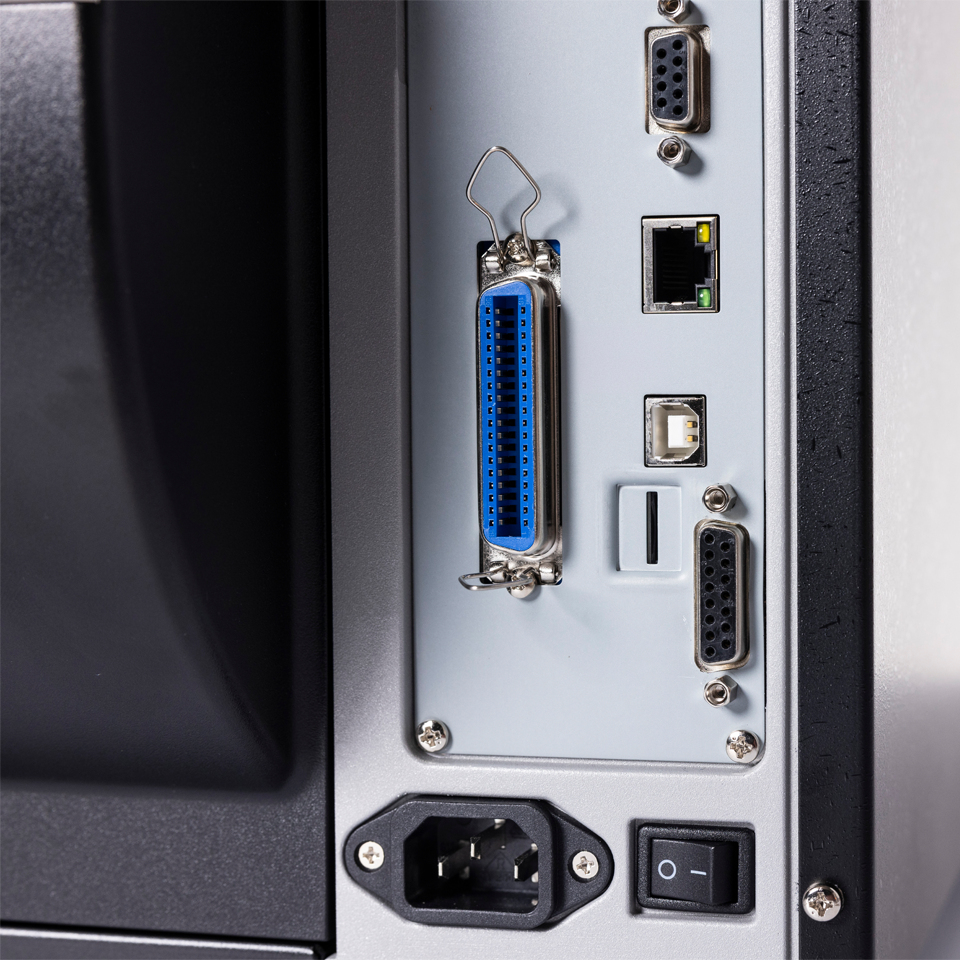

| Ports & interfaces | |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Connectivity technology | Wired |
| Bluetooth version | 4.2 |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| USB port | Yes |
| Performance | |
| Mobile operating systems supported | Android 13.0, iOS 12, iOS 16 |
| Built-in barcodes | AZTECCODE, China post, Codablock F, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code-128 Codabar Library, Code128UCC, Deutsche Post Identcode, Deutsche Post Leitcode, EAN128, EAN13, EAN14, EAN8, GS1 DataBar, GS1 DataMatrix, ITF-14, Industrial 2/5, Interleaved 2/5, LOGMARS, MSI, MaxiCode, MicroPDF417, PDF417, Planet, POSTNET, Plessey, QR Code, Standard 2/5, TELEPEN, TELEPENN, TLC39, UPC 2(5) |
| Ribbon width | 17.8 cm |
| Ribbon length | 450 m |
| Internal memory | 256 MB |
| Flash memory | 512 MB |
| Page description languages | DPL, EPL2 |
| Design | |
| Display diagonal | 10.9 cm (4.3") |
| Display | LED |
| Product colour | Black |
| Control type | Buttons |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Polish |
| Technical details | |
| Server operating systems supported | SUSE Linux Enterprise Server 12 |
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac operating systems supported | Yes |
| Product colour | Black |
| Built-in barcodes | AZTECCODE, China post, Codablock F, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code-128 Codabar Library, Code128UCC, Deutsche Post Identcode, Deutsche Post Leitcode, EAN128, EAN13, EAN14, EAN8, GS1 DataBar, GS1 DataMatrix, ITF-14, Industrial 2/5, Interleaved 2/5, LOGMARS, MSI, MaxiCode, MicroPDF417, PDF417, Planet, POSTNET, Plessey, QR Code, Standard 2/5, TELEPEN, TELEPENN, TLC39, UPC 2(5) |
| Ribbon width | 17.8 cm |
| Ribbon length | 450 m |
| Warranty period | 5 year(s) |
| Software | |
| Bundled software | BarTender Ultra Lite Edition: Barcode label design software |
| System requirements | |
| Mobile operating systems supported | Android 13.0, iOS 12, iOS 16 |
| Linux operating systems supported | Yes |
| Server operating systems supported | SUSE Linux Enterprise Server 12 |
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 25 - 85% |
| Weight & dimensions | |
| Width | 357 mm |
| Depth | 510 mm |
| Height | 313 mm |
| Weight | 17.9 kg |
| Packaging content | |
| Cables included | AC, USB |
| Bundled software | BarTender Ultra Lite Edition: Barcode label design software |
| Other features | |
| Warranty period | 5 year(s) |
