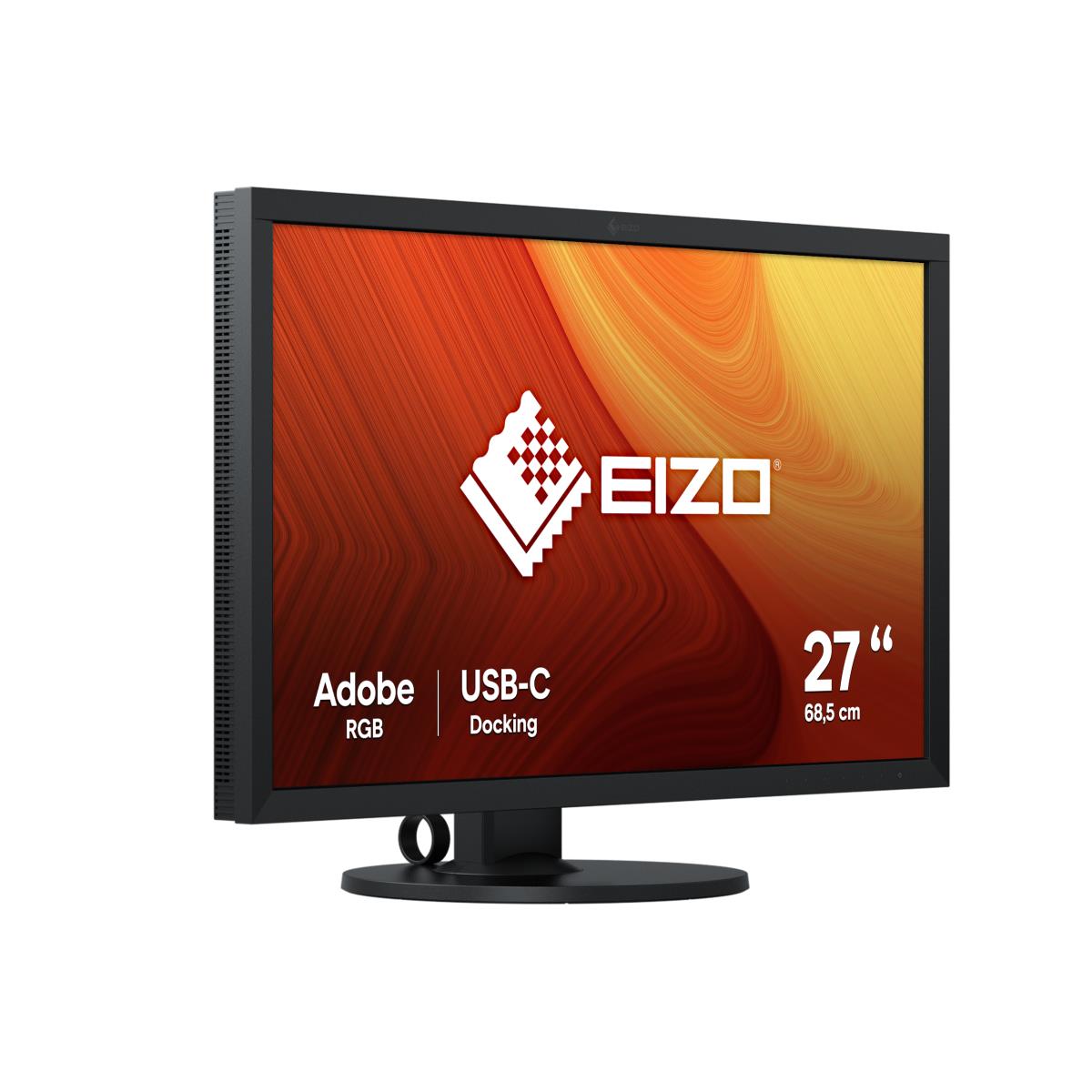

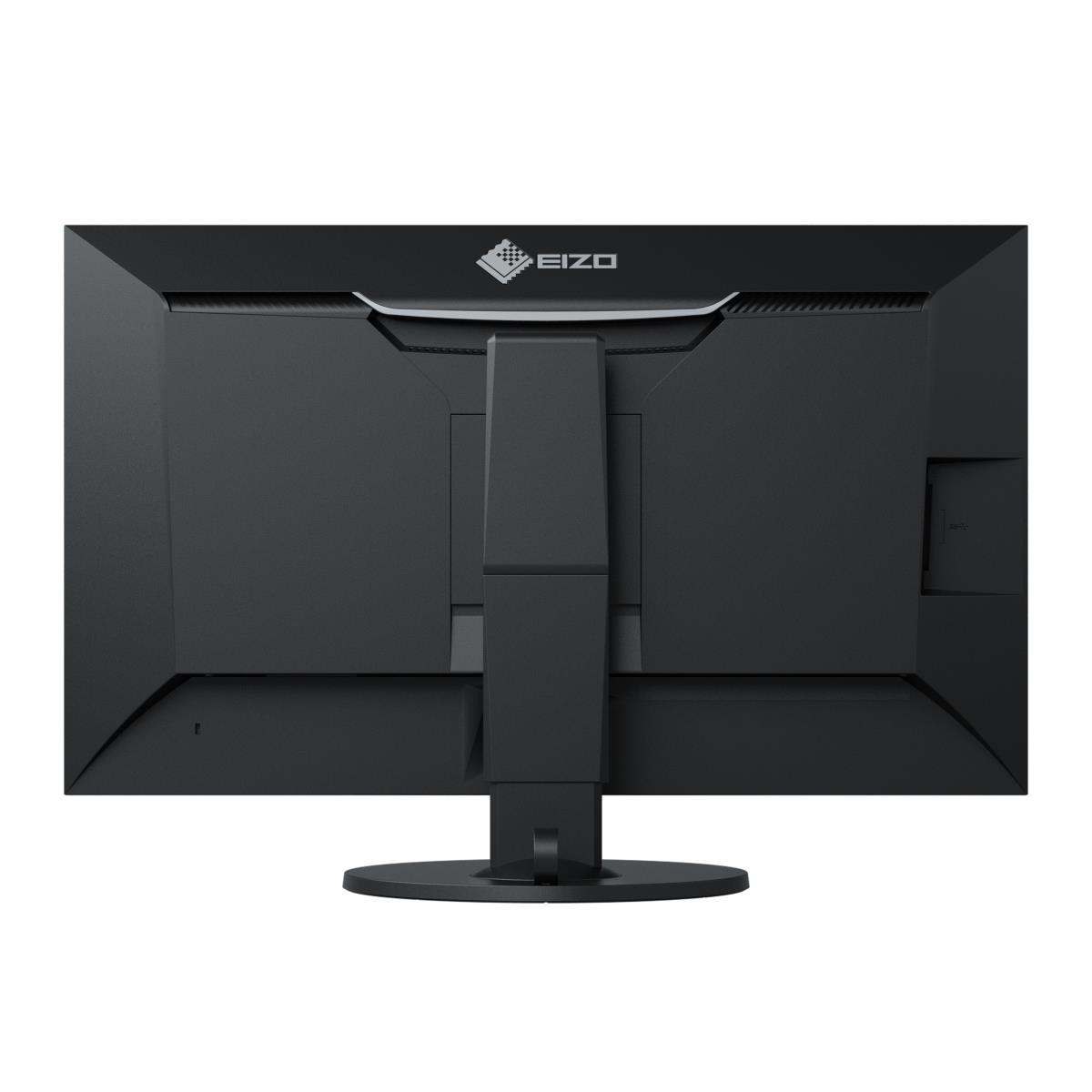

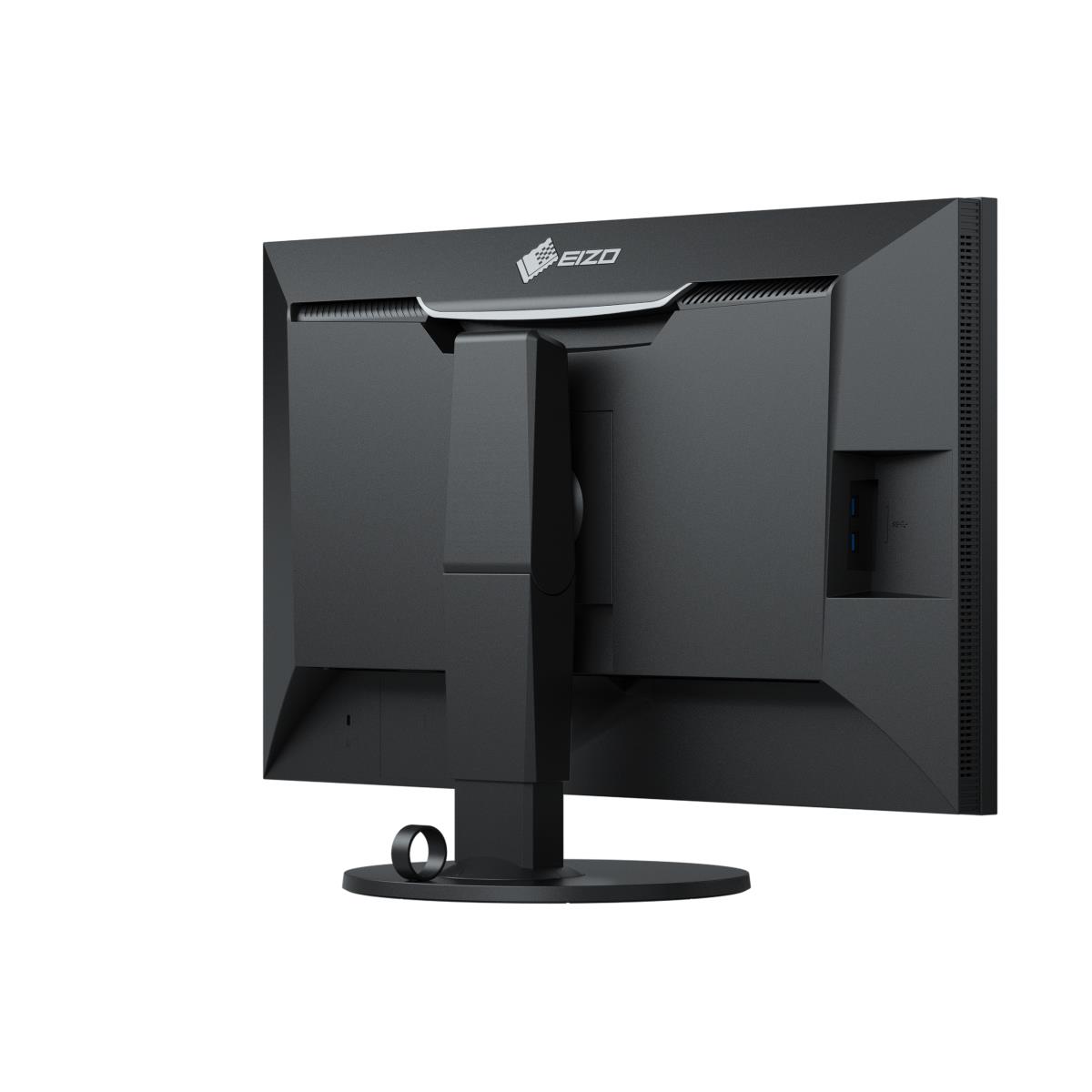

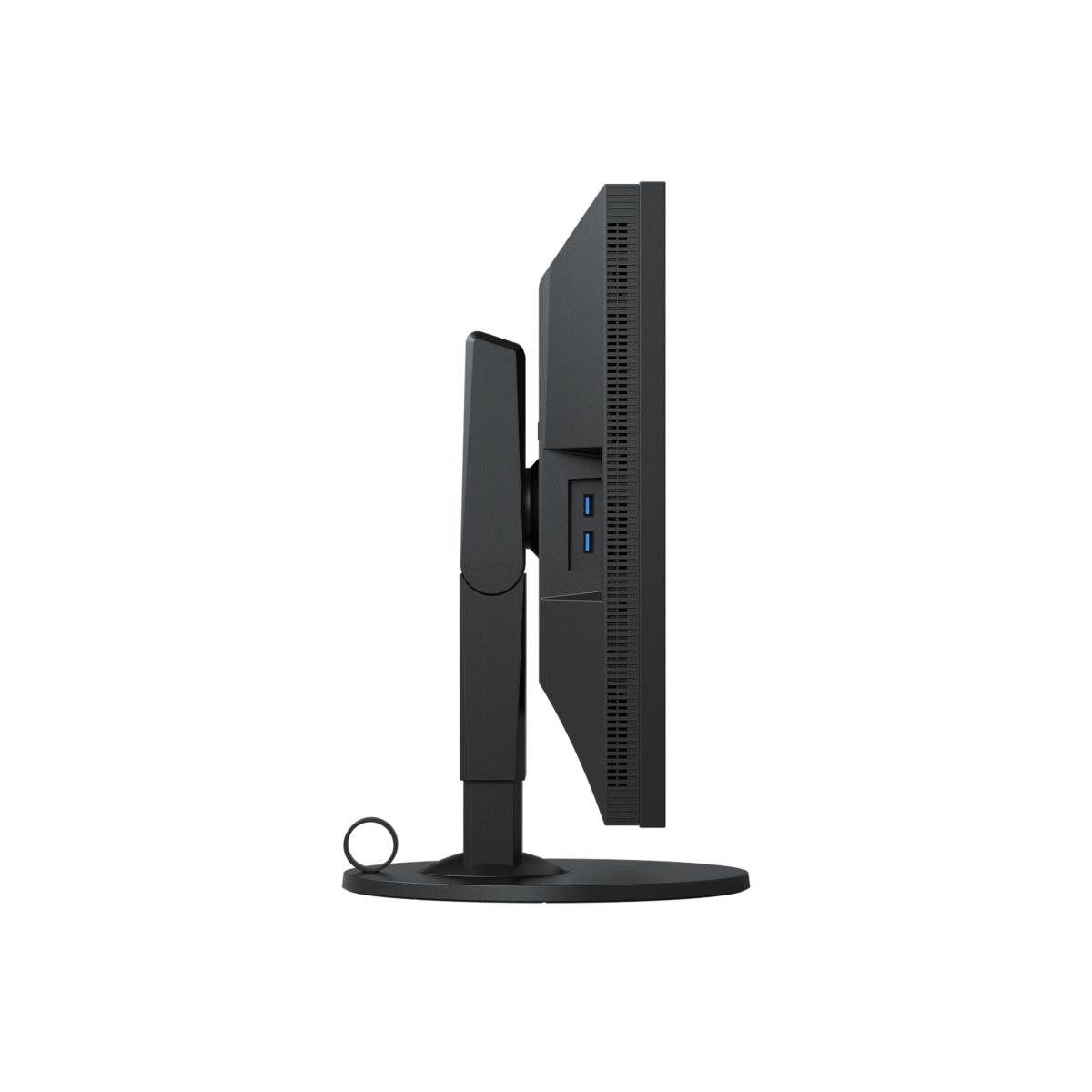

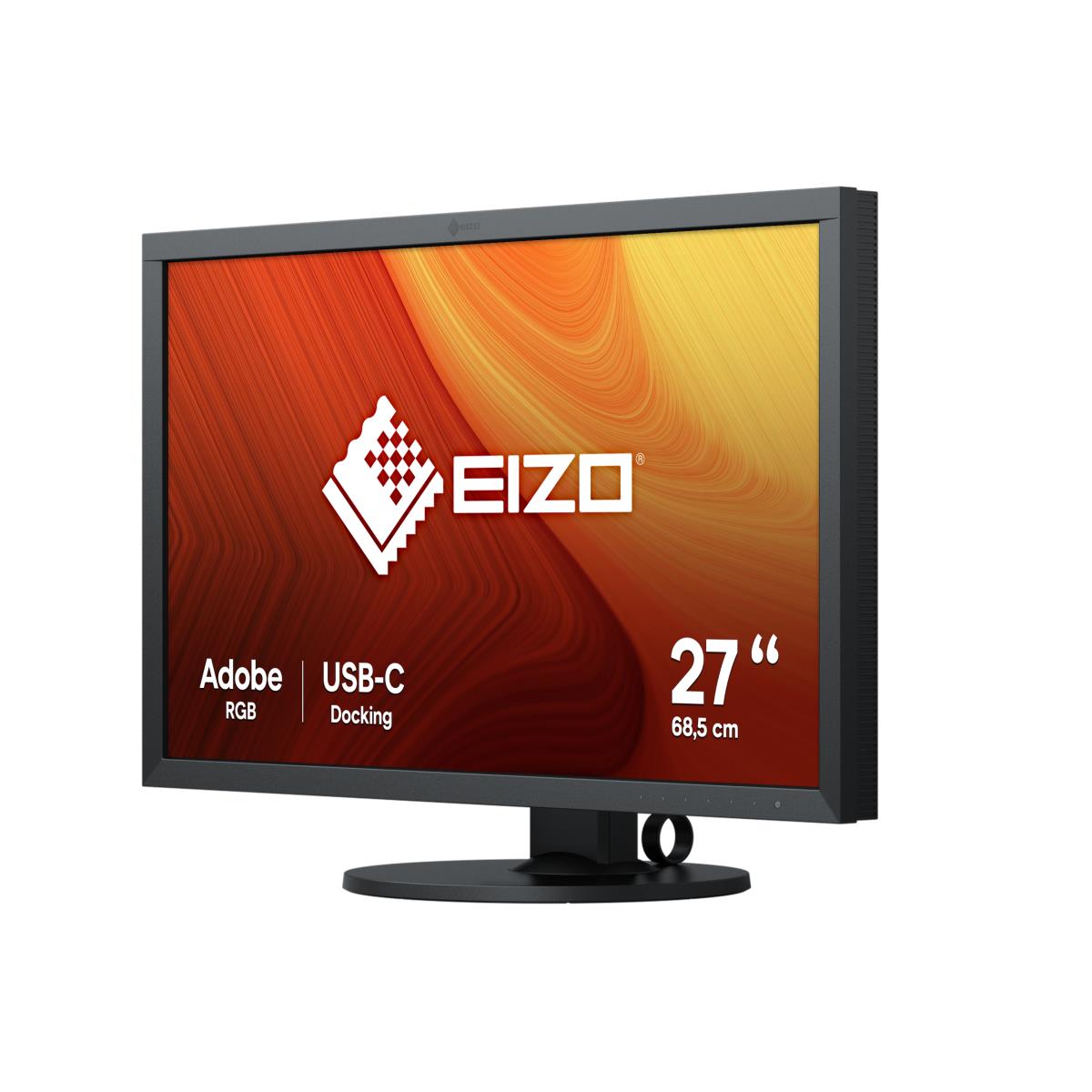

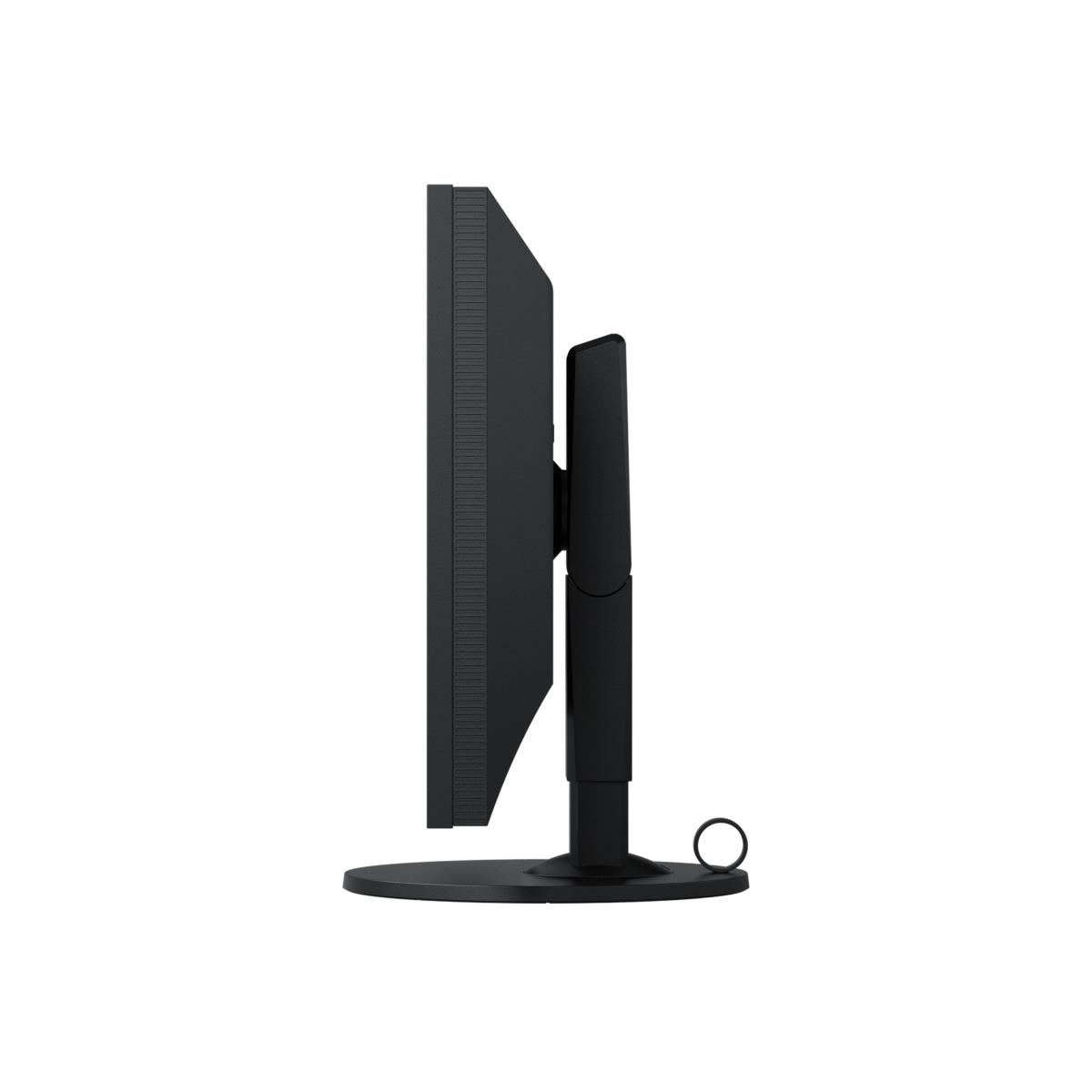

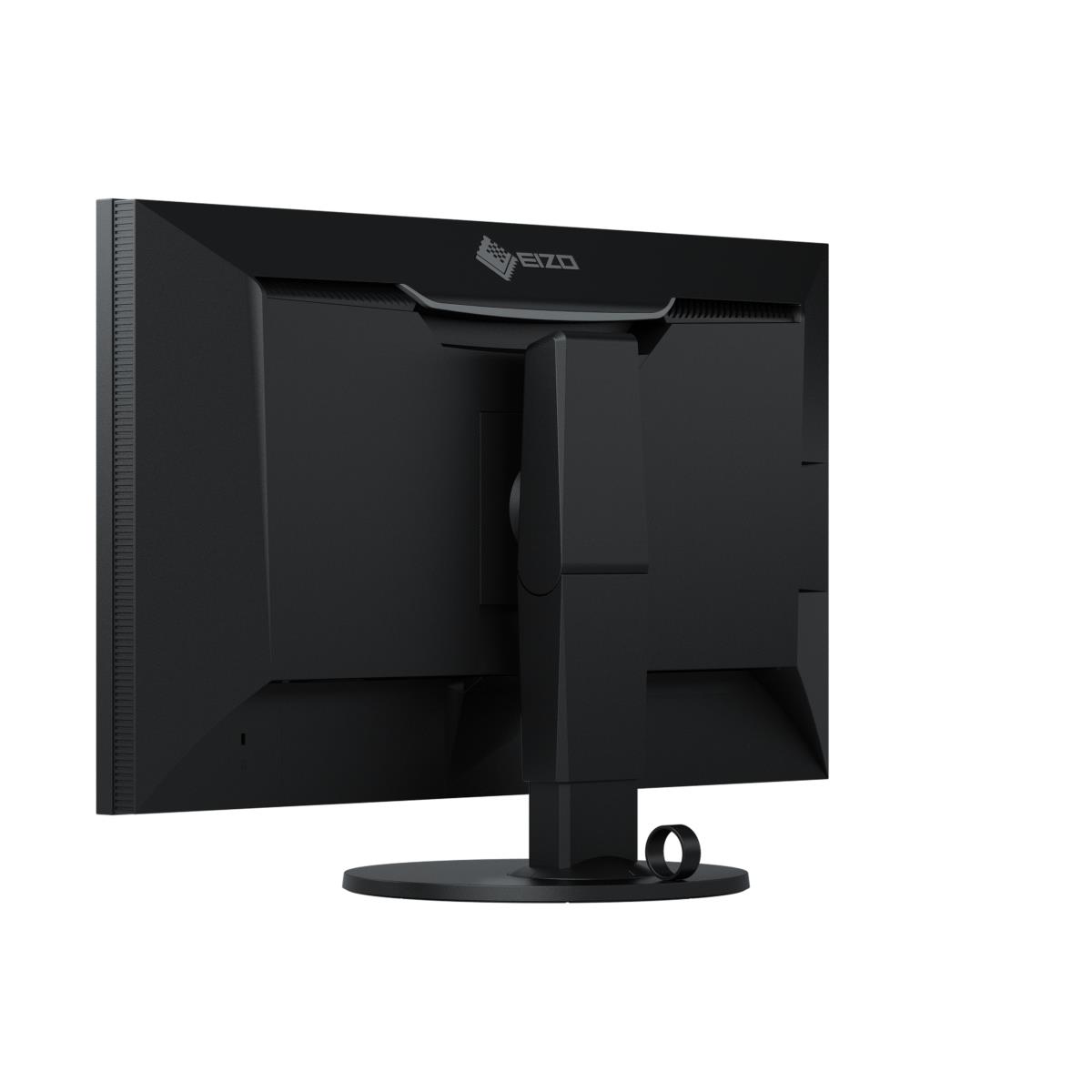

COLOREDGE CS2731-BK 27 HDMI DP USB-C
Introduction
The CS2731 unites precision, colour fidelity and cutting-edge connectivity thanks to its USB-C port. This makes the monitor the central interface for the graphic workflow of sophisticated creatives with high standards. The wide gamut, 16-bit look-up-table and precise factory calibration of the CS2731 allows you to enjoy an unadulterated look at your image files in creative workflows requiring high colour accuracy. Convenient functionalities such as monitor signal transmission, rapid data transfer and the power supply feature for connected devices are enabled with just one USB-C port.
Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 350 cd/m² |
| Screen shape | Flat |
| Display number of colours | 1.073 billion colours |
| Native aspect ratio | 16:9 |
| Pixel density | 109 ppi |
| Maximum refresh rate | 60 Hz |
| sRGB coverage (typical) | 100% |
| Adobe RGB coverage | 99% |
| HD type | Quad HD |
| Display technology | LCD |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.233 x 0.233 mm |
| Viewable size, horizontal | 59.7 cm |
| Viewable size, vertical | 33.6 cm |
| Digital horizontal frequency | 15 - 89 kHz |
| Digital vertical frequency | 23 - 61 Hz |
| Supported graphics resolutions | 2560 x 1440, 1920 x 1200 (WUXGA) |
| Supported video modes | 1080p, 1080i, 720p, 576p, 576i, 480p, 480i |
| Backlight type | W-LED |
| Display resolution | 2560 x 1440 pixels |
| Response time | 16 ms |
| Display diagonal | 68.6 cm (27") |
| Contrast ratio (typical) | 1000:1 |
| Touchscreen | No |
| Panel type | IPS |
| Colour depth | 10 bit |
| DCI-P3 coverage | 95% |
| Hardware calibration | Yes |
| LED backlight | Yes |
| Colour gamut standard | Adobe RGB, DCI-P3, sRGB |
| Anti-glare screen | Yes |
| Audio | |
| Built-in speaker(s) | No |
| Performance | |
| Built-in speaker(s) | No |
| Built-in camera | No |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Flicker-free technology | Yes |
| Management features | |
| On Screen Display (OSD) | Yes |
| Multimedia | |
| Built-in speaker(s) | No |
| Built-in camera | No |
| Design | |
| Market positioning | Photo editing |
| Feet colour | Black |
| Certification | CE, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241- 307), cTÜVus, TÜV/S, EAC, PSE, FCC-B, CAN ICES-3 (B), RCM, VCCI-B, CCC, RoHS, China RoHS, WEEE |
| Product colour | Black |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 2.0 / 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-B, USB Type-C |
| Number of upstream ports | 2 |
| USB Type-A downstream ports quantity | 4 |
| DVI port | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDMI | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 60 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Number of USB Type-B upstream ports quantity | 1 |
| Number of USB Type-C upstream ports quantity | 1 |
| Built-in KVM switch | Yes |
| Technical details | |
| Height (without stand) | 378.2 mm |
| Depth (without stand) | 75 mm |
| Width (without stand) | 638 mm |
| Feet colour | Black |
| Cable lock slot | Yes |
| HDMI | Yes |
| Product colour | Black |
| Warranty period | 5 year(s) |
| Compliance certificates | RoHS |
| Power supply type | Internal |
| Weight (with stand) | 10.1 kg |
| Touchscreen | No |
| Ergonomics | |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| Swivelling | Yes |
| Swivel angle range | 0 - 344° |
| Tilt angle range | -5 - 35° |
| Pivot | Yes |
| On Screen Display (OSD) | Yes |
| Pivot angle | -90 - 90° |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Tilt adjustment | Yes |
| Adjustable height (max) | 15.5 cm |
| Power | |
| Power supply type | Internal |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 159 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 35.7 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 35.7 kWh |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Height (without stand) | 378.2 mm |
| Depth (without stand) | 75 mm |
| Width (without stand) | 638 mm |
| Width (with stand) | 638 mm |
| Depth (with stand) | 265 mm |
| Height (with stand) | 404.1 mm |
| Weight (with stand) | 10.1 kg |
| Weight (without stand) | 6.5 kg |
| Packaging content | |
| Stand included | Yes |
| Quick start guide | Yes |
| Cables included | AC, HDMI, USB Type-C to USB Type-C |
| Packaging data | |
| Stand included | Yes |
| Quick start guide | Yes |
| Cables included | AC, HDMI, USB Type-C to USB Type-C |
| Other features | |
| Certification | CE, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241- 307), cTÜVus, TÜV/S, EAC, PSE, FCC-B, CAN ICES-3 (B), RCM, VCCI-B, CCC, RoHS, China RoHS, WEEE |
| DCI-P3 coverage | 95% |
| Hardware calibration | Yes |
| Warranty period | 5 year(s) |
| Look-up table (LUT) bit depth | 16 |
| Compliance certificates | RoHS |
| Height (without stand) | 378.2 mm |
| Depth (without stand) | 75 mm |
| Width (without stand) | 638 mm |
| Power consumption (max) | 159 W |
| Quick start guide | Yes |
| HDMI | Yes |
| USB Power Delivery up to | 60 W |
| Energy efficiency scale | A to G |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Power supply type | Internal |
| Touchscreen | No |
| USB Power Delivery (USB PD) | Yes |
| Certificates | |
| Certification | CE, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241- 307), cTÜVus, TÜV/S, EAC, PSE, FCC-B, CAN ICES-3 (B), RCM, VCCI-B, CCC, RoHS, China RoHS, WEEE |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
