24IN IPS 4-SIDE SLIM BEZEL
Introduction
With an integrated USB-C dock, it allows you to connect your laptop, transfer video, and power or charge your device using a single cable. The DisplayPort output lets you easily connect a second monitor, making it ideal for multitasking and extended desktop setups. When the monitor is connected to the internet via LAN, your laptop also gains instant access to a wired network. Alongside USB-C, the monitor features HDMI and DisplayPort inputs to support a wide range of devices, as well as a USB hub for connecting peripherals directly. Flicker free technology helps reduce eye strain. The monitor is also certified for Eye Comfort, ensuring viewing comfort throughout the day. The ergonomic stand offers height adjustment, tilt, swivel and pivot functions, allowing you to position the screen to your needs. With a four side slim bezel design, the XB2497HSN-B1 is an excellent choice for clean, modern, and multi-monitor workspaces.
Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 350 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| Maximum refresh rate | 100 Hz |
| sRGB coverage (typical) | 99% |
| Display surface | Matt |
| HD type | Full HD |
| Display technology | LED |
| Contrast ratio (dynamic) | 80000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.275 x 0.275 mm |
| Horizontal scan range | 30 - 115 kHz |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Display resolution | 1920 x 1080 pixels |
| Response time | 1 ms |
| Display diagonal | 60.5 cm (23.8") |
| Contrast ratio (typical) | 1500:1 |
| NTSC coverage (typical) | 72% |
| Touchscreen | No |
| Panel type | IPS |
| Display diagonal (metric) | 60.5 cm |
| Response time (MPRT) | 1 ms |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Built-in camera | No |
| AMD FreeSync | Yes |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Management features | |
| On Screen Display (OSD) languages | Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian, Ukrainian |
| Network | |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Built-in camera | No |
| Power | |
| Power cable length | 1.5 m |
| Power supply type | Internal |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 15 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | D |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 14.4 kWh |
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Camera | |
| Built-in camera | No |

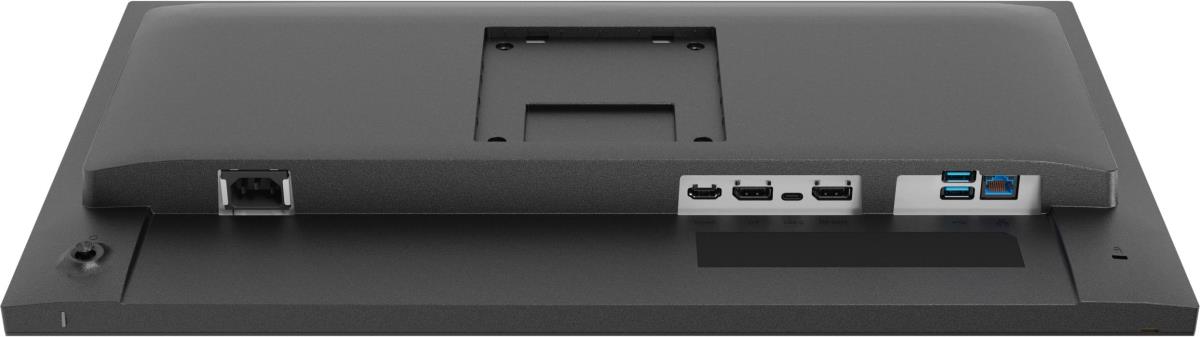

| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-C |
| Headphone out | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDMI | Yes |
| HDMI version | 1.4 |
| DisplayPort version | 1.2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 65 W |
| Number of USB Type-C upstream ports quantity | 1 |
| DisplayPort out quantity | 1 |
| Number of downstream ports | 4 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Technical details | |
| Height (without stand) | 373.5 mm |
| Cable lock slot | Yes |
| HDMI | Yes |
| Product colour | Black |
| User controls | picture adjust (brightness, contrast, ECO, ACR, OD, MBR, Adaptive Sync), colour settings (i-Style colour, RGB range, colour temp., user preset), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time, OSD background, DDC/CI control, display information), language, extra 1 (sharpness, video mode adjust, opening logo, power LED, USB charge, USB-C speed, MST DP-out), extra 2 (shortcut key, Mac address, FW version), input select, audio settings (volume, mute), reset (reset all?) |
| Sustainability certificates | ErP, TCO |
| Compliance certificates | CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE |
| Packaging content | quick start guide, safety guide |
| Power supply type | Internal |
| Weight (with stand) | 5.1 kg |
| Touchscreen | No |
| Ergonomics | |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| Swivelling | Yes |
| Swivel angle range | -60 - 60° |
| Pivot | Yes |
| On Screen Display (OSD) languages | Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian, Ukrainian |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Weight & dimensions | |
| Height (without stand) | 373.5 mm |
| Width (with stand) | 538.5 mm |
| Depth (with stand) | 209.5 mm |
| Height (with stand) | 496.5 mm |
| Weight (with stand) | 5.1 kg |
| Package width | 685 mm |
| Package depth | 126 mm |
| Package height | 405 mm |
| Package weight | 6.9 kg |
| Width | 538.5 mm |
| Weight | 5.1 kg |
| Depth | 209.5 mm |
| Packaging data | |
| Package width | 685 mm |
| Package depth | 126 mm |
| Package height | 405 mm |
| Package weight | 6.9 kg |
| USB cable length | 1 m |
| Power cable length | 1.5 m |
| Cables included | AC, HDMI, USB Type-C |
| HDMI cable length | 1.5 m |
| Packaging content | |
| Power cable length | 1.5 m |
| Cables included | AC, HDMI, USB Type-C |
| HDMI cable length | 1.5 m |
| USB cable length | 1 m |
| Sustainability | |
| Sustainability certificates | ErP, TCO |
| Other features | |
| Packaging content | quick start guide, safety guide |
| Ethernet LAN (RJ-45) ports | 1 |
| User controls | picture adjust (brightness, contrast, ECO, ACR, OD, MBR, Adaptive Sync), colour settings (i-Style colour, RGB range, colour temp., user preset), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time, OSD background, DDC/CI control, display information), language, extra 1 (sharpness, video mode adjust, opening logo, power LED, USB charge, USB-C speed, MST DP-out), extra 2 (shortcut key, Mac address, FW version), input select, audio settings (volume, mute), reset (reset all?) |
| Width | 538.5 mm |
| Weight | 5.1 kg |
| Depth | 209.5 mm |
| Compliance certificates | CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE |
| Manufacturer warranty | 5 years (for details and eligible countries please check the Warranty section of our website) |
| Control panel | Joystick: (Centre) Power/Menu, Up/Signal Select, Down, Left/Shortcut, Right/Volume |
| Height (without stand) | 373.5 mm |
| HDMI | Yes |
| USB Power Delivery up to | 65 W |
| Energy efficiency scale | A to G |
| Power supply type | Internal |
| Power cable length | 1.5 m |
| Ethernet LAN | Yes |
| Touchscreen | No |
| USB Power Delivery (USB PD) | Yes |
