Introduction

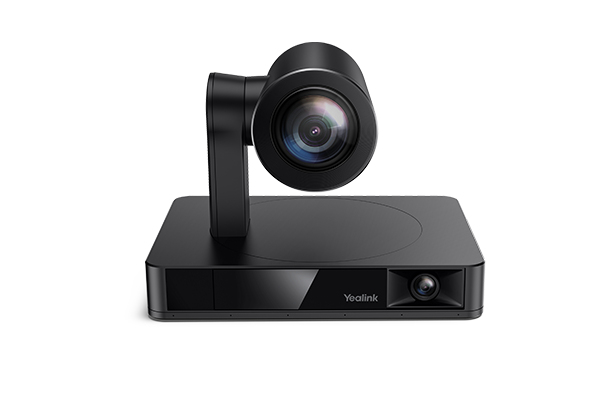

The UVC86 is a 4K dual-eye intelligent camera ideal for medium and large rooms, capturing every participant and detail. With Auto Framing, Speaker Tracking, and Presenter Tracking features, the UVC86 provides a face-to-face, intelligent, and seamless video experience by precisely capturing every moment and detail, always showcasing the best view of your room. The UVC86 camera includes a built-in PTZ camera with a 90° field of view and a panoramic lens with a 120° view, allowing you to tilt up and down effortlessly via remote control or Yealink camera control plug-in software for enhanced collaboration.
Specifications
| Video | |
|---|---|
| Maximum frame rate | 30 fps |
| Megapixel (approx.) | 8 MP |
| Lens system | |
| Optical zoom | 12x |
| Digital zoom | 1.7x |
| Camera | |
| Diagonal field of view | 90° |
| Interface | RJ-45 |
| Face tracking | Yes |
| Viewing angle, horizontal | 81° |
| Viewing angle, vertical | 50° |
| Zoom capability | Yes |
| Product colour | Black |
| Built-in microphone | Yes |
| Power | |
| Operating voltage | 48 V |
| Performance | |
| Camera HD type | 4K Ultra HD |
| PTZ control | Yes |
| Diagonal field of view | 90° |
| Optical zoom | 12x |
| Digital zoom | 1.7x |
| Face tracking | Yes |
| Viewing angle, horizontal | 81° |
| Viewing angle, vertical | 50° |
| Zoom capability | Yes |
| Operating voltage | 48 V |
| Maximum frame rate | 30 fps |
| Megapixel (approx.) | 8 MP |
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Operating current | 7 A |
| Windows operating systems supported | Windows 7, Windows 10 |
| Mac operating systems supported | Mac OS 12.4, Mac OS 13.1, Mac OS 14.5, Mac OS 26 Tahoe, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Design | |
| Interface | RJ-45 |
| Tilt angle range | 40 - -90° |
| Pan range | -100 - 100° |
| Product colour | Black |
| Built-in microphone | Yes |
| Country of origin | China |
| Software | |
| Windows operating systems supported | Windows 7, Windows 10 |
| Mac operating systems supported | Mac OS 12.4, Mac OS 13.1, Mac OS 14.5, Mac OS 26 Tahoe, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width | 174 mm |
| Depth | 180 mm |
| Height | 63 mm |
| Weight | 4.24 kg |
| Packaging data | |
| Quantity | 1 |
| Package width | 580 mm |
| Package height | 497 mm |
| Package depth | 410 mm |
| Package weight | 4.54 kg |
| AC adapter included | Yes |
| Packaging content | |
| AC adapter included | Yes |
| Remote control included | Yes |
| Technical details | |
| Quantity | 1 |
| Tilt angle range | 40 - -90° |
| Pan range | -100 - 100° |
| Microphone | |
| Built-in microphone | Yes |
| Logistics data | |
| Country of origin | China |
| Other features | |
| Country of origin | China |
