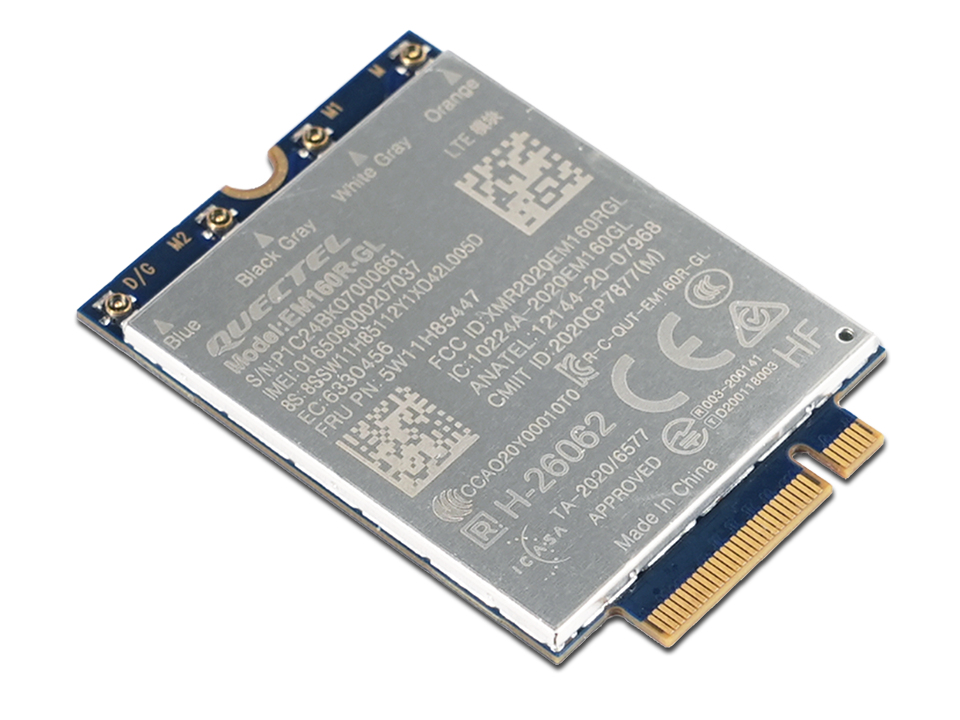

LEN QUECTEL EM160R-GL 4G LTEA C16M2
Introduction
ThinkPad Quectel EM160R-GL 4G LTE-A Cat 16 M.2 WWAN Module for X1 Carbon Gen 12/P16v Gen 2 is an LTE advanced category 16 module. Adopting the 3GPP Release 14 technology, it delivers speed of 1.0 Gbps downlink and 150 Mbps uplink peak data rates, and is designed in M.2 form factor.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Interface | WWAN |
| Host interface | M.2 |
| Connectivity technology | Wireless |
| Bandwidth | |
| Maximum data transfer rate | 1000 Mbit/s |
| Technical details | |
| Compatible products | ThinkPad P14 Series-P14s AMD G5 ThinkPad P16 Series-P16v G2 ThinkPad X1 series-X1 Carbon G12 |
| Network | |
| Maximum data transfer rate | 1000 Mbit/s |
| Mobile network generation | 4G |
| Design | |
| Compatible products | ThinkPad P14 Series-P14s AMD G5 ThinkPad P16 Series-P16v G2 ThinkPad X1 series-X1 Carbon G12 |
| Certification | NCC/ANATEL/SRRC/NAL/CCC/CE/FCC/IC/RCM/PTCRB/GCF/KC/JATE/TELEC/NBTC/IMDA/ICASA |
| Internal | Yes |
| Component for | Laptop |
| Antenna design | Internal |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 90 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 42 mm |
| Depth | 30 mm |
| Height | 2.3 mm |
| Weight | 6.8 g |
| Package width | 53 mm |
| Package depth | 144 mm |
| Package height | 177 mm |
| Package weight | 30 g |
| Packaging data | |
| Package width | 53 mm |
| Package depth | 144 mm |
| Package height | 177 mm |
| Package weight | 30 g |
| Performance | |
| Compatible products | ThinkPad P14 Series-P14s AMD G5 ThinkPad P16 Series-P16v G2 ThinkPad X1 series-X1 Carbon G12 |
| Windows operating systems supported | Windows 10, Windows 11 |
| Certificates | |
| Certification | NCC/ANATEL/SRRC/NAL/CCC/CE/FCC/IC/RCM/PTCRB/GCF/KC/JATE/TELEC/NBTC/IMDA/ICASA |
