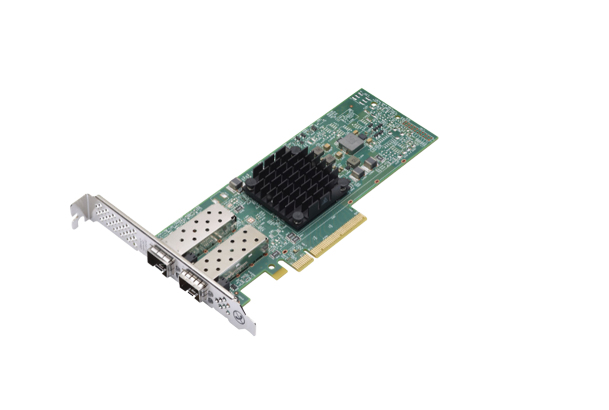

EU Product - - ThinkSystem Broadcom 57414 - Netzwerkadapter - OCP 10Gb Ethernet / 25Gb Ethernet SFP28 x 2
Introduction
The ThinkSystem Broadcom 57412 and 57414 10/25GbE SFP28 Ethernet Adapters are high-performance 25 Gb Ethernet adapters that offers TruFlow intelligent flow processing and support advanced networking technologies including RoCE, SDN, NFV and virtualization. Both 1-port (57412) and 2-port (57414) adapters are offered. - One Broadcom adapter - An attached full-height (3U) bracket, and a low-profile (2U) bracket that can be substituted if needed - Documentation flyer
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 4.0 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP28 |
| Interface | Fiber |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 25000 Mbit/s |
| Technical details | |
| Compatible products | SR635 V3 (7D9H / 7D9G) SR655 V3 (7D9F / 7D9E) SR645 V3 (7D9D / 7D9C) SR665 V3 (7D9B / 7D9A) SR630 V3 (7D72 / 7D73) SR650 V3 (7D75 / 7D76) SR850 V3 (7D97 / 7D96) SR860 V3 (7D94 / 7D93) SR630 V2 (7Z70 / 7Z71) SR650 V2 (7Z72 / 7Z73) SR670 V2 (7Z22 / 7Z23) SR635 (7Y98 / 7Y99) SR655 (7Y00 / 7Z01) SR645 (7D2Y / 7D2X) SR665 (7D2W / 7D2V) SR850 V2 (7D31 / 7D32) SR860 V2 (7Z59 / 7Z60) |
| Product colour | Black, Green, Stainless steel |
| Network | |
| Maximum data transfer rate | 25000 Mbit/s |
| Design | |
| Compatible products | SR635 V3 (7D9H / 7D9G) SR655 V3 (7D9F / 7D9E) SR645 V3 (7D9D / 7D9C) SR665 V3 (7D9B / 7D9A) SR630 V3 (7D72 / 7D73) SR650 V3 (7D75 / 7D76) SR850 V3 (7D97 / 7D96) SR860 V3 (7D94 / 7D93) SR630 V2 (7Z70 / 7Z71) SR650 V2 (7Z72 / 7Z73) SR670 V2 (7Z22 / 7Z23) SR635 (7Y98 / 7Y99) SR655 (7Y00 / 7Z01) SR645 (7D2Y / 7D2X) SR665 (7D2W / 7D2V) SR850 V2 (7D31 / 7D32) SR860 V2 (7Z59 / 7Z60) |
| Product colour | Black, Green, Stainless steel |
| Internal | Yes |
| Component for | Server |
| System requirements | |
| Compatible operating systems | VMware vSphere Hypervisor (ESXi) 6.7 U3 VMware vSphere Hypervisor (ESXi) 7.0 VMware vSphere Hypervisor (ESXi) 7.0 U1 VMware vSphere Hypervisor (ESXi) 7.0 U2 VMware vSphere Hypervisor (ESXi) 7.0 U3 VMware vSphere Hypervisor (ESXi) 8.0 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 167 mm |
| Height | 63 mm |
| Performance | |
| Compatible products | SR635 V3 (7D9H / 7D9G) SR655 V3 (7D9F / 7D9E) SR645 V3 (7D9D / 7D9C) SR665 V3 (7D9B / 7D9A) SR630 V3 (7D72 / 7D73) SR650 V3 (7D75 / 7D76) SR850 V3 (7D97 / 7D96) SR860 V3 (7D94 / 7D93) SR630 V2 (7Z70 / 7Z71) SR650 V2 (7Z72 / 7Z73) SR670 V2 (7Z22 / 7Z23) SR635 (7Y98 / 7Y99) SR655 (7Y00 / 7Z01) SR645 (7D2Y / 7D2X) SR665 (7D2W / 7D2V) SR850 V2 (7D31 / 7D32) SR860 V2 (7Z59 / 7Z60) |
| Other features | |
| Compatible operating systems | VMware vSphere Hypervisor (ESXi) 6.7 U3 VMware vSphere Hypervisor (ESXi) 7.0 VMware vSphere Hypervisor (ESXi) 7.0 U1 VMware vSphere Hypervisor (ESXi) 7.0 U2 VMware vSphere Hypervisor (ESXi) 7.0 U3 VMware vSphere Hypervisor (ESXi) 8.0 |
