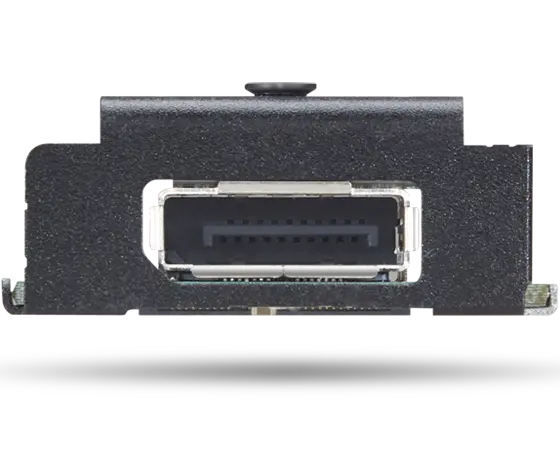

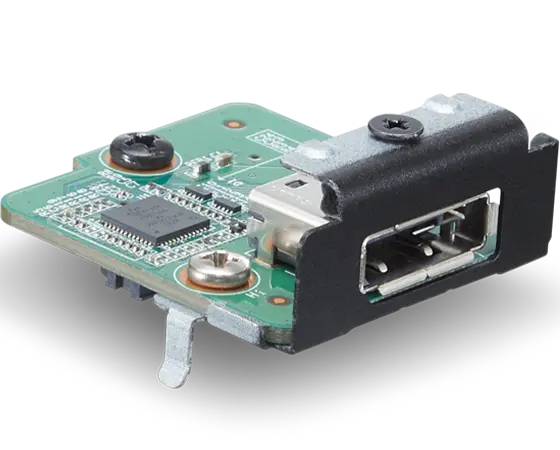

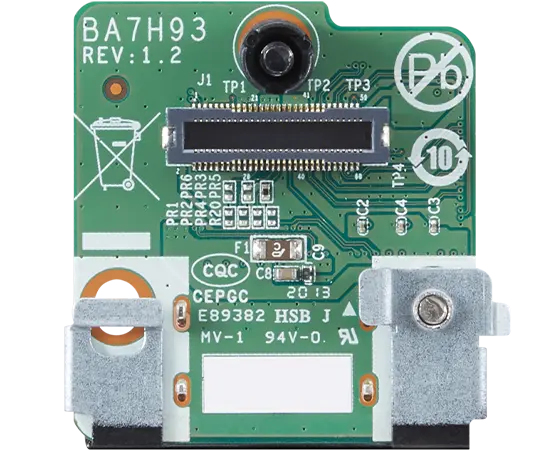

TINY DP EXPANSION CARD BTB CONNECTOR

Introduction

The ThinkCentre Tiny DP Expansion Card with BTB Connector extend DP port for selected PCs through BTB connector.

Specifications

Ports & interfaces
Internal	Yes
Output interface	DisplayPort
Host interface	BTB
Host interface gender	Male
Technical details
Purpose	PC
Compatibility	ThinkCentre Tiny
Performance
Purpose	PC
Product colour	Green
Certificates
Certification	FCC,CE,CB
Colour
Product colour	Green
Design
Purpose	PC
Internal	Yes
Product colour	Green
Certification	FCC,CE,CB
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 90%
System requirements
Windows operating systems supported	Windows 11
Weight & dimensions
Width	39.5 mm
Depth	31.7 mm
Height	1.6 mm
Weight	14.1 g
Package width	132 mm
Package depth	136 mm
Package height	36 mm
Package weight	80 g
Packaging data
Package type	Box
Package width	132 mm
Package depth	136 mm
Package height	36 mm
Package weight	80 g
Other features
Compatibility	ThinkCentre Tiny
Packaging content
Package type	Box
