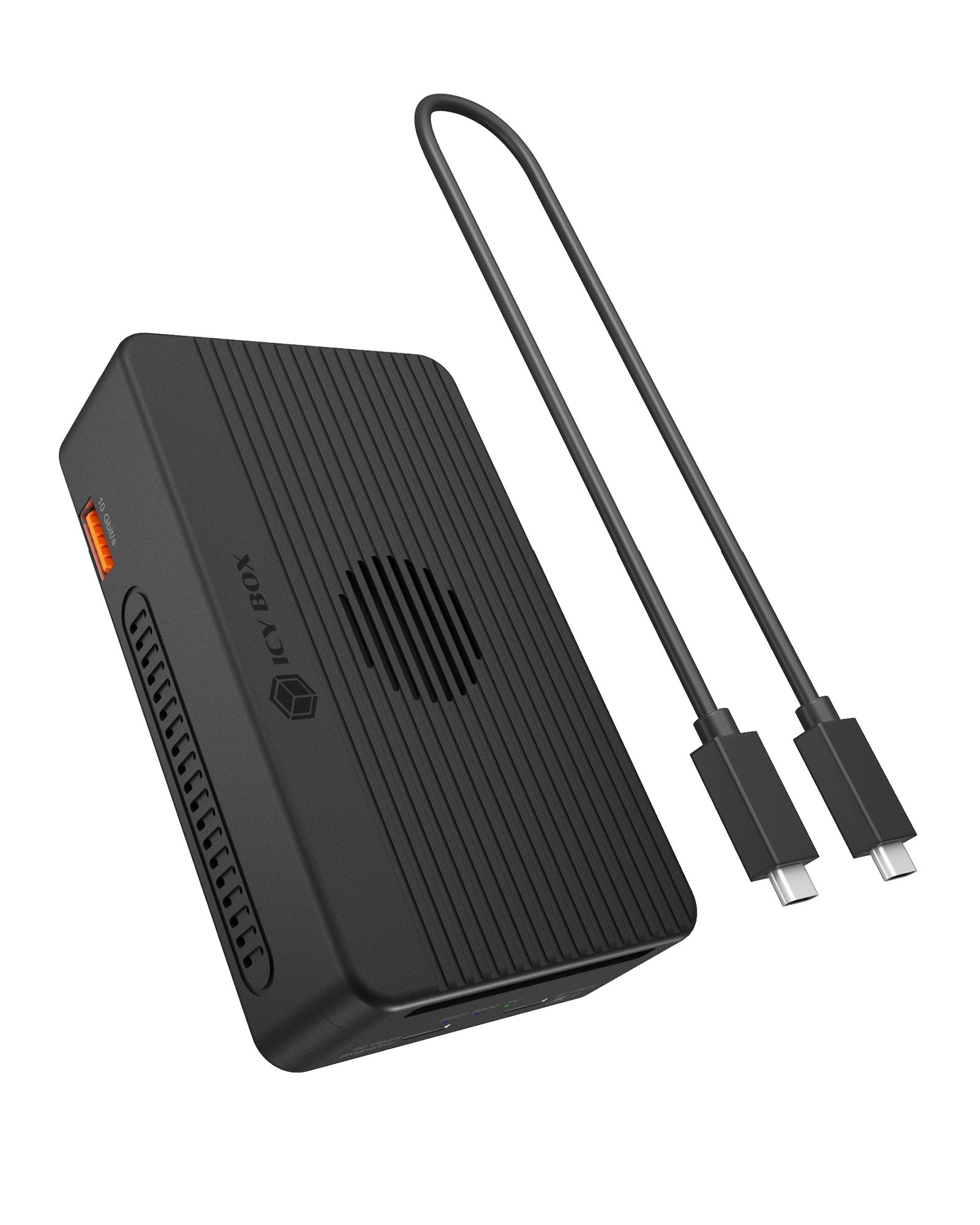

EU Product - - IB-RD2818DK-40G - Heart RAID 2818 - RAID & DockingStation für 2x M.2 NVMe SSD
Introduction
40 Gbps Performance with Thunderbolt™ 3 and USB4®
Heart RAID 2818 delivers the speed professionals expect from modern high performance storage. It connects via USB Type-C® and supports Thunderbolt™ 3 and USB4® with transfer rates up to 40 Gbps. This allows extremely fast data access for demanding workflows such as video editing, large backups, or high resolution projects. When used with compatible systems, it unlocks the full potential of NVMe SSD technology.
Dual M.2 NVMe with Software RAID
This powerhouse of an enclosure supports 2 M.2 NVMe M-Key SSDs in sizes up to 2280. With software RAID functionality, you can configure the drives for higher performance or data redundancy depending on your needs. This gives you flexibility between speed and security. It transforms 2 SSDs into one powerful storage solution.
8K? 8K!
Beyond storage, Heart RAID 2818 also functions as a DockingStation. It supports video output up to 7680 x 4320 at 60 Hz via the USB Type-C® connection and up to 4096 x 2160 at 60 Hz through HDMI®. This allows you to expand your workspace with high resolution displays.
60 W Power Delivery
The host connection provides up to 60 W Power Delivery, allowing you to charge your notebook while connected. A separate USB Type-C® PD input supports up to 100 W power supply to ensure stable operation. This keeps your setup efficient and reduces the need for additional adapters.
Stay connected
A USB 3.2 Gen 2 Type-A port with up to 10 Gbps transfer speed enables connecting additional devices. Instead of using multiple hubs, you gain expanded connectivity directly from the enclosure. It supports a more structured and capable desk setup.
Keep it cool
With so much power at hand, things can get a little hot. A built in fan with a dedicated switch helps maintain optimal operating temperatures during heavy workloads. This supports consistent performance when transferring large amounts of data. LED indicators clearly show power and drive activity status.
Specifications
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Host interface | USB4 |
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 1 |
| Microphone in | No |
| Headphone outputs | 0 |
| Connectivity technology | Wired |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB4 ports quantity | 1 |
| USB 2.0 Type-C ports quantity | 1 |
| Network | |
| Ethernet LAN | No |
| Performance | |
| Maximum digital resolution | 7680 x 4320 pixels |
| Country of origin | China |
| Product colour | Black |
| Card reader integrated | No |
| Plug and Play | Yes |
| LED indicators | Yes |
| Data transfer rate | 40 Gbit/s |
| NVMe | Yes |
| HD type | 8K Ultra HD |
| Housing material | Aluminium |
| Number of storage drives supported | 2 |
| Supported storage drive types | SSD |
| Supported SSD sizes | M.2 |
| Technical details | |
| Product colour | Black |
| Plug and Play | Yes |
| Data transfer rate | 40 Gbit/s |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 235 mm |
| Master (outer) case gross weight | 7.16 kg |
| Master (outer) case length | 445 mm |
| Master (outer) case height | 195 mm |
| Cooling | |
| Built-in fan | Yes |
| Storage | |
| Card reader integrated | No |
| Supported SSD sizes | M.2 |
| Power | |
| Output voltage | 20 V |
| Output current | 5 A |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Indication | |
| LED indicators | Yes |
| Weight & dimensions | |
| Weight | 242 g |
| Width | 110 mm |
| Depth | 54 mm |
| Height | 28 mm |
| Package weight | 680 g |
| Package width | 40 mm |
| Package depth | 210 mm |
| Design | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Country of origin | China |
| Product colour | Black |
| LED indicators | Yes |
| Packaging data | |
| Quantity per pack | 150 pc(s) |
| Package weight | 680 g |
| Package width | 40 mm |
| Package depth | 210 mm |
| Packaging content | |
| Manual | Yes |
| Cables included | USB Type-C to USB Type-C |
| Quantity per pack | 150 pc(s) |
| Logistics data | |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 235 mm |
| Master (outer) case gross weight | 7.16 kg |
| Master (outer) case length | 445 mm |
| Master (outer) case height | 195 mm |
| Other features | |
| Chipset | JHL7440, CH224K, GSV2201E |
