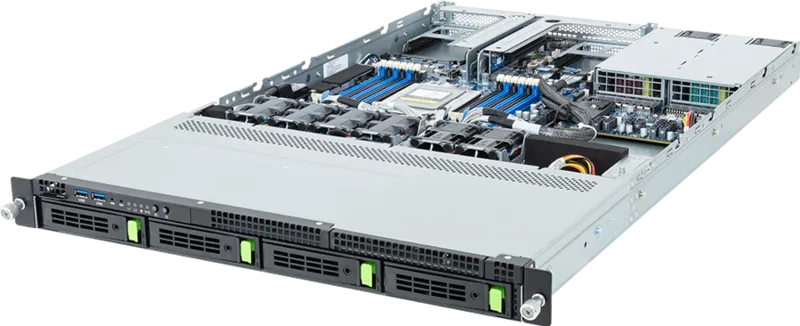

EU Product - Barebone R143-E30-AAG1 - Barebone - AMD EPYC
Introduction
Big Performance | Low Power | Small Footprint
Optimized for edge, telco, and cloud storage environments, the AMD's SP6 (LGA 4844) socket, powering AMD EPYC 8005 and 8004 Server processors, delivers a balance of energy efficiency and cost performance. Built to maximize performance/watt and performance/$, the 8005/8004 CPUs retain core EPYC capabilities, including multithreading, hardware root of trust, and DDR5 memory with ECC support. The latest EPYC 8005 processors further raise the bar with up to 84 cores, 168 threads, and support for 6400 MT/s DDR5, enabling higher compute density in space- and power-constrained deployments.
Purpose-built for modern distributed infrastructure, AMD's SP6 platform excels in remote deployments, software-defined storage (SDS), and decentralized fault tolerance, where workloads must run efficiently at the edge, scale seamlessly across distributed data planes, and remain resilient in the face of node or network disruptions.
Specifications
| Hard drive | |
|---|---|
| Hot-swap HDD bays | Yes |
| Processor | |
| Built-in processor | No |
| Processor socket | Socket SP6 |
| Number of processors supported | 1 |
| Motherboard chipset | AMD SoC |
| Compatible processor series | AMD EPYC 8004, AMD EPYC 8005 Series |
| Design | |
| 80 PLUS certification | 80 PLUS Titanium |
| Reset button | Yes |
| On/off switch | Yes |
| Number of fans | 6 fan(s) |
| Fan diameter | 4 cm |
| LED indicators | LAN, HDD, SSD, Status |
| Heat sink included | Yes |
| Product colour | Black, Steel |
| Chassis type | Rack (1U) |
| Cooling type | Active |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of DIMM slots | 12 |
| Memory channels | Hexa-channel |
| Storage | |
| Number of storage drives supported | 5 |
| Number of 2.5" bays | 4 |
| Supported storage drive interfaces | Serial ATA, PCI Express 3.0, Serial Attached SCSI (SAS)-4 |
| Hot-swap HDD bays | Yes |
| Storage drive sizes supported | 2.5,M.2,3.5 |
| Supported storage drive types | HDD & SSD |
| SSD form factor | M.2 |
| Performance | |
| Trusted Platform Module (TPM) | Yes |
| Backplanes support | Yes |
| Graphics | |
| On-board graphics card model | Aspeed AST2600 |
| Network | |
| LAN controller | Intel® I210-AT |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Mini DisplayPorts quantity | 1 |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Features | |
| Trusted Platform Module (TPM) | Yes |
| Backplanes support | Yes |
| Technical details | |
| Packaging content | 1 x R143-E30-AAG1; 1 x CPU heatsink; 1 x Mini-DP to D-Sub cable; 1 x 2-Section Rail kit |
| Number of storage drives supported | 5 |
| Number of 2.5" bays | 4 |
| Reset button | Yes |
| On/off switch | Yes |
| Number of fans | 6 fan(s) |
| Fan diameter | 4 cm |
| Trusted Platform Module (TPM) | Yes |
| Heat sink included | Yes |
| Chassis type | Rack (1U) |
| Backplanes support | Yes |
| Colour | |
| Product colour | Black, Steel |
| Indication | |
| LED indicators | LAN, HDD, SSD, Status |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 5 - 11 A |
| DC output current (+12 V) | 70.8 A |
| Number of redundant power supplies installed | 2 |
| Number of redundant power supplies supported | 2 |
| Number of main power supplies | 2 |
| Redundant power supply (RPS) support | Yes |
| Power supply | 850 W |
| 80 PLUS certification | 80 PLUS Titanium |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 20 - 95% |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Weight & dimensions | |
| Width | 438 mm |
| Weight | 21.2 kg |
| Height | 43.5 mm |
| Depth | 710 mm |
| Package weight | 23.3 kg |
| Package width | 982 mm |
| Package depth | 594 mm |
| Package height | 250 mm |
| Packaging data | |
| Packaging content | 1 x R143-E30-AAG1; 1 x CPU heatsink; 1 x Mini-DP to D-Sub cable; 1 x 2-Section Rail kit |
| Package weight | 23.3 kg |
| Package width | 982 mm |
| Package depth | 594 mm |
| Package height | 250 mm |
| Other features | |
| Reset button | Yes |
