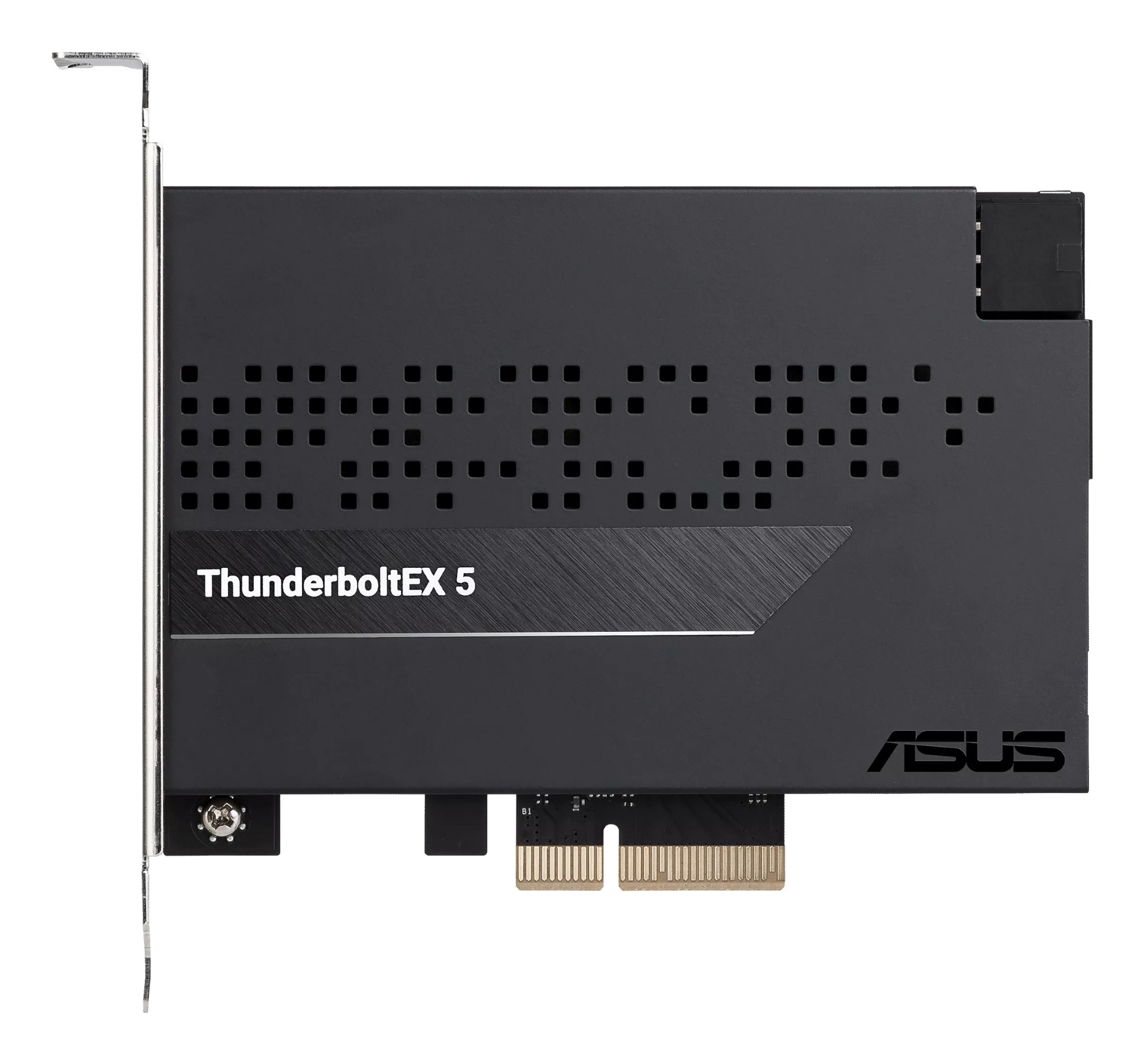

THUNDERBOLT EX5
Introduction
ASUS ThunderboltEX 5 Expansion Card : Dual Thunderbolt™ 5 USB-C ports, DisplayPort™ 2.1, PCIe 4.0 x4 Interface
Experience Lightning-Fast Speed and Versatile Connectivity
The ASUS ThunderboltEX 5 card offers up to 120 Gbps of Thunderbolt™ 5 bandwidth, support for DisplayPort™ 2.1 with a compatible GPU, USB4® compatibility, plus support for up to five Thunderbolt™ devices in a daisy-chain and up to 130 total watts of fast charging.
Seamless Dual-PC Sharing with Thunderbolt™ Share
Experience a revolutionary way to interact with two PCs using Thunderbolt™ Share—the ultrafast connectivity solution that transforms your dual-PC setup. Seamlessly share screens, keyboards, mice, storage and files between two computers, with the unparalleled speed of Thunderbolt™ technology.
*A certified Thunderbolt™ or USB4® cable is required to meet minimum bandwidth requirements. Cable not included.
One Cable, Multiple Devices
Simplify your setup by daisy-chaining multiple Thunderbolt™ devices to one Thunderbolt™ 5 port.
Optimized for Blistering Data Transfer Speeds
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | Mini DisplayPort, PCIe, USB 2.0, Thunderbolt 5 |
| Host interface | PCIe |
| Expansion card standard | PCIe 4.0 |
| Technical details | |
| Chipset | Intel JHL9580 Thunderbolt 5 Controller |
| Purpose | PC |
| Data transfer rate (max) | 120 Gbit/s |
| Quantity per pack | 1 pc(s) |
| Performance | |
| Chipset | Intel JHL9580 Thunderbolt 5 Controller |
| Purpose | PC |
| Data transfer rate (max) | 120 Gbit/s |
| Product colour | Multicolour |
| Colour | |
| Product colour | Multicolour |
| Design | |
| Purpose | PC |
| Internal | Yes |
| Product colour | Multicolour |
| Features | |
| Chipset | Intel JHL9580 Thunderbolt 5 Controller |
| Data transfer rate (max) | 120 Gbit/s |
| System requirements | |
| Windows operating systems supported | Windows 11 x64 |
| Weight & dimensions | |
| Width | 88.9 mm |
| Depth | 119.5 mm |
| Packaging data | |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Maximum resolution | 7680 x 4320 pixels |
| Chipset | Intel JHL9580 Thunderbolt 5 Controller |
| Packaging content | |
| Package type | Box |
