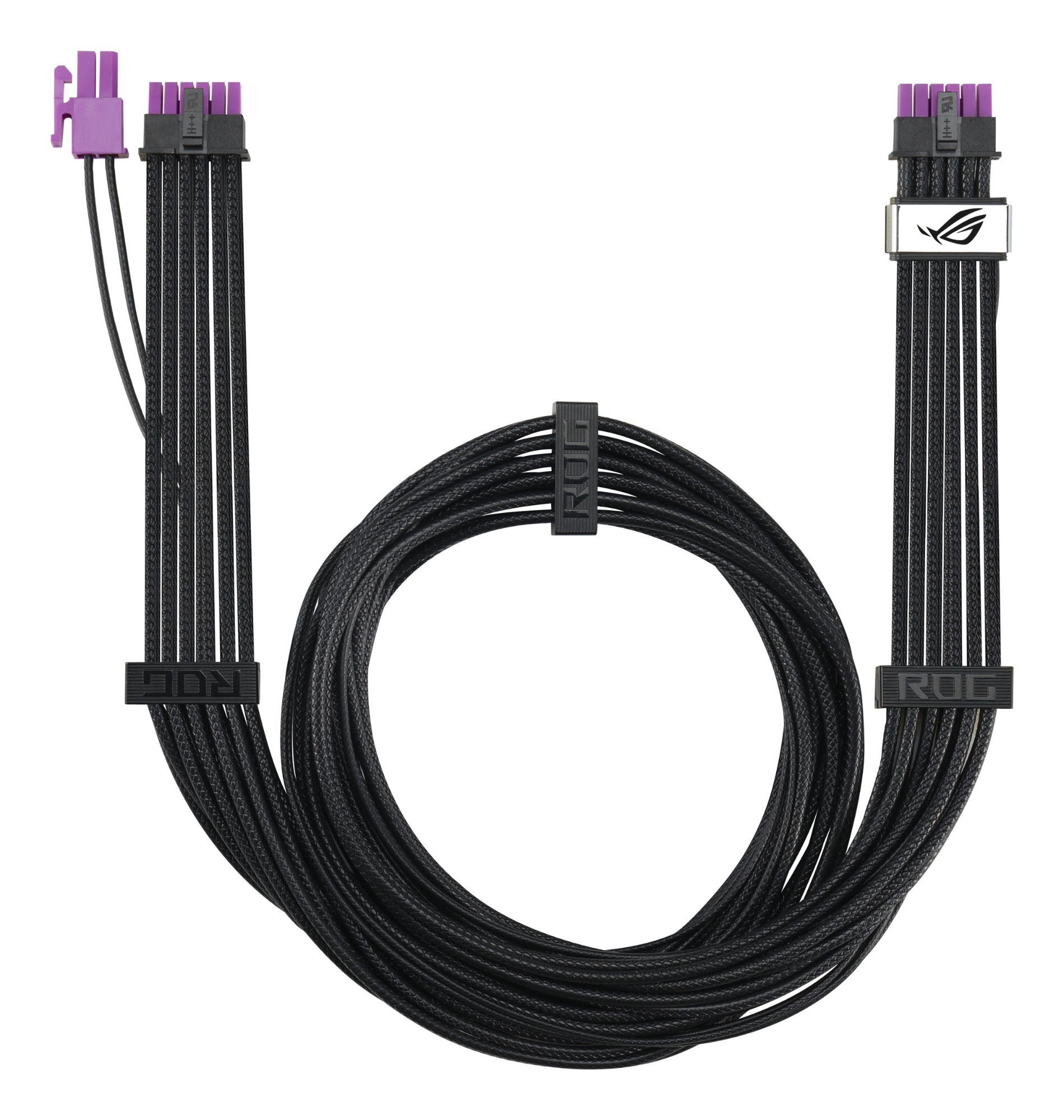

ASUS ROG EQUALIZER
Introduction
Balanced Power Delivery
ROG Equalizer ensures balanced current delivery from PSU to ROG Equalizer, lowering graphics card connector temperatures and maintaining stable thermal performance below the 105°C material limit.
Under an extreme test scenario, we removed the middle 4 wires from the +12V cable to simulate potential current imbalance conditions that may occur with a standard 12V-2x6 PCIe cable. Even under these conditions, the ROG Equalizer maintained a temperature of approximately 73.4°C. In contrast, a standard 12V-2x6 PCIe cable reached around 146°C—far exceeding safe operating limits.
Specifications
| Features | |
|---|---|
| Connector 1 | PCI-E (16-pin) |
| Connector 2 | PCI-E x16 (Gen 4.0) |
| Cable length | 0.75 m |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| Product colour | Black |
| Purpose | Power supply unit (PSU) |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Package type | Box |
| Weight & dimensions | |
| Weight | 200 g |
| Package width | 254 mm |
| Package depth | 56 mm |
| Package height | 36 mm |
| Package weight | 260 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 254 mm |
| Package depth | 56 mm |
| Package height | 36 mm |
| Package weight | 260 g |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
