CABLE MANAGEMENT BRUSH PANEL
Introduction
Organize cables while keeping dust out of the rack with a brush-style cable manager

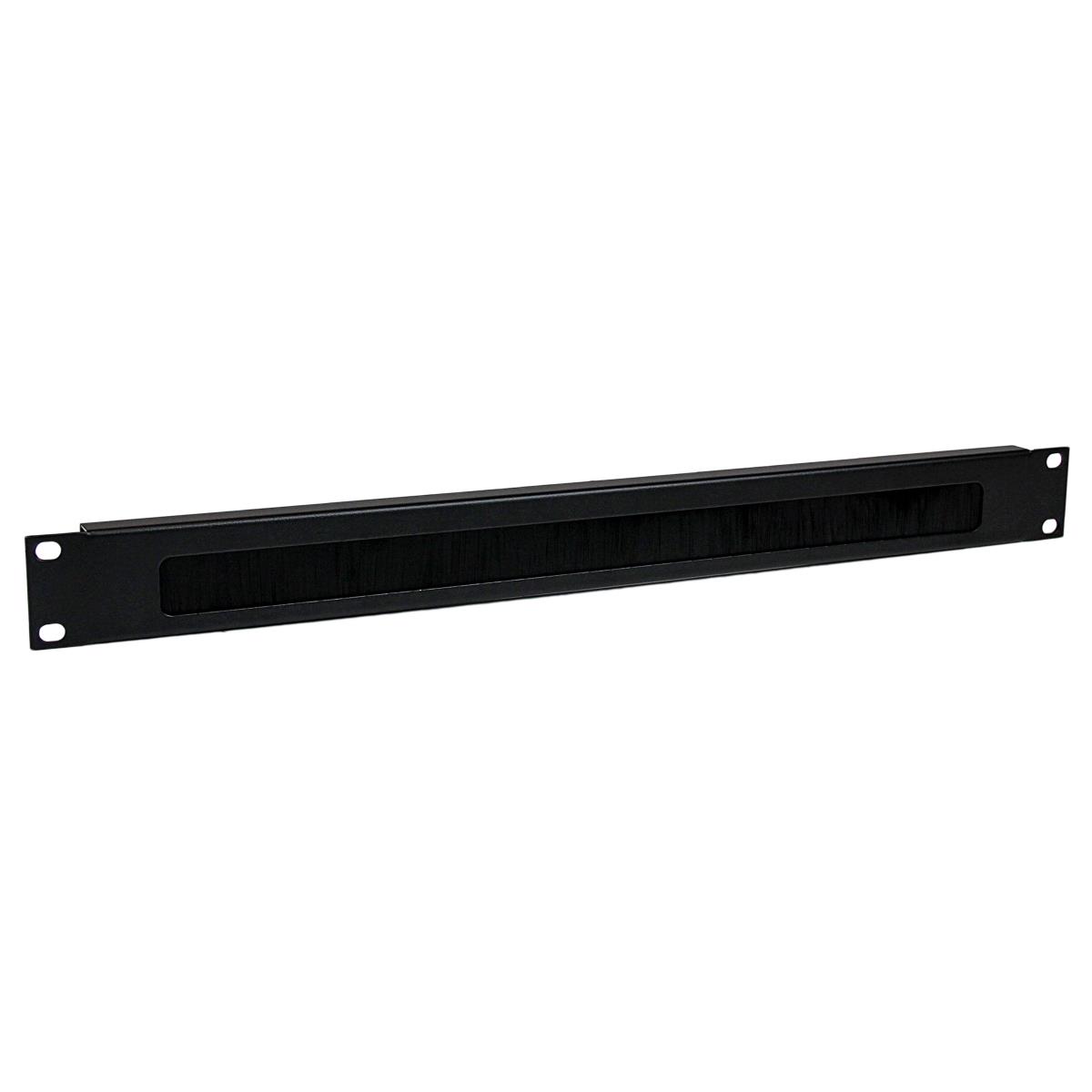

The CMBRUSH1U Brush Strip Cable Management Panel mounts to a standard 19" 2 or 4-post rack to organize cables while keeping dust and dirt out of the rack.
Constructed of high-quality steel with high-density nylon bristles, the 1U brush plate creates a clean looking point of entry and offers cable separation for simple cable organization. The brush panel also promotes proper airflow through the rack by closing off open spaces between equipment.

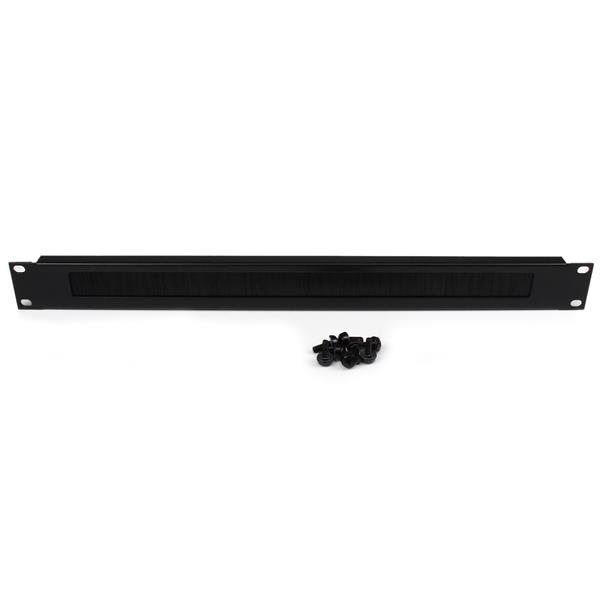

For easy installation, this cable organizer comes complete with 2 sets of rack screws (10/32 and 12/24).
Specifications
| Features | |
|---|---|
| Certification | CE, TAA, REACH |
| Type | Cable management panel |
| Rack capacity | 1U |
| Product colour | Black |
| Compliance industry standards | EIA RS310-D |
| Harmonized System (HS) code | 85389099 |
| Housing material | Steel |
| Weight & dimensions | |
| Package width | 500 mm |
| Package height | 28 mm |
| Package depth | 57 mm |
| Package weight | 506.4 g |
| Material thickness | 1.2 mm |

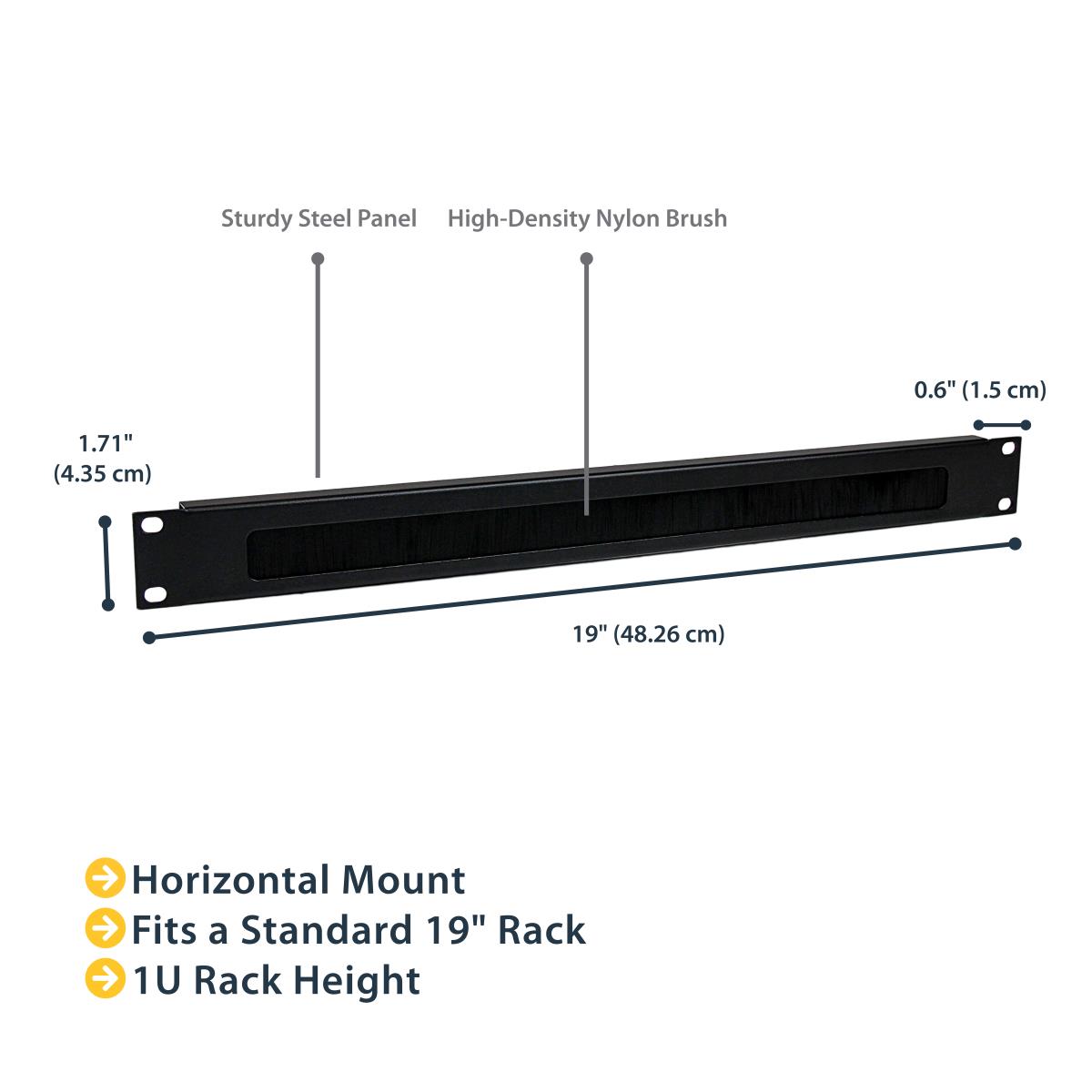

| Width | 485 mm |
| Weight | 421.2 g |
| Height | 44 mm |
| Depth | 20.2 mm |
| Packaging data | |
| Package width | 500 mm |
| Package height | 28 mm |
| Package depth | 57 mm |
| Package weight | 506.4 g |

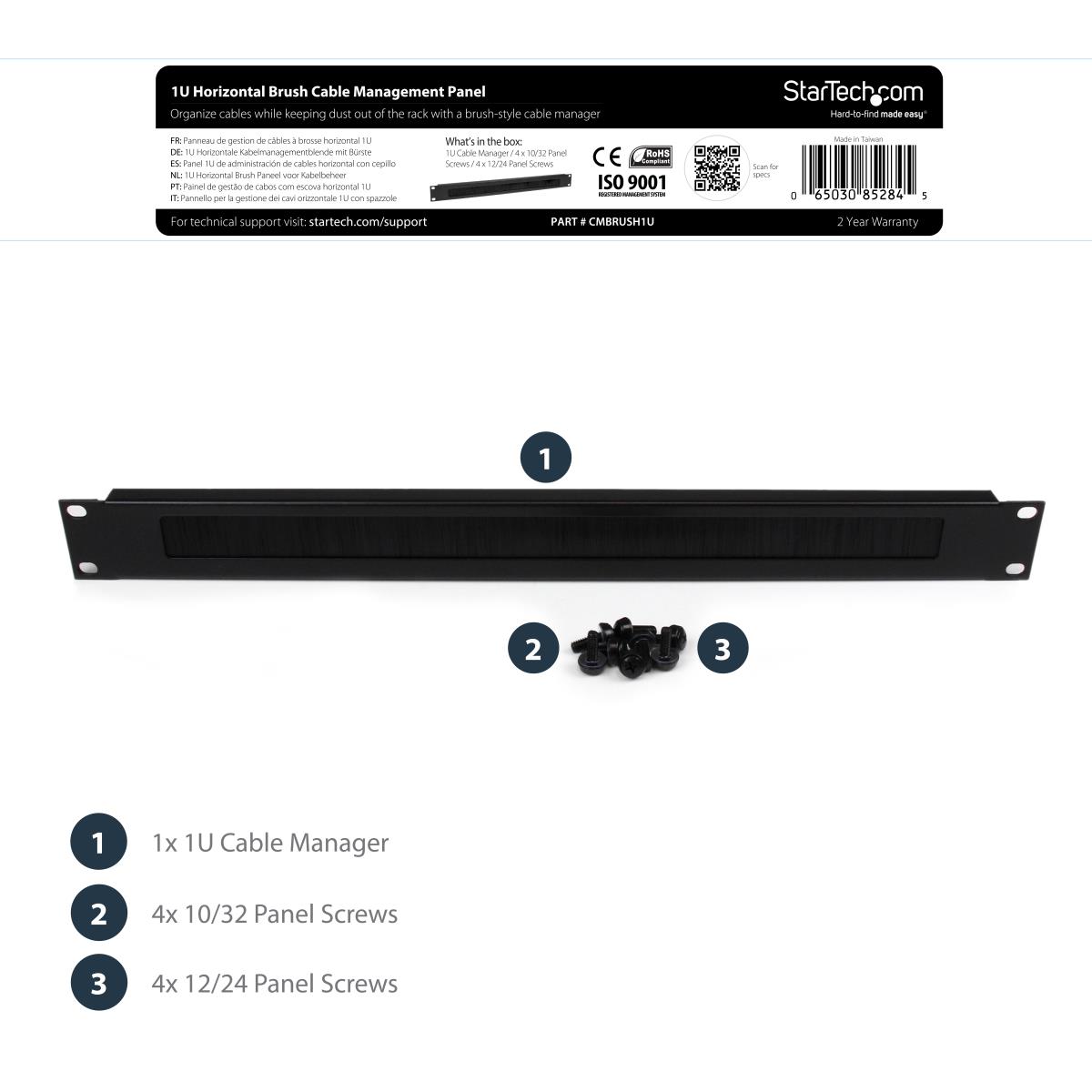

| Packaging content | |
| Screws included | Yes |
| Number of screws | 8 |
| Technical details | |
| Type | Cable management panel |
| Rack capacity | 1U |
| Compliance certificates | RoHS |
| Colour | |
| Product colour | Black |
| Logistics data | |
| Master (outer) case width | 517 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 181 mm |
| Products per master (outer) case | 30 pc(s) |
| Harmonized System (HS) code | 85389099 |
